X-BULL Winch Recovery Kit with Recovery Tracks Boards Gen 3.0 Mounting Pins Snatch Strap Off Road 4WD

Roof rack space is the reason most people leave the recovery boards at home. They are long, awkward, and there is never a clean way to strap them down that survives a corrugated track. This kit ships with the mounting pins in the box, so the boards ride up top and the rest of the gear stays in the tote.

Boards that mount, not boards that rattle

The four-pin set clamps a pair of X-BULL tracks to a roof rack or base, with eight iron nuts and eight flat washers making up the stack. Fitting is unglamorous: nuts and boards onto the rack, black plastic plate over the top, tighten down. X-BULL has since added an anti-rust coating to the hardware, which makes the pins noticeably darker than the ones in the product photographs — same part, different finish. The Gen 3.0 tracks are the longer of the two X-BULL profiles, with a rivet design the supplier describes as more wear-resistant over the life of the board.

The pulling gear that comes with it

Beyond the boards, the kit covers the winch-assisted side of a recovery. There is a 9 m tow strap, two 4.75 tonne forged shackles, an 8-ton snatch block for redirecting a line or splitting the pull across two runs, and a damper to lie over the line. A folding shovel, a tyre deflator and two board leashes handle the preparation, while a shackle hitch receiver and a trailer hitch lock cover the towing hardware. The tote is new to this version and swallows the lot, which matters when the alternative is a dozen loose items rolling around a canopy.

Key features

• Mounting hardware included: four pins, eight nuts and eight flat washers, enough to secure two tracks to a rack.
• Gen 3.0 tracks: the longer X-BULL board, with the rivet pattern the supplier rates for wear over the board's life.
• Anti-rust coated pins: an upgrade on the earlier hardware, and the reason the pins look darker than the photos.
• Snatch block and shackles: an 8-ton block and two 4.75 tonne forged shackles for winch work.
• Tote bag: added to this version, so the whole kit moves as one item.
• Four colourways: standard, olive, red or green.

Specifications

• Recovery tracks: 2 x X-BULL Gen 3.0
• Track load figure: 10 tonnes on flat ground (supplier stated; basis not specified)
• Mounting hardware: 4 pins, 8 iron nuts, 8 flat iron washers — secures 2 tracks
• Pin finish: anti-rust coating, darker than product images
• Tow strap: 9 m, supplied with D-ring shackles
• Shackles: 2 x 4.75 tonne, forged steel (supplier stated; basis not specified)
• Snatch block: 8 ton (supplier stated; basis not specified)
• Carton size: 110 x 36 x 13 cm
• Colours available: Standard, Olive, Red, Green

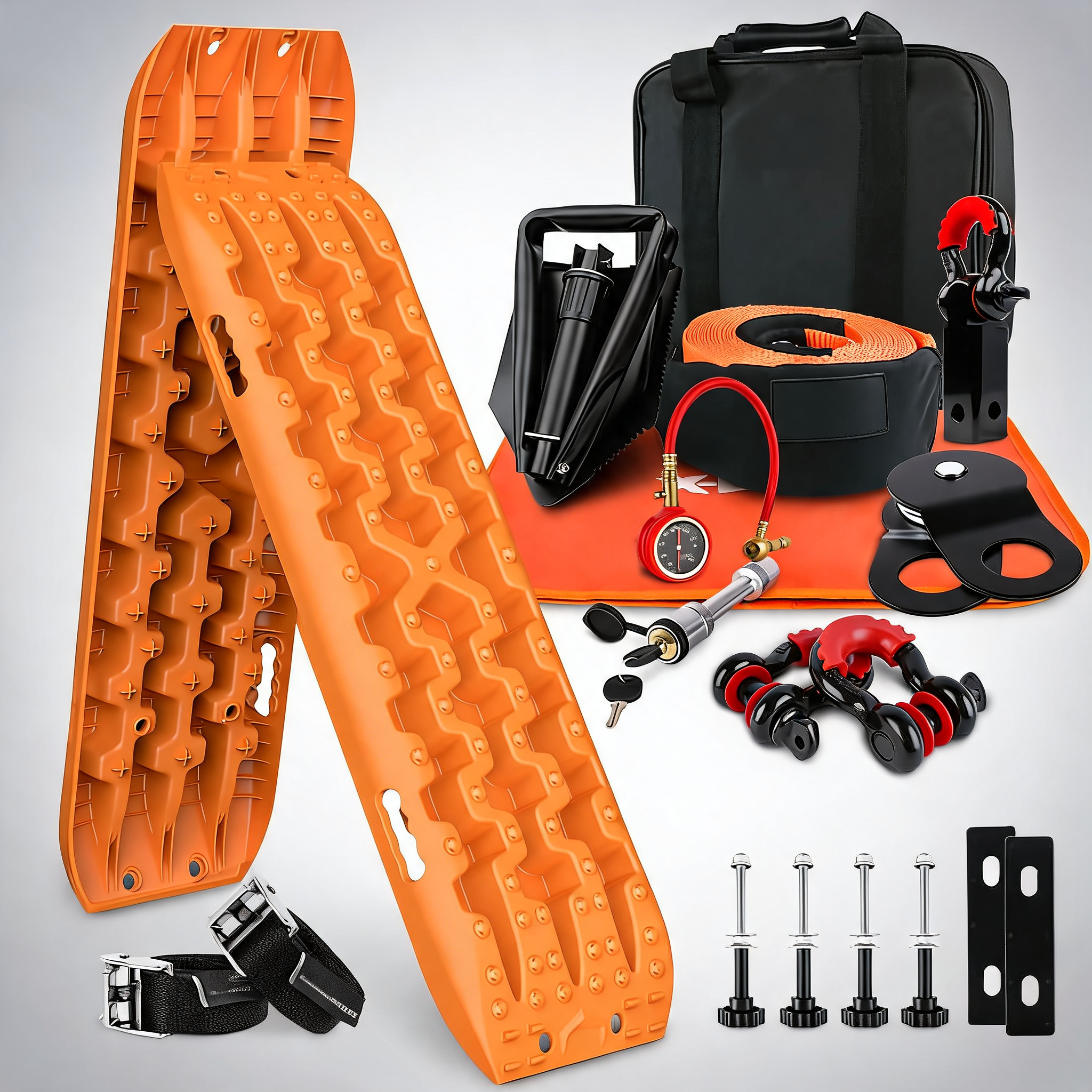

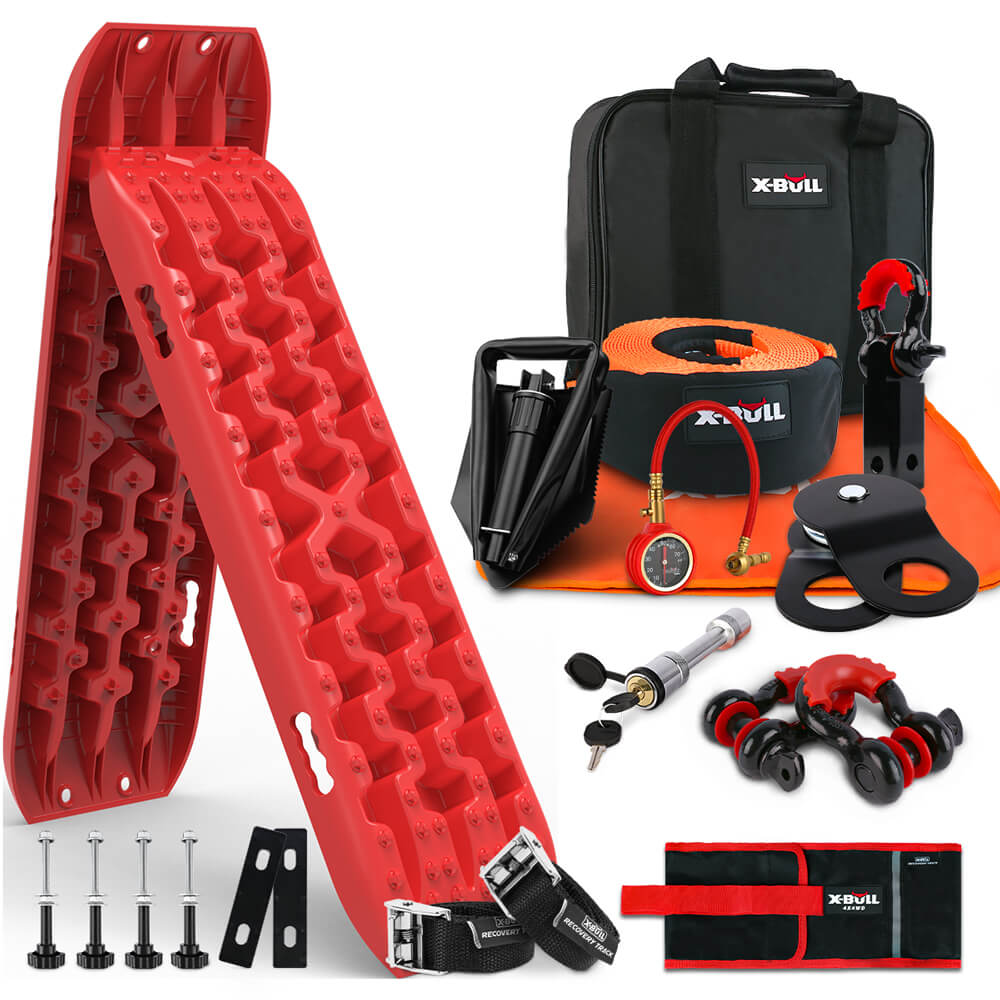

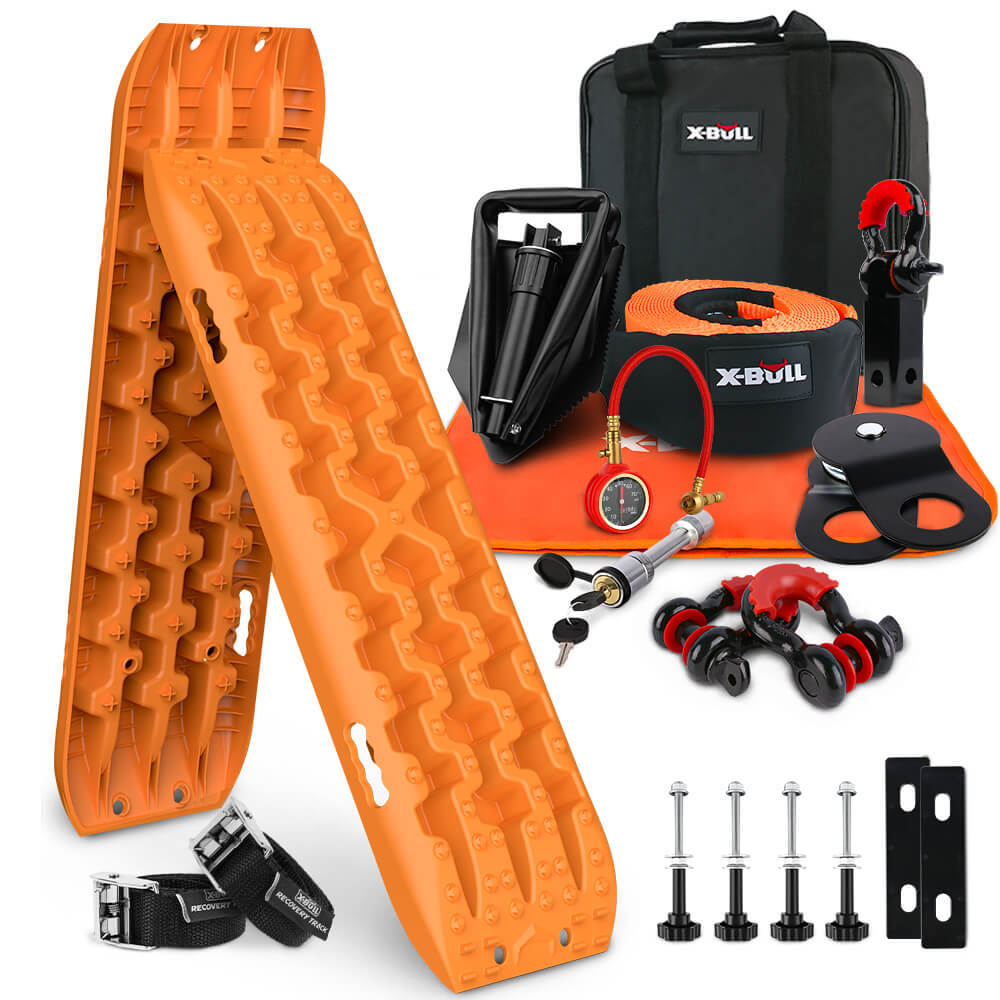

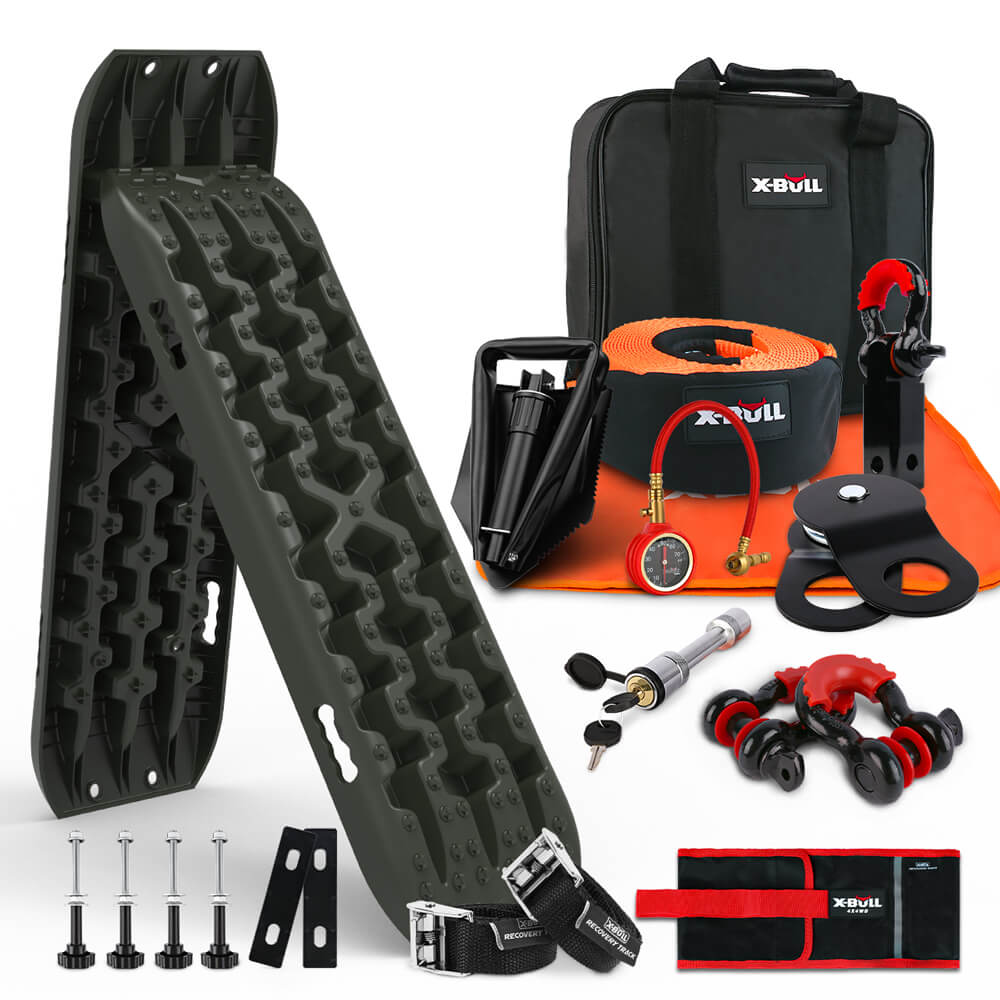

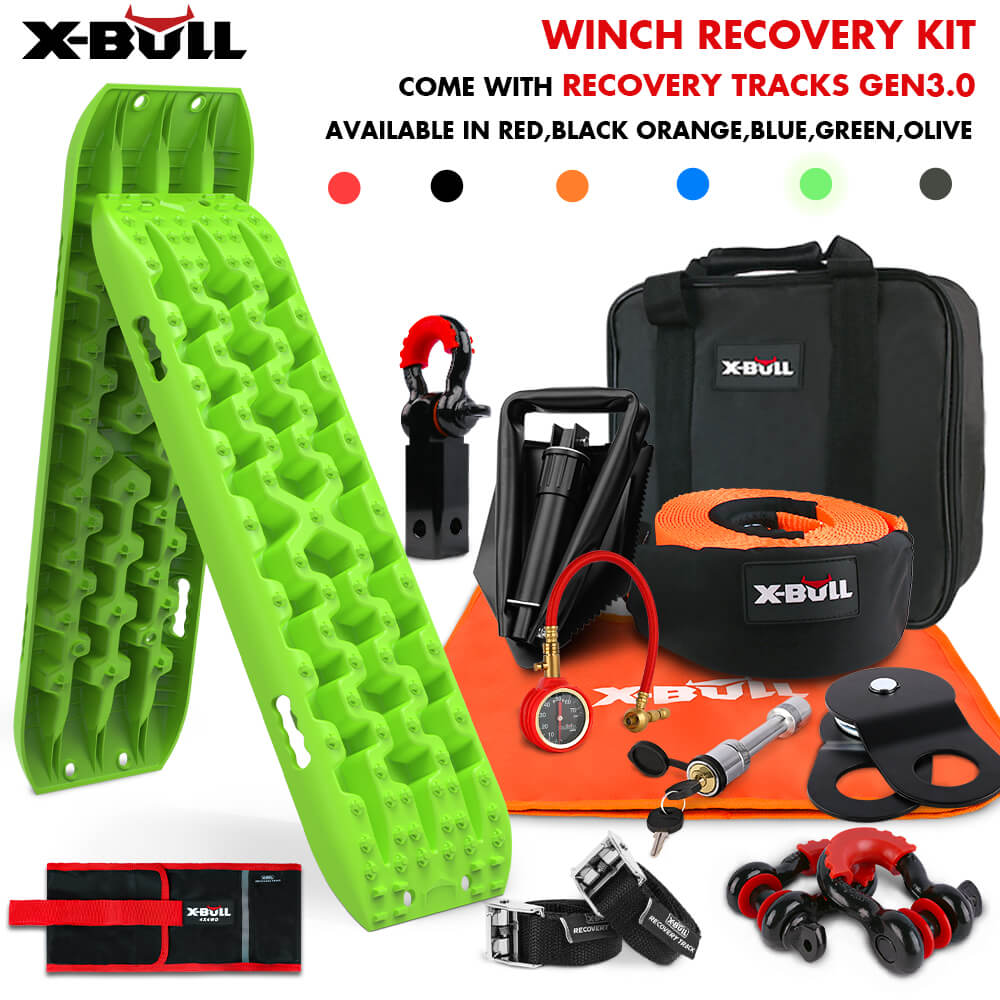

What's in the box

• 2 x Gen 3.0 recovery tracks
• 4 x mounting pins, 8 x nuts, 8 x flat washers
• 1 x 9 m tow strap
• 2 x 4.75 tonne shackles
• 1 x 8-ton snatch block
• 1 x recovery damper
• 1 x folding survival shovel
• 1 x shackle hitch receiver
• 1 x trailer hitch lock
• 1 x tyre deflator
• 2 x leashes
• 1 x durable bag and 1 x tote

Working safely with straps and shackles

• Check every component before it takes load, and pull damaged gear out of service — a cut strap or a stretched shackle does not get a second chance.
• Put the damper on the line first. Everyone not driving should be well outside the arc the line would sweep if it broke.
• Use rated recovery points only. Do not attach to a tow ball, a tow bar tongue, a bumper bar or any bracket that is not rated for recovery. The shackle hitch receiver supplied here is towing hardware, and the recovery rating of your tow bar is a matter for its manufacturer.
• Two straps must never be joined with a shackle.
• The supplier gives no basis for the 4.75 tonne, 8-ton or 10 tonne figures, so none of them can be read as a working load limit. Plan the recovery around the weakest rated item in the chain.
• This listing's title says snatch strap; the supplier's own contents list says tow strap. They are not the same tool under load, so confirm which one is in the bag before you use it.

The pins are the reason to choose this version over the plain kit — boards on the roof, everything else in the tote.
