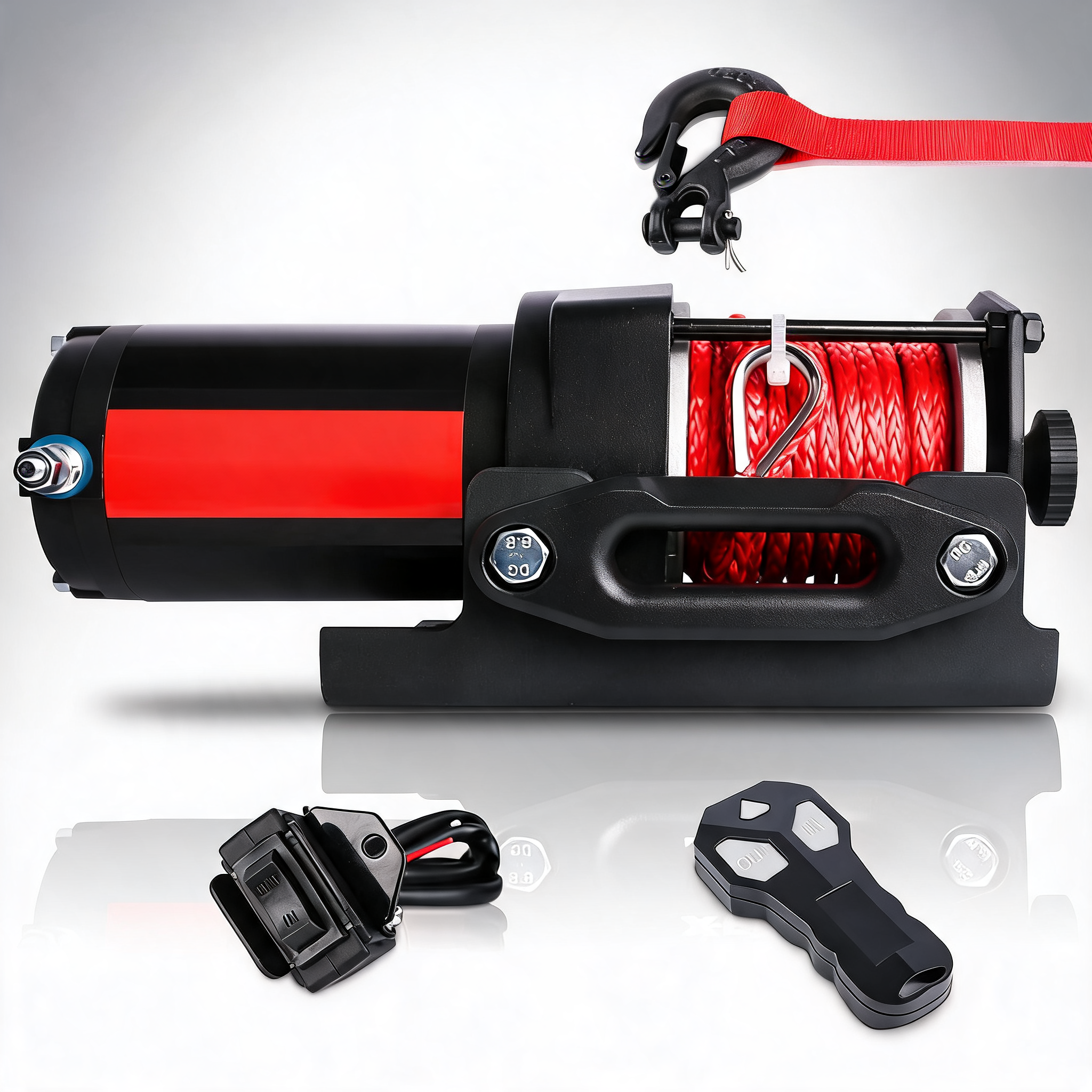

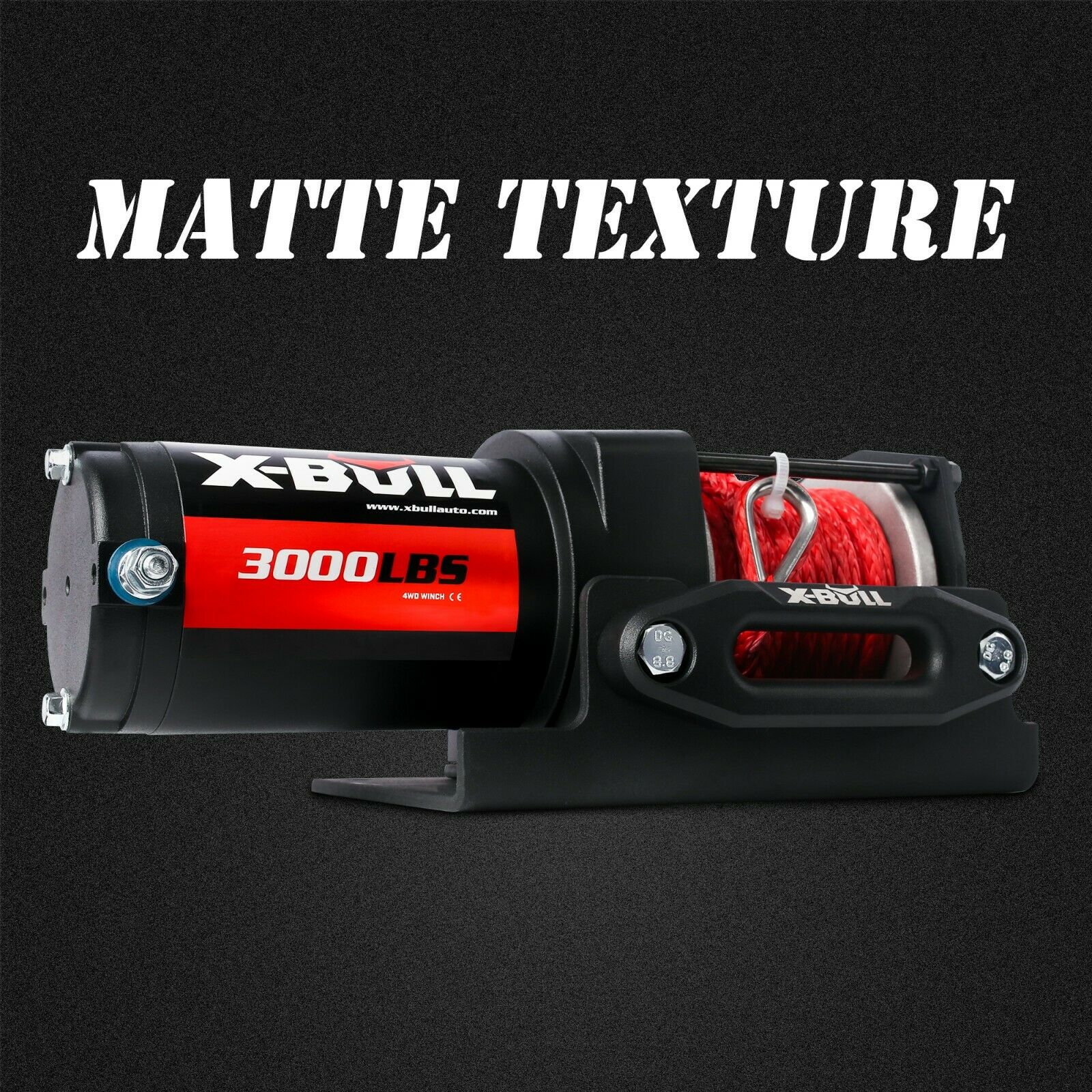

X-BULL Electric Winch 12V Wireless 3000lbs/1360kg Synthetic Rope BOAT ATV 4WD

Not every recovery calls for a big winch. Pulling a dinghy onto a trailer, dragging a quad out of a creek bed or hauling firewood up a bank are jobs for something small enough to sit on a handlebar bracket without upsetting the balance of the machine. The X-BULL 3000 lb is built to that scale.

Rated at 3000 lb on a single line

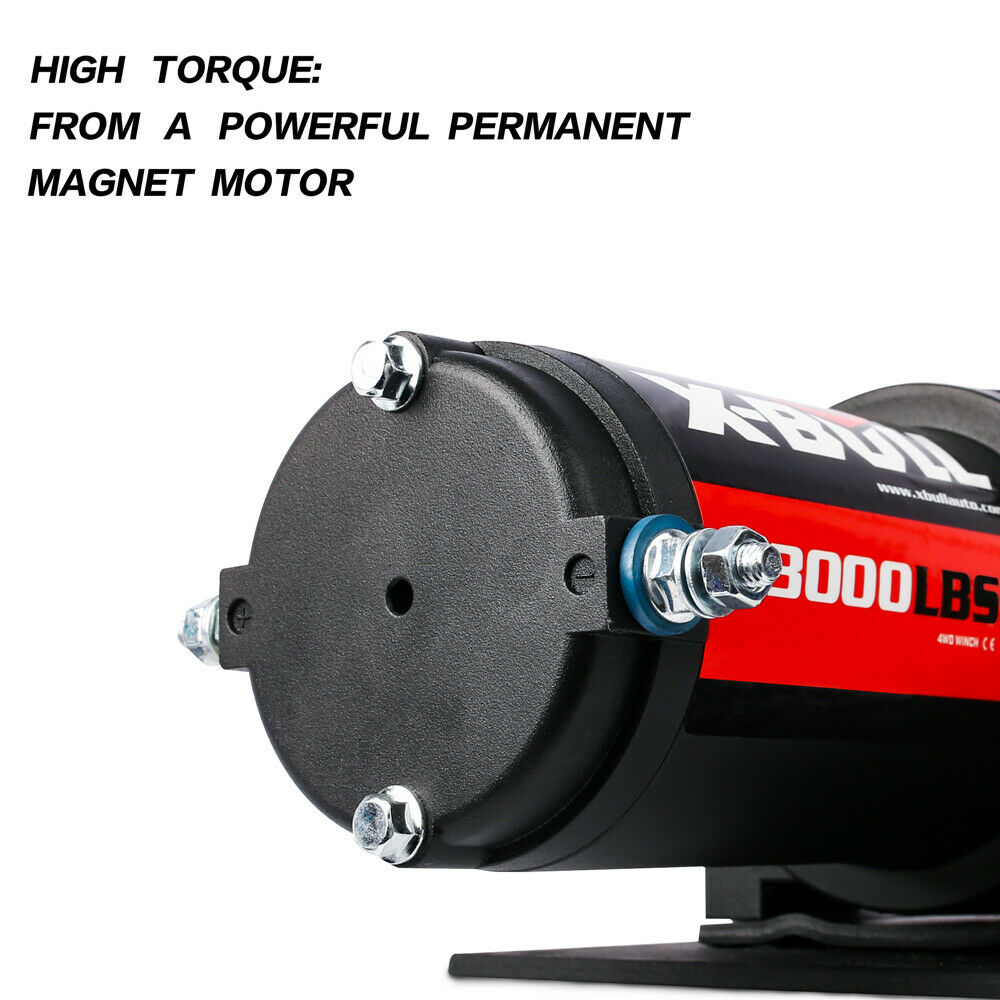

X-BULL publishes the rating as 3000 lb (1360 kg) rated single line pull, and the basis matters as much as the number. That is the pull with the rope running straight off the drum, not doubled through a block. Behind it sits a 12 V DC 1.5 hp permanent-magnet motor working through a three-stage planetary reduction, which splits the effort across three sets of gears so no single set carries the whole load during a slow, grinding pull. Holding is done by an automatic load-holding mechanical brake, so the drum locks instead of paying out when the switch is released.

Two lead lengths, for two ways of working

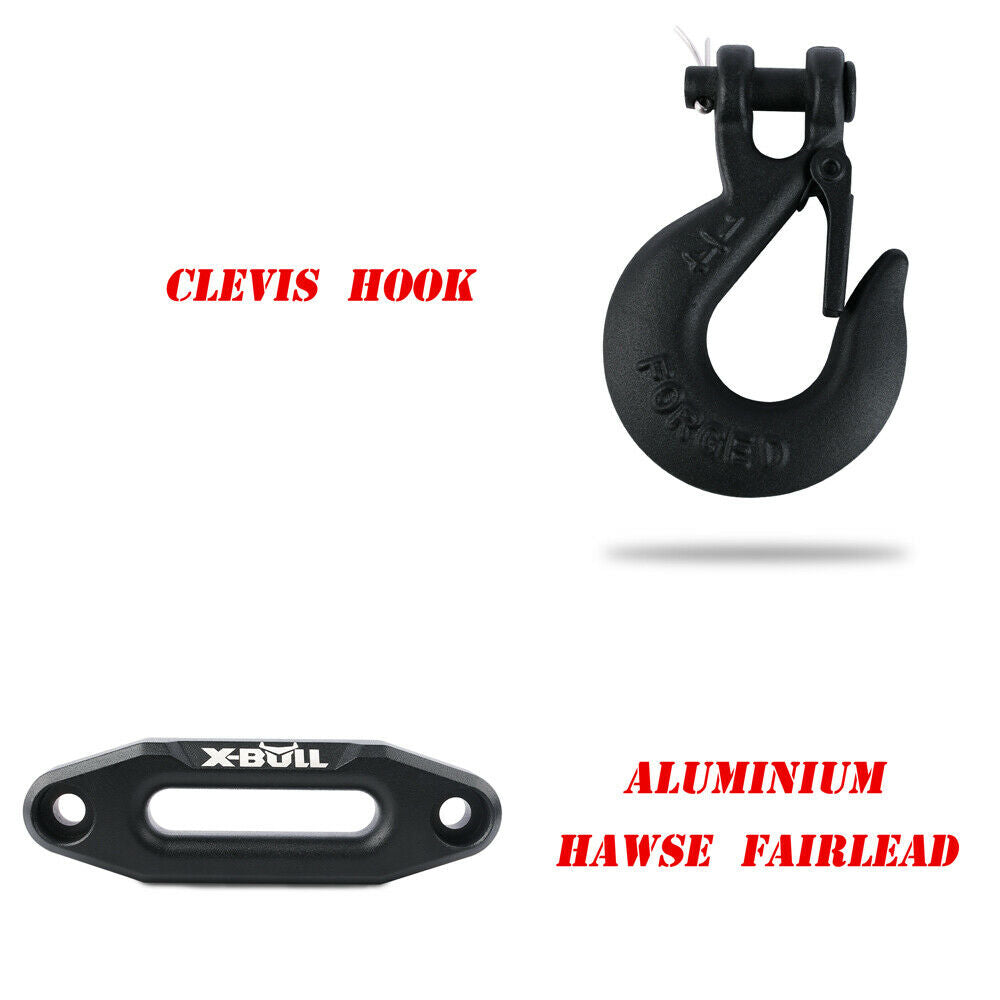

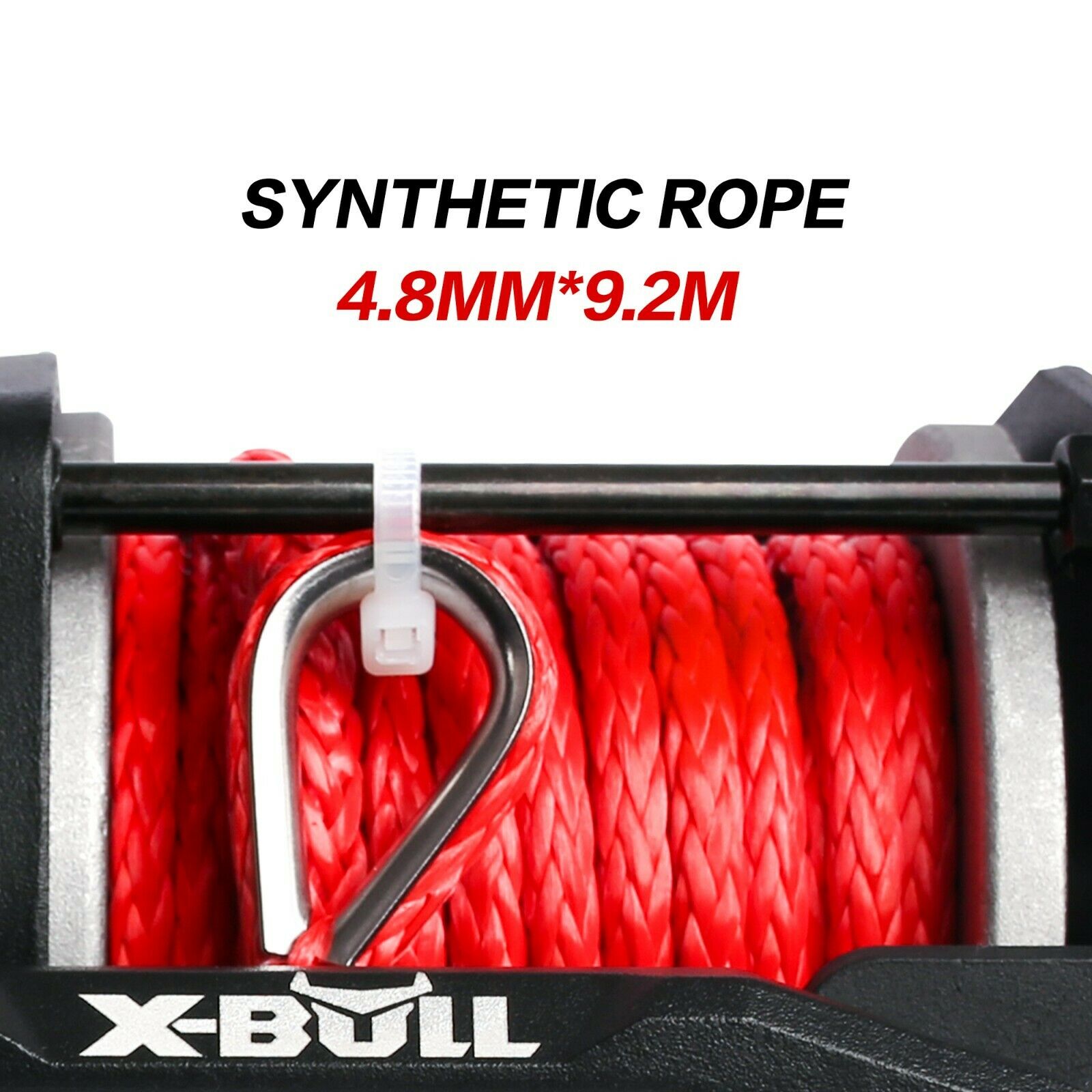

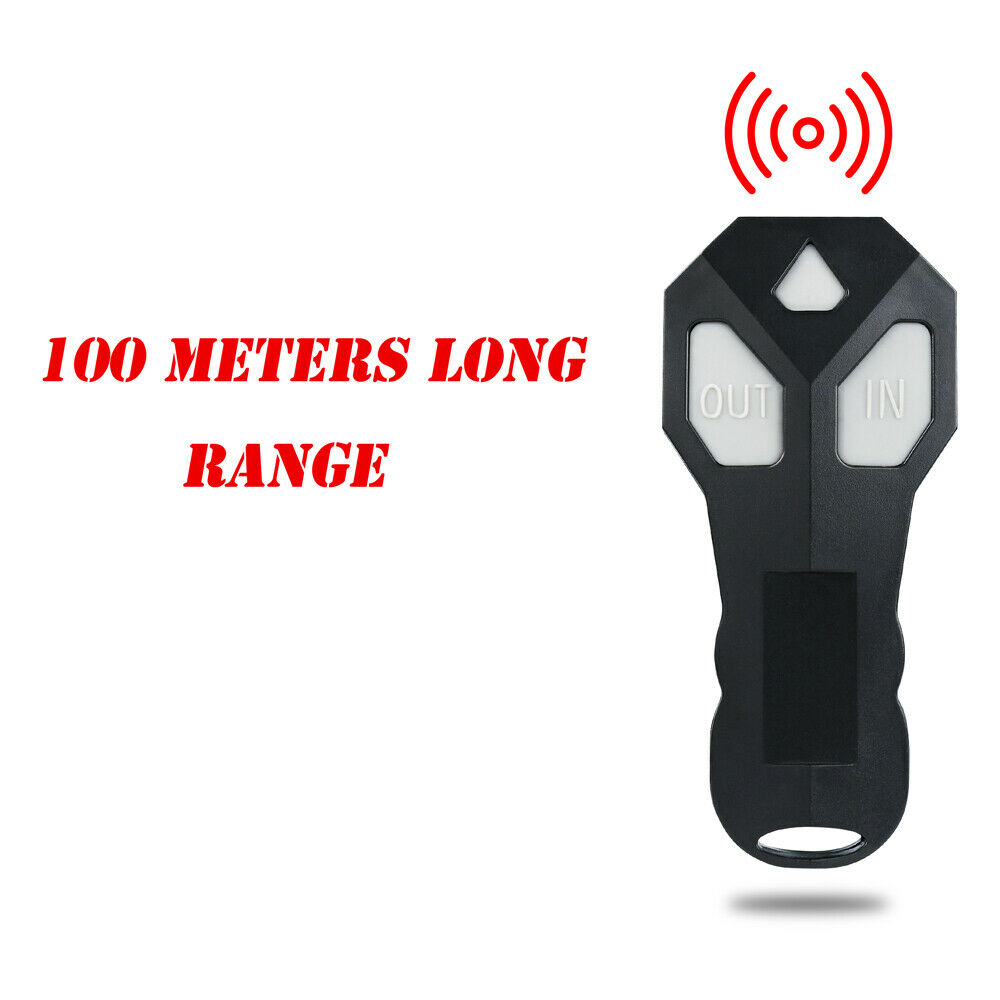

Control is wired twice over, and the lengths tell you what each is for. The pendant controller runs on a 3.7 m (12 ft) lead, enough to stand off to the side of a loaded rope and still watch the drum. The handlebar controller uses a shorter 2.4 m (8 ft) lead so it can be mounted within reach of a rider. A wireless remote is included as well. Rope is 5.4 mm synthetic, 9.2 m of it, ending in a quarter-inch clevis hook with a safety clip and a marker tab that shows at a glance how much line is left.

Key features

• Rated single line pull 3000 lb (1360 kg): stated by X-BULL as a single-line figure.
• Automatic load-holding brake: mechanical, holds the drum the moment you stop.
• Three control options: 3.7 m pendant, 2.4 m handlebar lead and a wireless remote.
• 5.4 mm synthetic rope: 9.2 m, light in the hand and simple to re-spool.
• Three-stage planetary gearing: reduction shared across three gear sets.
• Aluminium hawse supplied: the fairlead type normally used with synthetic rope.

Specifications

• Rated single line pull: 3000 lb (1360 kg)
• Motor: 12 V DC 1.5 hp permanent magnet
• Gear train: 3-stage planetary
• Brake: automatic load-holding mechanical
• Synthetic rope: 5.4 mm x 9.2 m
• Pendant controller: wired, 12 ft (3.7 m) long
• Handlebar controller: wired, 8 ft (2.4 m) long
• Hook: 1/4" clevis
• Duty cycle rating: 5% (45 sec at max rated load: 14 min, 15 sec rest)
• Application: ATV / UTV / boat
• Winch certification (supplier's stated marking): CE

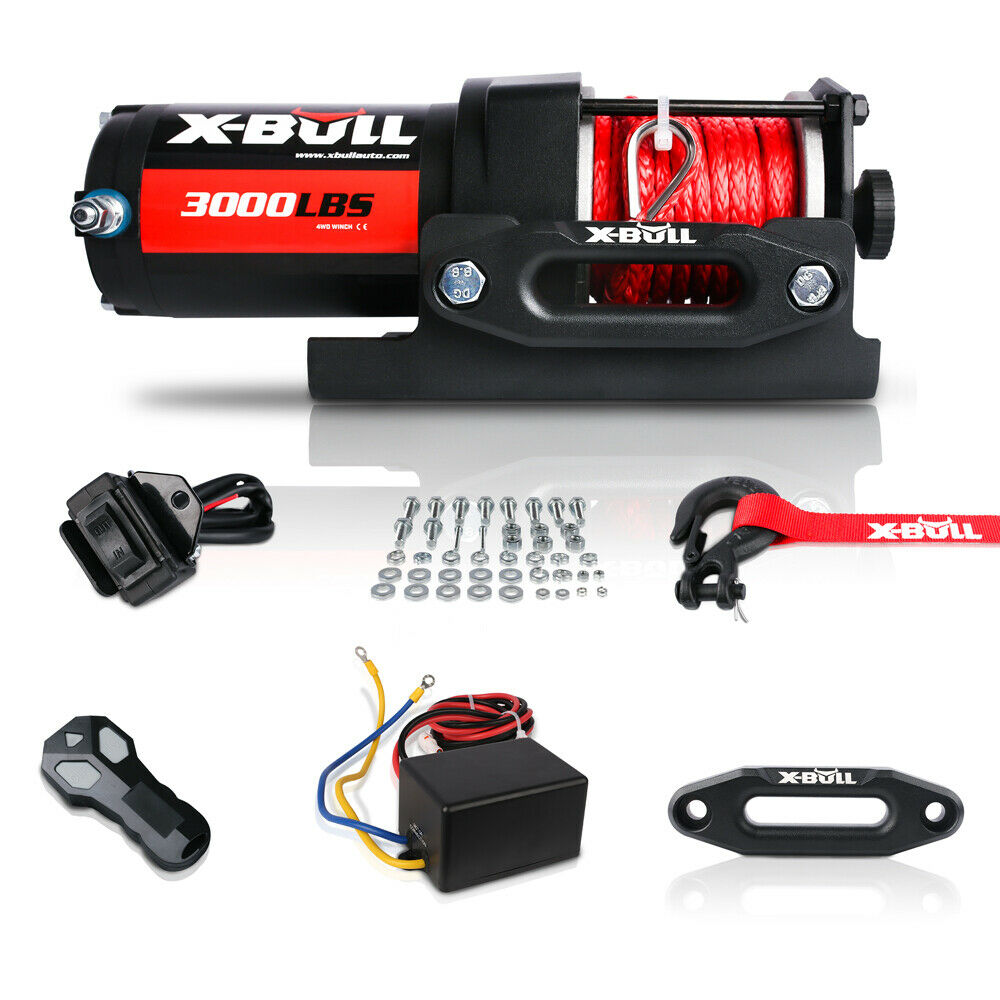

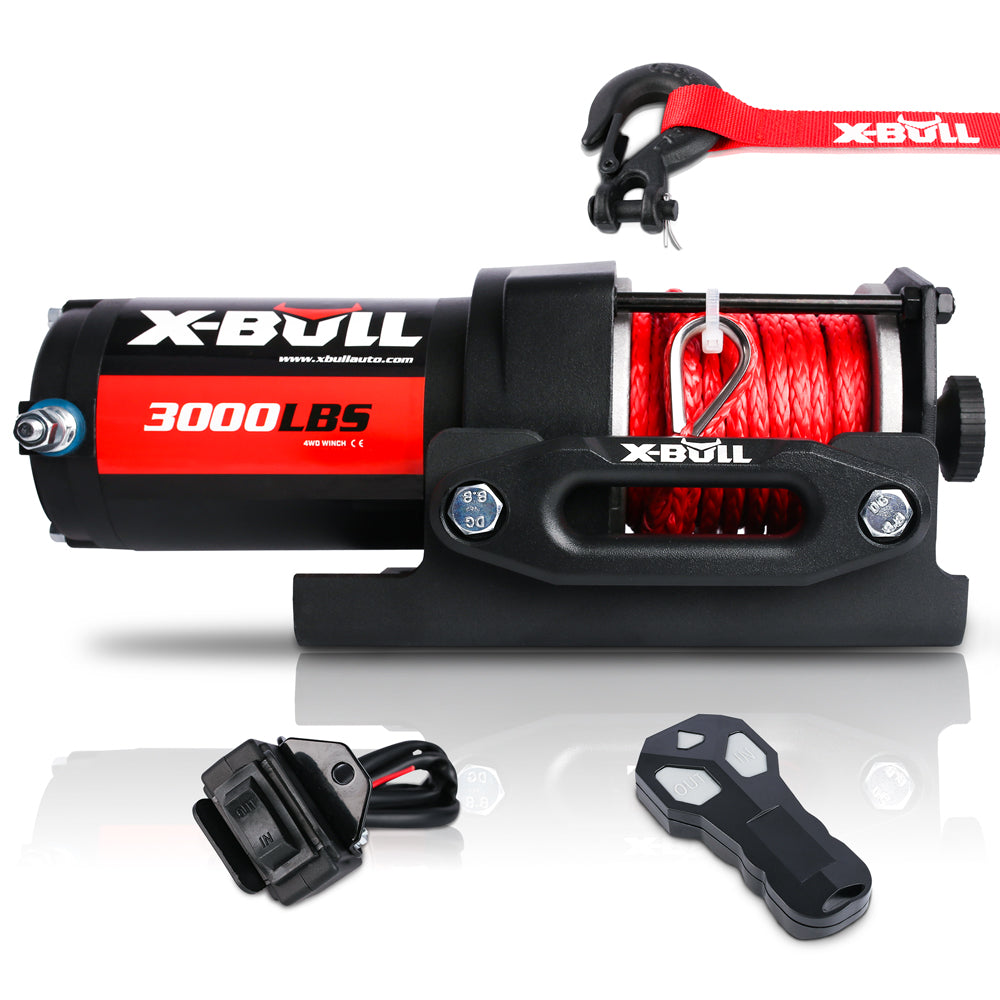

What's in the box

• 1 x 3000 lb winch
• 1 x aluminium hawse
• 1 x clevis hook with safety clip and marker tab
• 1 x handheld switch
• 1 x wireless remote
• 1 x winch lanyard
• 1 x control box
• 1 x set of stainless steel fitting bolts
• 1 x user manual

Before you rely on it

• 3000 lb (1360 kg) is the rated single line pull. It is not a lifting rating, and no double-line figure is published, so do not assume a pulley increases it.
• Duty cycle is 5%. X-BULL's stated cycle is 45 seconds at maximum rated load followed by 14 minutes 15 seconds of rest.
• CE is the sole marking X-BULL names for this model, with no Australian approval or test rating alongside it.
• Never use a recovery winch to lift or hold a load above people.
• No IP or water rating is published for this model, so do not treat it as sealed for immersion.

Scaled for quads, side-by-sides and small boat trailers rather than full-size 4WD recovery. Match the winch to the mass you actually need to move.
