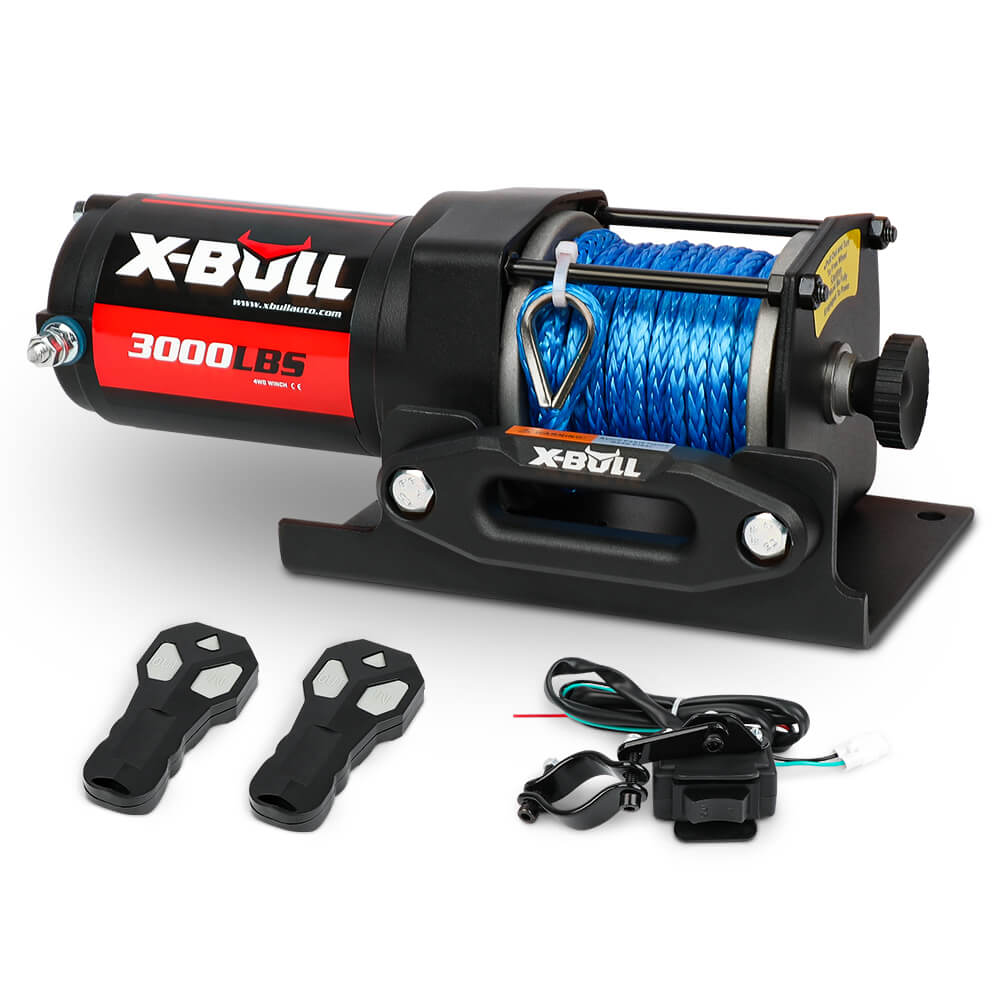

X-BULL 12V Electric Winch 3000LB ATV Winch Boat Trailer Winch Synthetic Rope

Getting a quad off a soft riverbank, or dragging a boat up onto a trailer, comes down to whether there is a winch on board and whether it holds what it pulls. This 12 V unit is built for that scale of work: compact, light, and quoted at a rated single line pull of 3000 lb (1360 kg).

Rope that does not store energy like steel

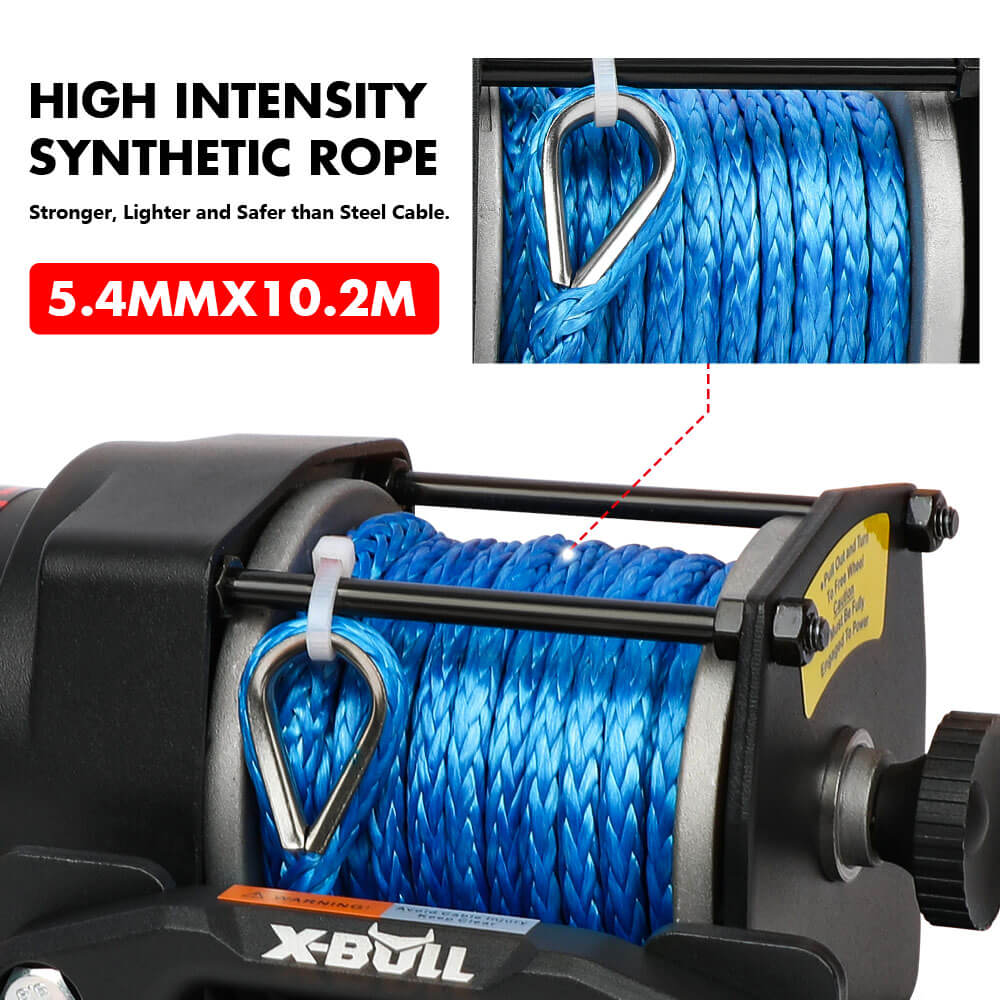

The drum carries 10.2 m of 5.4 mm SK75 Dyneema. What matters is the failure case: a steel cable under tension holds a lot of energy and whips hard when it parts, while synthetic line has far less mass to throw. Dyneema is light enough to float, which is useful on a boat ramp, and soft enough to handle without broken strands shredding gloves. It does dislike UV and grit, so a wet, sandy line is worth running out and rinsing rather than winding straight back onto the drum.

Three ways to stand clear of the line

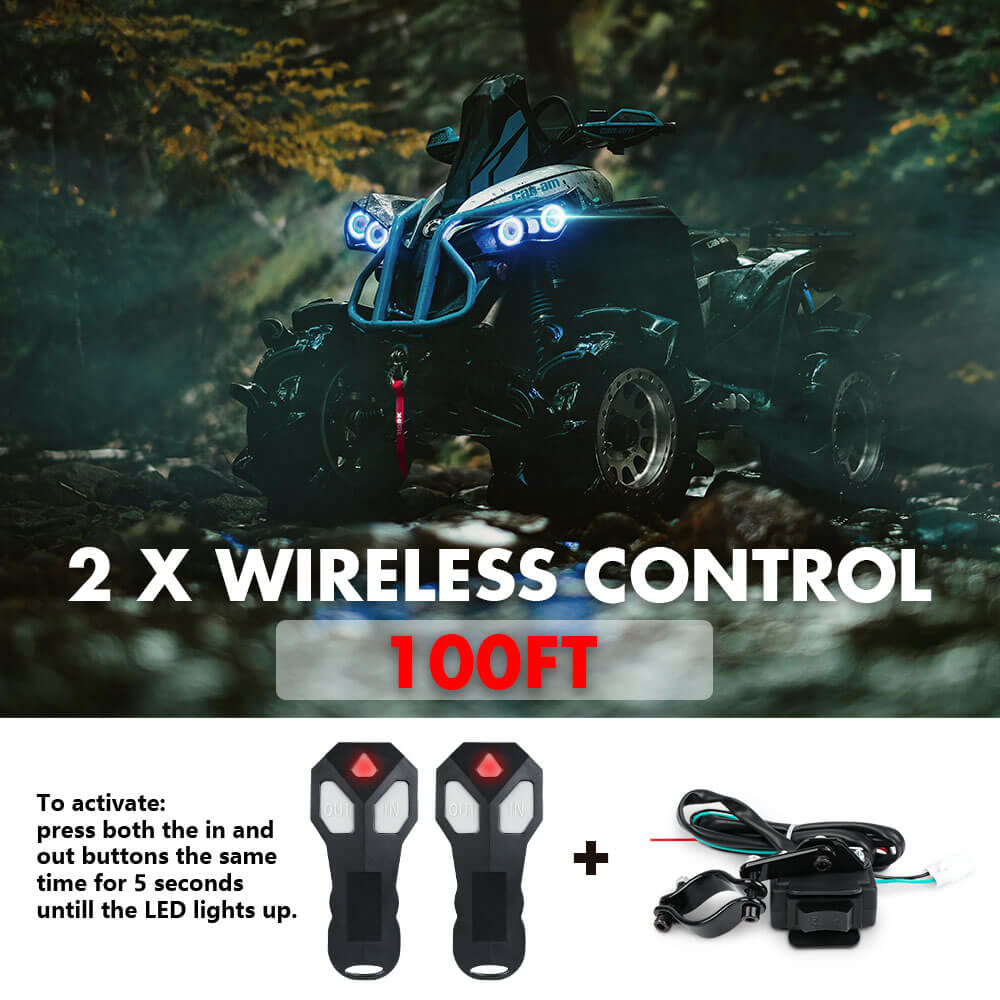

Two wireless remotes and a wired hand-held switch ship in the box, and the point of that is position rather than convenience — winching is safest when the operator is out of the line of pull but can still watch the rope lay onto the drum. The supplier rates the control box at IP 68, and notes that an undersized box is what burns out on a winch under load. The brake is an automatic load-holding mechanical type, so the drum locks the instant the motor stops rather than paying line back out under the weight it was just holding.

What the 3000 lb rating covers

The supplier quotes 3000 lb (1360 kg) as a rated single line pull, and that basis is the important part. Single line means one straight run of rope from drum to anchor: no snatch block, no doubled line. No figure is published for any other configuration, so there is none to quote. The stated application is ATV, UTV and boat trailer work, and the 10.2 m of rope limits how far away an anchor can sit.

Key features

• SK75 Dyneema rope: 5.4 mm x 10.2 m of synthetic line, lighter than steel and it floats.
• Automatic load-holding brake: mechanical, holding the drum the moment the motor stops.
• Two wireless remotes plus a wired switch: operate from wherever you are safest standing.

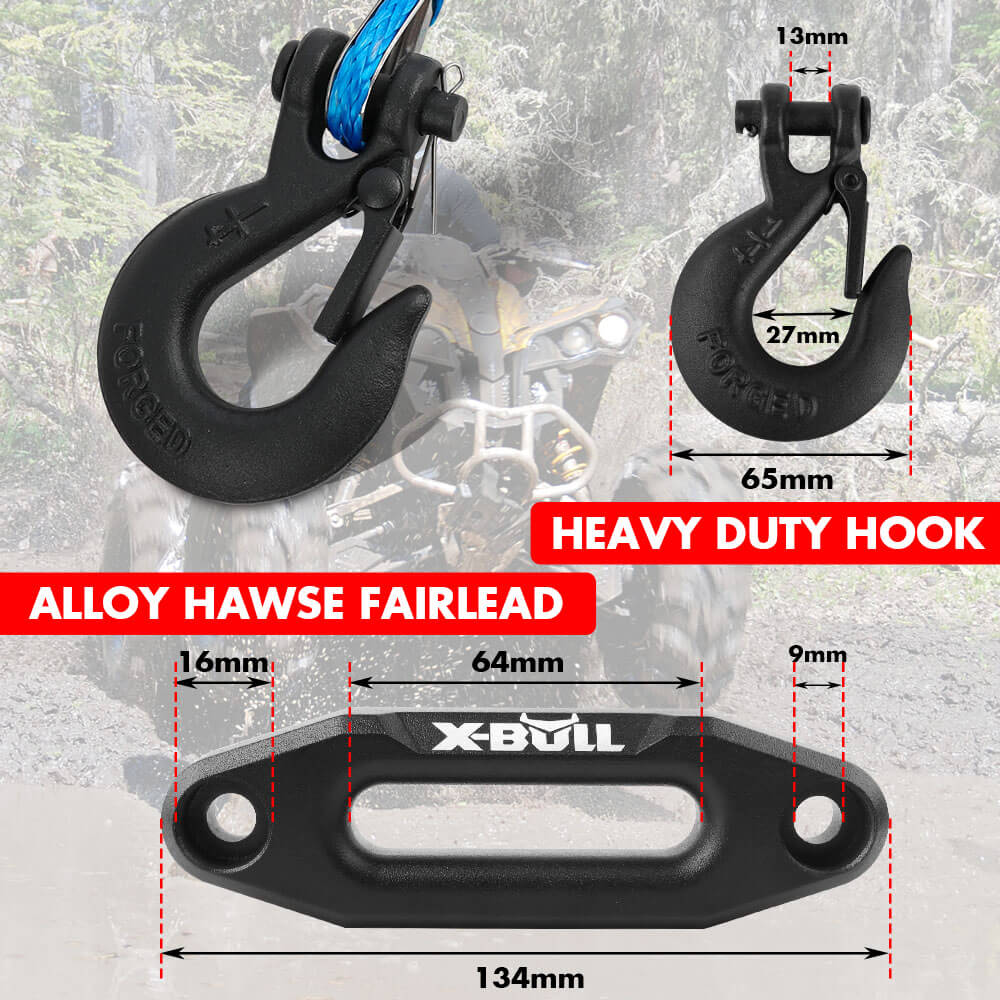

• Aluminium hawse fairlead: the flat-throat type normally paired with synthetic rope.

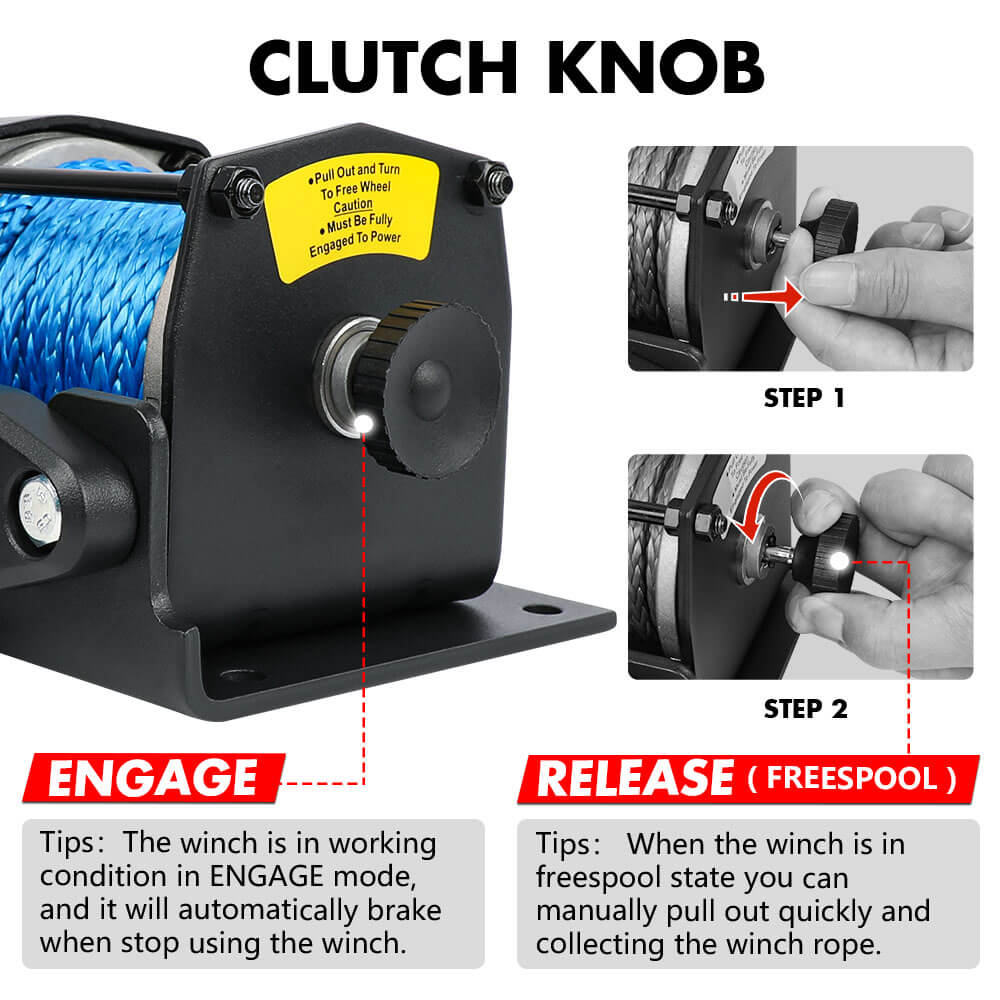

• Upgraded clutch knob: the supplier states the clutch-to-gear connection has been strengthened.

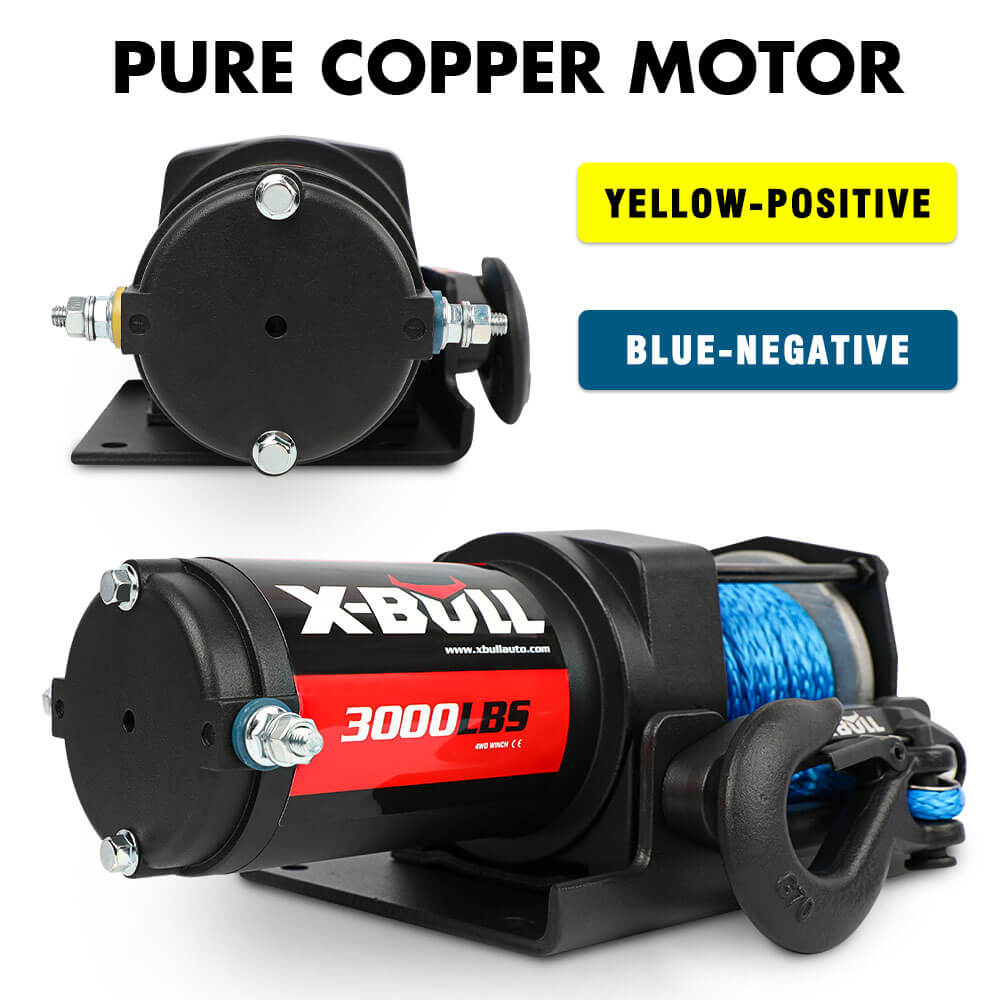

• 12 V DC permanent magnet motor: 1.3 HP, running off the vehicle's own battery.

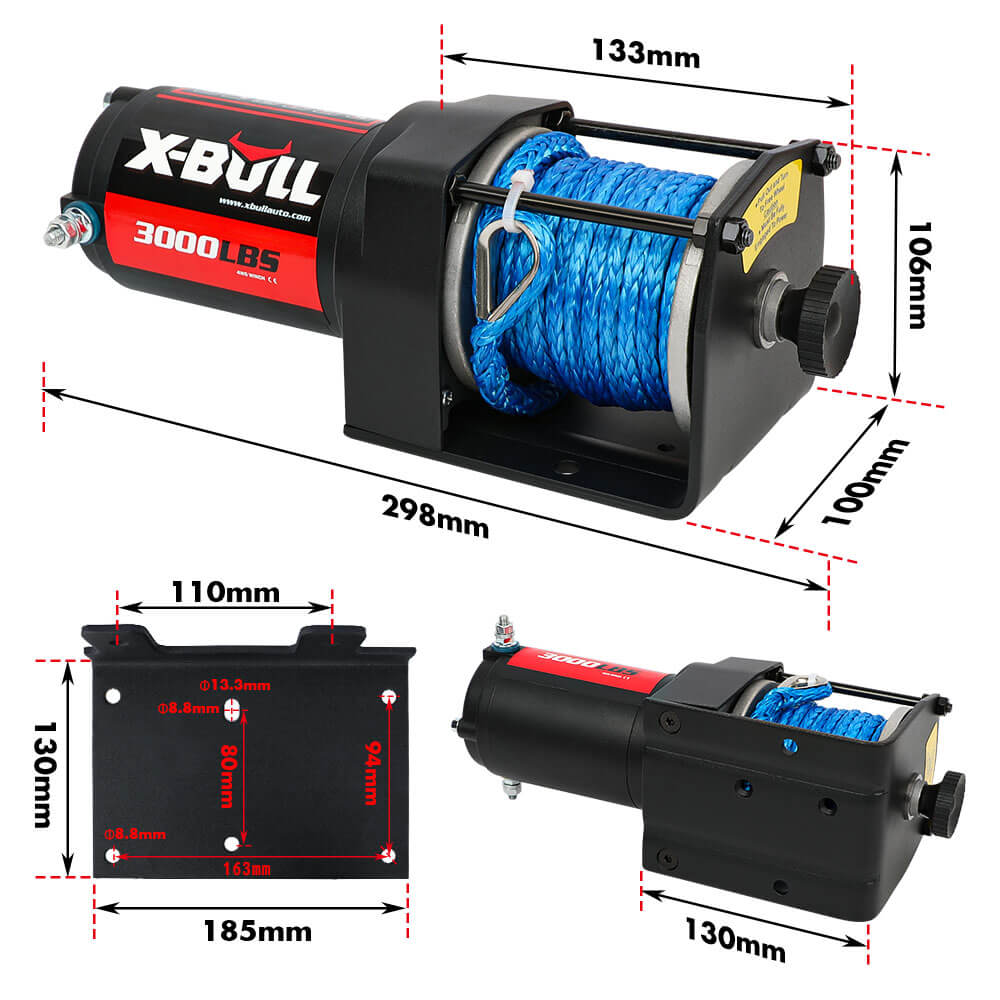

Specifications

• Rated single line pull: 3000lb.(1360kg)
• Motor: 12VDC 1.3 HP permanent magnet
• Brake: automatic load-holding mechanical
• Synthetic rope: 5.4mm x 10.2m, SK75 Dyneema
• Pendant controller: wired, 12ft (3.7m) long
• Handlebar controller: wired, 8ft (2.4m) long — listed in the supplier's specifications but not in its pack list
• Fairlead: aluminium hawse
• Application: ATV / UTV / boat
• Winch certification: the supplier states "CE". No Australian standard is named.

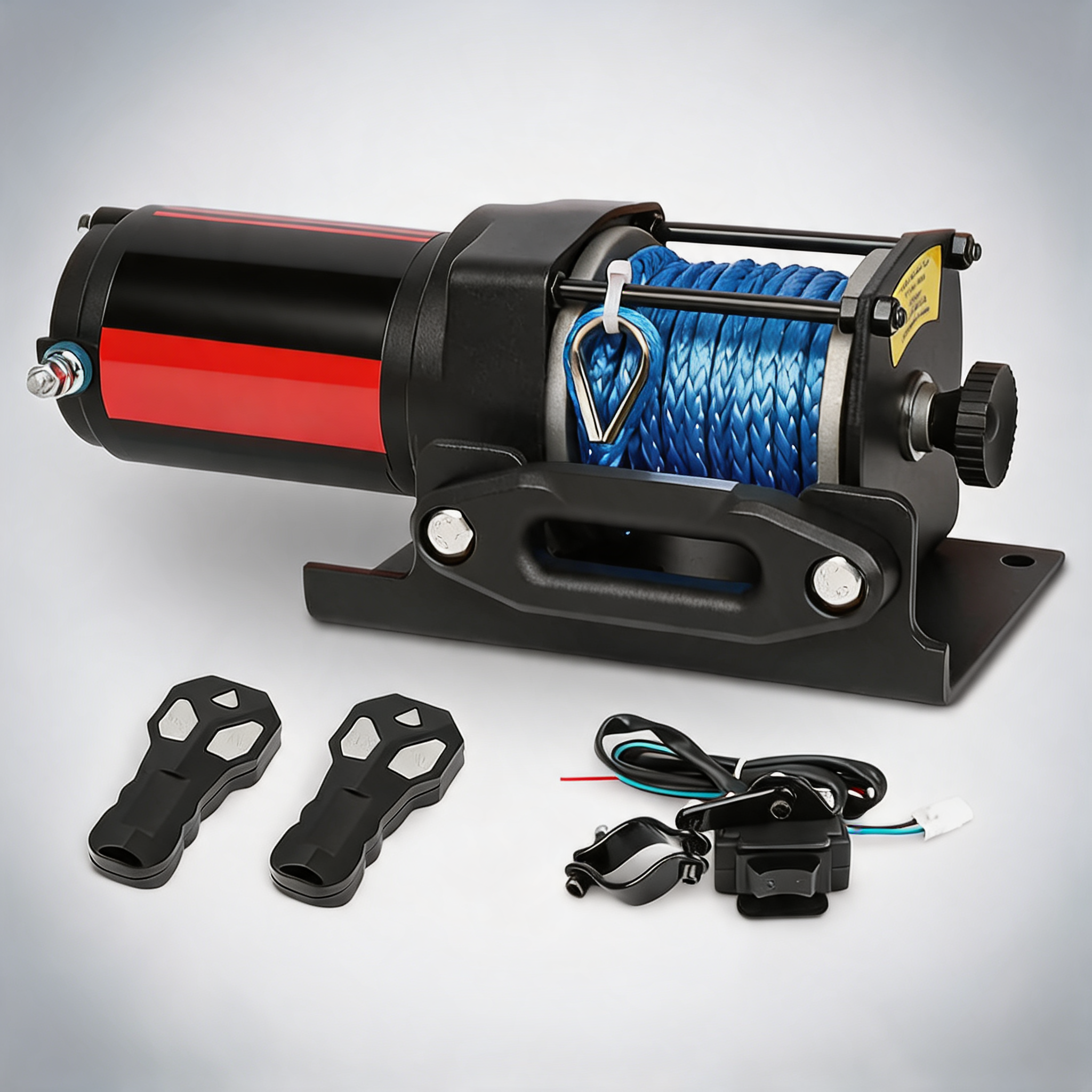

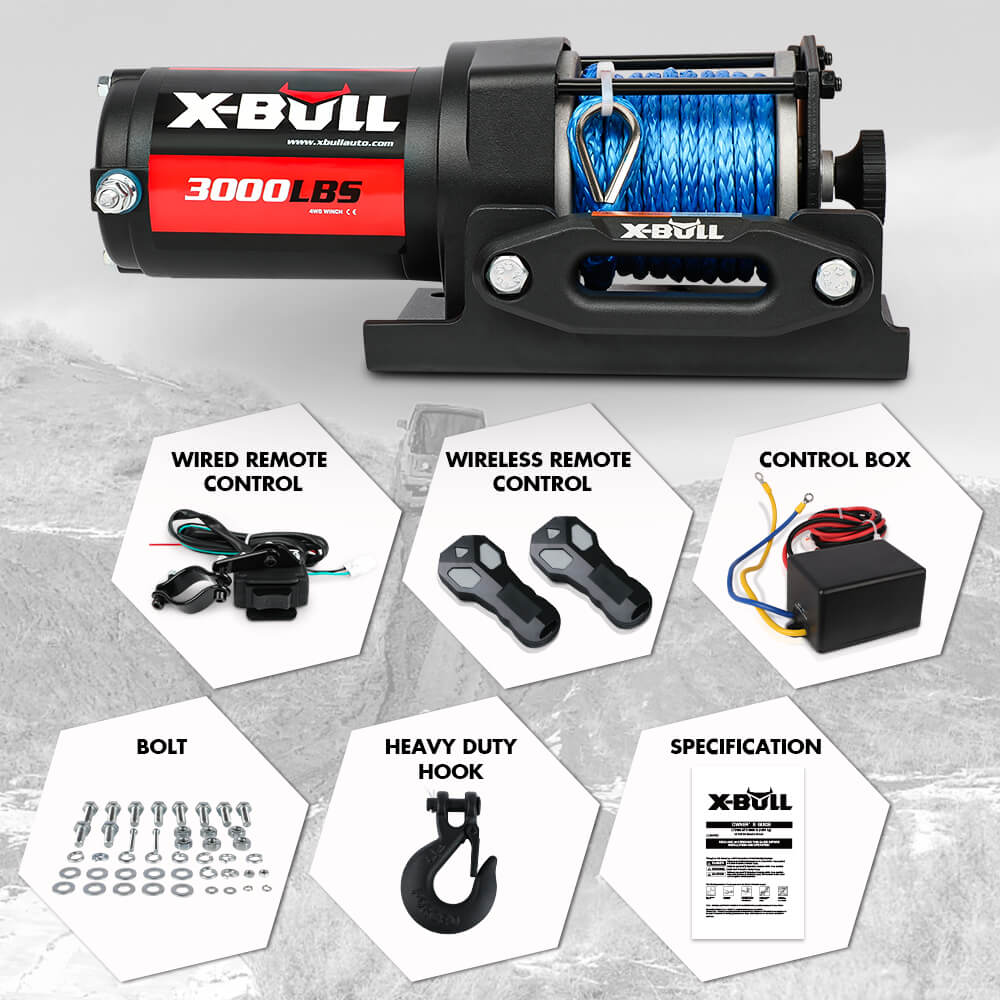

What's in the box

• 1x 3000LBS Winch
• 1x Aluminium Hawse
• 1x Clevis Hook with safety clip and marker tab
• 1x Hand held Switch
• 2x Wireless Remotes
• 1x Winch Lanyards
• 1x Next Generation Control Box
• 1x User Manual
• 1x Set of Stainless Steel Fitting Bolts

Before you run a line

• Keep yourself and everyone else out of the line of pull. Lay a recovery damper or a heavy blanket over a loaded rope where you can.
• 3000 lb (1360 kg) is a rated pulling figure on a single line. It is not a lifting or hoisting rating, and nothing should ever be suspended over a person with this winch.

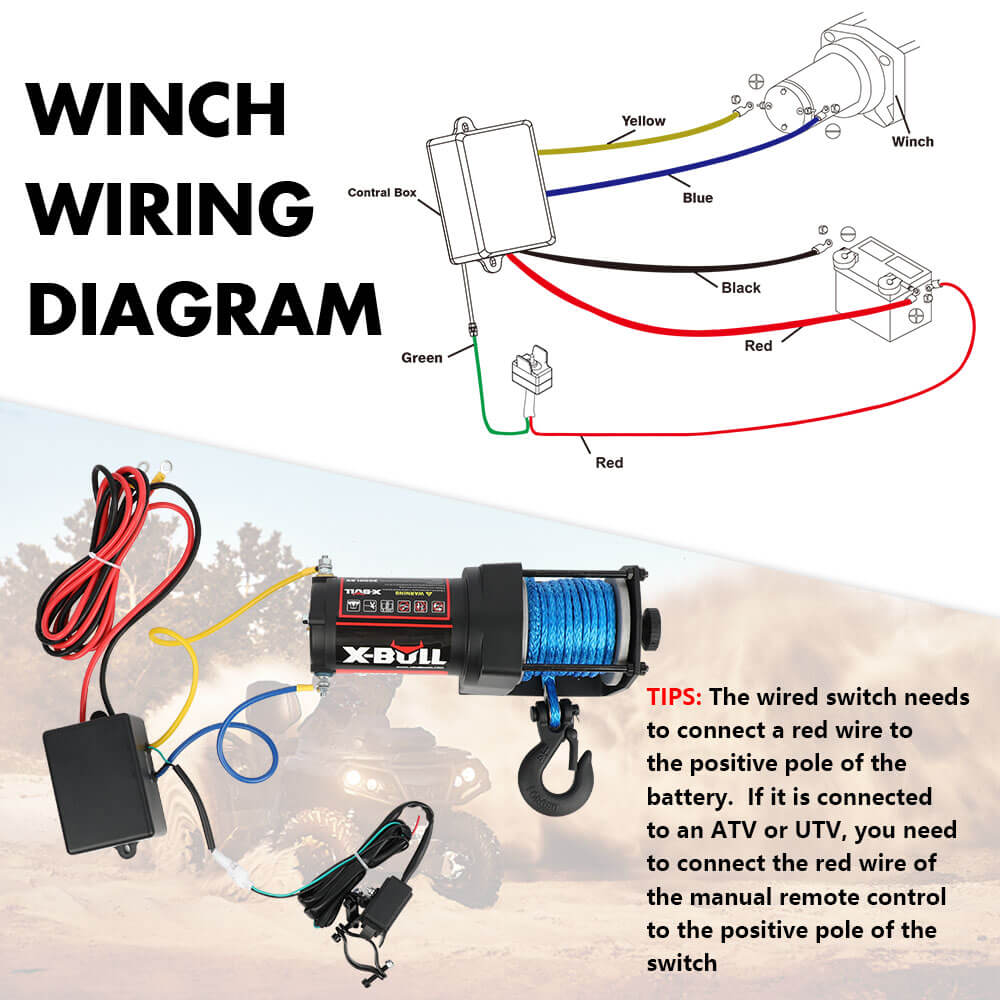

• Run it through the supplied control box to a battery in good condition. A winch under load draws heavily, and thin cable or a tired battery is where trouble starts.
• Inspect the rope for cuts, glazing and embedded grit before each use. Synthetic line can fail suddenly once the fibres are damaged.
• The only certification the supplier names is CE. No AS/NZS approval is stated and none should be assumed.

Sized for ATVs, side-by-sides and boat trailers rather than heavy vehicle recovery. Check your mounting plate and battery cable before the first pull.
