Universal Forklift Seat Adjustable Tractor Seat with Seatbelt Armrests

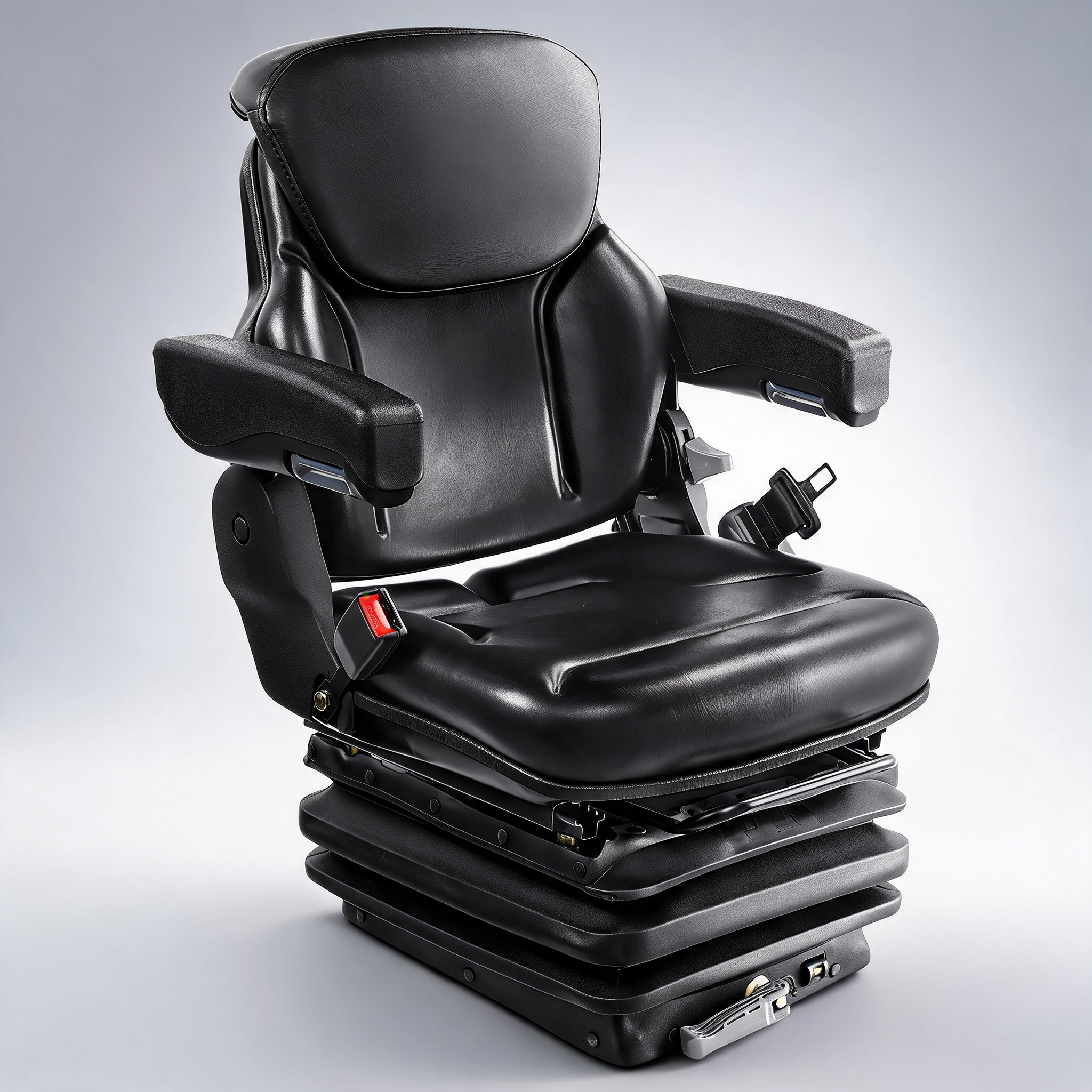

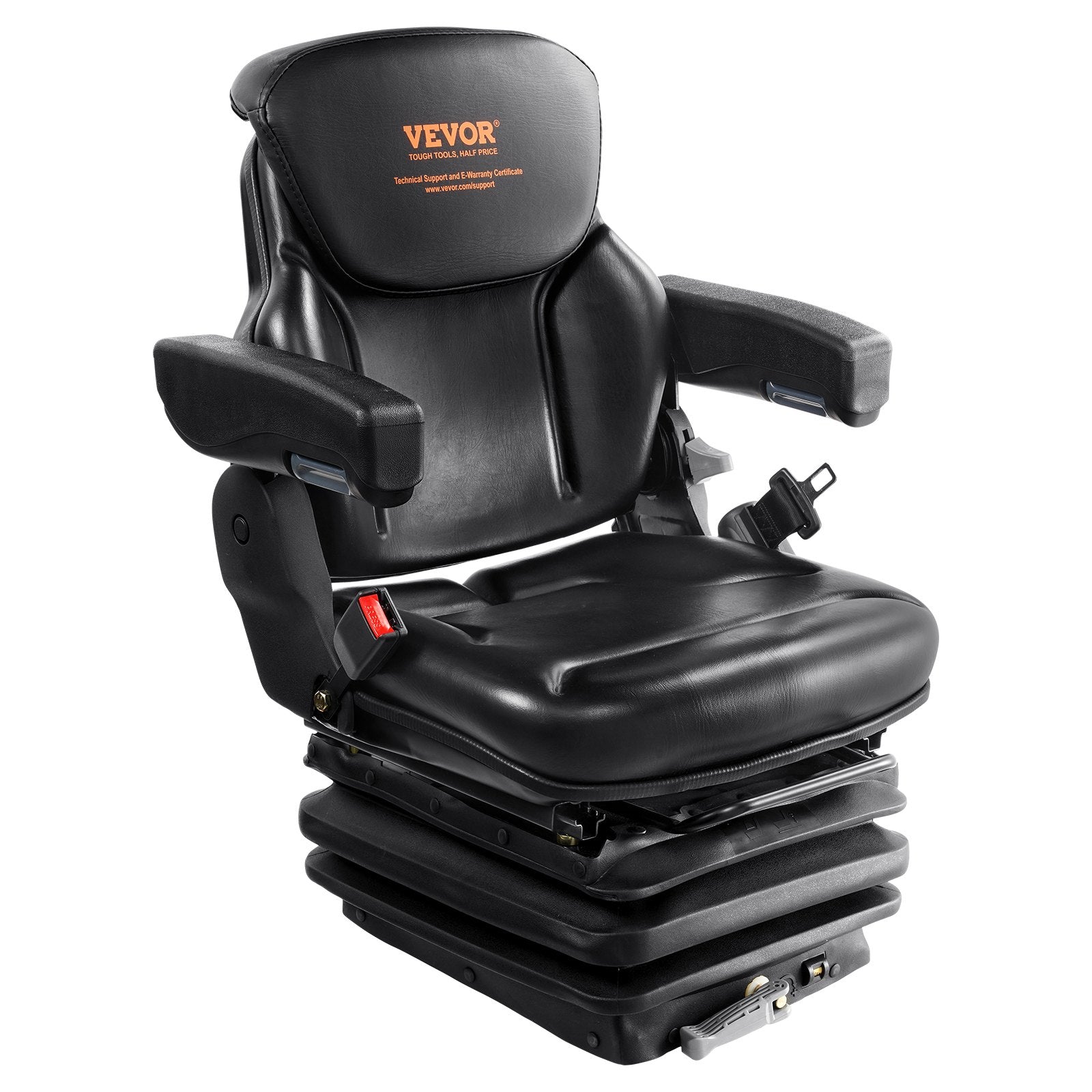

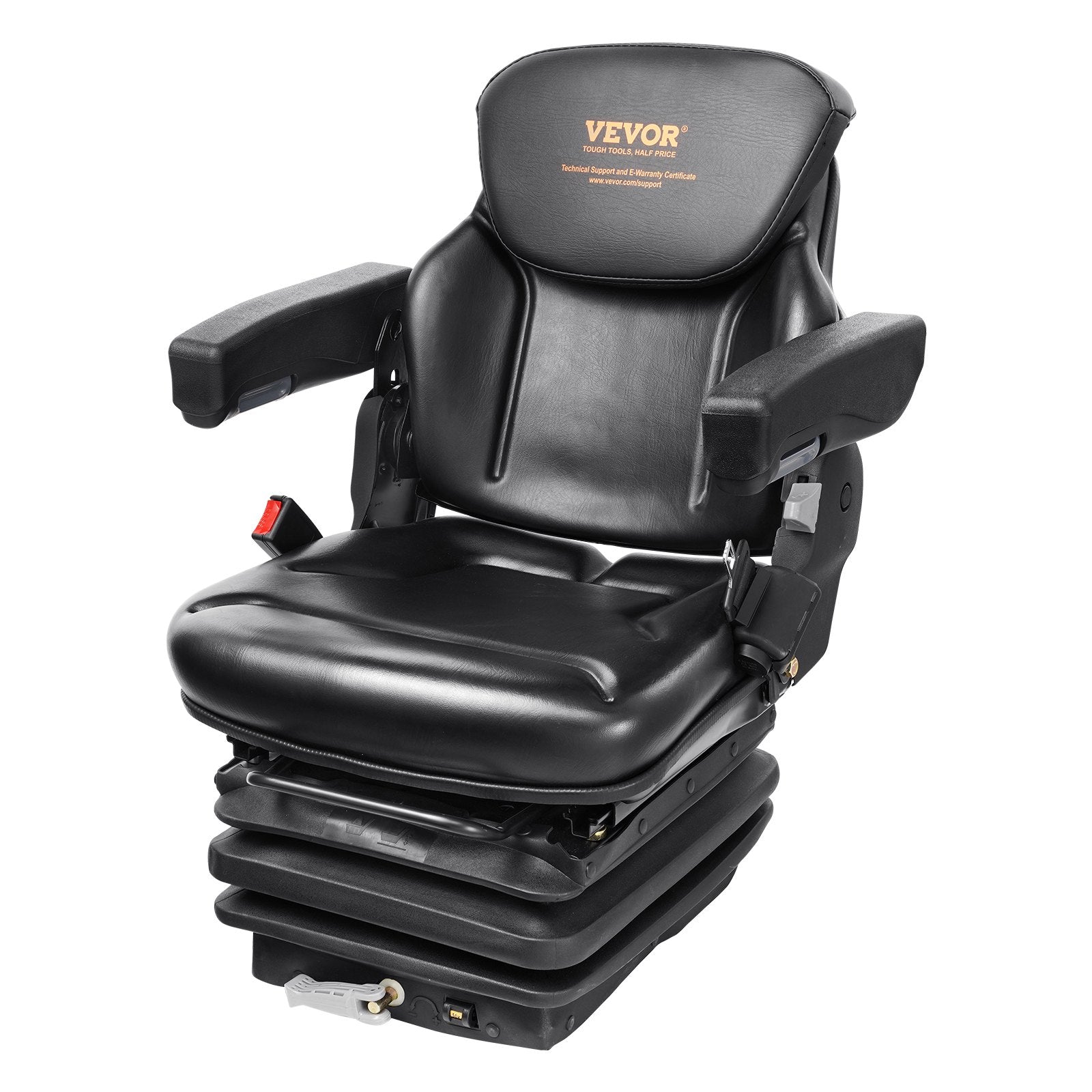

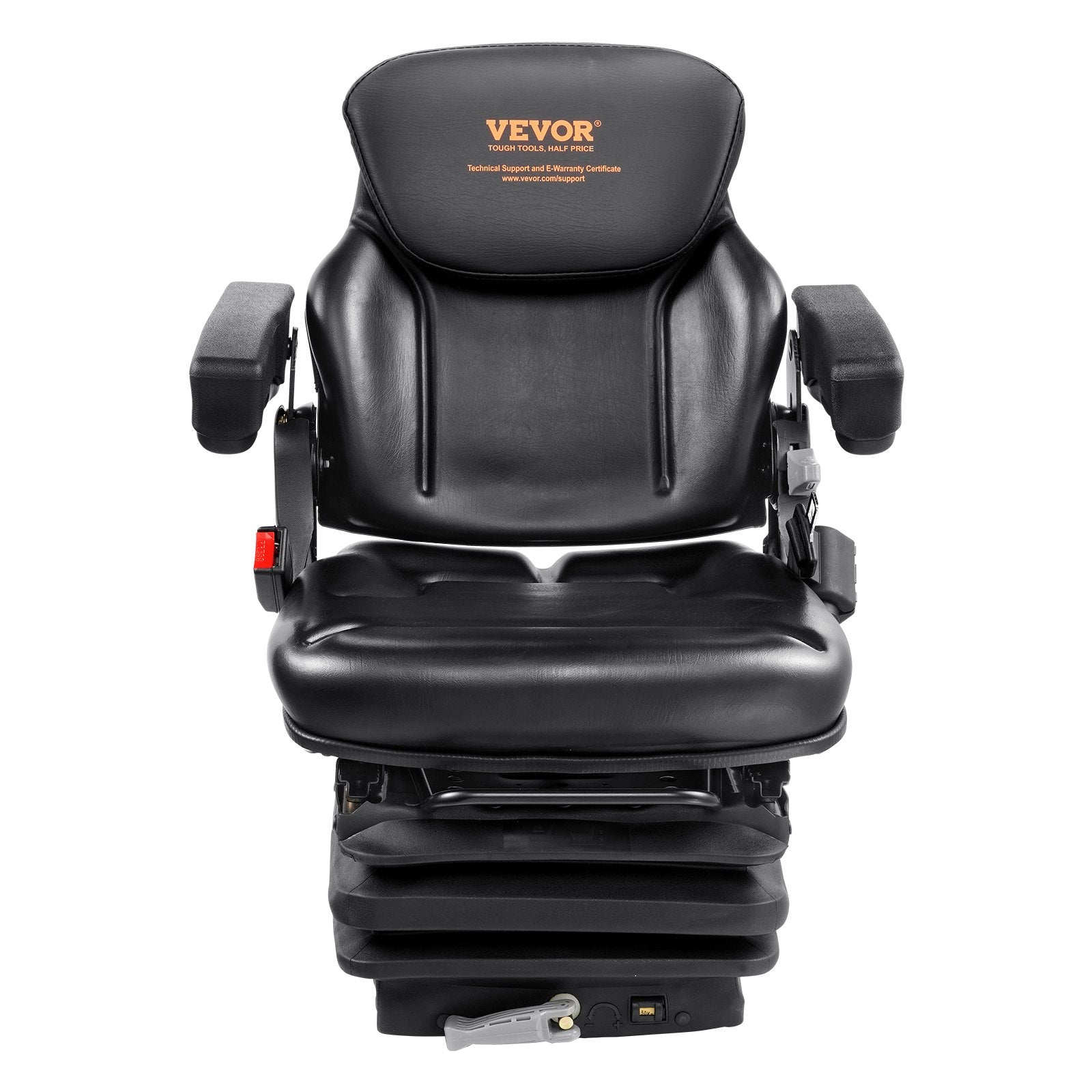

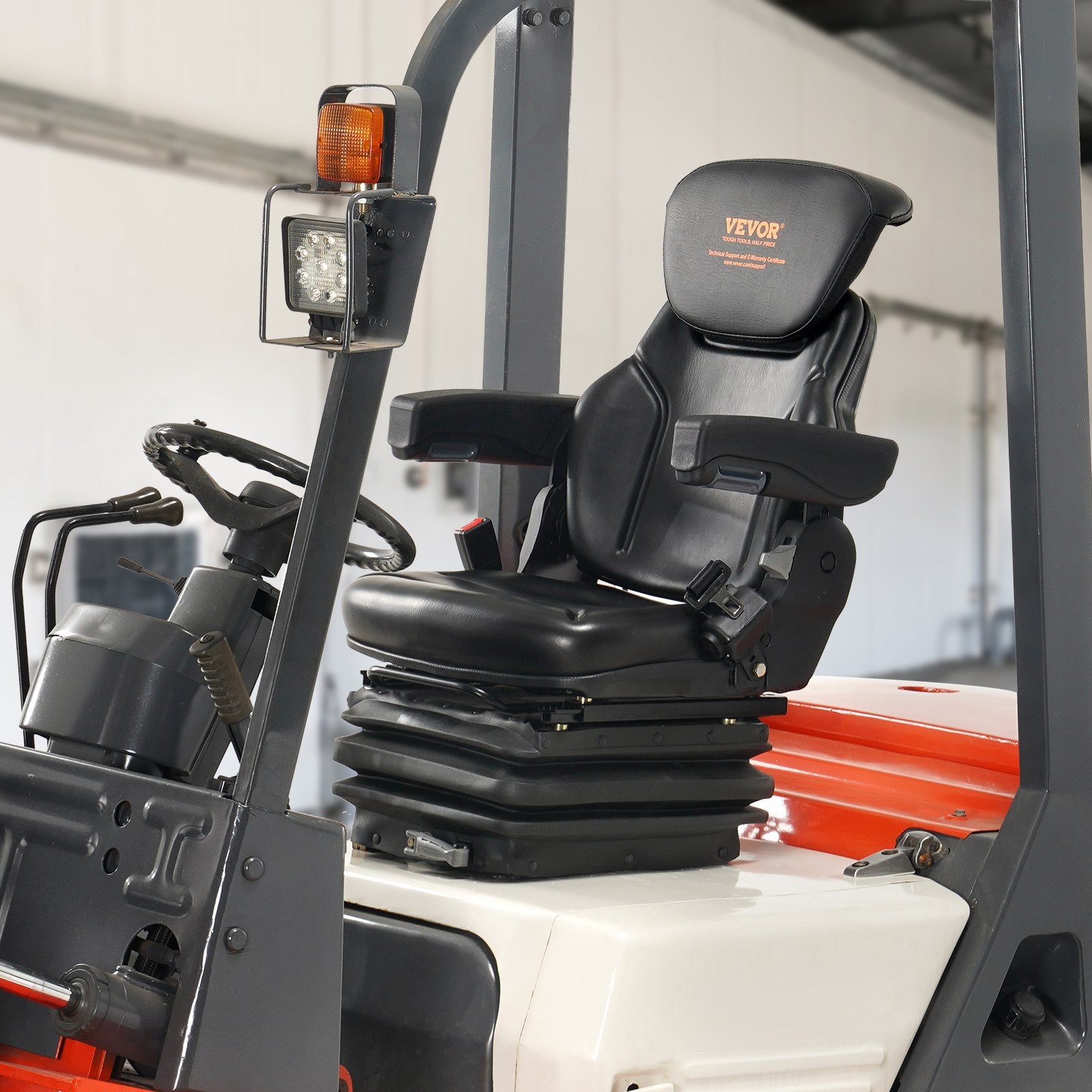

Eight hours on a worn forklift seat is felt in the lower back for the next two days, and a seat that has lost its damping passes every joint in the concrete straight through the operator. This is a replacement suspension seat for forklifts and similar machines, supplied with a retractable belt, armrests and a seat-presence switch.

Getting it under a specific operator

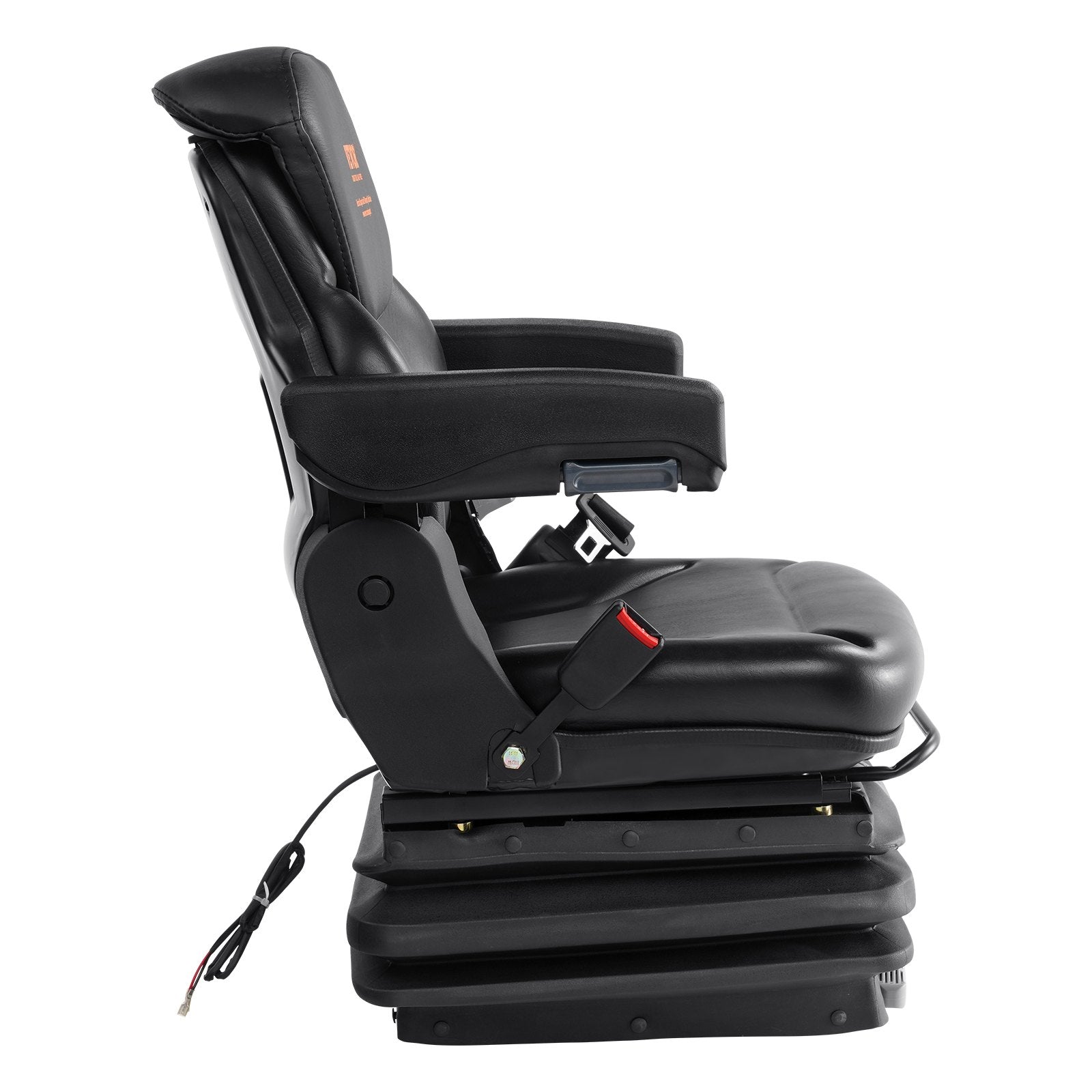

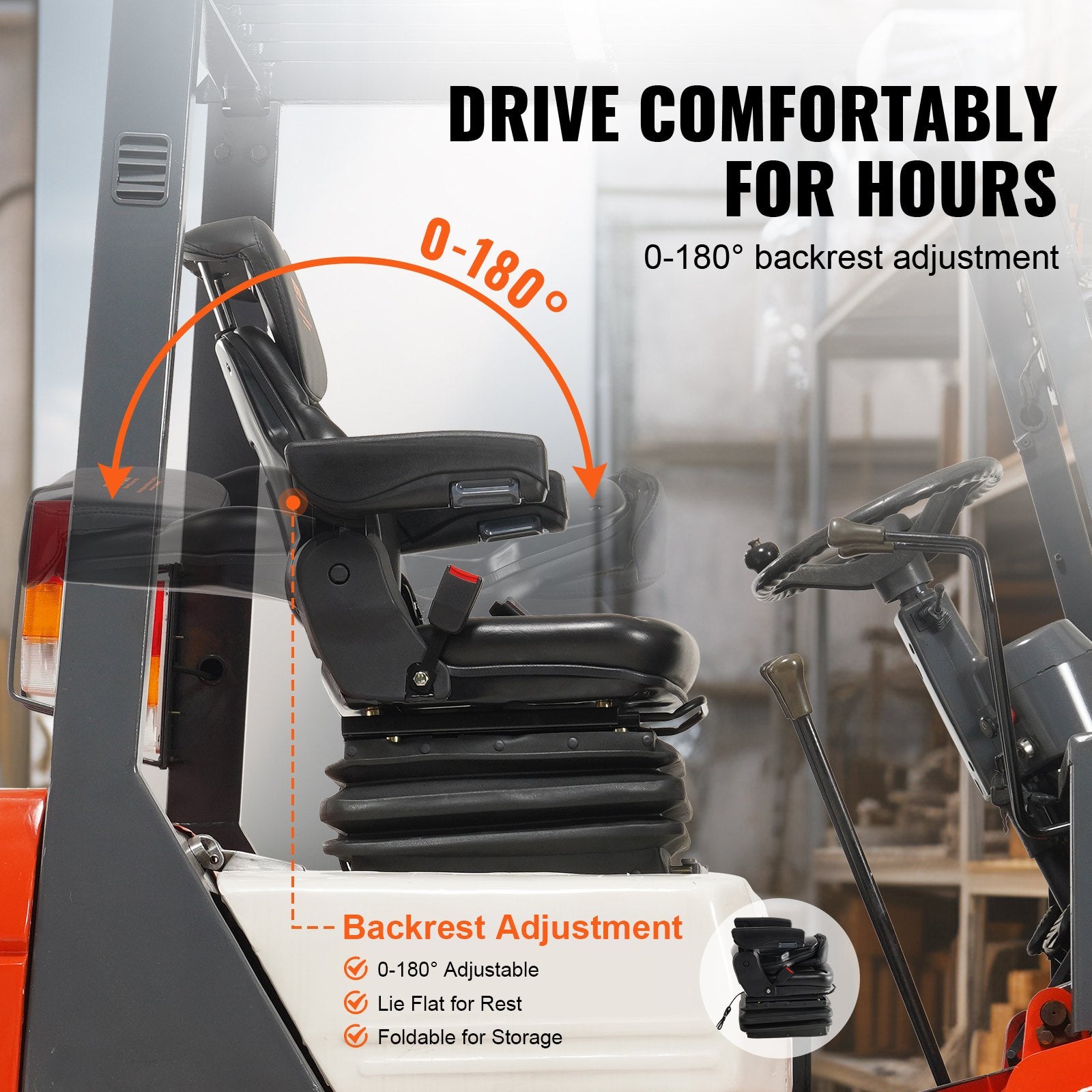

Two adjustments are described. The seat runs on a double-locking ball slide rail giving 7.1 inches of fore-and-aft travel in the supplier's own figure, which is roughly 180 mm, and the backrest angle is adjustable so the operator can set their own posture rather than accept one. Armrests support the elbows, which matters more than it sounds on a machine where the same arm works a lever all day. The backrest also folds down, so the seat clears a low doorway or a roof line when the machine is parked up.

Three stages of damping

The suspension is described as a three-level shock absorption system, intended to take the sting out of joints, kerbs and rough yard surfaces before it reaches the operator. The supplier frames this as reducing the health risk that comes with sustained whole-body vibration, which is a real concern on machines run all shift. No spring rate, no travel figure and no operator weight range is published, and there is no mention of a weight adjuster, so how the suspension behaves under a light or heavy operator is not something the source answers.

The belt and the switch

Two safety items are listed. A retractable seatbelt is fitted, and a gravity-sensing micro-switch is built into the base so that the machine can only be operated with someone in the seat. That switch does nothing on its own — it has to be wired into the machine's own start or interlock circuit to work as intended, and no connector, contact rating or wiring detail is given. No standard is named for the belt or the switch either.

Key features

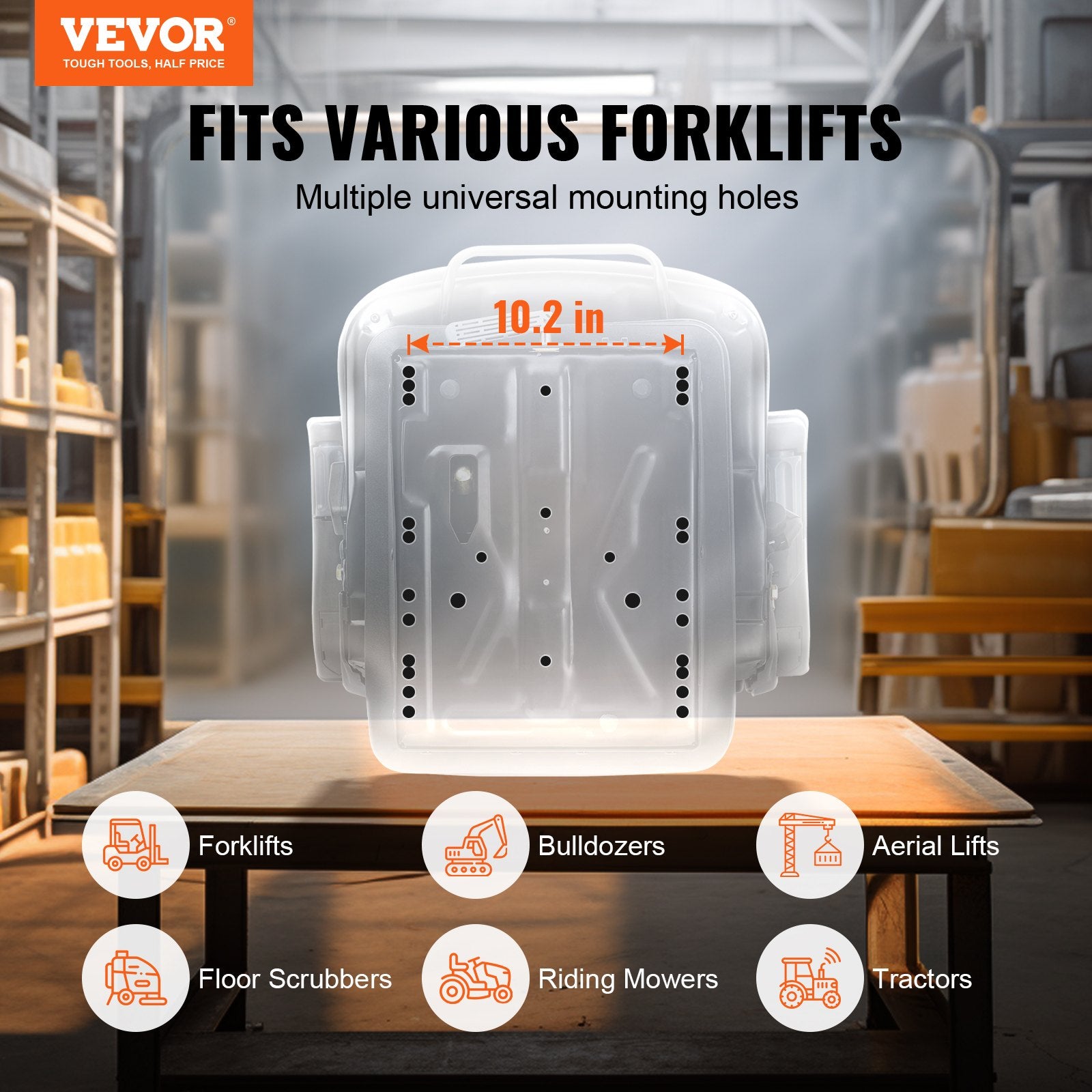

• Multiple mounting hole sets: the base is drilled for several patterns rather than one, which widens the range of machines it can sit on.
• 7.1 inch slide travel: the supplier's figure for fore-and-aft adjustment, on a double-locking ball rail.
• Three-level suspension: damping between the machine floor and the operator on rough surfaces.
• Adjustable, foldable backrest: set the angle to suit, then drop it flat to save height when parked.
• Retractable seatbelt fitted: supplied as part of the seat rather than sourced separately.
• Seat-presence micro-switch: gravity sensing, intended to keep the machine inoperable with the seat empty.

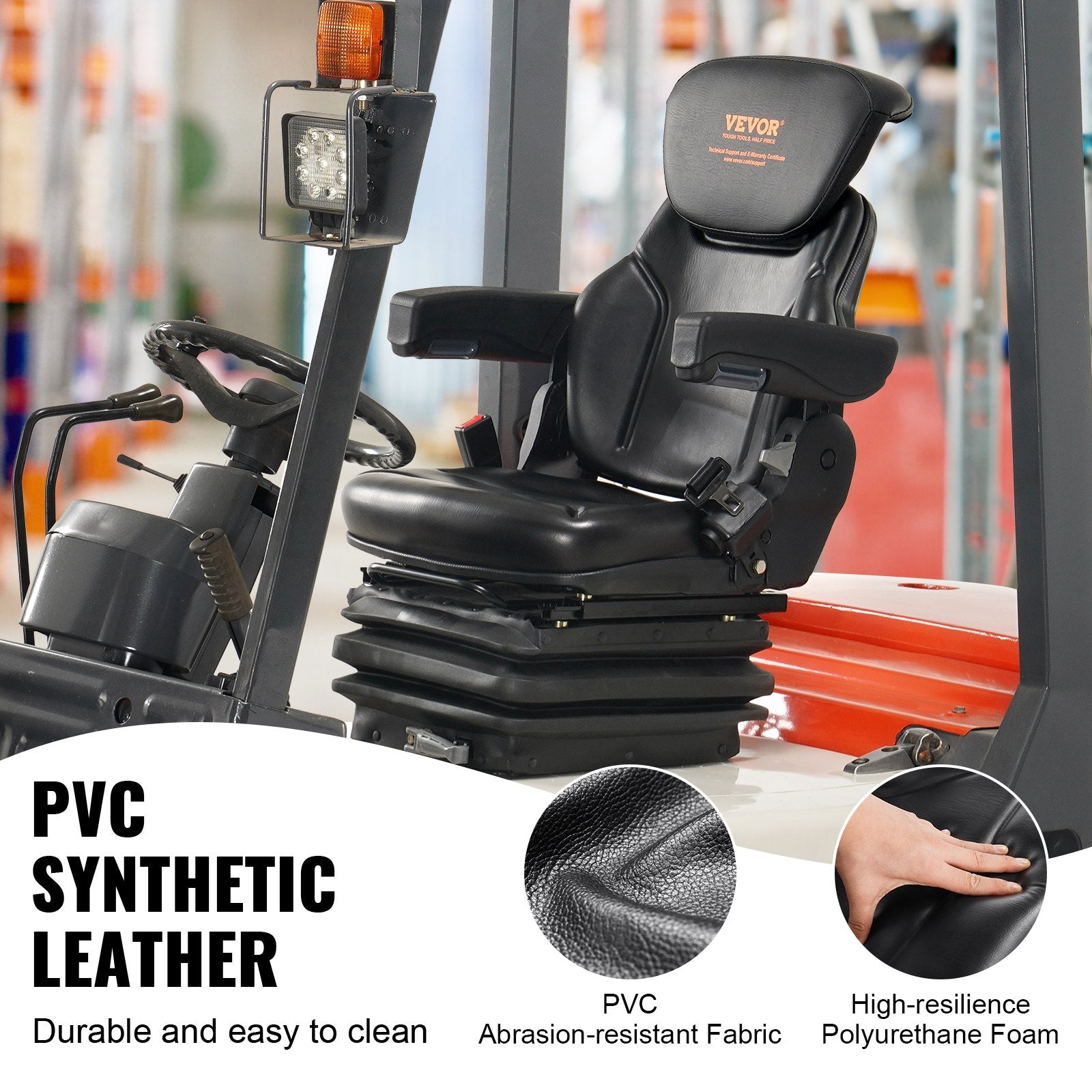

• PVC synthetic leather cover: wipes down, which suits a machine that lives in a dusty warehouse.

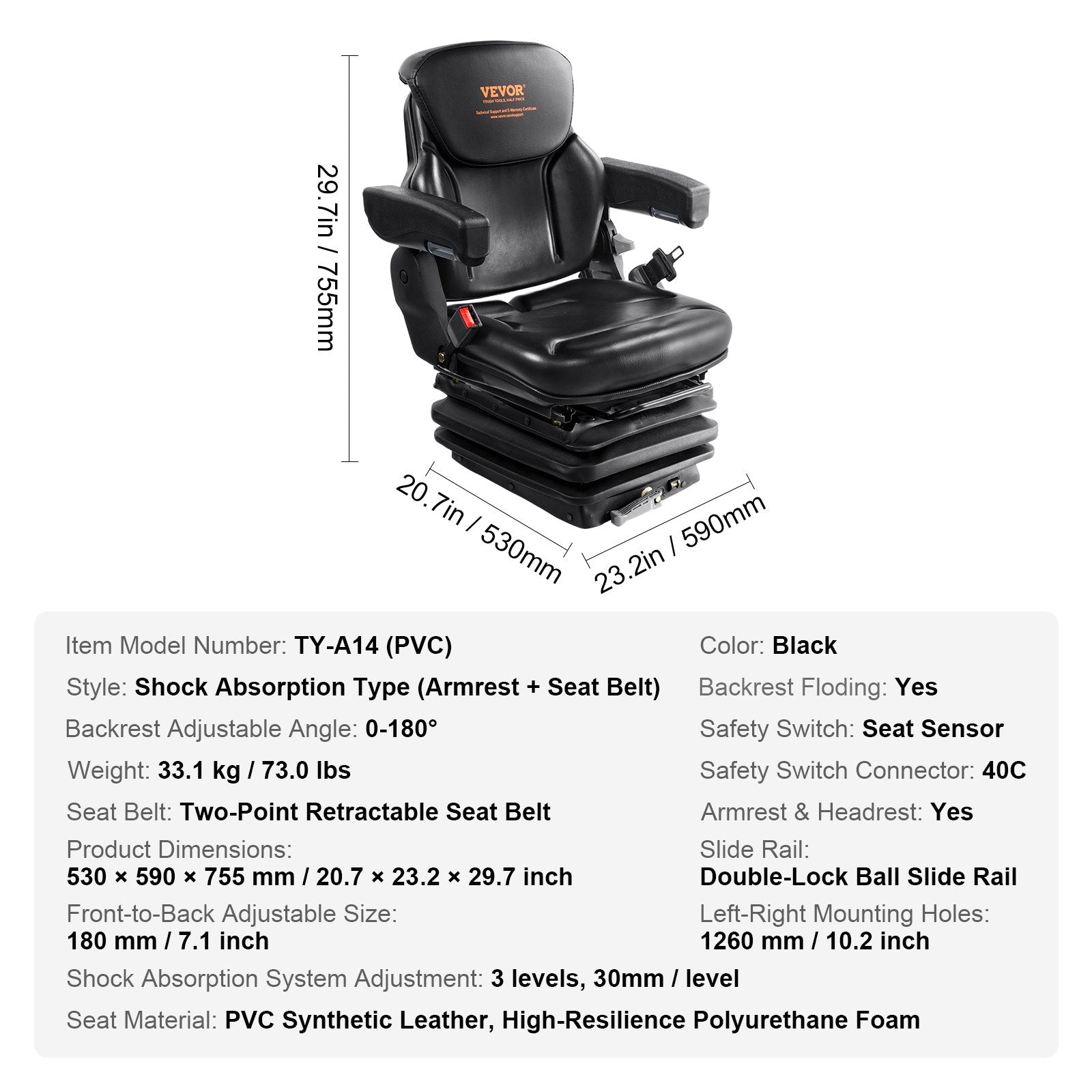

Specifications

• Type: suspension operator seat for forklifts and similar plant
• Slide travel: 7.1 inches fore and aft (supplier's figure; approximately 180 mm)
• Slide mechanism: double-locking ball rail
• Suspension: described as a three-level shock absorption system
• Backrest: angle adjustable and foldable
• Armrests: fitted
• Seatbelt: retractable, included
• Switch: gravity-sensing seat-presence micro-switch
• Cover material: PVC synthetic leather
• Foam: high-resilience polyurethane
• Mounting hole centres and base dimensions: not published by the supplier
• Seat dimensions, height range and mass: not published by the supplier
• Operator weight range and suspension adjustment: not published by the supplier
• Switch contact rating and connector type: not published by the supplier
• Seatbelt or seating standard: none named by the supplier
• Colour options: a single option is listed, with no colour choice offered

Before you order or install

• This is materials-handling plant equipment, not an automotive part. It is intended for forklifts, tractors and similar machines, not for road vehicles.
• "Universal" here means several hole patterns are drilled, not that it fits everything. No hole centres are published, so measure your existing mounting plate and compare it with the photographs before ordering.
• The seatbelt and the seat-presence switch are safety devices. No standard is named for either, so nothing here states or implies compliance with any seating, restraint or machinery standard.
• The micro-switch only performs its function when correctly wired into the machine's start or interlock circuit. Have that done by a qualified person and tested before the machine is used.
• Workplace machinery is regulated. Confirm with your own compliance adviser that a replacement seat is acceptable on your machine before putting it into service.
• Retighten the mounting fasteners after the first shift and check them periodically.

A sensible upgrade on a machine whose original seat has collapsed, provided the mounting plate matches. Measure first, and get the switch wiring signed off.
