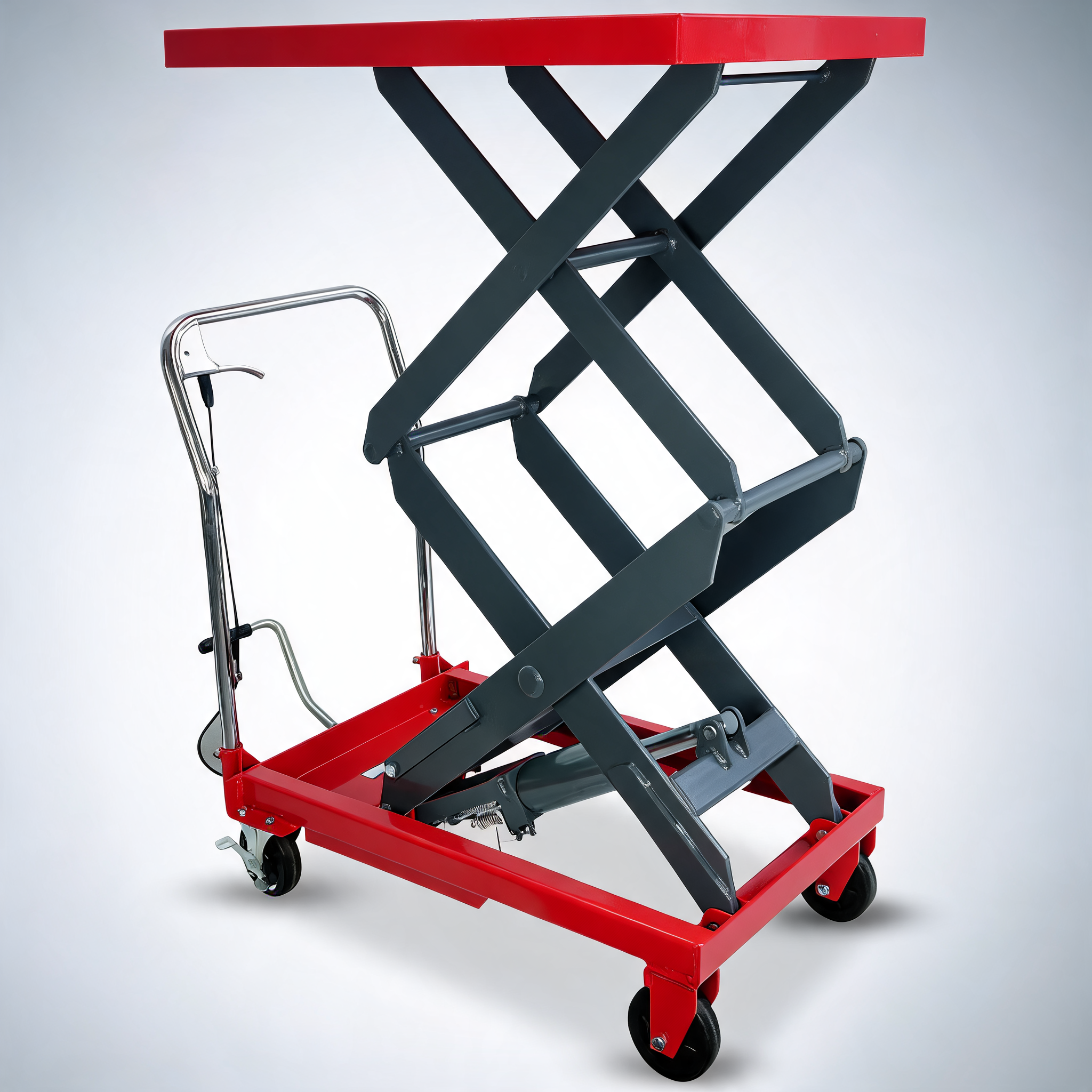

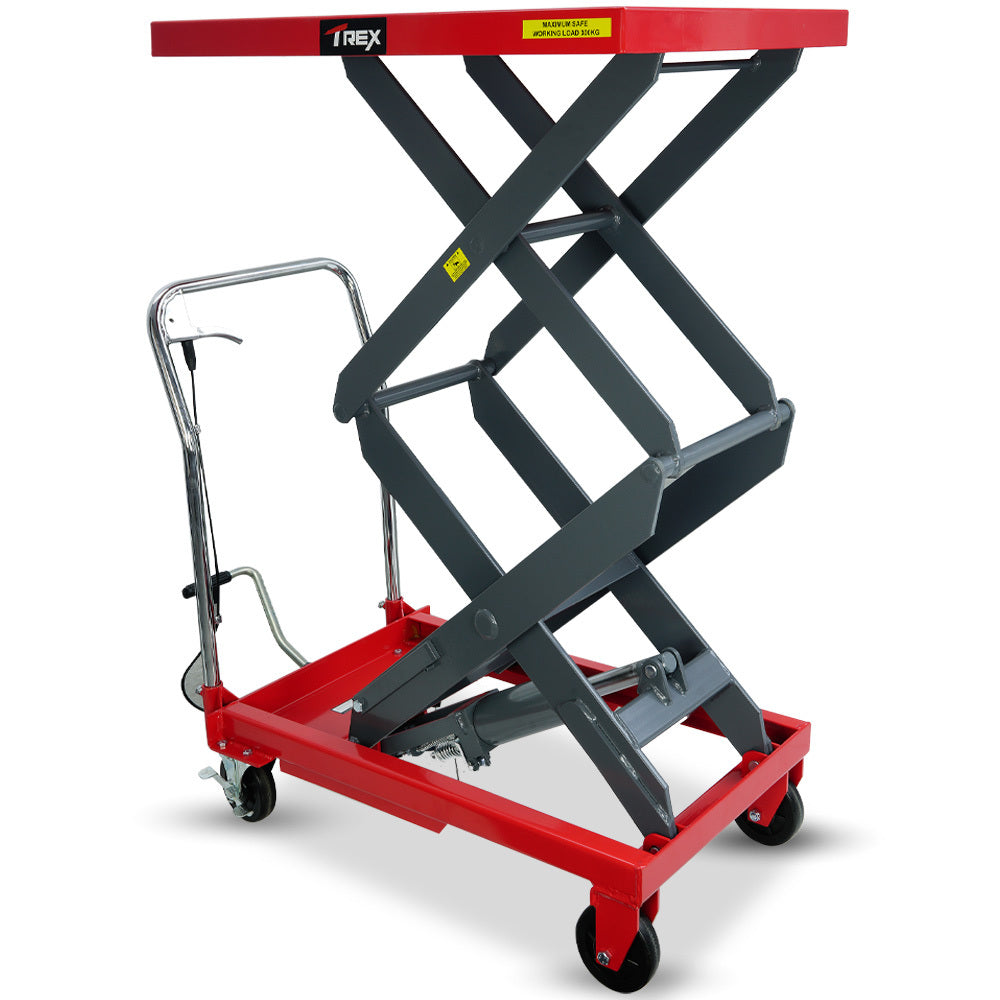

T-REX 300KG Hydraulic High Lift Double Scissor Trolley, 1.3M Max Platform Hgt, Heavy-Duty, for Material Handling

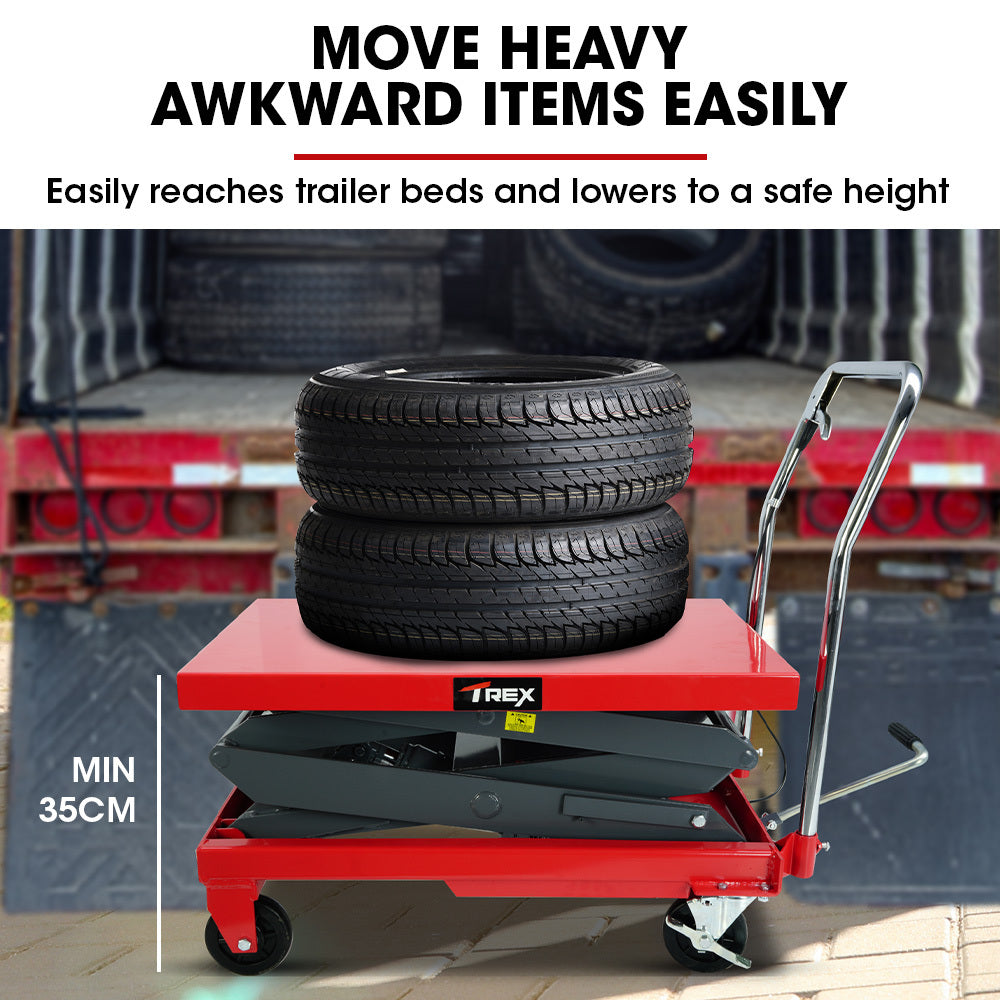

Getting a pallet of stock from floor height up to a truck tray usually means two people and a sore back by lunchtime. This T-Rex double scissor trolley takes the platform from 35 cm off the ground to 1.3 metres on a foot pedal, so the load comes up to you instead of the other way around.

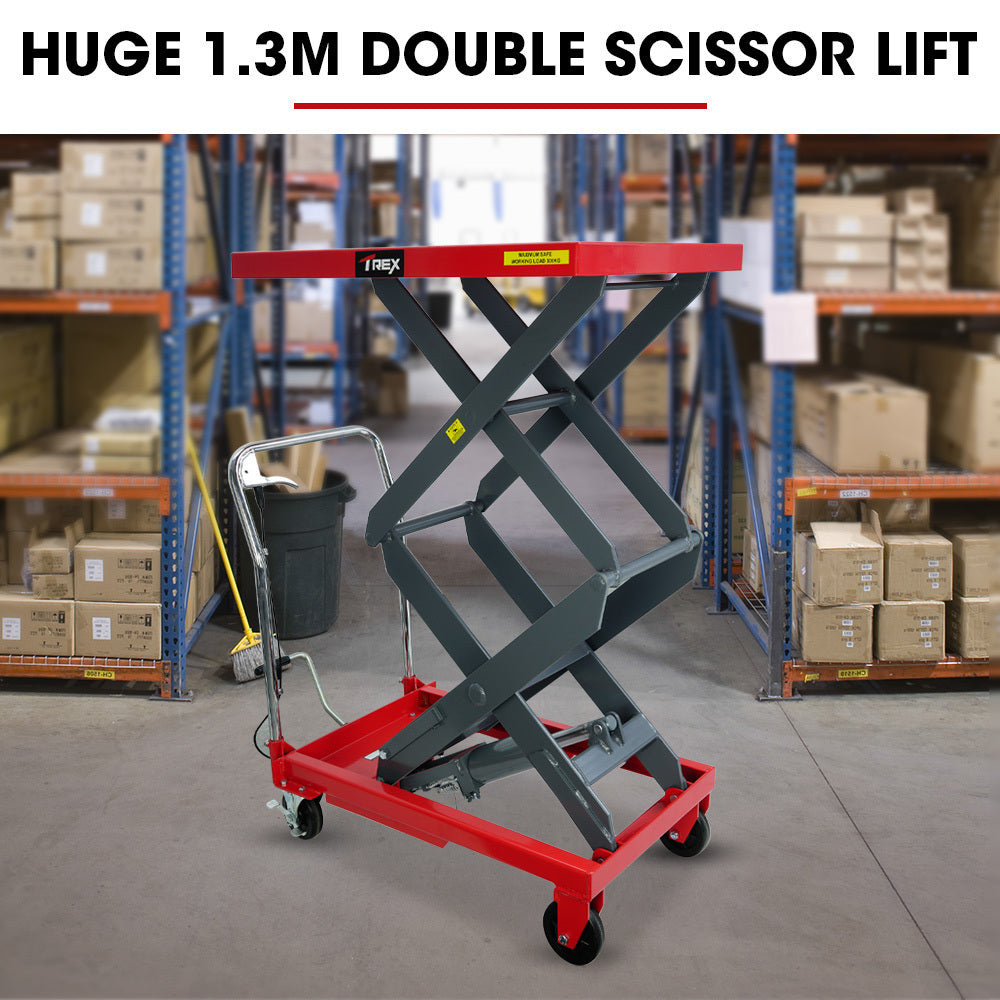

Why the double scissor matters

A single scissor mechanism runs out of travel quickly. Stacking two sets of arms doubles the geometry, which is how this trolley reaches 130 cm from a 35 cm resting height — bench height, truck-bed height, or the top shelf of a racking bay. The platform measures 82 x 52 cm, wide enough for a standard box pallet footprint or a long engine component. Raising it is hands-free: pump the foot pedal until the load sits where it needs to be, then feather the hand lever to let it down under control rather than dropping it.

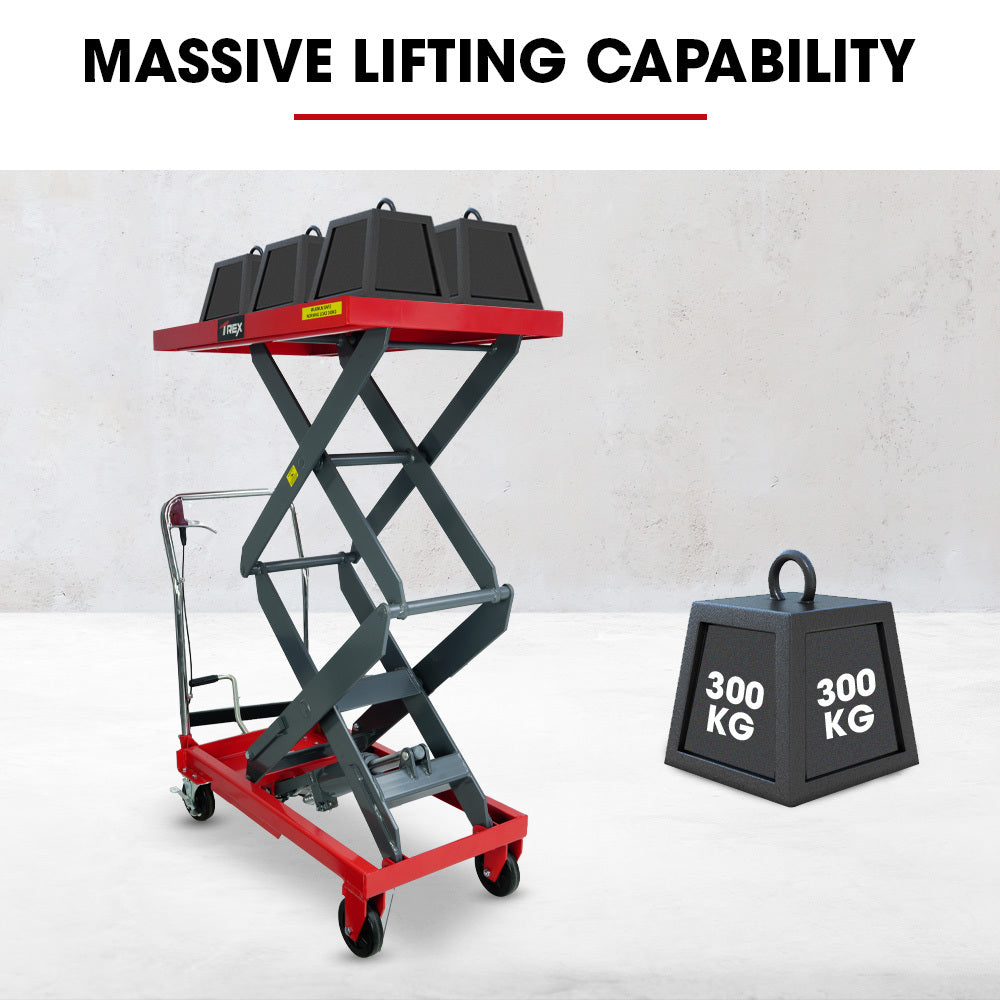

What the 300 kg rating actually covers

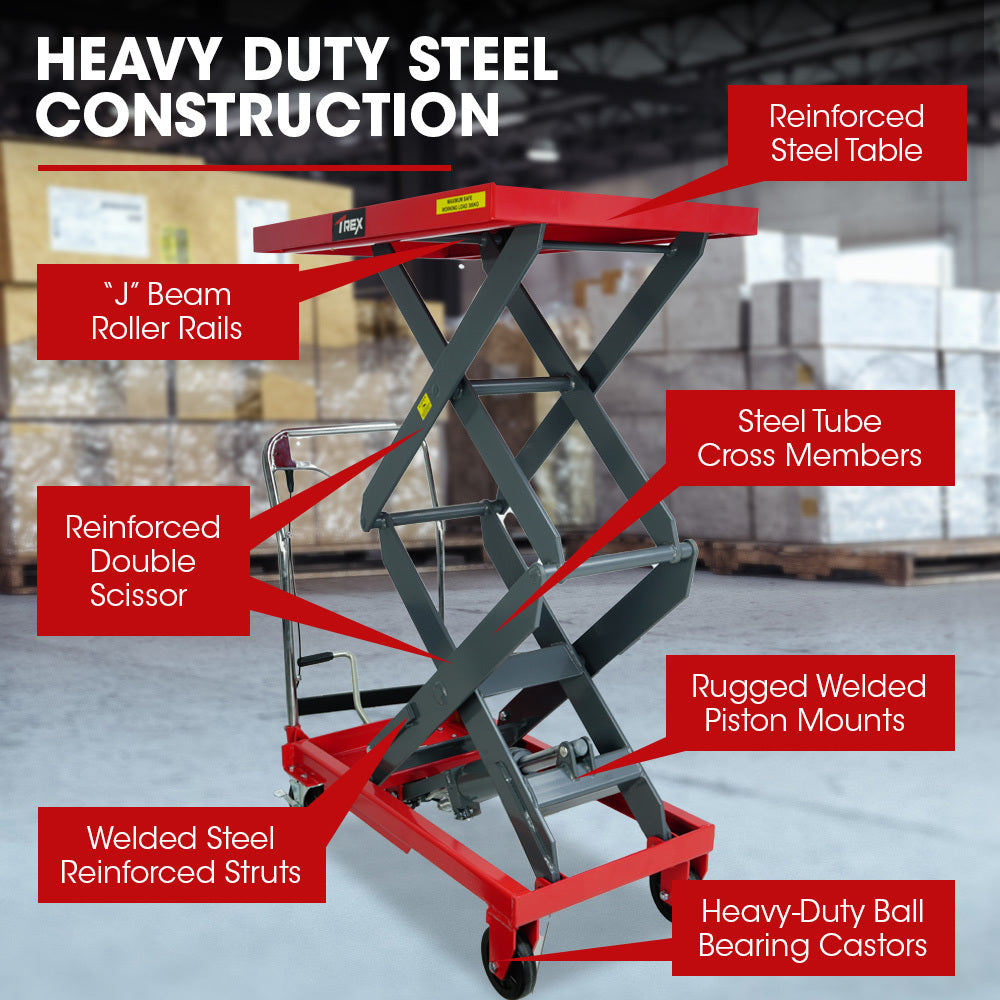

T-Rex states a maximum load capacity of 300kg / 660lb. That figure is quoted for the trolley as a whole, with no separate rating given for the platform at full extension versus its lowest setting, so treat 300 kg as the ceiling at any height and keep well inside it. Load centred, not overhanging one corner. The frame is high-tensile steel alloy with every component powder-coated, which matters less for looks than for the scissor pivots — surface rust in a pivot is what turns a smooth lift into a jerky one.

Moving it around a tight workshop

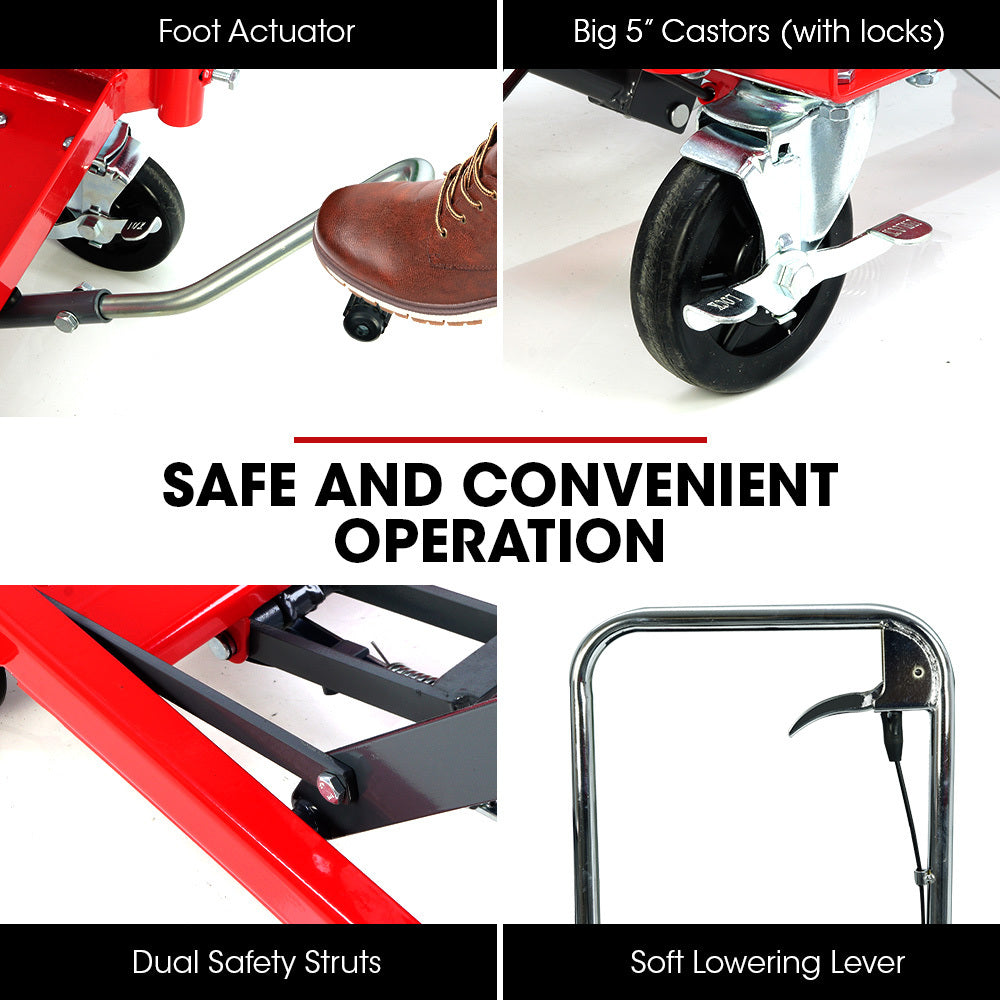

Four 5-inch castors carry the trolley: two fixed at one end for tracking straight, two swivelling with brakes so it stays put once positioned. The handle lifts off, which drops the storage footprint to roughly the size of the frame itself. At 98 kg this is not something to carry up a step, so plan where it lives before it arrives. Assembly is required and the manual is published online rather than packed in the carton, worth knowing in advance.

Key features

• Double scissor lift: 35 cm to 130 cm of travel out of a single frame.
• Foot-pedal hydraulics: both hands stay on the load while it rises.
• Metered descent: a hand lever controls the drop instead of releasing it.
• 82 x 52 cm platform: takes long or awkward items without overhang.
• Braked swivel castors: the trolley stays where it is put during loading.
• Removable handle: stores flat against a wall when the job is done.

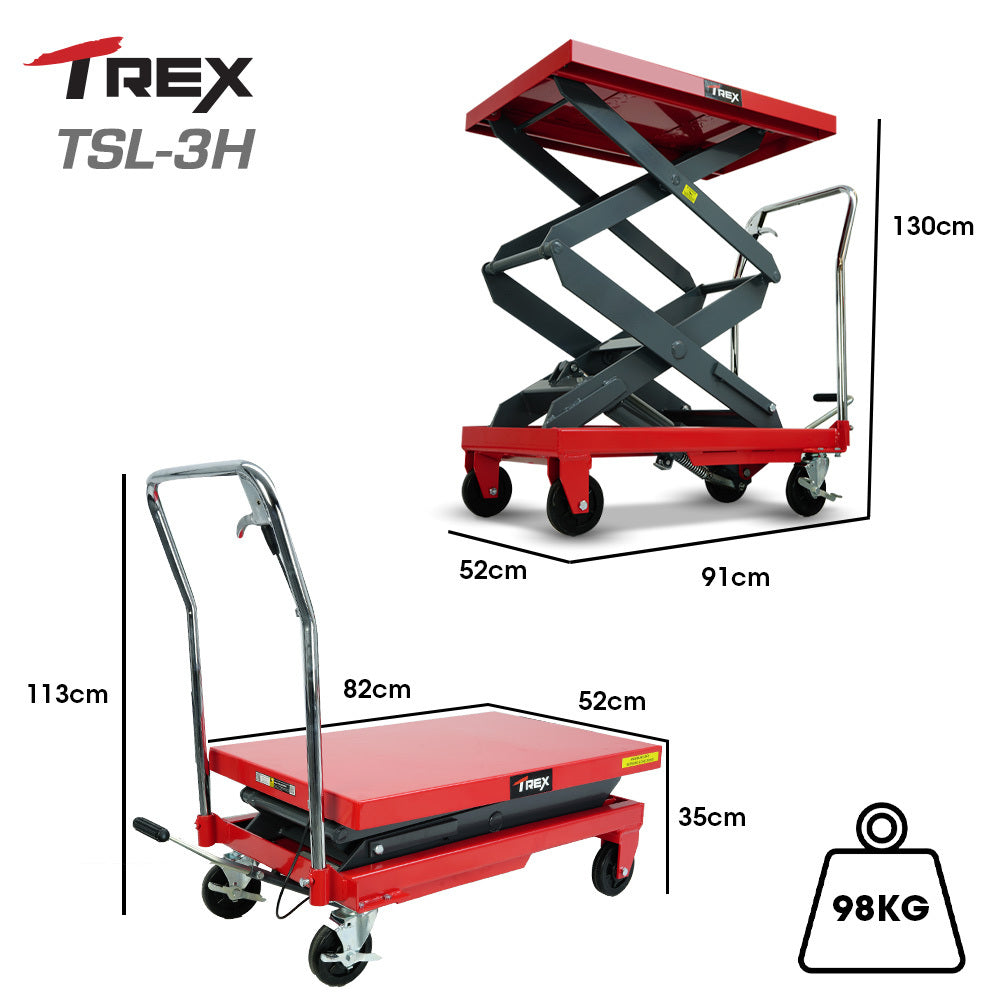

Specifications

• Brand: T-Rex
• Model: TSL-3H
• Maximum load capacity: 300kg / 660lb (basis not stated by the supplier)
• Pump: hydraulic pedal
• Type: hydraulic
• Material: powder-coated steel
• Table length: 82 cm
• Table width: 52 cm
• Minimum height: 35 cm
• Maximum height: 130 cm
• Product dimensions (W x L x H): 52 x 91 x 113 cm
• Product weight: 98 kg
• Carton dimensions (W x L x H): 57 x 95 x 49 cm
• Carton weight: 99 kg

What's in the box

• 1 x T-Rex Hydraulic Scissor High Lift Trolley
• User manual accessible online. Assembly required.

Working safely around a raised platform

• Never place hands, feet or any part of your body under a raised platform. Lower it fully before adjusting the load or working on it.
• Keep the load centred on the table and inside the stated 300kg / 660lb maximum.
• This is a material handling trolley, not a vehicle lift. Do not use it to raise or support a vehicle.
• Set both castor brakes before loading, unloading or raising.
• Assembly is required — check every fastener is tight before the first lift, and again after a few uses.

If your workshop shifts heavy stock between the floor and truck height most days, the TSL-3H does that lift for you. Check the 35 to 130 cm range against the job before ordering.
