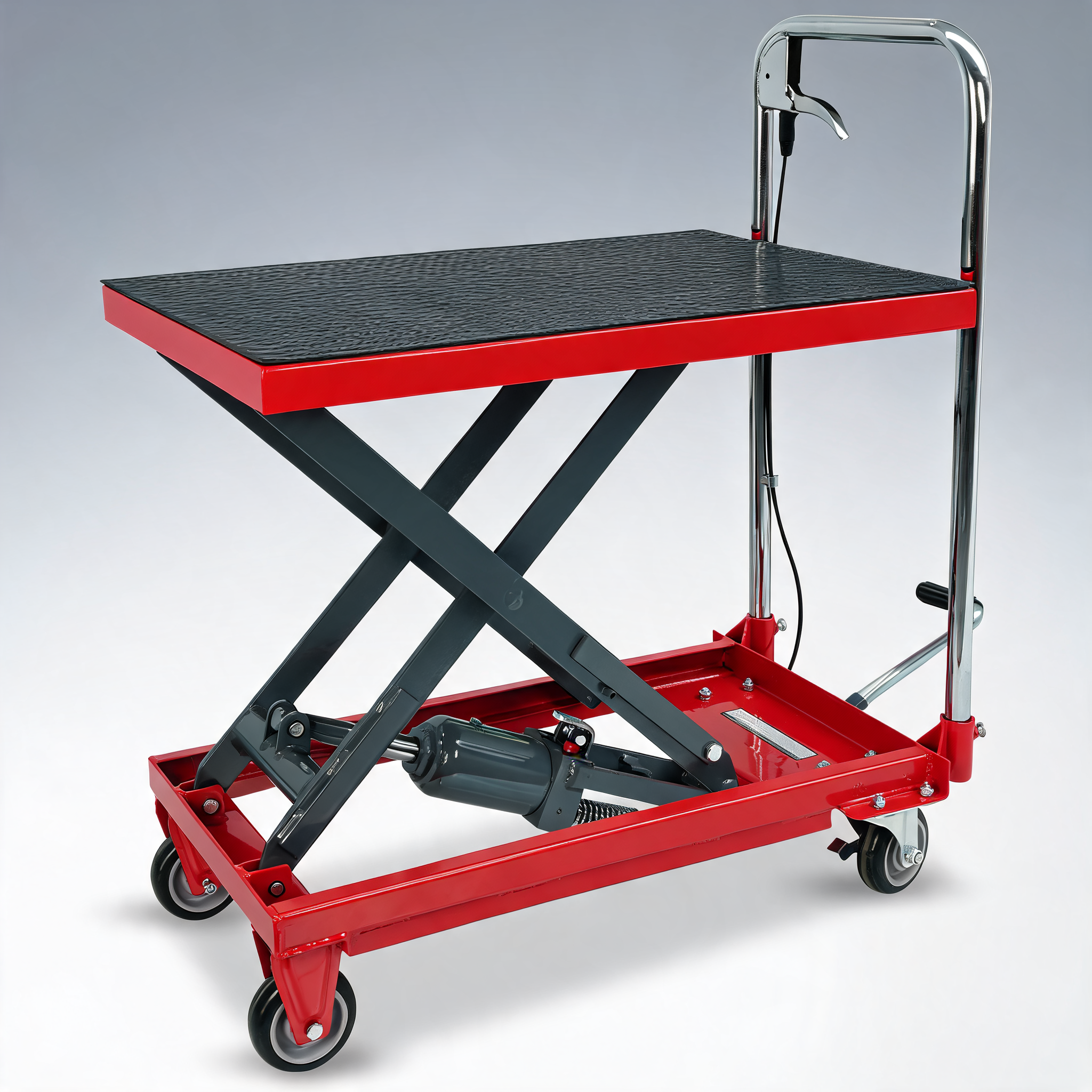

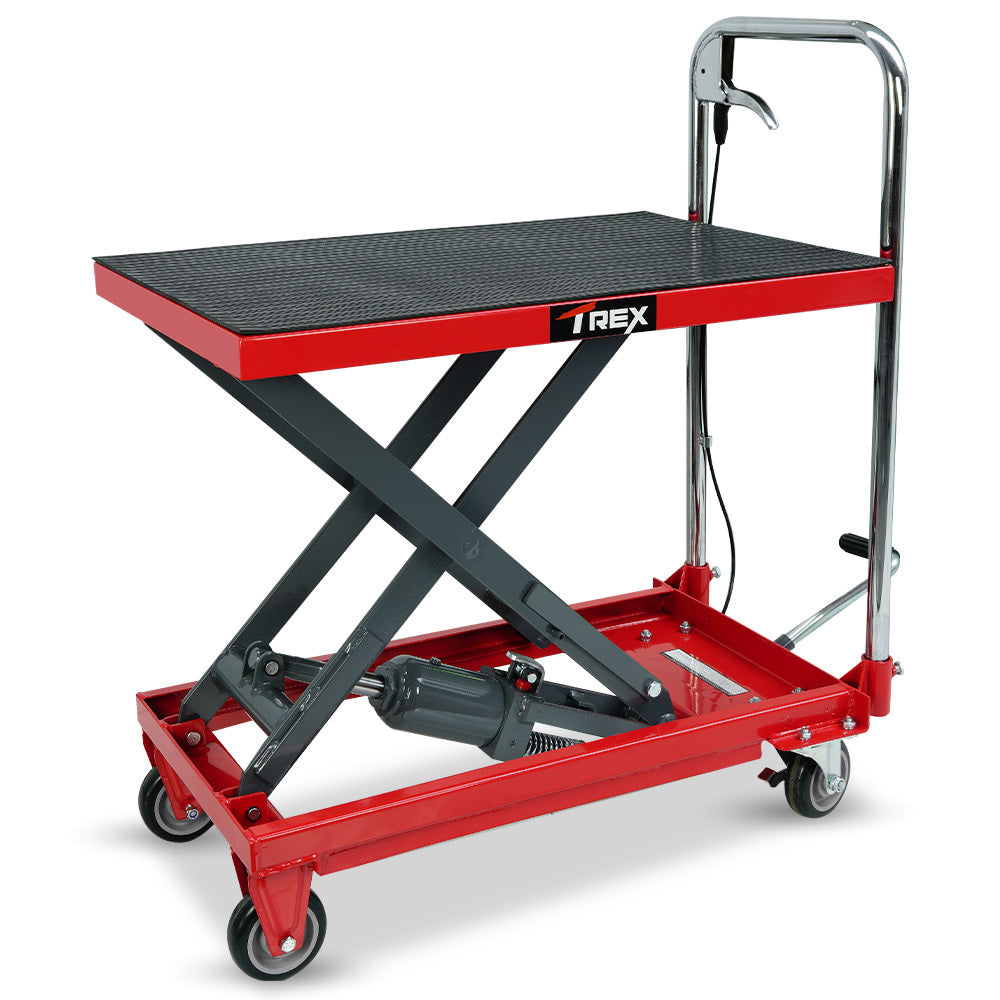

T-REX 230KG Hydraulic Scissor Lift Platform Trolley, Non-Skid Rubber Platform Pad, for Material Handling

Loading a gearbox onto a bench is the kind of lift that ruins a back. The T-Rex TSL-2 sits at 23 cm, low enough to slide a load straight on at floor level, then pumps up to bench height on a foot pedal — about nine strokes from bottom to top, according to T-Rex.

The rubber mat earns its keep

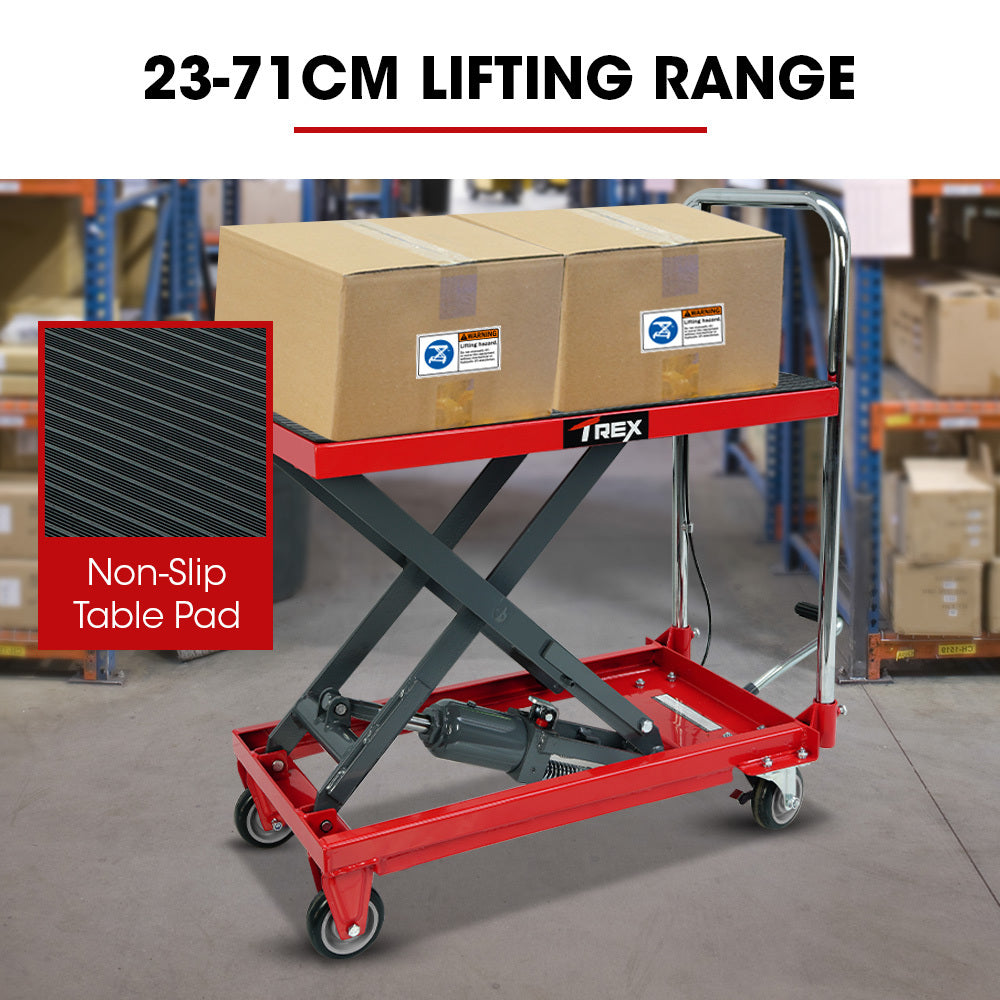

Bare steel platforms let anything round or oily wander, and a load that shifts while the scissor is halfway up is the one that ends badly. A non-slip rubber pad covers the 71 x 45 cm table, giving enough grip to hold a bare casting or a painted panel in place and enough thickness to keep the steel from marking finished work. On a workshop floor that matters twice: nothing slides on the way up, and nothing gets scratched on the way back down.

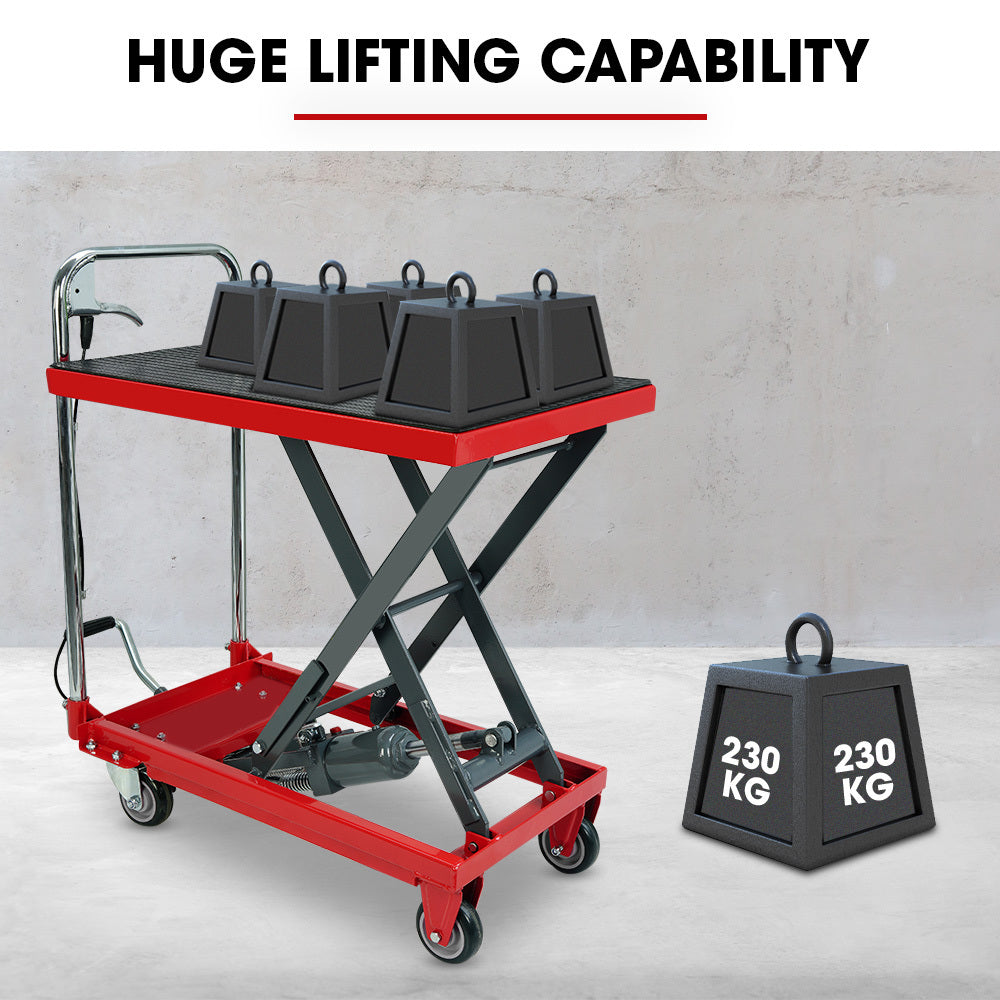

Rated to 230 kg, and what that means

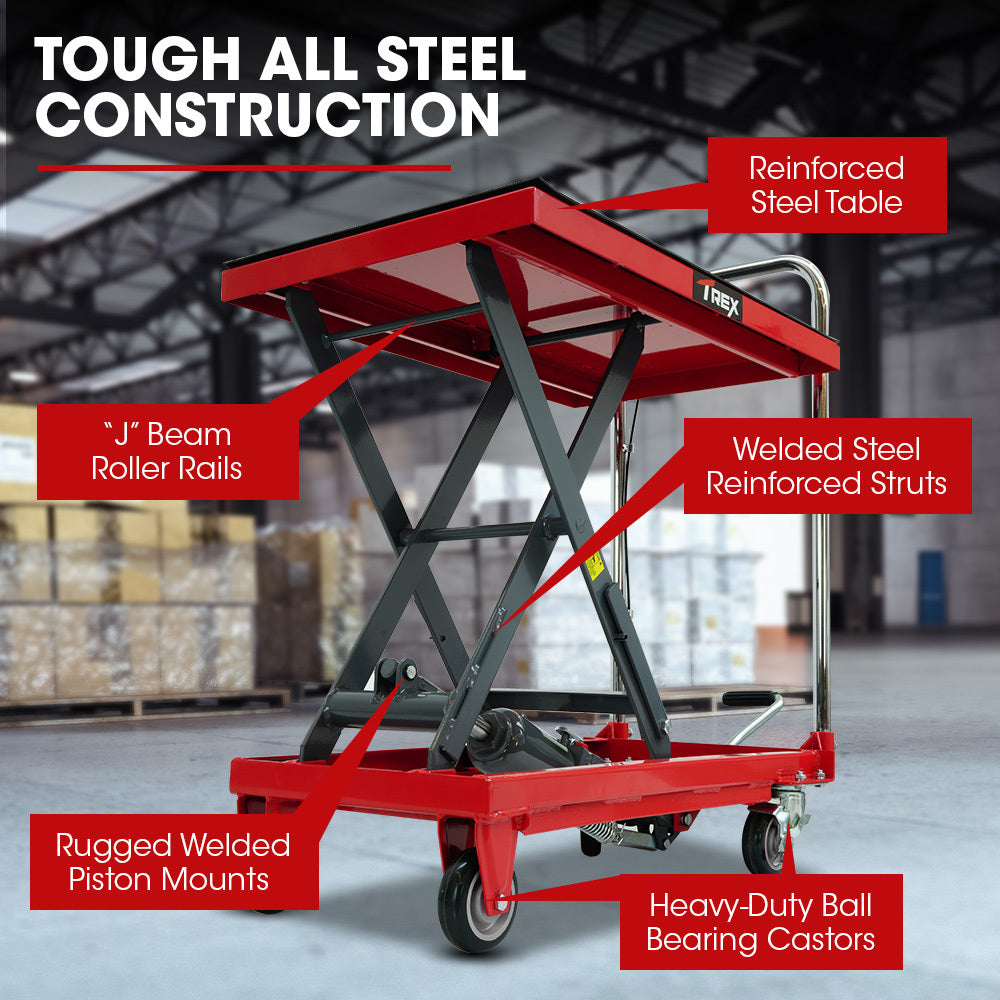

T-Rex quotes a maximum load capacity of 230kg for the trolley. No basis is given alongside it — the figure is not broken down by platform position or by point load — so the sensible reading is 230 kg in total, spread evenly across the table, anywhere in the 23 to 71 cm range. High-carbon steel alloy keeps the frame down to 39 kg while carrying that rating, and powder coating over the whole structure protects the pivots and pump body from the damp corner of a shed.

Manoeuvring and storage

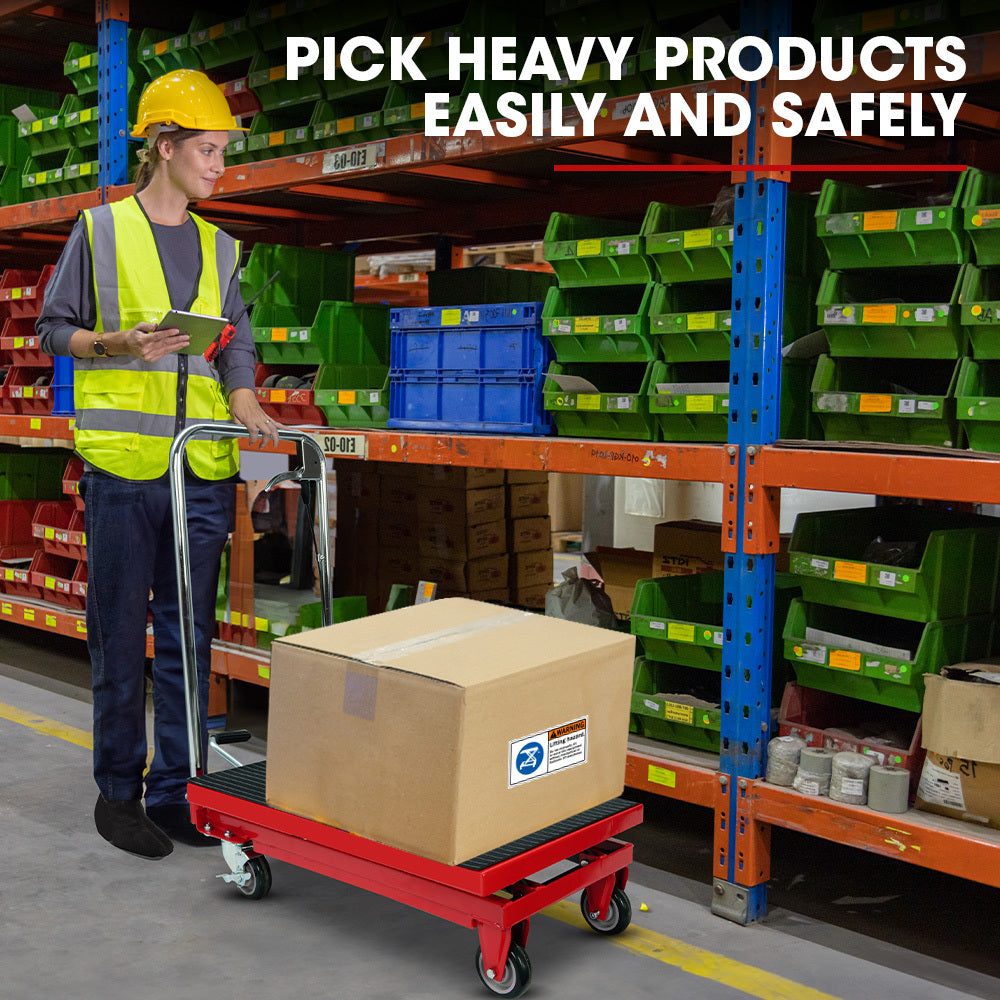

Two fixed wheels and two braked swivel castors give the trolley a push-cart feel: it tracks in a straight line down an aisle, then pivots on the spot when it needs to sit beside a bench. Lock both brakes before loading. The handle pulls out for storage, and at 39 kg one person can walk the empty trolley into a corner. Assembly is required from the carton, with the manual published online rather than printed.

Key features

• Non-slip rubber mat: stops round or oily parts creeping while the table rises.
• Nine strokes to full height: T-Rex quotes about nine pedal strokes from 23 cm to 71 cm.
• Hand-lever lowering: the descent is metered, not released.
• 39 kg frame: high-carbon steel alloy, light enough for one person to reposition empty.
• Braked swivel castors: two fixed for tracking, two swivelling with brakes.

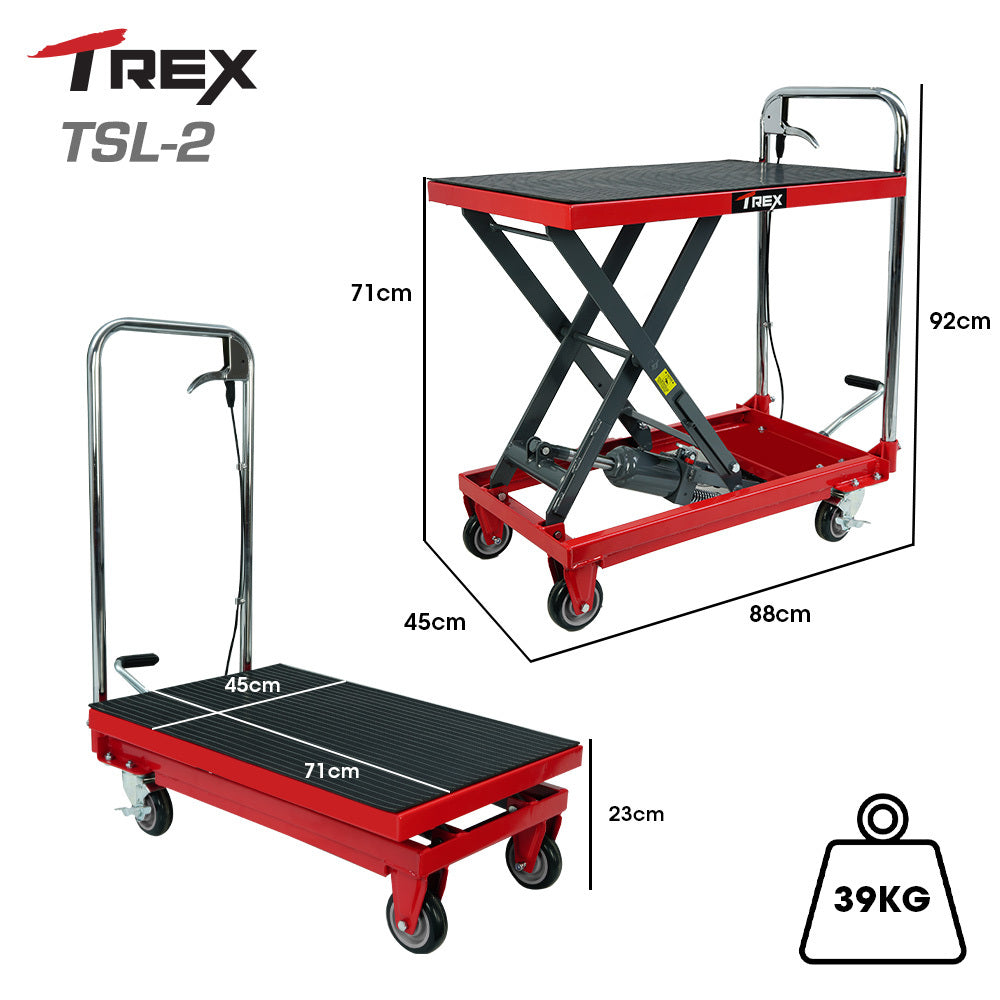

Specifications

• Brand: T-Rex
• Model: TSL-2
• Maximum load capacity: 230kg (basis not stated by the supplier)

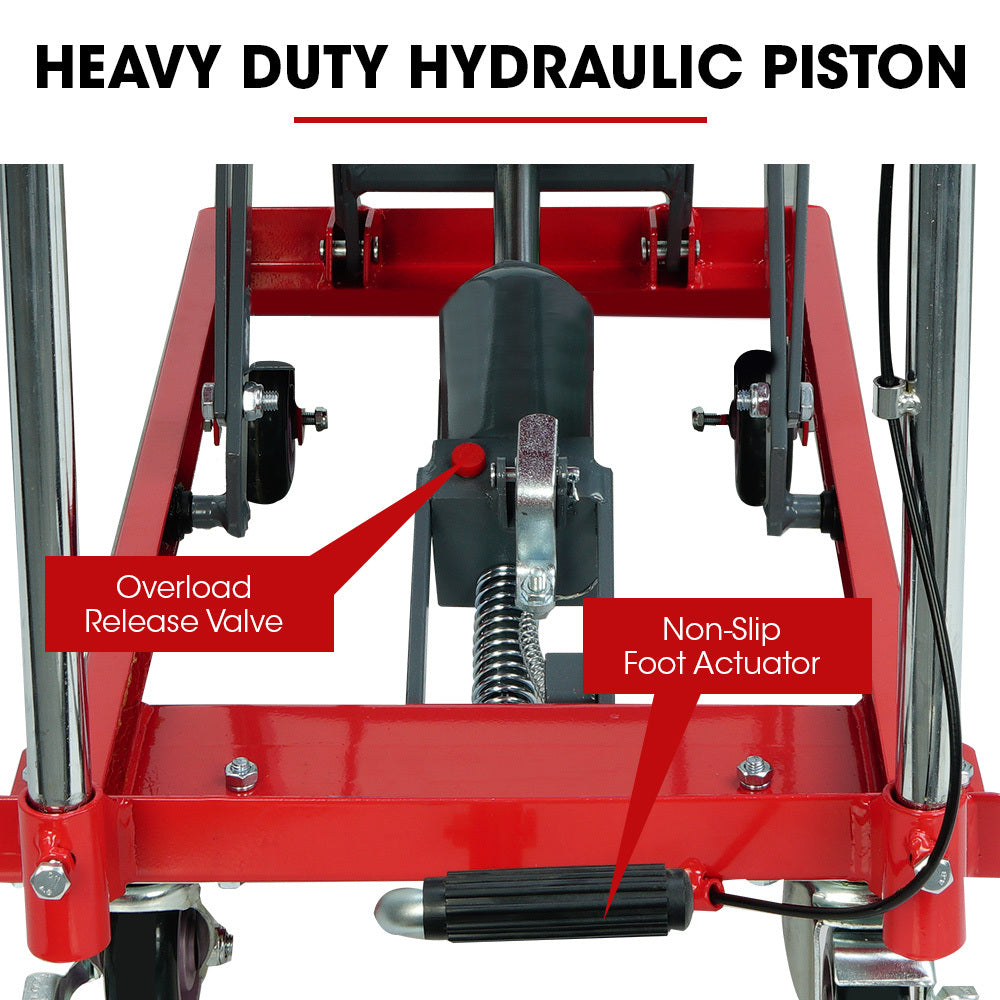

• Pump: hydraulic pedal
• Type: hydraulic
• Material: powder-coated steel
• Table length: 71 cm
• Table width: 45 cm
• Minimum height: 23 cm
• Maximum height: 71 cm
• Product dimensions (W x L x H): 45 x 88 x 92 cm
• Product weight: 39 kg
• Carton dimensions (W x L x H): 51 x 82 x 22 cm
• Carton weight: 41 kg

What's in the box

• 1 x T-Rex 230kg Hydraulic Scissor Lift Trolley
• User manual accessible online. Assembly required.

Before you load it

• Nothing goes under a raised platform — not a hand, not a foot. Lower the table before reaching in.
• Keep loads inside the stated 230kg maximum and centred on the mat.
• Apply both castor brakes before loading, unloading or raising.
• This is a material handling trolley. It is not a vehicle lift and must not be used to support a car.
• Assembly is required; confirm all fasteners are tight before the first load.

Suited to parts departments, engine shops and anywhere a load has to come off the floor and onto a bench without a second person. Compare the 23 to 71 cm range against your bench height first.
