Rexka 10pcs Fuel Door & General Purpose Specialty Rivet Compatible with Toyota Lexus 90269-06017 90269-A0005

A fuel flap that has felt loose since the last high-pressure wash at the servo usually has a worn rivet at the hinge rather than a broken hinge. The rivet body has opened out, the arm has play in it, and the flap sits proud of the panel. Ten replacements here, to Toyota's 90269-06017.

Why the flap sits proud

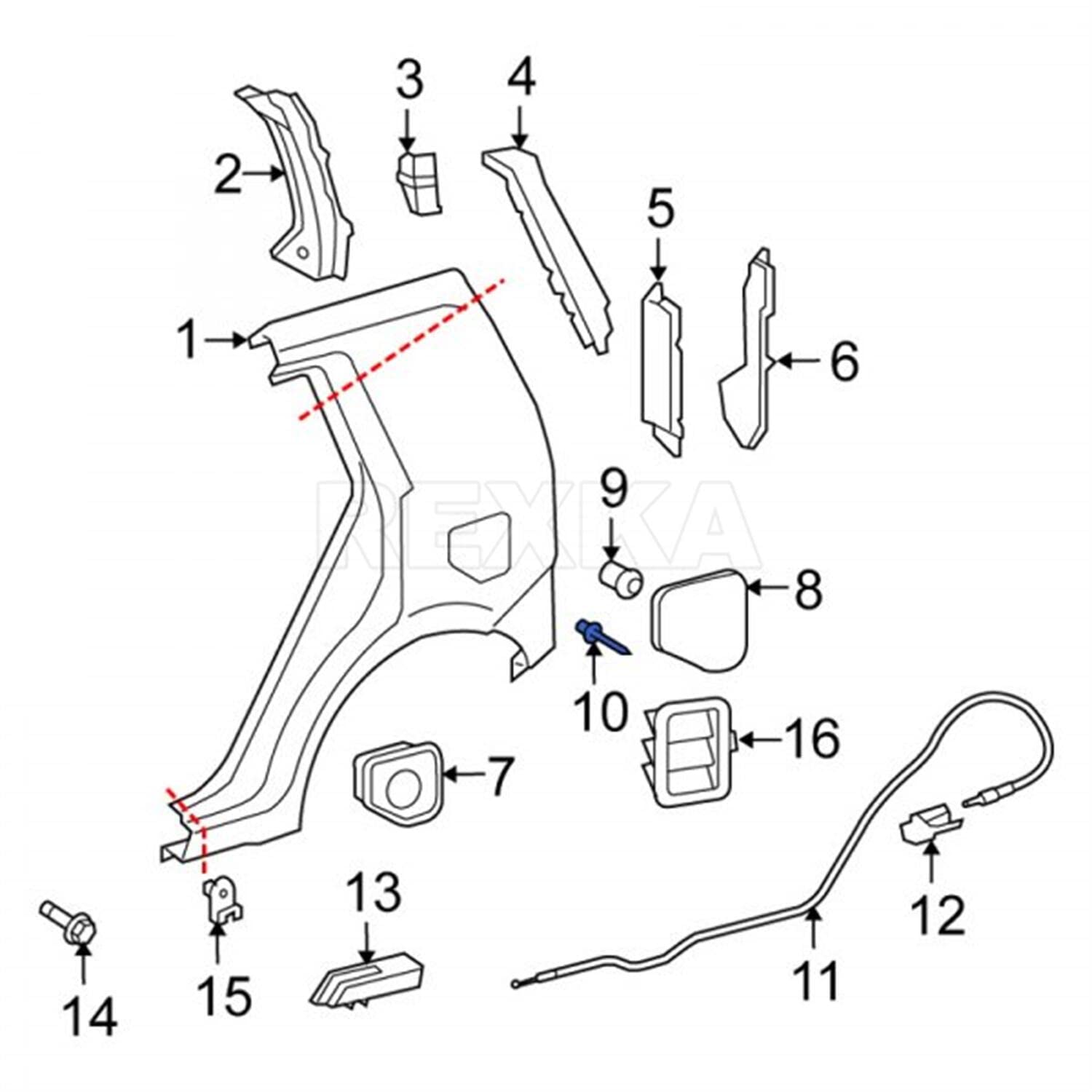

Toyota rivets the fuel filler door arm rather than bolting it, and the same rivet appears at impact bar, reinforcement and support arm positions elsewhere on the car. Construction is an aluminium body over a steel mandrel: the alloy sets the strength of the finished joint, the steel mandrel gives enough pull to form the tail properly. Body diameter is 1/4" (6.3mm) with a 1/2" (13mm) flange, and that broad flange is what stops the head drawing through thin panel when the arm loads up.

1.6 to 4.8 millimetres of material

Grip range is stated as 1/16" - 3/16" (1.6mm - 4.8mm), and it decides whether this rivet is usable at all. The figure describes the combined thickness of everything being joined. Come in under it and the formed tail sits in fresh air, leaving the joint slack. Go over it and the mandrel snaps before the tail has spread. Both figures appear here as the supplier gives them, imperial with metric alongside, since that is the form the data arrives in.

Key features

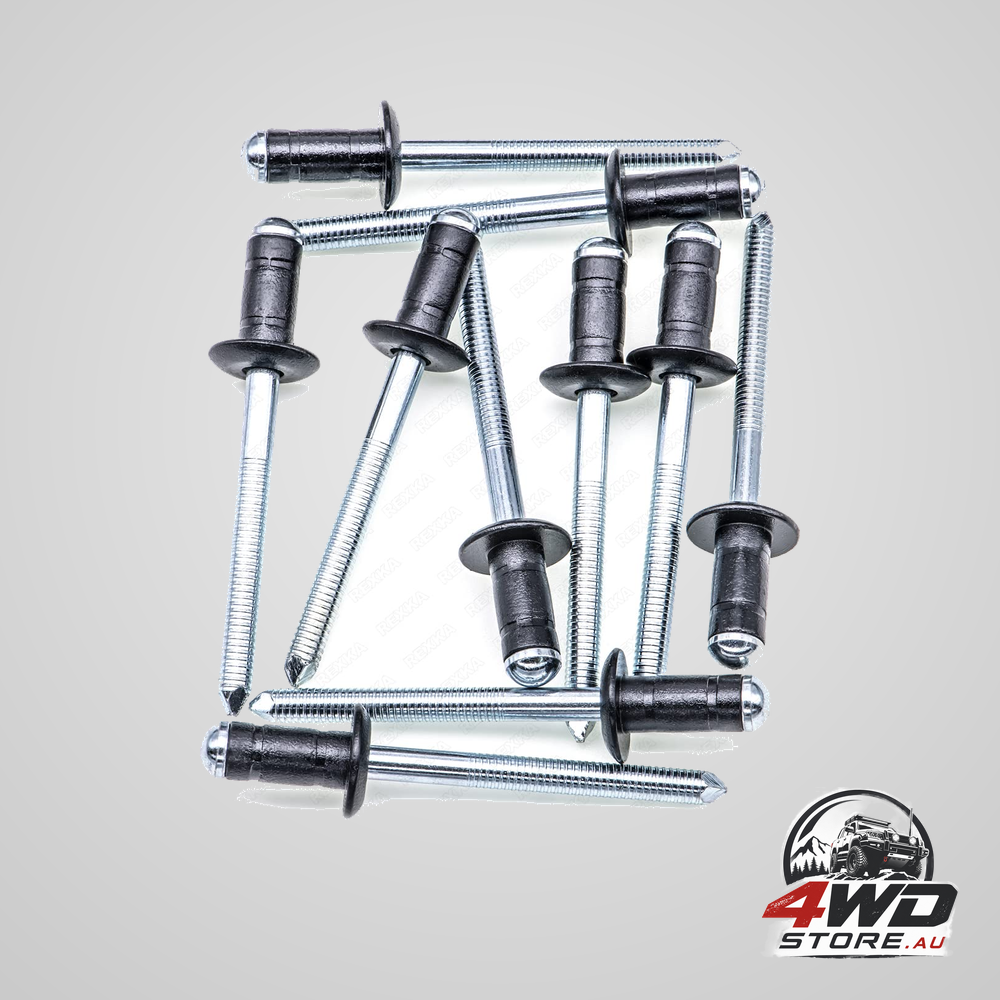

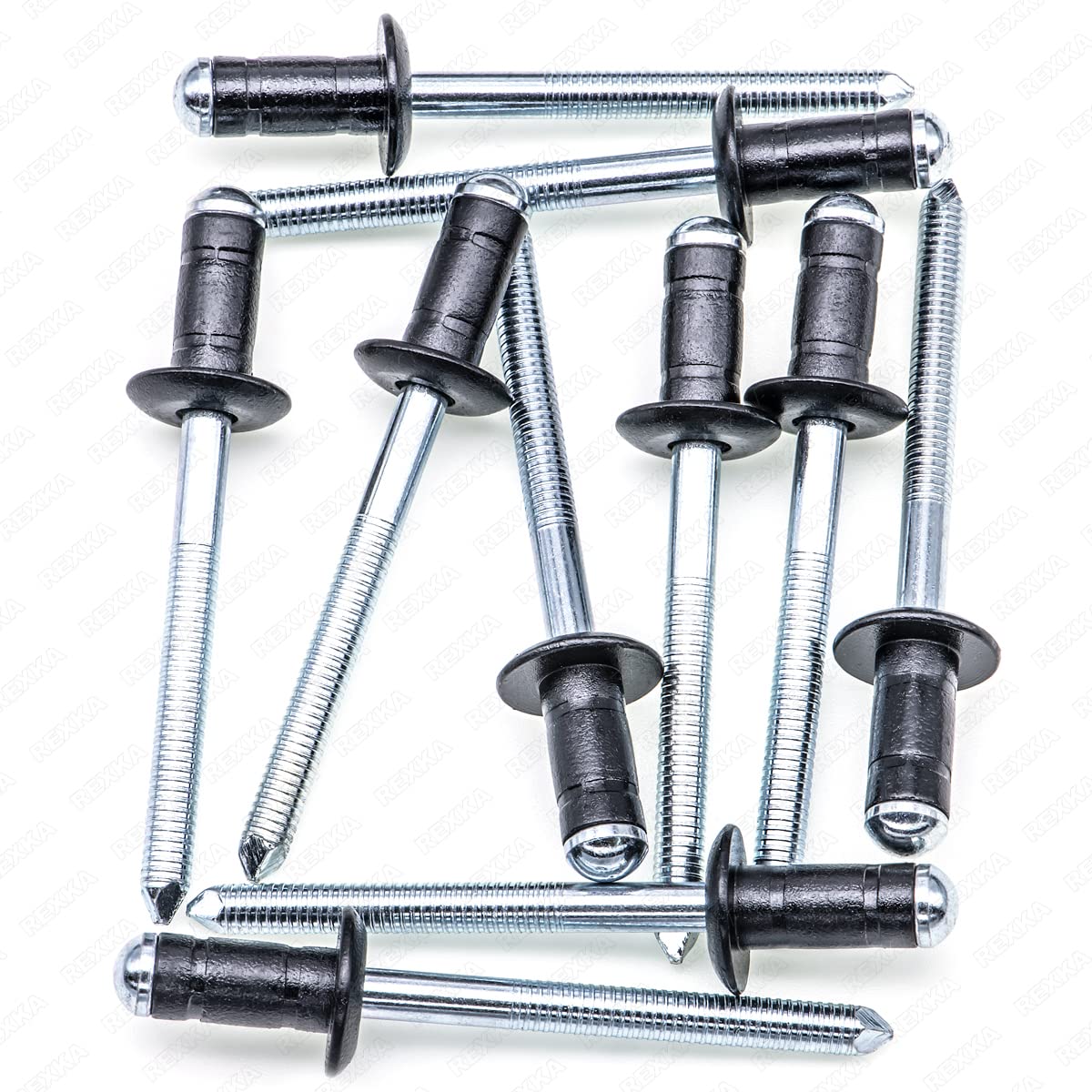

• Ten per pack: the fuel door plus the other positions the supplier names.
• 1/4" (6.3mm) body: the rivet diameter, in both units as published.
• 1/2" (13mm) flange: broad enough to stop the head pulling through thin sheet.

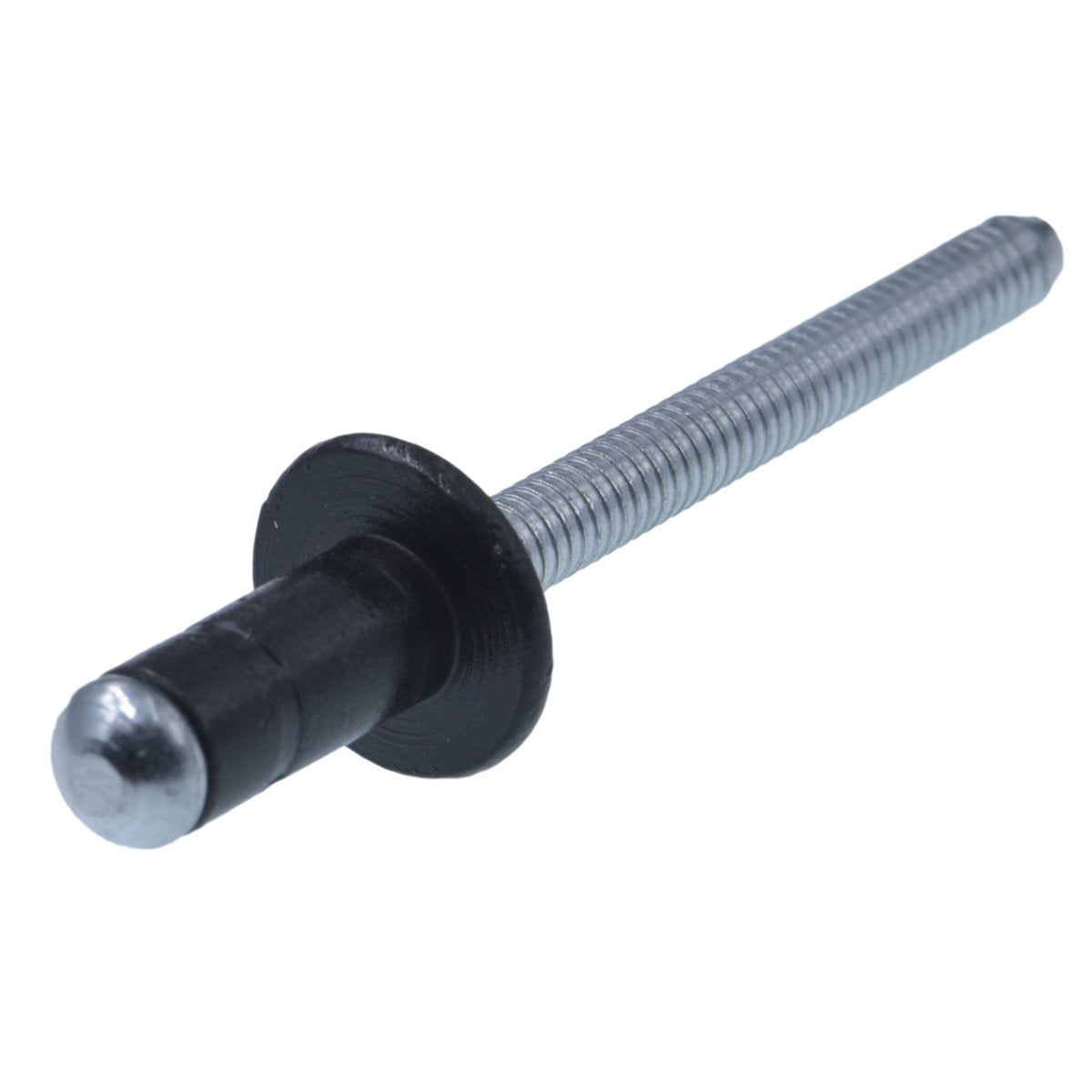

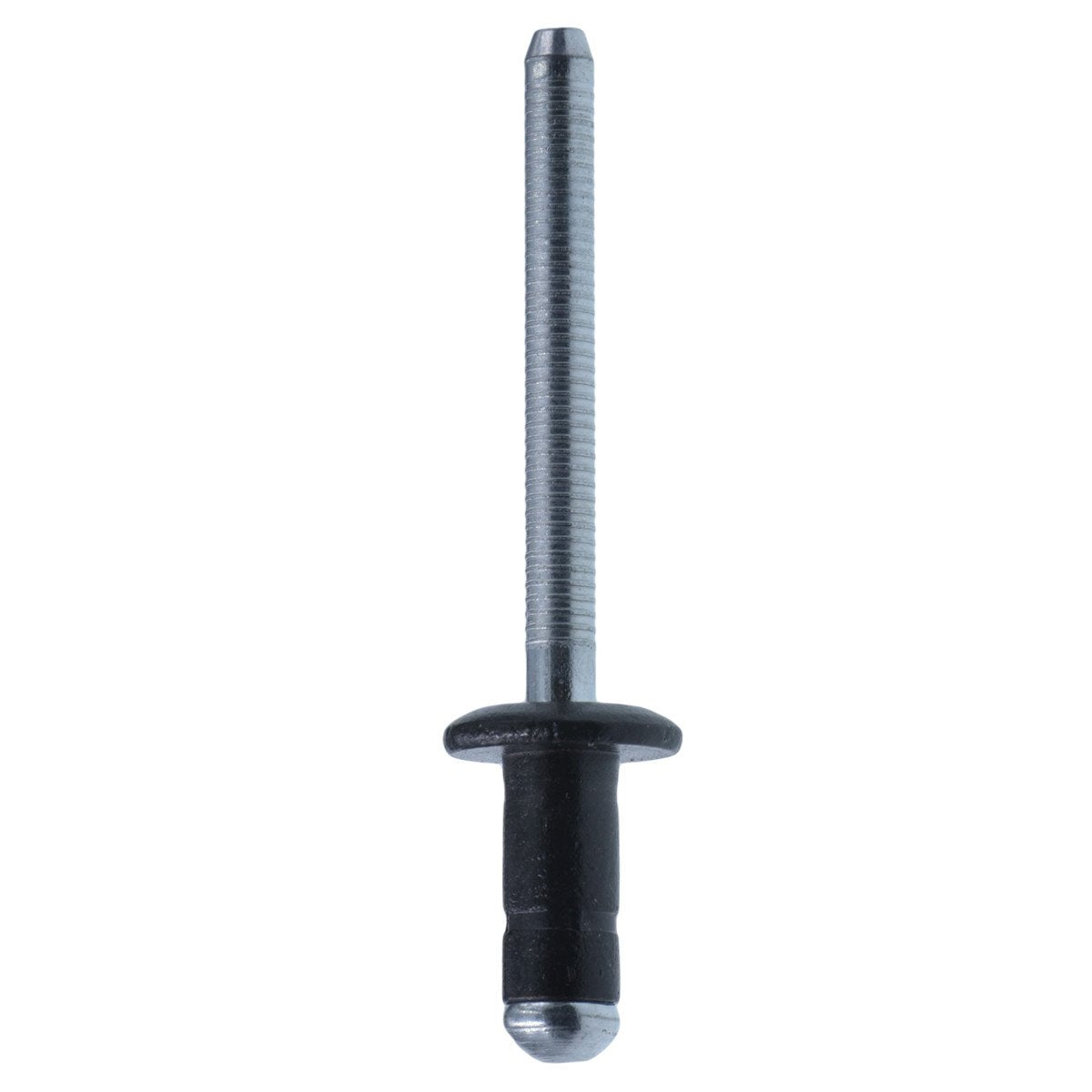

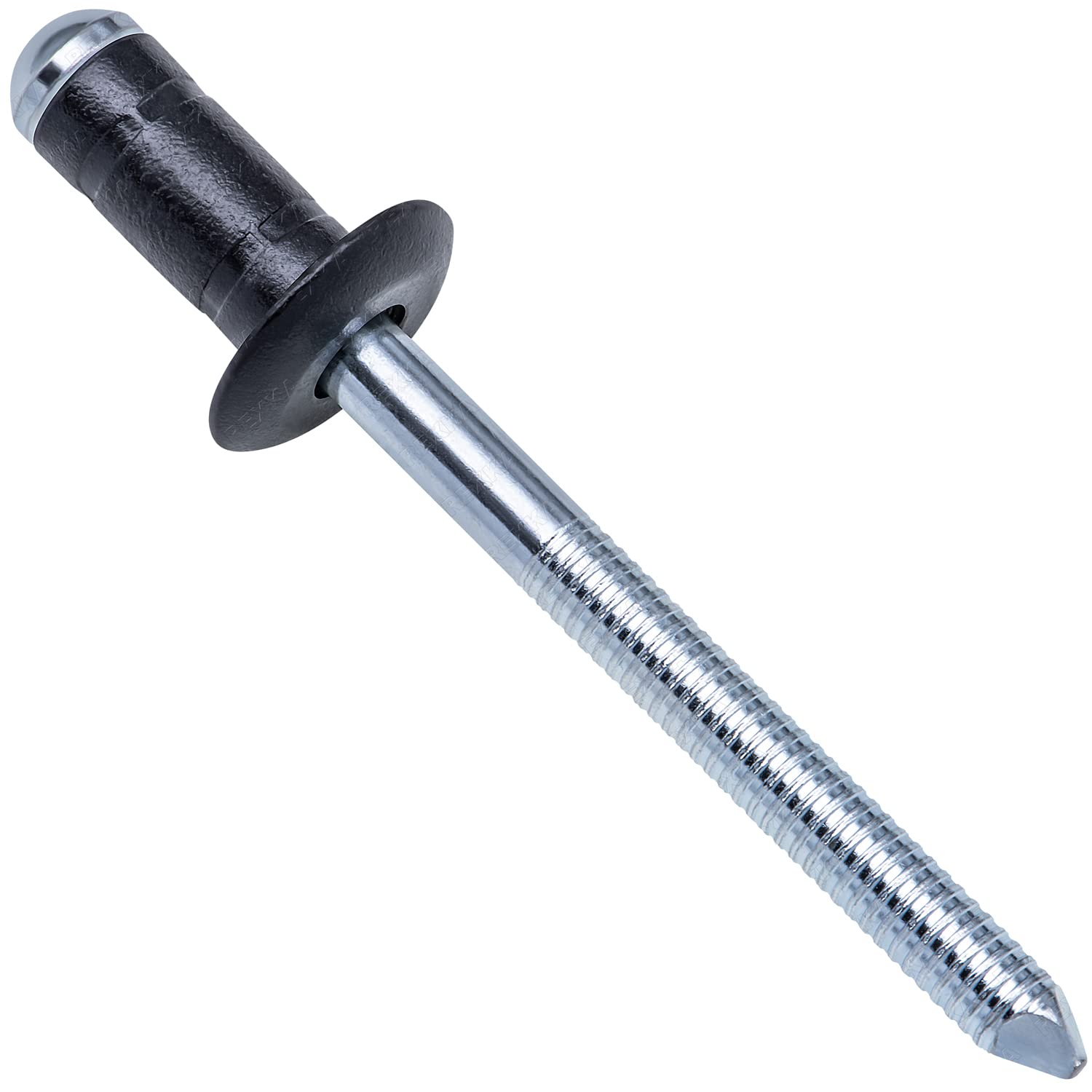

• Aluminium body on a steel mandrel: the construction the supplier specifies.
• 1/16" - 3/16" grip range: the joint thickness this rivet is formed for.

Specifications

• Quantity: 10 pieces
• Type and colour: black aluminium rivet with steel mandrel
• Body diameter: 1/4" (6.3mm)
• Flange diameter: 1/2" (13mm)
• Grip range: 1/16" - 3/16" (1.6mm - 4.8mm)
• Numbers provided to match by, indicating nothing about who made them: Toyota and Lexus 90269-06017 and 90269-A0005

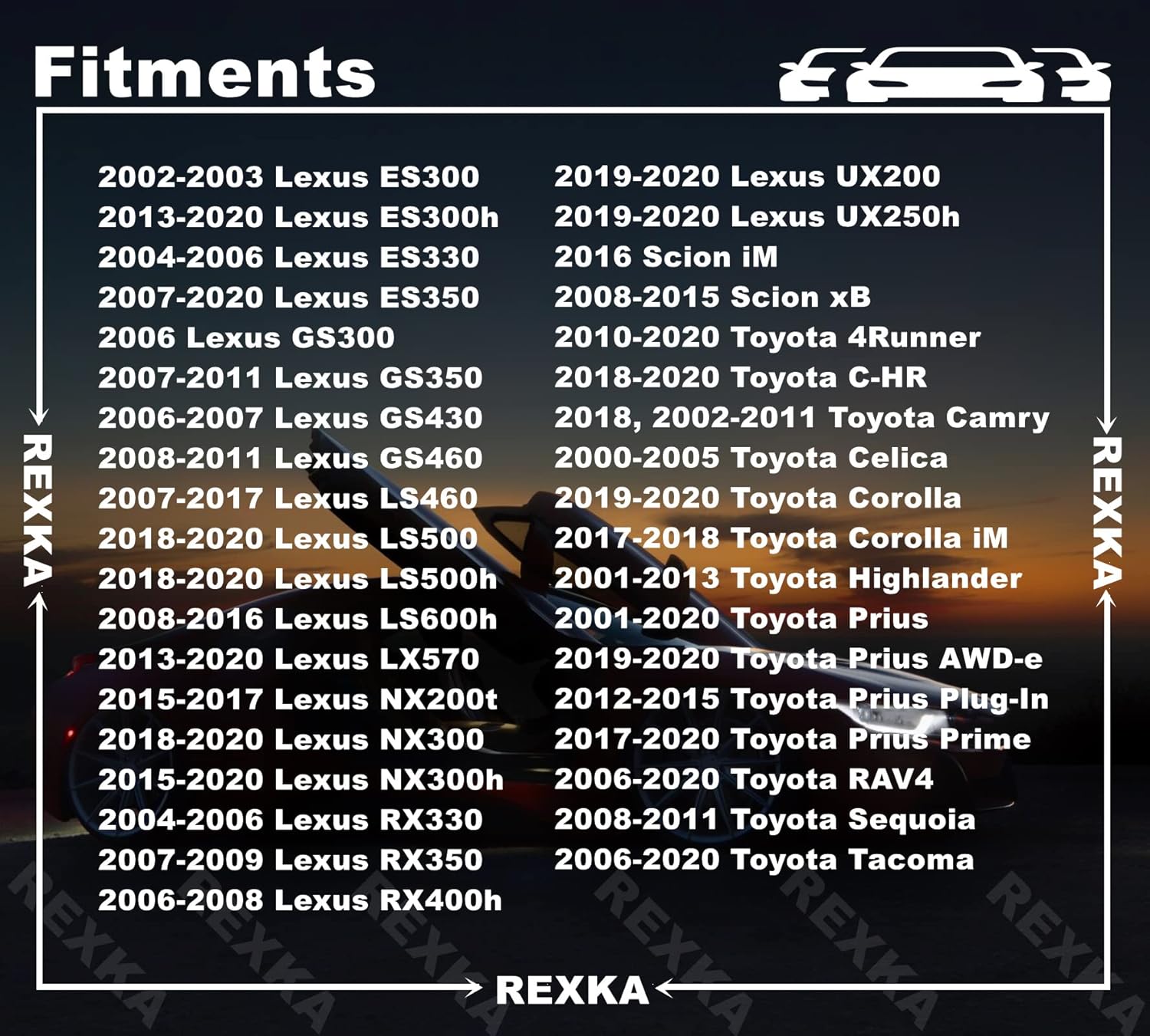

• Toyota and Scion fitment: iM, xB, 4Runner, C-HR, Camry, Celica, Corolla, Corolla iM, Highlander, Prius, Prius AWD-e, Prius Plug-In, Prius Prime, RAV4, Sequoia, Tacoma
• Lexus fitment: ES300 and ES300h, ES330, ES350, GS300, GS350, GS430, GS460, LS460, LS500, LS500h and LS600h, LX570, NX200t, NX300, NX300h, RX330, RX350, RX400h, UX200
• Model years: none are given for any vehicle
• Drilled hole size: not published

A one-way fastener

• A blind rivet is set with a rivet gun and cannot be undone by hand afterwards. Taking one out means drilling it, so be certain of the part before you pull the mandrel.
• Both numbers are supplied so you can compare against the rivet you drilled out. Neither points to origin, and these are aftermarket rivets.
• The vehicle lists carry no dates anywhere, and the Toyota list opens with the Scion models iM and xB before the Toyota entries begin. Treat both as a starting point, not a guarantee.
• No drilled hole size appears in the data. Measure before you open the panel out for something that may not be the right diameter.

Ten rivets and the loan of a gun beats a flap that catches on the panel every time it shuts.
