Pair 4inch CREE LED Work Light Bar Flood Beam Offroad Driving Lamp Reverse Fog

Head torches are fine until both hands are busy. A pair of small flood lamps bolted to the bar, the tray or the roll cage puts light on the winch, the jack or the campsite without anyone having to hold it, and at 4 inches square there is room for them almost anywhere.

Light where you are standing, not 200 metres away

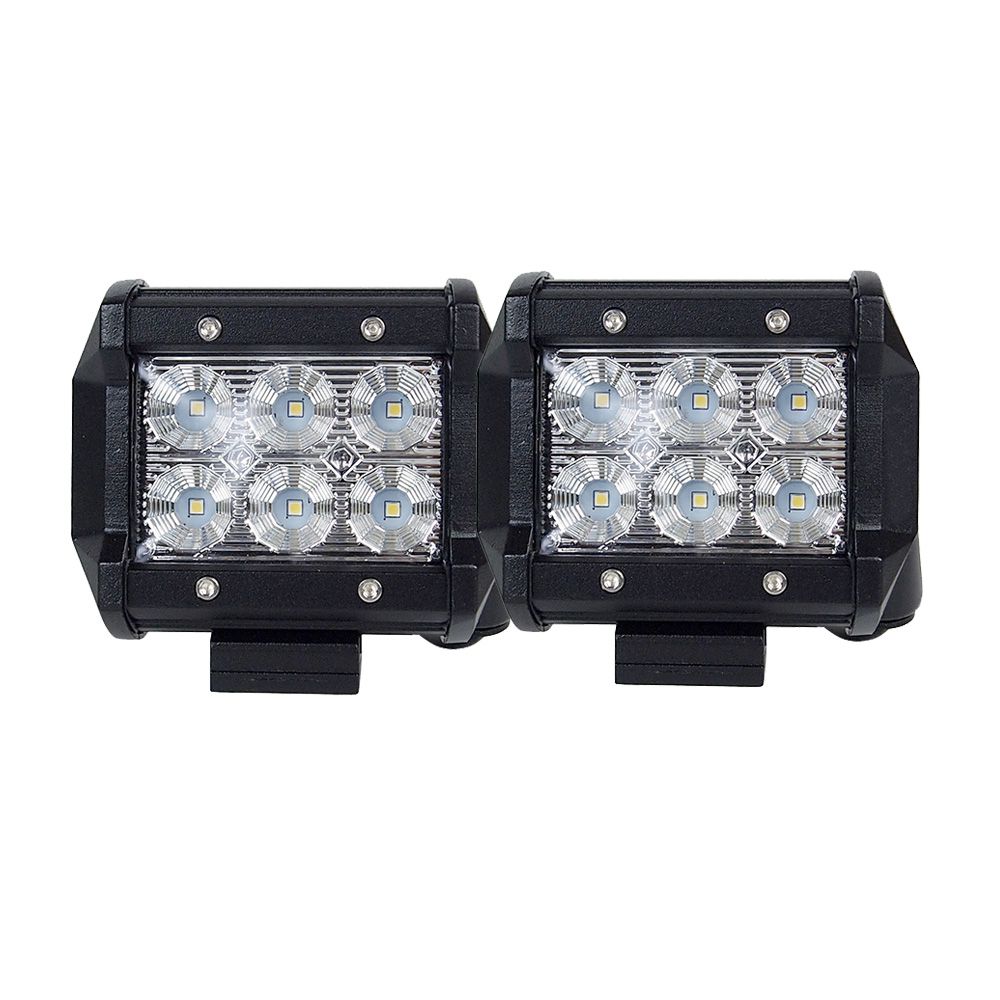

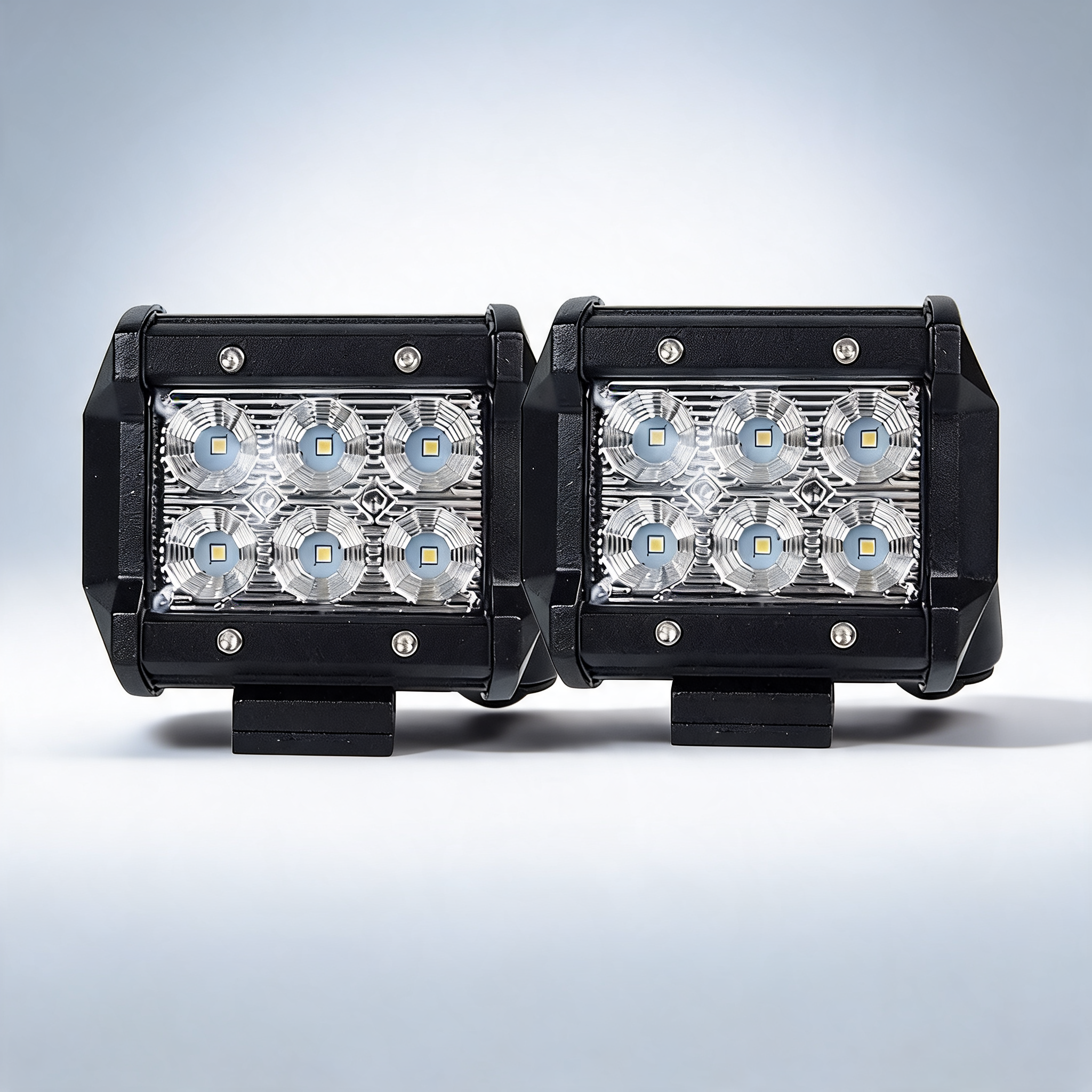

Six CREE 3 W Gen2 emitters produce 1,680 lumens per lamp at 5700 K through a flood optic the supplier lists at 50.5 degrees. That spread suits close work: changing a tyre on the verge, sorting recovery gear, or lighting the ground behind a reversing trailer. Draw is modest at 1.1 A per lamp on 12 V, dropping to 0.55 A on 24 V, so a pair adds little to the load on an already busy accessory circuit.

Built to survive the mounting point

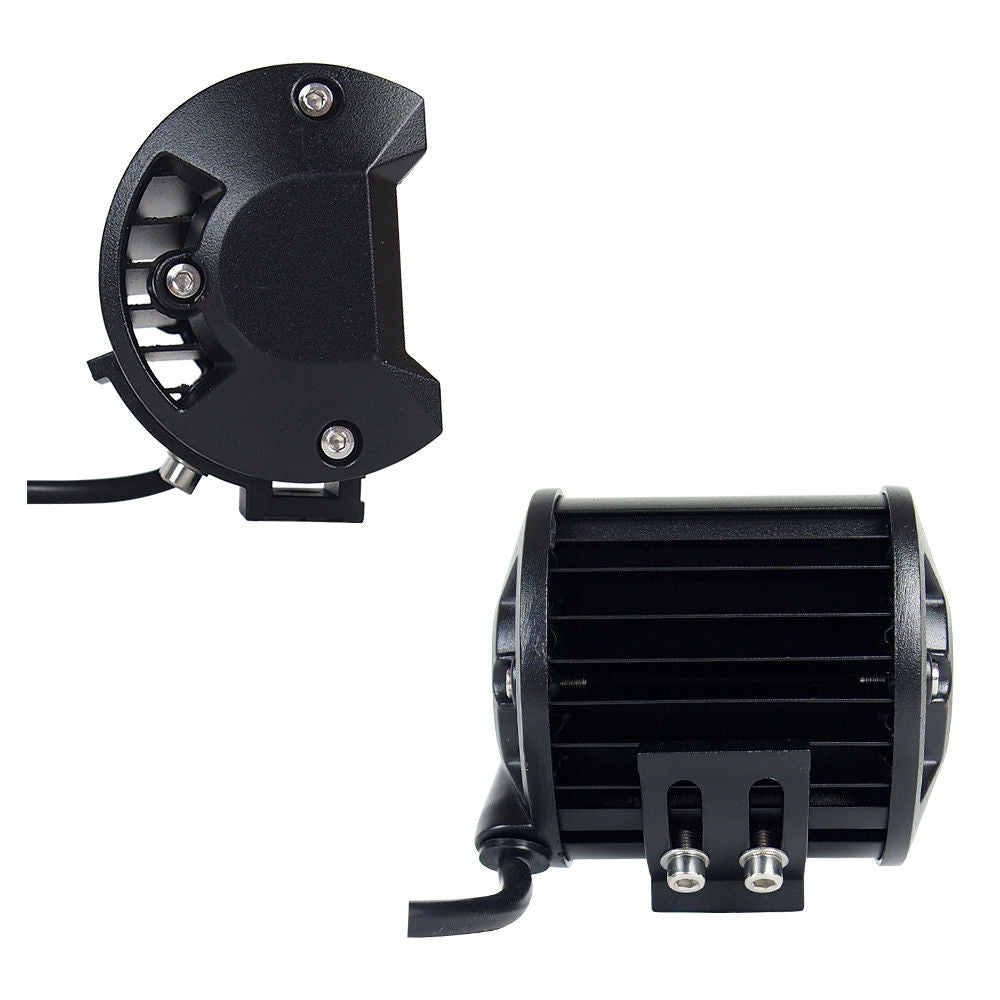

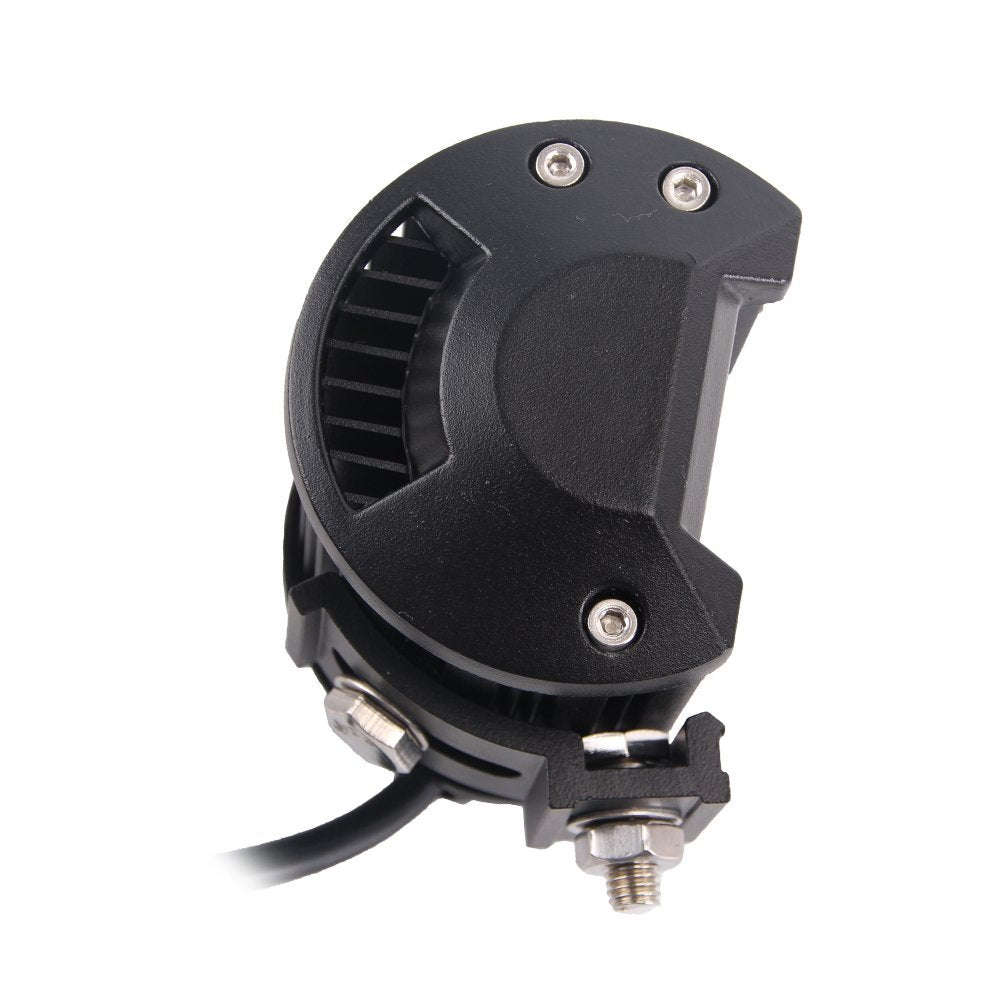

The bodies are black-painted aluminium — a cast A360 face plate on an extruded heat sink — with a shatterproof polycarbonate lens and IP68 sealing. Brackets are stainless steel and adjustable, which matters because the lamp on a bull bar tab lives in the worst of the dust and water. Rated operating range runs from -40°C to 60°C, and the supplier puts service life at 50,000 hours. Each lamp weighs 450 grams, so nothing needs reinforcing to carry them.

Key features

• Pair supplied: mount both ends of a tray or both sides of a bar.
• Low current draw: 1.1 A each at 12 V, so two lamps are an easy load.
• Stainless adjustable brackets: aim is set after mounting and holds under vibration.
• IP68 sealed: supplier rated for dust, water and corrosion.
• Shatterproof lens: polycarbonate takes stone strikes without breaking up.

Specifications

• LEDs: CREE 3 W Gen2, 6 per lamp
• Wattage: 18 W per lamp
• Colour temperature: 5700 K
• Luminous output: 1,680 lm per lamp (supplier stated)
• Peak intensity: 67,850 cd (supplier stated)
• Beam: flood, 50.5°
• Voltage: listed as 12 V and 24 V in the specifications and as DC 10-30 V in the feature notes
• Current draw: 1.1 A at 12 V, 0.55 A at 24 V per lamp (±5%)
• Lens: optical grade hard-coated Lexan
• Housing: black-painted A360 cast face plate, extruded aluminium heat sink
• Ingress protection: IP68
• Operating temperature: -40°C to 60°C
• Weight: 0.45 kg per lamp
• Rated life: 50,000 hours

What's in the box

• 2 x 18 W waterproof CREE flood LED light bars
• 2 x adjustable mounting brackets
• 2 x screw sets

Before you fit these

• Positioning, covering and switching requirements apply to auxiliary lamps — confirm what applies to your vehicle and your state before fitting them for road use.
• Wire through a fused circuit and switch them independently of the driving lights, since a flood pattern aimed forward on the road is not what this beam is shaped for.

Suits utes, 4WDs, tractors, boats and mining plant — anywhere the job happens within a few metres of the vehicle.
