Micro Pivoting LED Spotlight - 1 Watt High Power LED Lamp - Tiny Size, Cool White LED, 12 to 28VDC

Fitting a reading lamp into a caravan bunk, a boat cabin or the map pocket of a work truck runs into the same wall every time: everything on the shelf is too big for the space that is left. This fitting is about the size of a AA battery and still puts out a usable pool of white light.

Small enough for the spaces left over

The body measures roughly 41 mm long and 22 mm across, which slots under a shelf lip or beside a berth without eating headroom. The head pivots, giving a small amount of adjustment in where the beam lands — enough to aim it at a book or a chart table rather than at whoever is sitting opposite. It is a utility fitting, not a decorative one.

Runs on the vehicle's own DC supply

A current limiter comes with the lamp, and with it fitted the unit works directly across 12 to 28 volts DC. That covers a standard 12 V automotive or caravan circuit and a 24 V truck or marine system without a separate converter. The single 1 W LED is rated at 5500 K. One thing worth being clear about: there is no plug or power cord in the box, because it is built to be wired into a vehicle rather than run indoors.

Key features

• 1 W LED at 5500 K: cool white from a single high-power emitter.
• 12-28 V DC with the included limiter: one fitting suits 12 V and 24 V systems.
• Pivoting head: small adjustments to beam direction after mounting.

Specifications

• Power: 1 W LED
• Colour temperature: 5500 K, cool white
• Operating voltage: 12-28 V DC, with the supplied current limiter

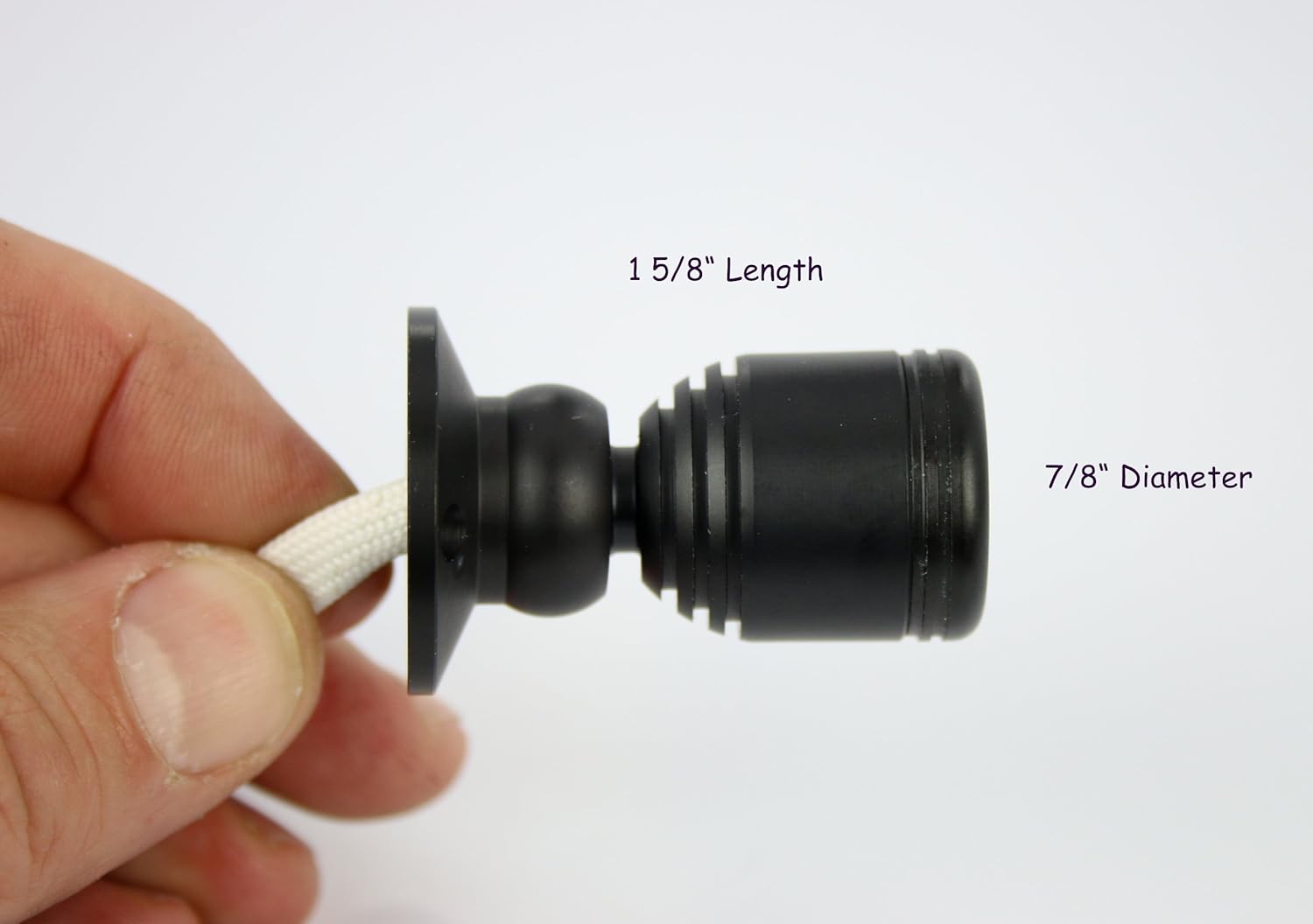

• Length: approx. 41 mm (1 5/8 in as stated)
• Diameter: approx. 22 mm (7/8 in as stated)
• Head: pivoting
• Listed applications: RV, automotive, boating and utility vehicle interiors
• Not published: lumen output, beam angle, IP rating, lead length, mounting hardware

Before you fit these

• No mains cord or plug is supplied. The lamp is intended for a vehicle electrical system, not a household outlet.
• The supplied current limiter is what allows the 12-28 V range — do not wire the lamp without it.
• No IP rating is published, so treat this as an interior fitting unless the supplier confirms otherwise.
• If the lamp will be visible from outside the vehicle once fitted, confirm the requirements that apply to your vehicle and state before use on the road.

A tidy answer to interior lighting in caravans, boats and utes where room is tight.
