Giantz Tractor Seat Forklift Excavator Universal Backrest Truck PU Chair

Eight hours on a forklift with a dead seat is something an operator feels by knock-off. This Giantz seat is the suspended one of the pair we stock: the supplier lists a deoscillator suspension device with 35 mm of travel and a weight setting with three ranges, so the seat gets tuned to the person in it rather than left as it arrives.

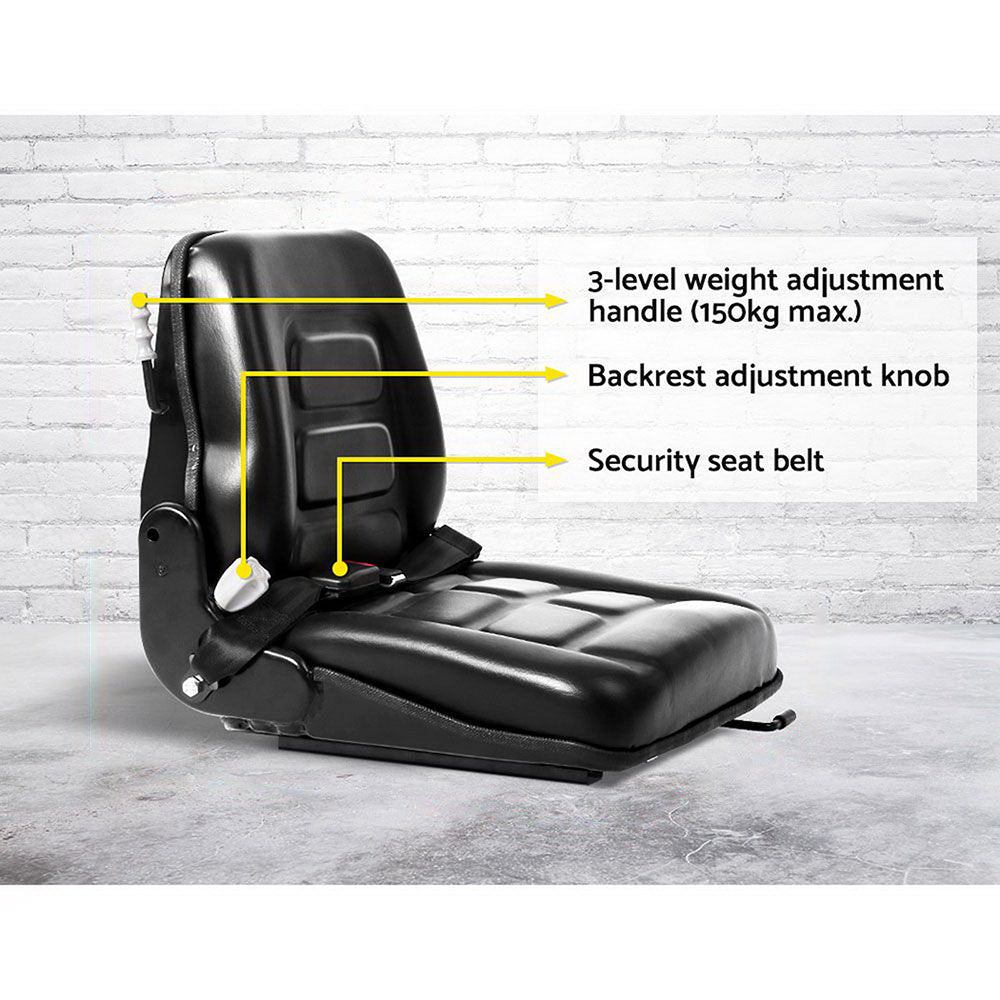

Four adjustments, and what each one is for

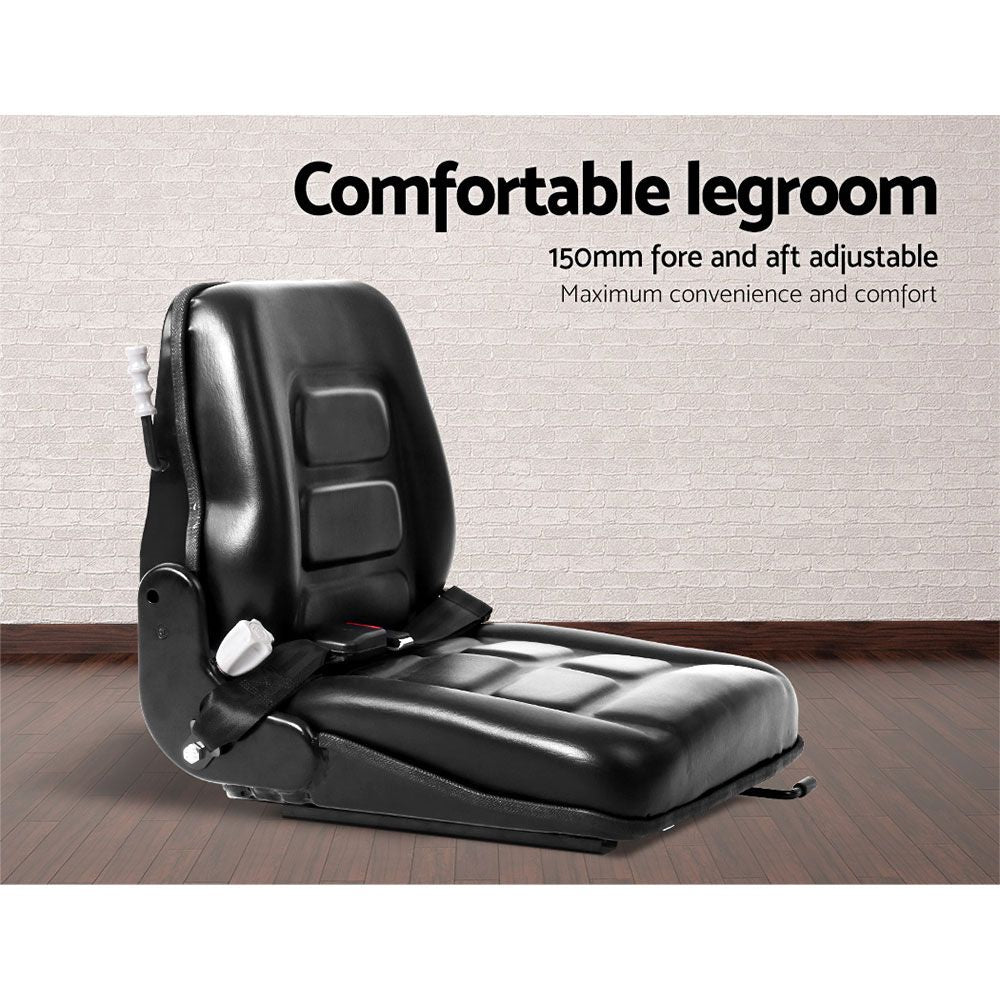

Suspension travel is quoted at 35 mm. That is a short stroke by design — enough to knock the edge off a hard surface without letting the operator bob about while working the controls. The weight setting covers three ranges, matching the seat to the person in it. The backrest moves through 90 to 105 degrees, a narrow arc suited to upright work. A fore-and-aft track then slides 150 mm, which is what gets a taller operator clear of a steering column.

PU leather over foam, on a steel frame

The frame is steel and the upholstery is black PU leather on high density foam. PU earns its place on machinery because hydraulic oil and dust wipe off it, where cloth would take them in. Waterproof and durable is the supplier's phrase for it. Maximum capacity is given as 150 kg — quoted exactly as the supplier states it, with no basis or test method published alongside, so read it as their number and not a rating from a standard. A safety seat belt is included.

Mounting is what you must measure

No mounting hole pattern, bolt spacing or base plate dimension is published for this seat, and no overall dimensions are given either. That gap is the most common reason a universal seat will not go onto a machine. Measure the hole centres on your existing mount and compare them with the photographs before ordering. The supplier suits it to bobcats, excavators, forklifts and similar machinery, and makes no claim of compliance with any seat, seat belt or rollover protection standard — nor do we.

Key features

• Suspension travel 35 mm: a deoscillator device, in the supplier's wording.
• Three weight ranges: the seat is set to the operator's weight.
• Backrest 90°-105°: a narrow, upright range of recline.
• 150 mm slide: fore-and-aft travel on the track.
• Seat belt supplied: included by the supplier; no rating is published for it.
• Waterproof and durable: the supplier's description of the PU covering.

Specifications

• Frame material: steel
• Seat covering: PU leather over high density foam
• Fore and aft adjustable scope: 150 mm
• Angle of back adjustable scope: 90° - 105°
• Weight adjustment: three ranges, set according to operator weight
• Deoscillator suspension device travel: 35 mm
• Seat belt: supplied; no standard, rating or webbing specification published
• Max capacity: 150 kg, as stated by the supplier without a stated basis
• Mounting hole pattern: not published
• Overall dimensions: not published
• Colour: black
• Supplier code: TS-FORKLIFT-B163-BK

What's in the box

• 1 x seat — the supplier's packing list names it a Forklift Seat, while the product title calls it a Tractor Seat. Same item, two names in the source data.

Before you fit this seat

• No standards claimed: nothing here asserts compliance with a seat, seat belt or ROPS standard, and none is named by the supplier. If your machine operates under a workplace requirement, verify the seat and belt against it yourself before use.
• The belt: supplied as hardware. With no rating published, have it inspected by a competent person before it is relied on.
• Mounting: measure your existing bolt centres. No pattern is given.
• The 150 kg figure: the supplier's number, published as theirs. It has not been converted, interpreted or extended here.

The suspended option of the two Giantz seats, if travel and a weight setting matter to the job.
