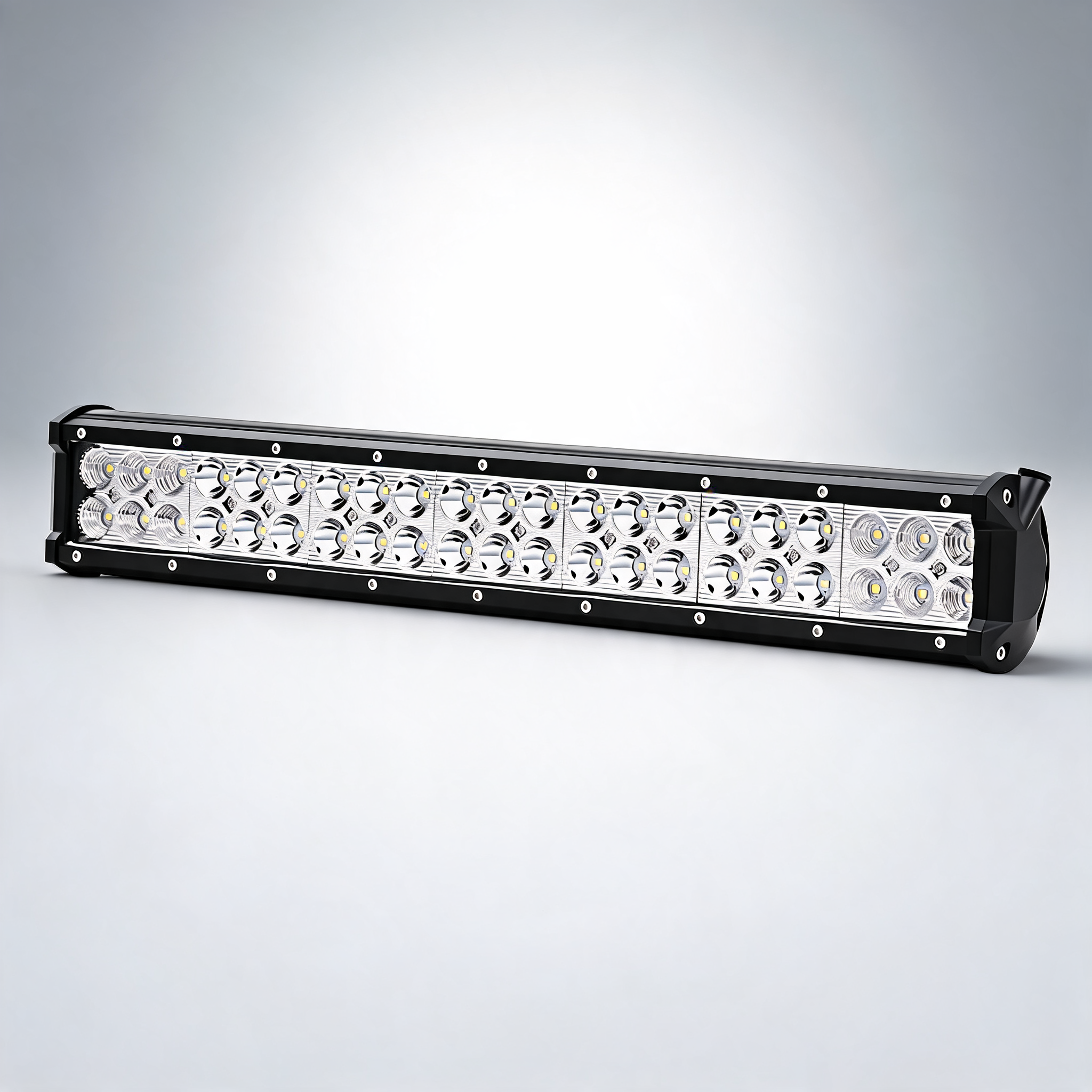

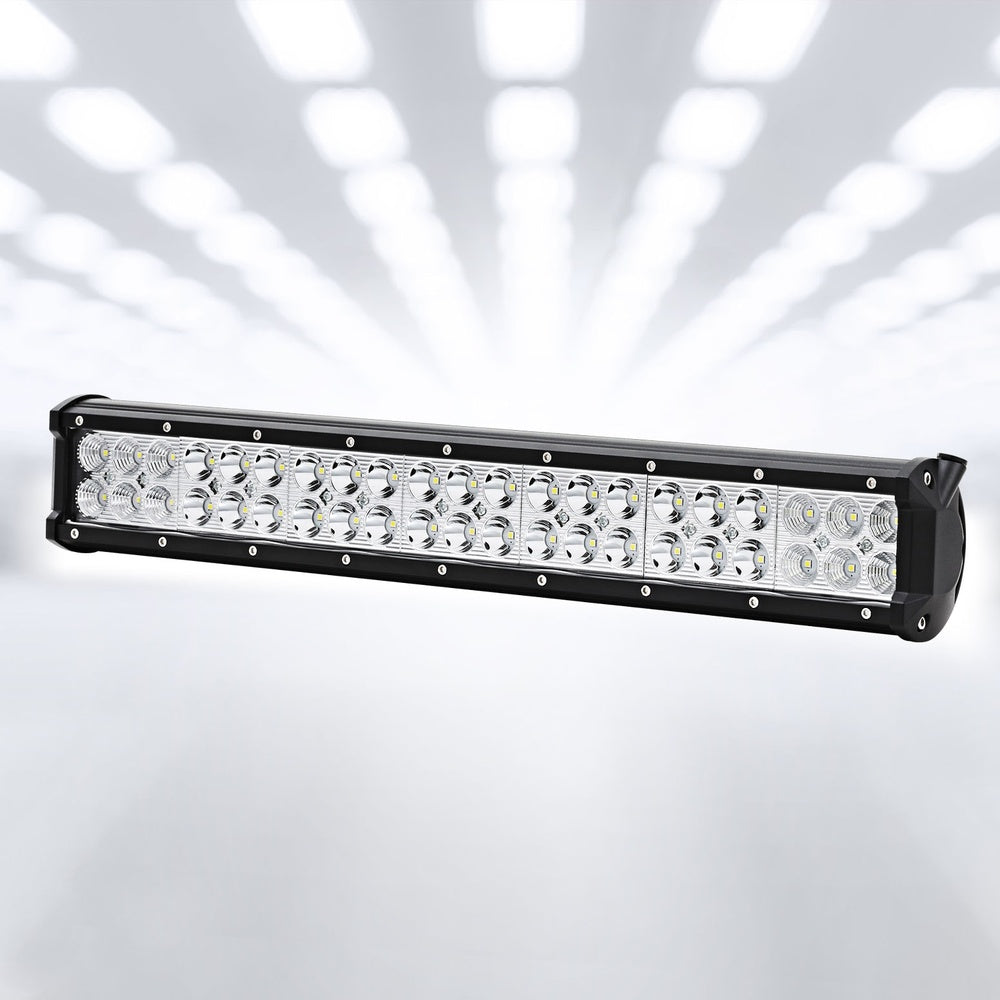

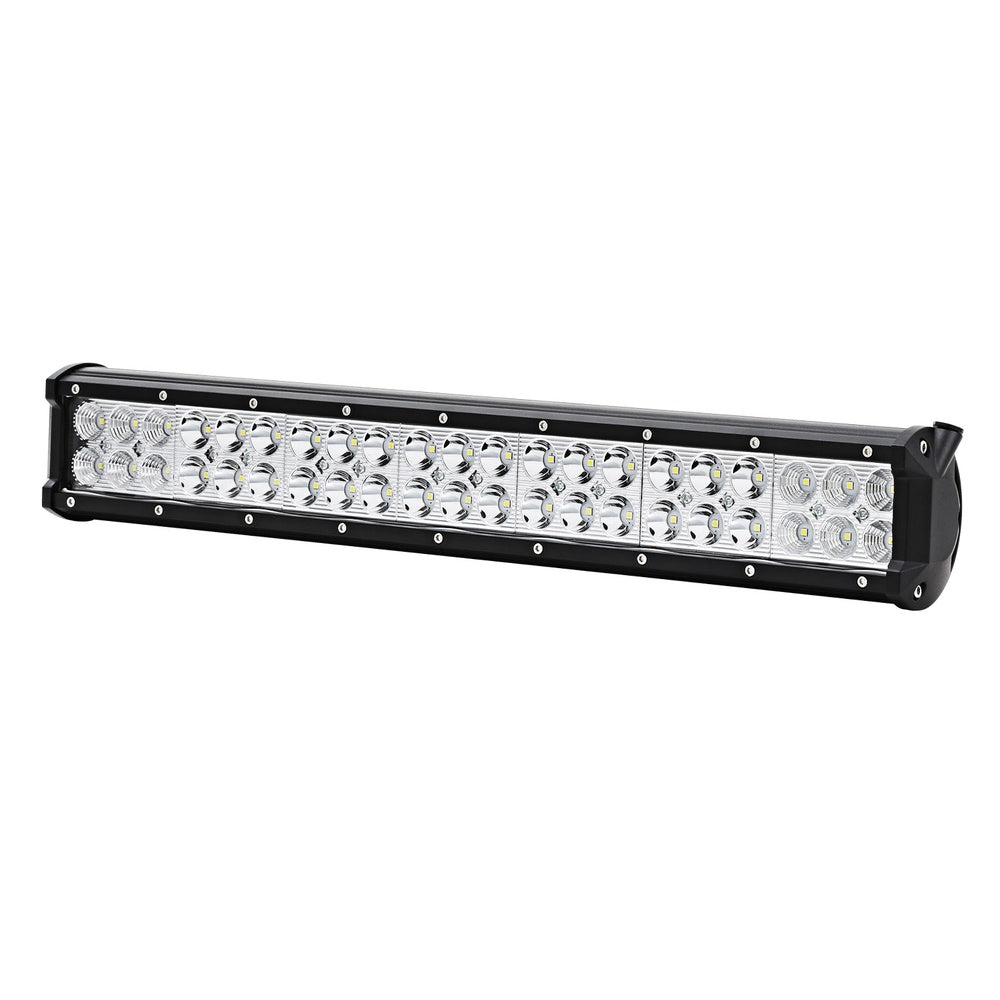

Giantz LED Driving Light Bar - Flood Spot Combo Driving Lamp Offroad Truck

Standard headlights run out of road before the next bend on unlit dirt, and from there you drive to what you can see rather than what is actually in front of you. A bar across the bull bar or roof gives that distance back, and this one puts a narrow throw and a wide spread in one housing.

Spot and flood in the same bar

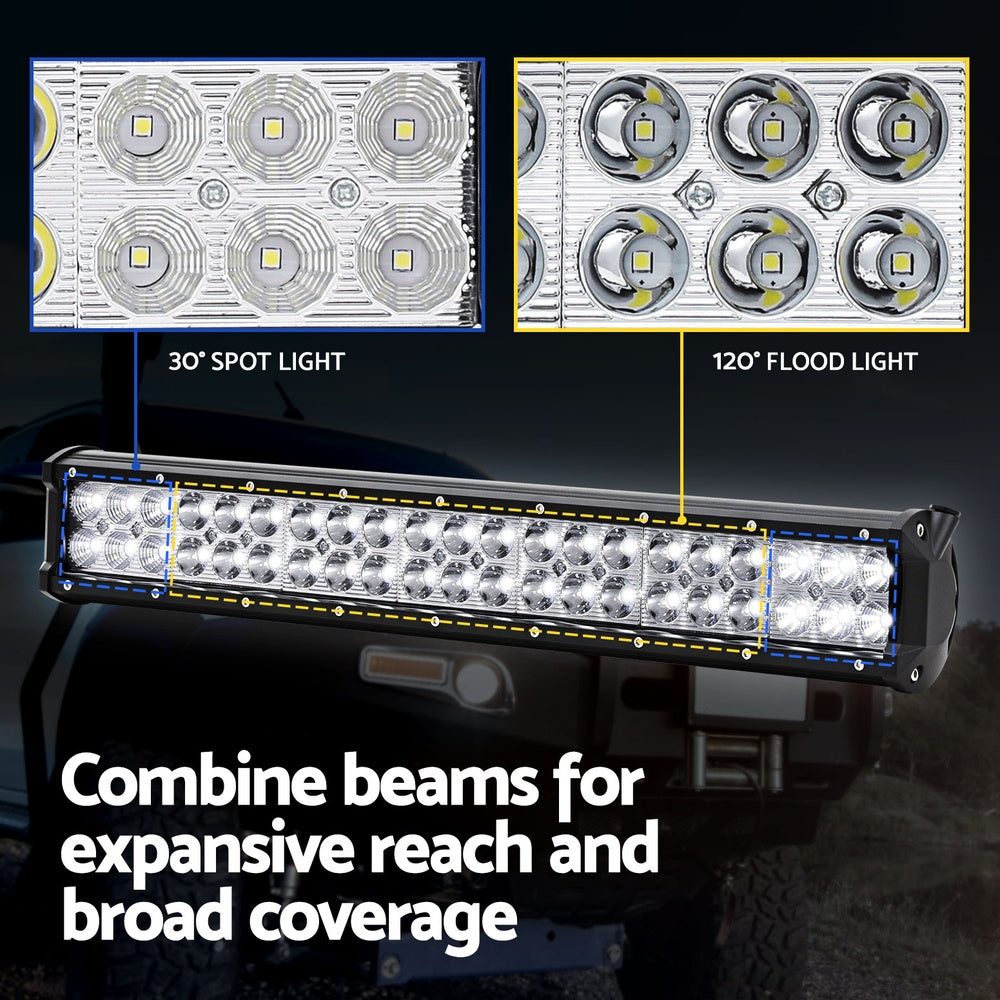

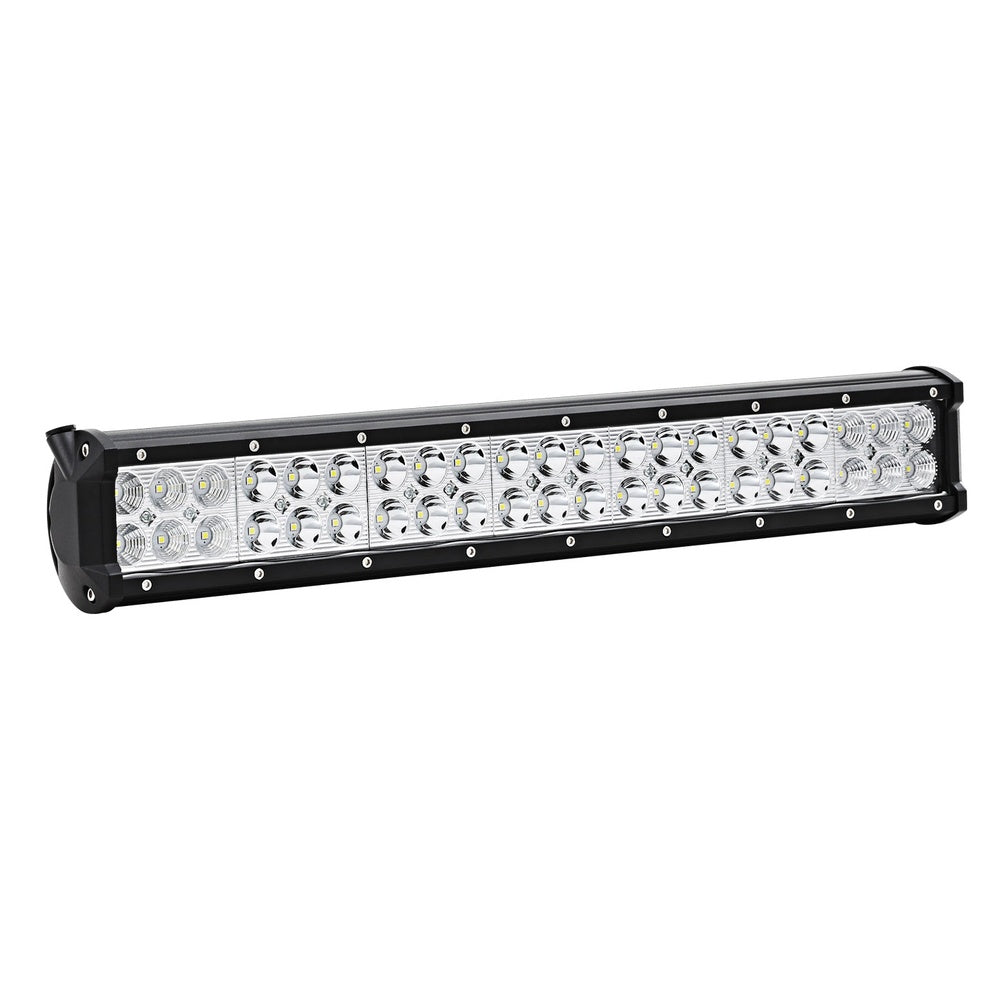

Forty-two emitters sit behind a die-cast aluminium body, split between a 30-degree spot pattern for reach and a 120-degree flood for the ground either side of the track. That pairing is what makes a bar usable at speed: the spot section shows what is coming, the flood keeps the verge and the ruts visible so you are not steering blind between them. The supplier gives the 20-inch bar a theoretical output of 6990 lumens at 6000 K with a CRI of 80 — its word, theoretical, so read it as a laboratory number rather than what lands on the road.

Made to live outside

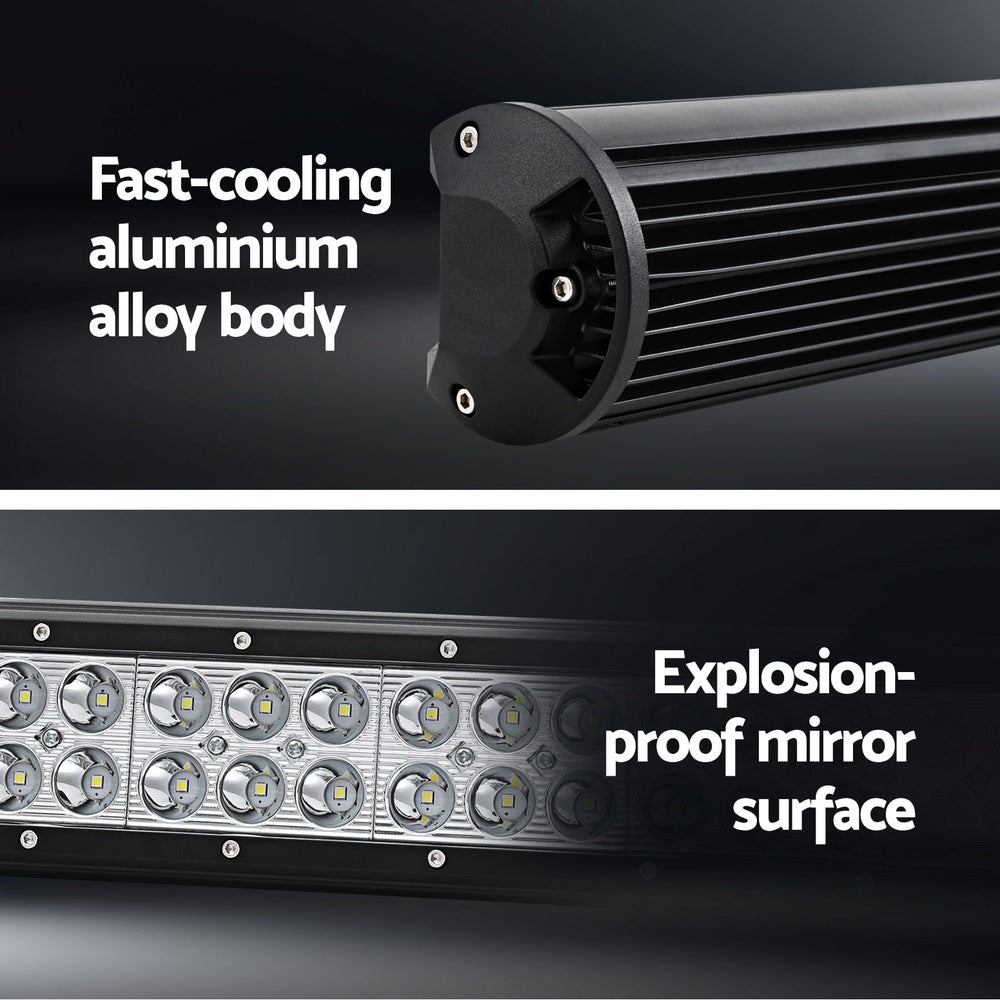

The die-cast housing works as both structure and heatsink, and the lens is the polycarbonate the supplier describes as explosion-proof. Sealing is rated IP67, the working range is quoted at -40 to +50 degrees Celsius, and rated life is 50,000 hours. Assembly is required and no wiring harness appears in the pack list.

Key features

• Combination beam: 30-degree spot and 120-degree flood in one bar.
• Die-cast aluminium body: sheds heat from 42 emitters without a separate heatsink.
• 10-30 V DC: suits 12 V and 24 V vehicles.

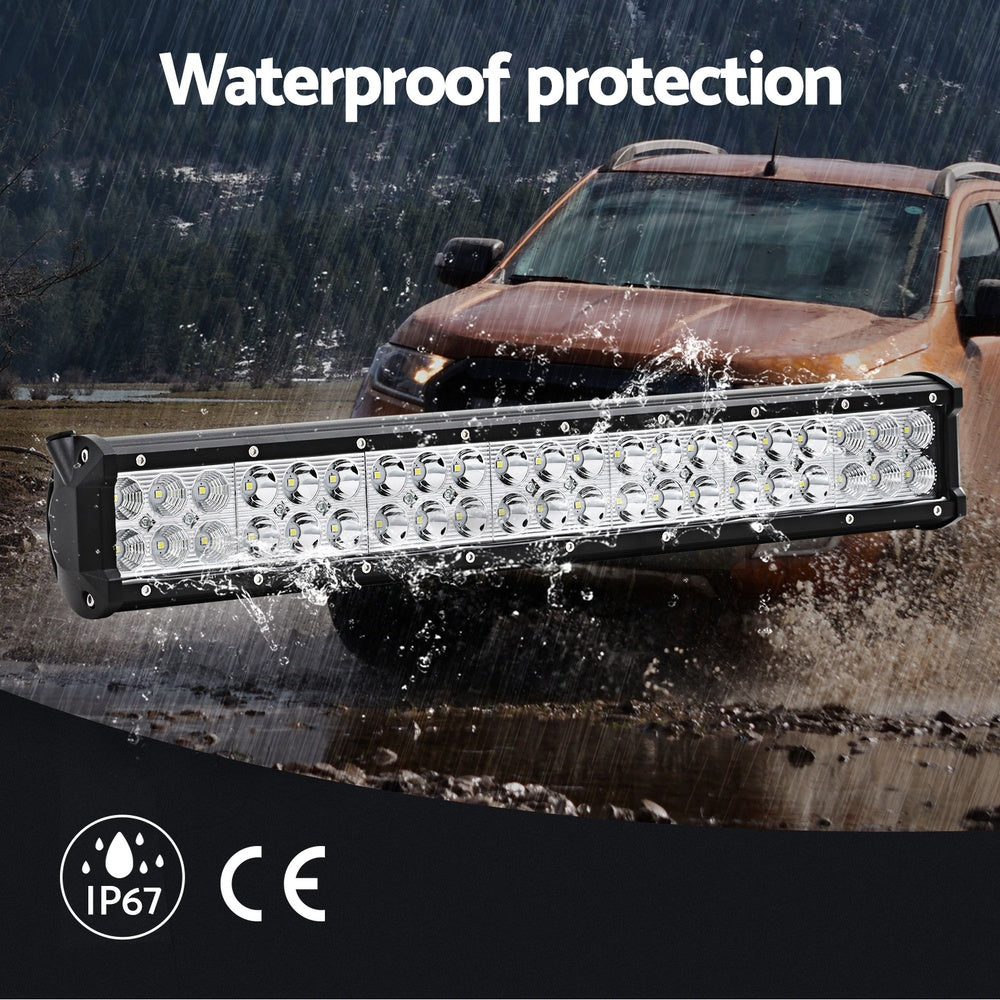

• IP67 sealing: rated for permanent outside mounting.

Specifications

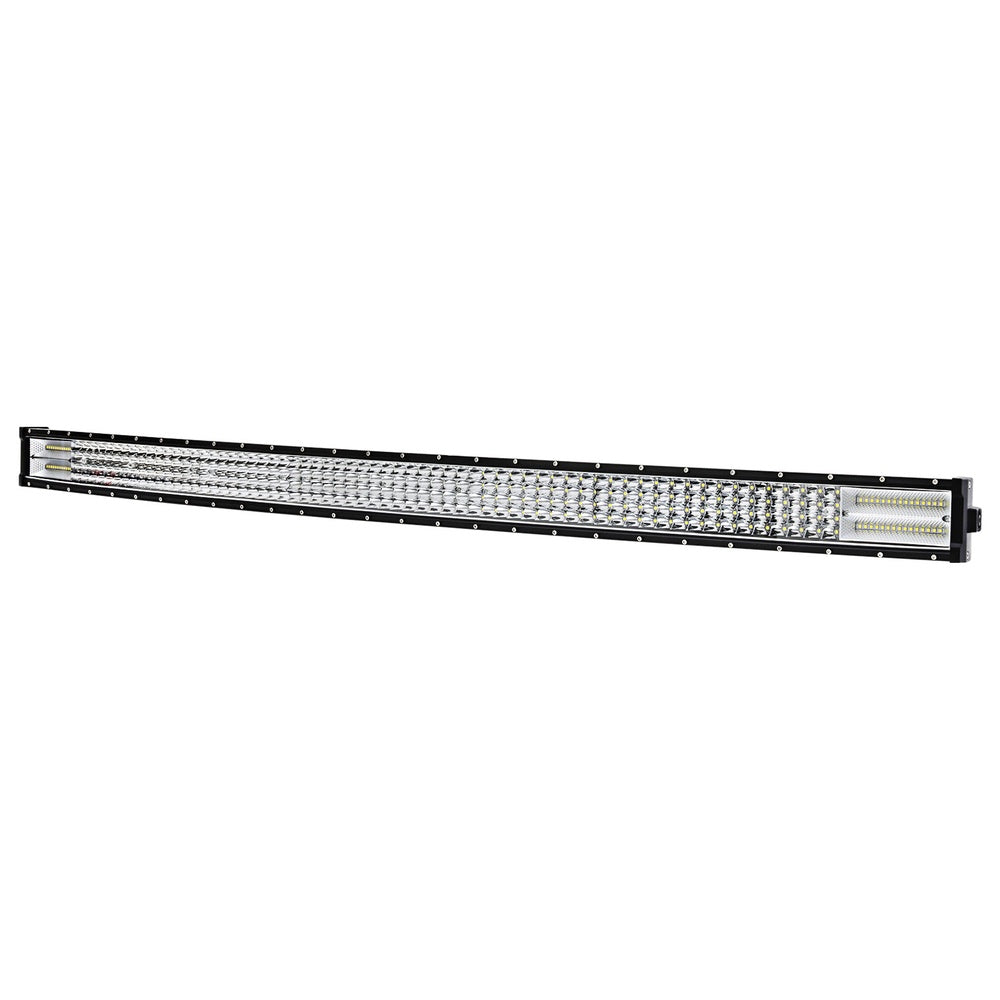

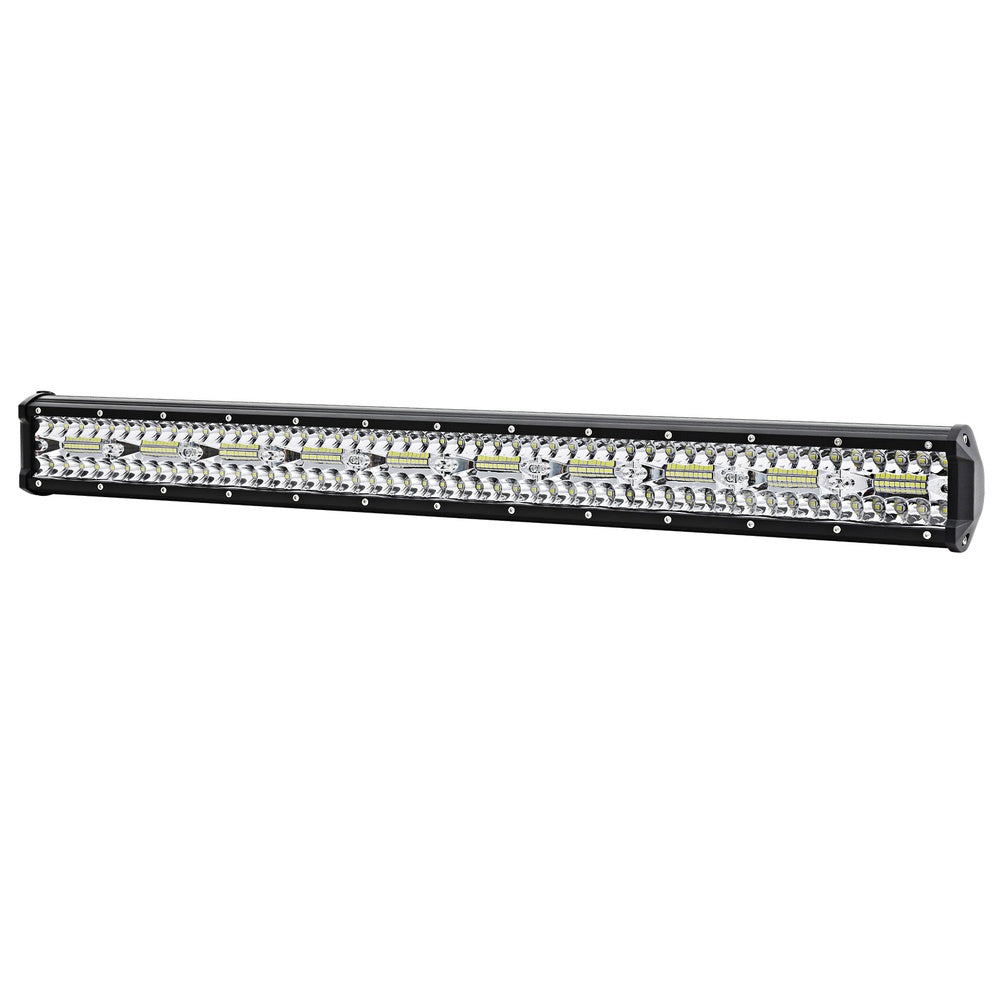

• Size options: 20 inch, 28 inch and 50 inch
• Figures below are the supplier's for the 20-inch bar only
• Theoretical lumen output: 6990 lm, the supplier's own term
• Beam: 30-degree spotlight and 120-degree flood
• Colour temperature: 6000 K, CRI 80
• Operating voltage: 10-30 V DC
• Ingress rating: IP67

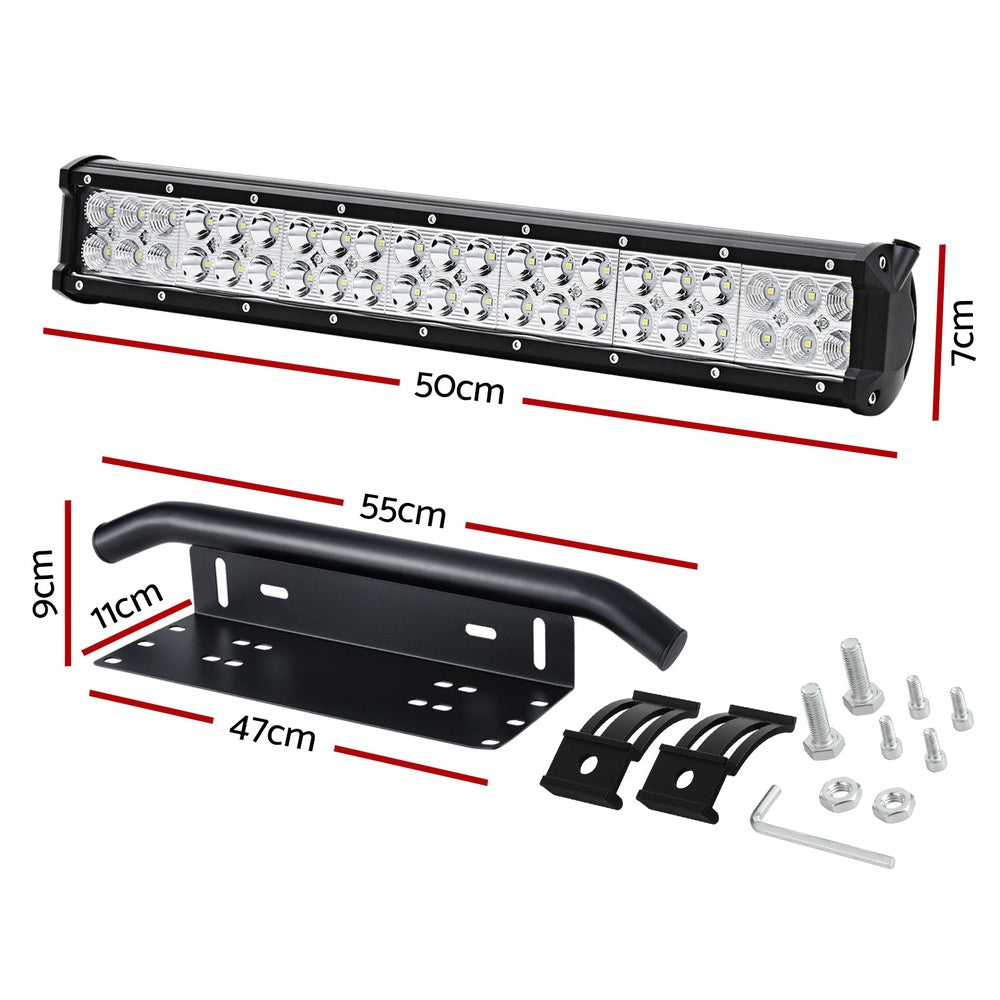

• Lamp dimensions: 50 x 7 x 5 cm
• LED count: 42
• Housing: die-cast aluminium; lens: explosion-proof polycarbonate
• Operating temperature: -40 to +50 degrees Celsius
• Rated life: 50,000 hours
• Power draw: not published
• Assembly required: yes

What's in the box

• 1 x LED driving light bar
• 1 x 23-inch licence plate holder, as listed by the supplier against the 20-inch bar

Before you fit these

• Rules on lamp covers, mounting height and wiring apply to light bars and vary between states. Confirm the requirements that apply to your vehicle and state before fitting for road use.
• The supplier documents the 20-inch bar only. Output, LED count and dimensions for the 28-inch and 50-inch options are not published, so don't assume they scale from the figures above.
• No wattage or current draw is published for any size. Check the circuit you intend to run it from.
• The supplier's own summary calls this an HID light, while its specification lists 42 LEDs. The LED specification and product title have been followed here.

Pick the length that suits your bar or roof rack, and measure the mounting space first.

This product comes with 1 year warranty
