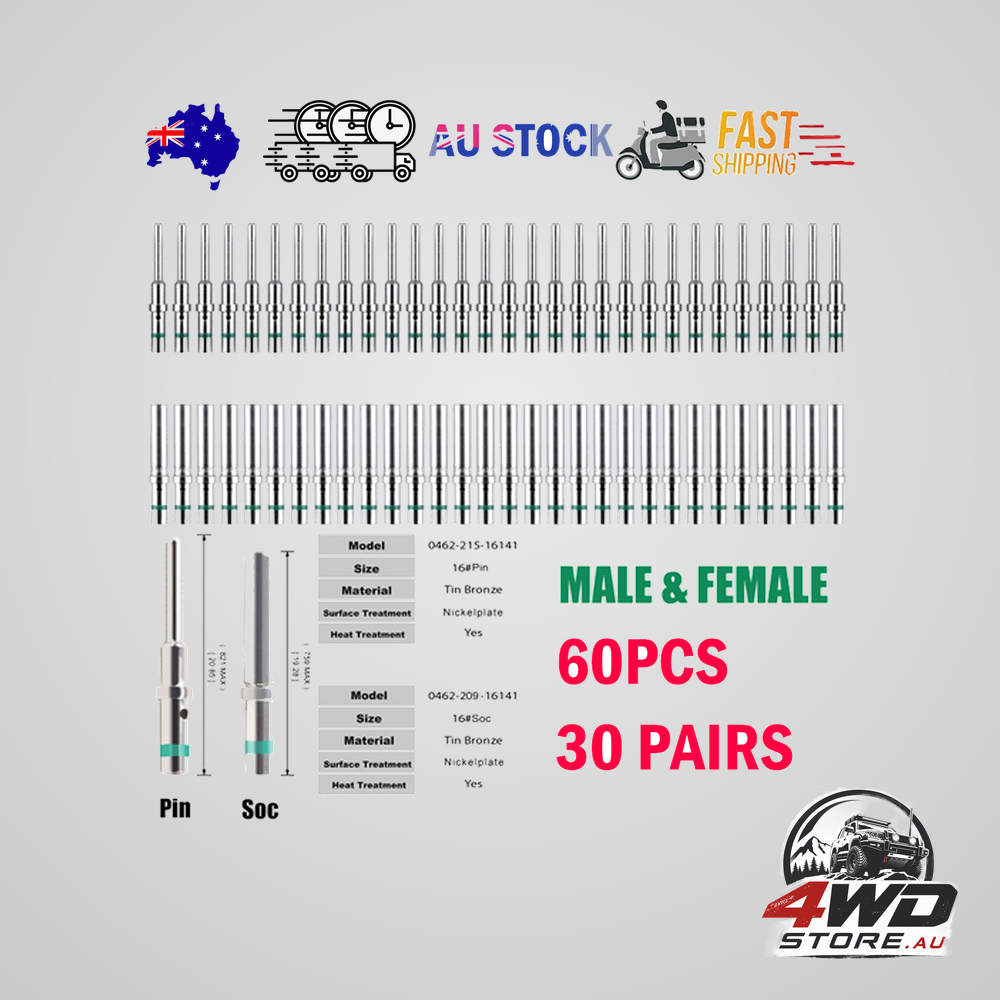

Deutsch DT Series solid pin Connector Male&Female 0462-209-16141 0460-215-16141

Bare crimp joints and cheap spade terminals do not last long under a bonnet or on a trailer plug. Deutsch DT-style solid contacts are what auto electricians reach for when a connection has to survive vibration, heat and water, and this pack covers both halves of the joint.

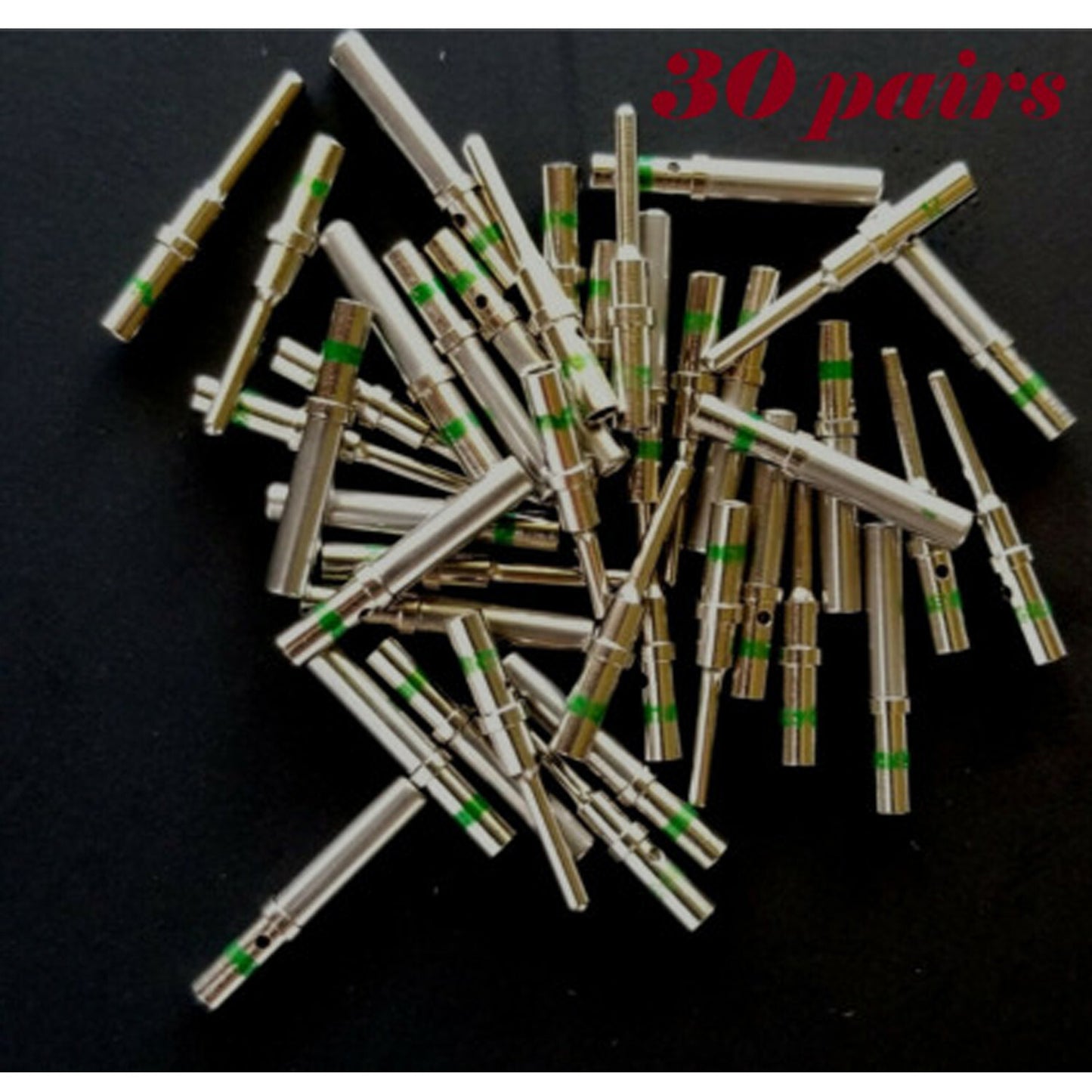

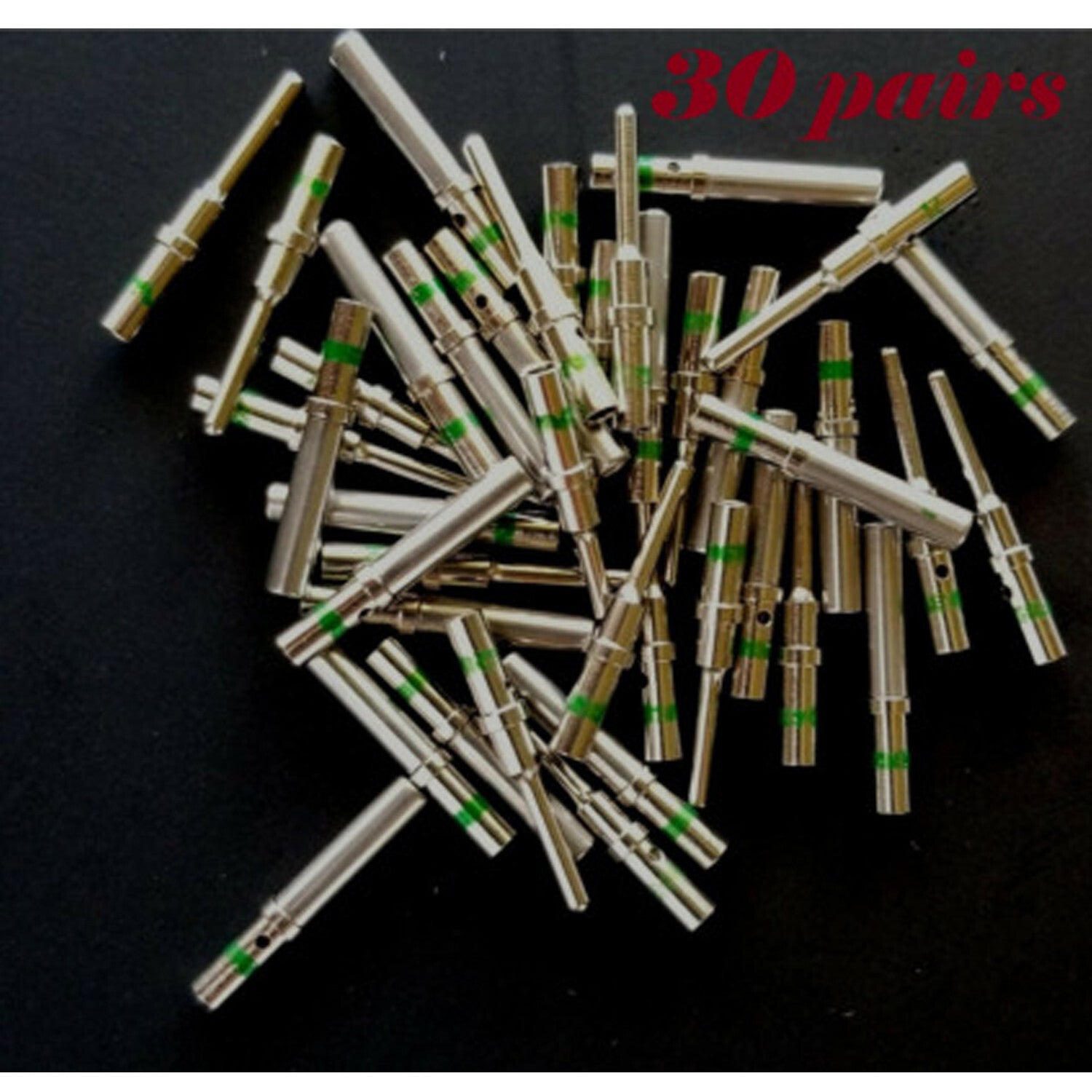

Solid contacts, size 16, in matched pairs

A solid contact is machined from one piece of metal rather than folded from sheet, which is what lets it tolerate repeated insertion without losing tension. This pack is size 16: 0462-209-16141 is the female socket, 0460-215-16141 is the male pin, and they come 30 of each so every pin has a socket to go with it. The supplier rates the contacts for 14 to 16 AWG wire, and names the HDT-48 and ACT-M202 crimp tools, which are themselves quoted at a wider 14 to 20 AWG.

Where they earn their keep

Trailer plugs, driving light looms, winch solenoids, aftermarket switches and repairs to a factory DT connector all use this contact size. Keeping 30 pairs on the shelf means a broken pin gets replaced properly instead of twisted and taped, and the spares outlast the job they were bought for. Plating, current rating and base material are not published, so check those against your application if the circuit carries real load.

Key features

• 60 pieces, 30 matched pairs: equal numbers of pins and sockets, so a repair never runs short on one half.
• Size 16 solid contacts: the common contact size across DT-series automotive connectors.
• Rated 14-16 AWG: the wire range the supplier states for these contacts.
• Crimp tools named: HDT-48 and ACT-M202, so you can check what you already own before ordering.

Specifications

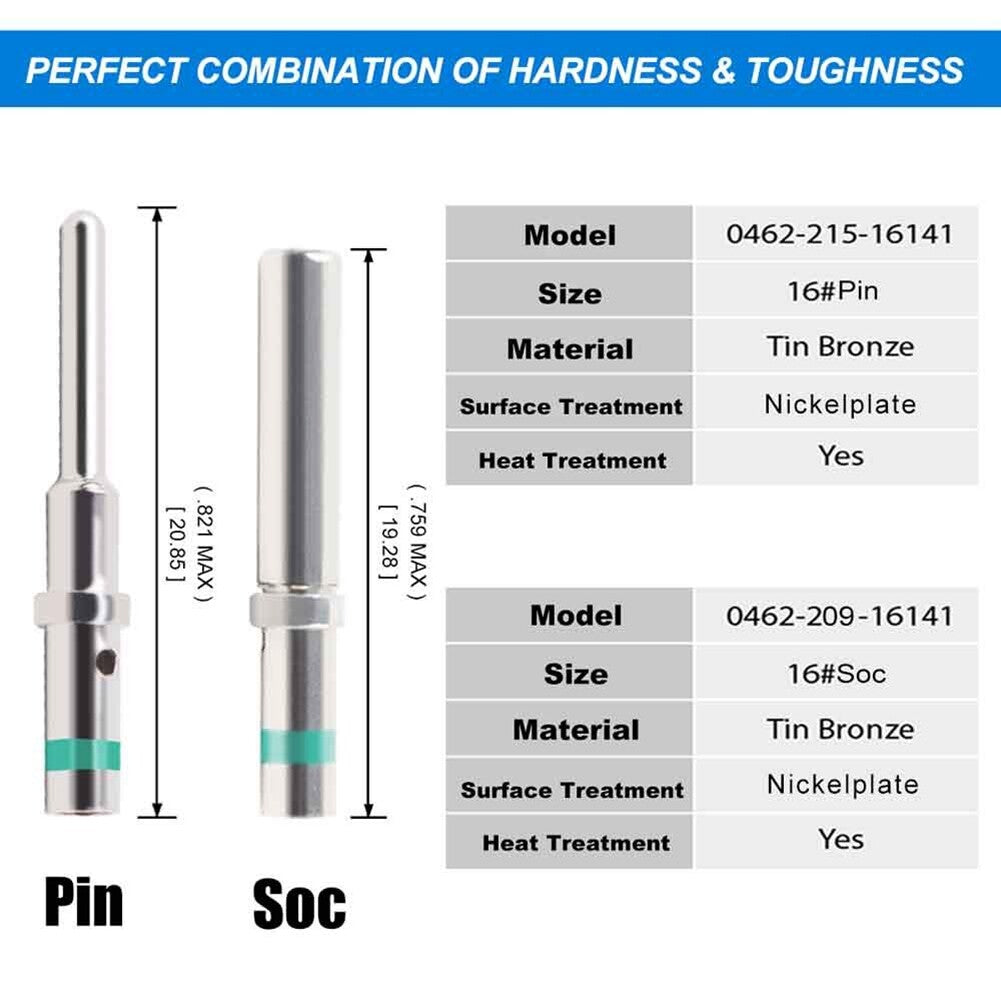

• Female socket part number: 0462-209-16141
• Male pin part number: 0460-215-16141
• Series: Deutsch DT, solid contacts
• Contact size: 16
• Wire gauge range: 14-16 AWG
• Crimp tools listed: HDT-48 / ACT-M202, quoted at 14-20 AWG

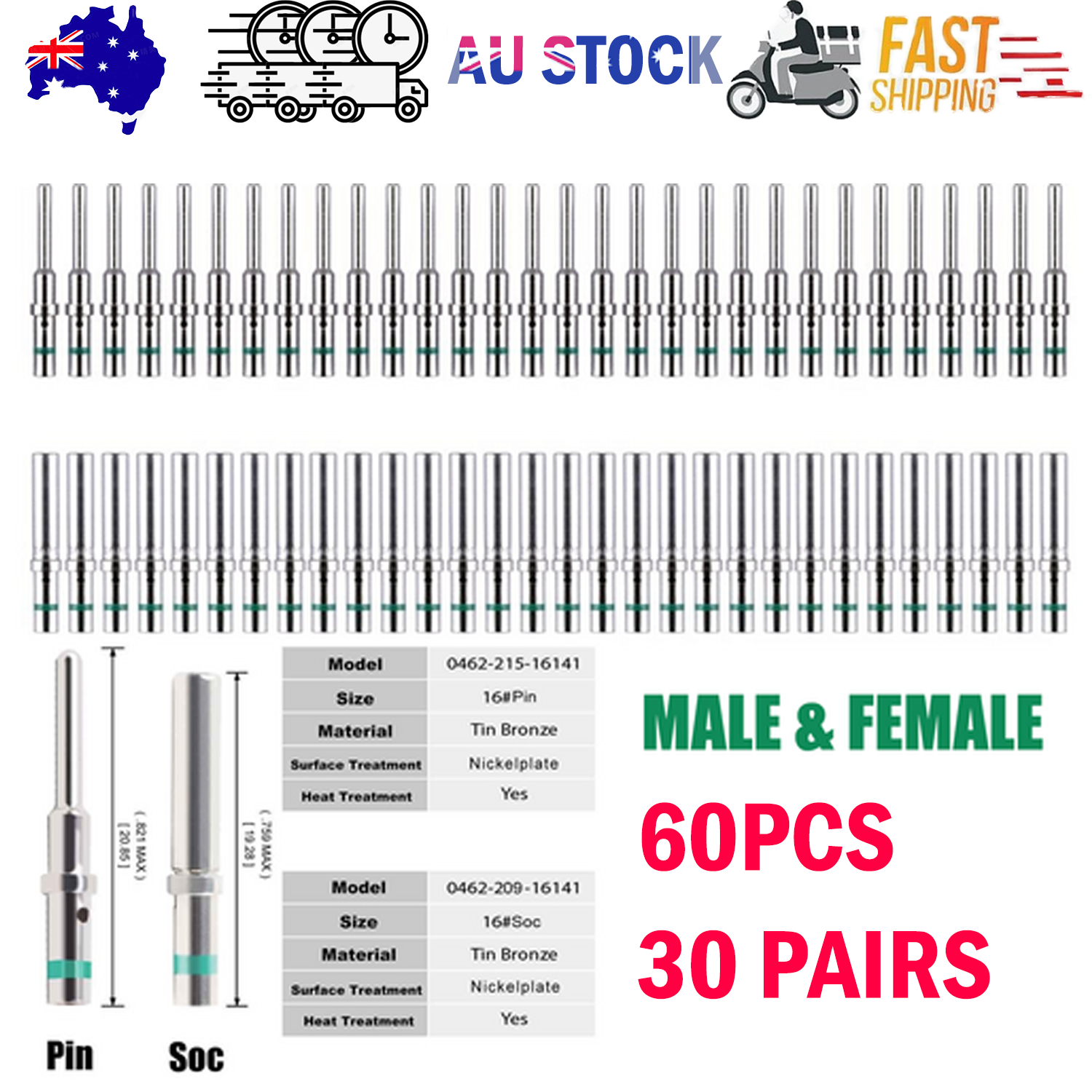

• Quantity: 60 pieces — 30 male, 30 female
• Plating, current rating and material: not published by the supplier

What's in the box

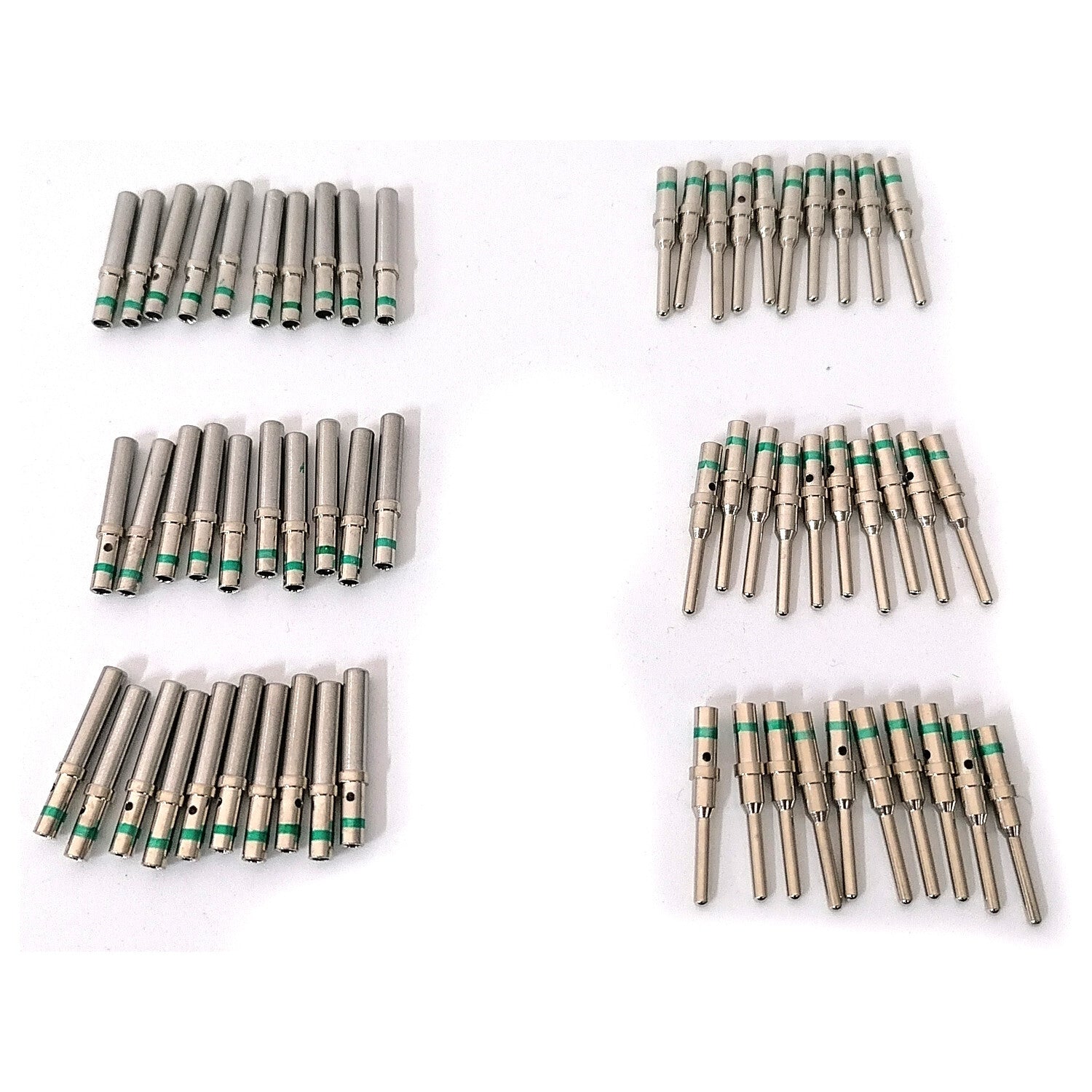

• 30 x male solid pins, 0460-215-16141
• 30 x female solid sockets, 0462-209-16141

Before you order these

• Contacts only. The supplier's contents list covers 60 pins and sockets — no connector housings, wedge locks or seals are included, so order those separately if you need them.
• Check the gauge you are terminating. The contacts are stated for 14-16 AWG, while the crimp tools listed cover 14-20 AWG; that wider figure is a tool specification, not a contact one.
• These are aftermarket contacts. Nothing in the supplier's information identifies them as genuine Deutsch-branded parts.

Match the part numbers against what is already in your loom, and check your crimp tool suits size 16 before ordering.
