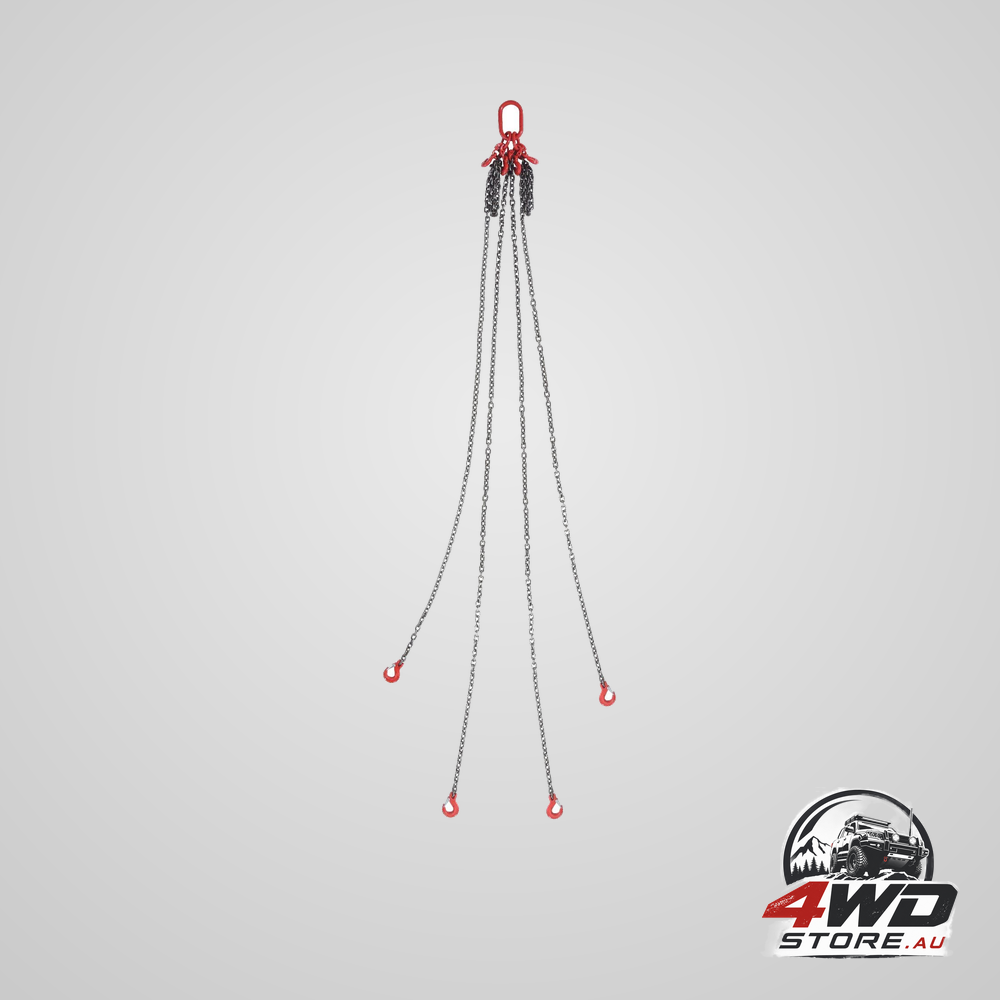

Chain Sling, 8 mm x 300 cm Lifting Chains with Hooks, G80 Engine Chain Hoist Lifts, 5 Ton Lifting Sling Chains for Engine Hoist, Engine Lift Chain with 4 Leg Grab Hooks & Adjusters Heavy Duty

Three metres is the length quoted on this sling, though the listing never says whether that measures one leg or the whole assembly. That matters when you are working out whether four legs will reach an engine's lifting eyes from a hoist hook. The load figures need the same care, so here they are as written.

The numbers, and the basis nobody supplies

Two capacity figures appear and they are worded differently. The title says 5 Ton. The supplier's description says "Maximum Working Capacity: 11,000 lbs". Neither carries a basis. Nothing states whether the figure belongs to a single leg, to two legs sharing, or to the whole four-leg assembly at a stated included angle — and on a multi-leg sling the angle changes the answer. No breaking strength is published at all. Work to the lower figure, and get the sling signed off by someone competent before any load goes on it.

What G80 means here, and what it does not

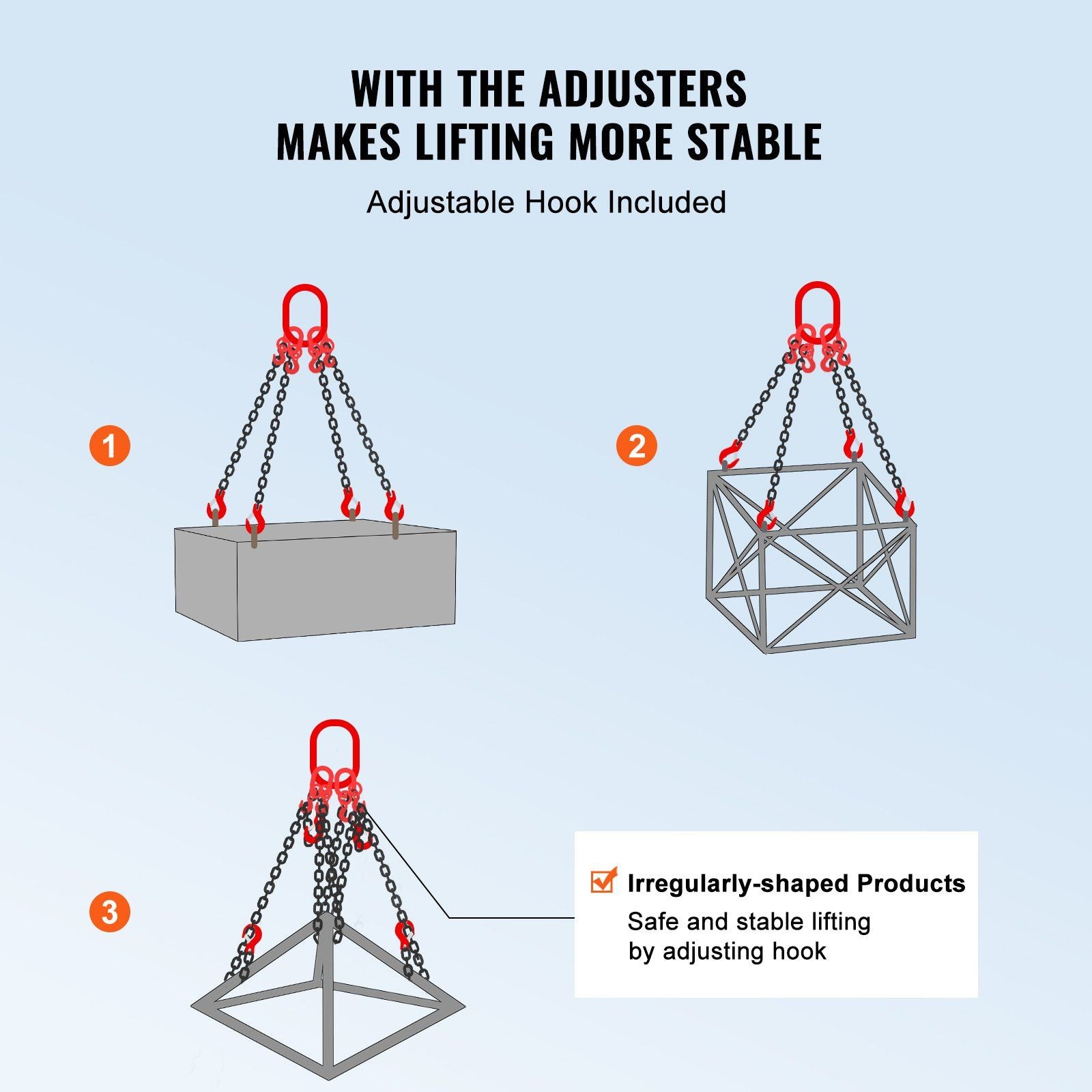

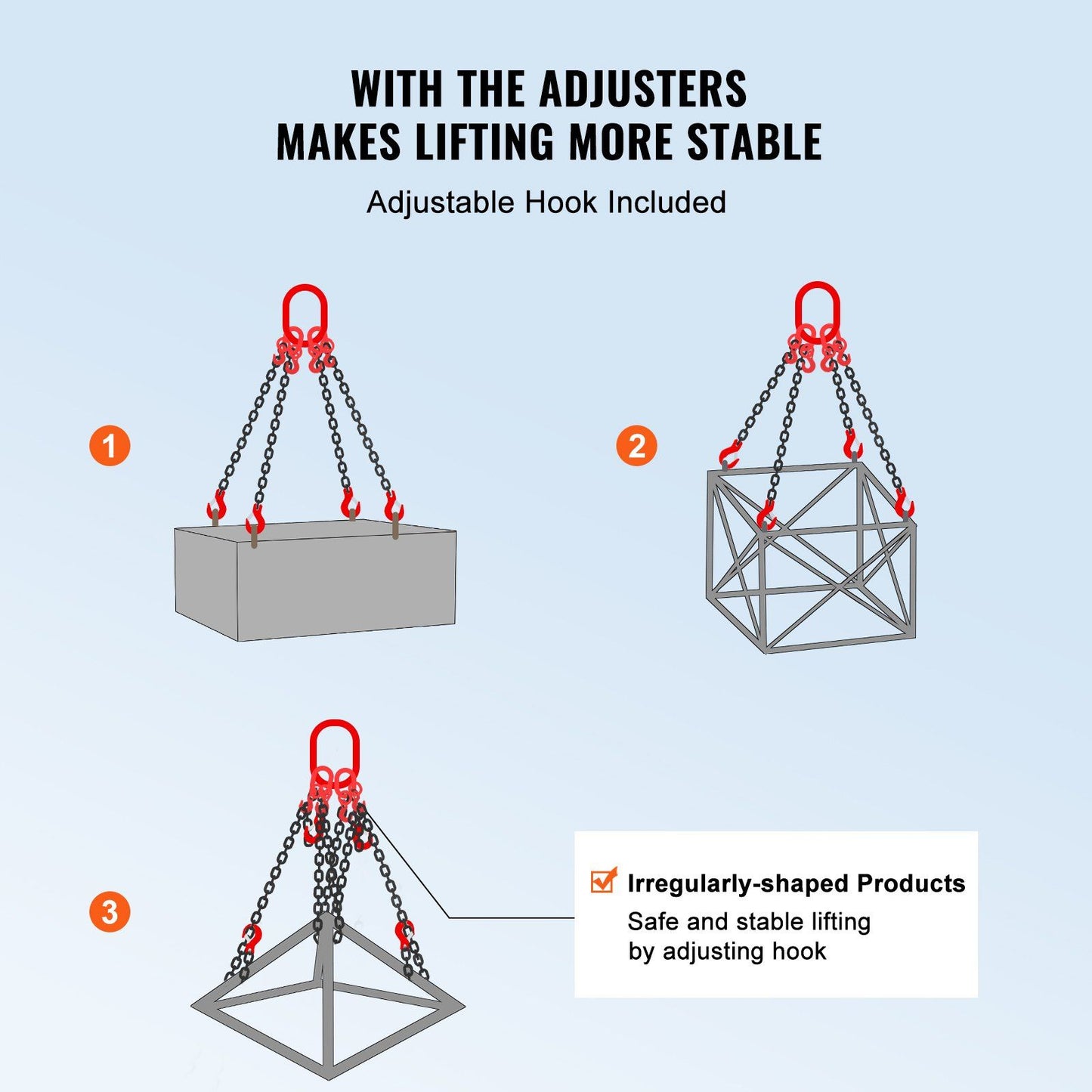

Materials are given as manganese steel chain to G80, with hooks in alloy steel, and the welding is described by the supplier as fully automatic. Treat G80 strictly as a supplier grade marking. Not one standard is named across the whole listing, which means nothing on this page constitutes certification, a test result, or any claim of compliance. The four adjusters shorten each leg independently. An awkward casting, or a gearbox that does not sit over its own centre, can then be trimmed square rather than tipping and loading one corner while the other three go slack.

Key features

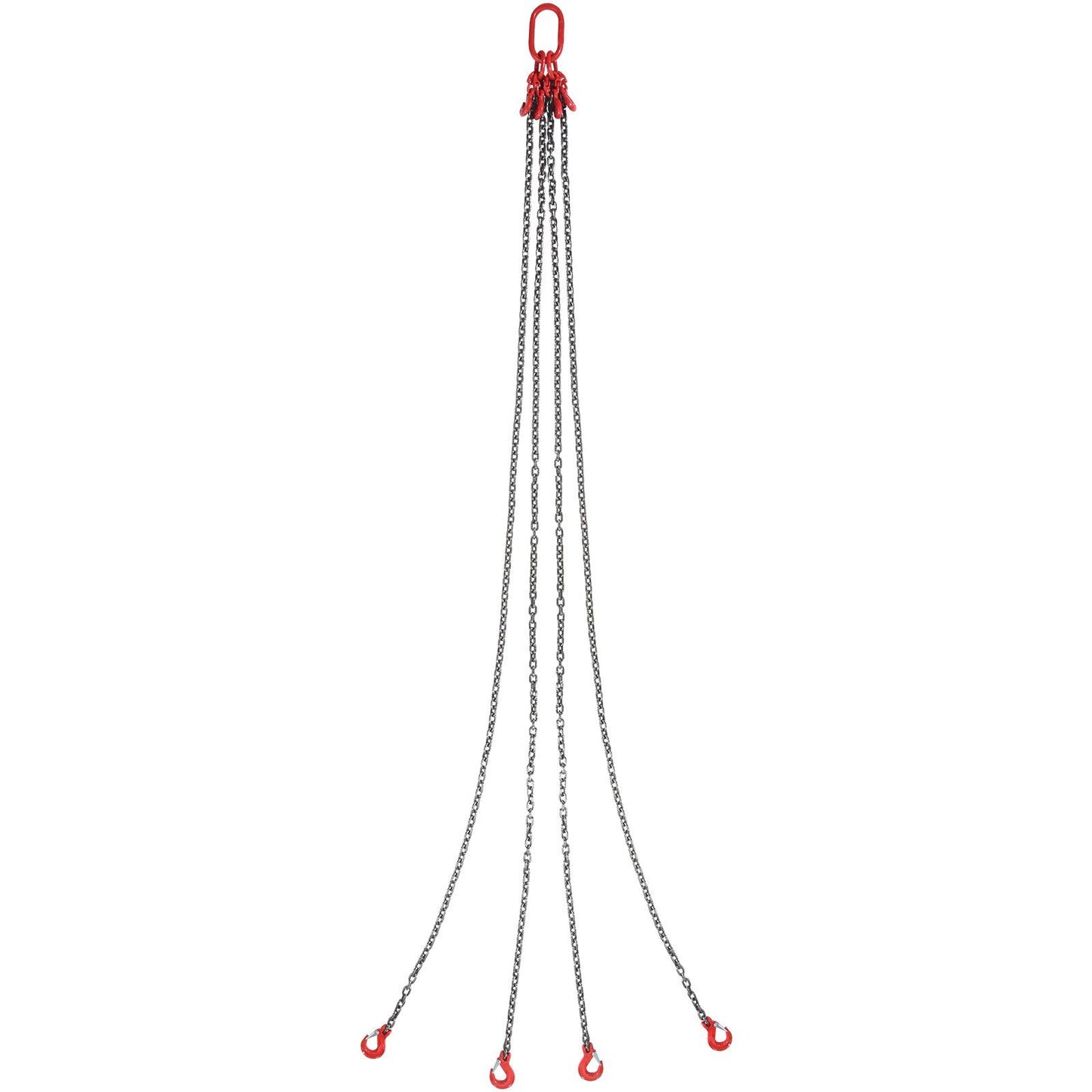

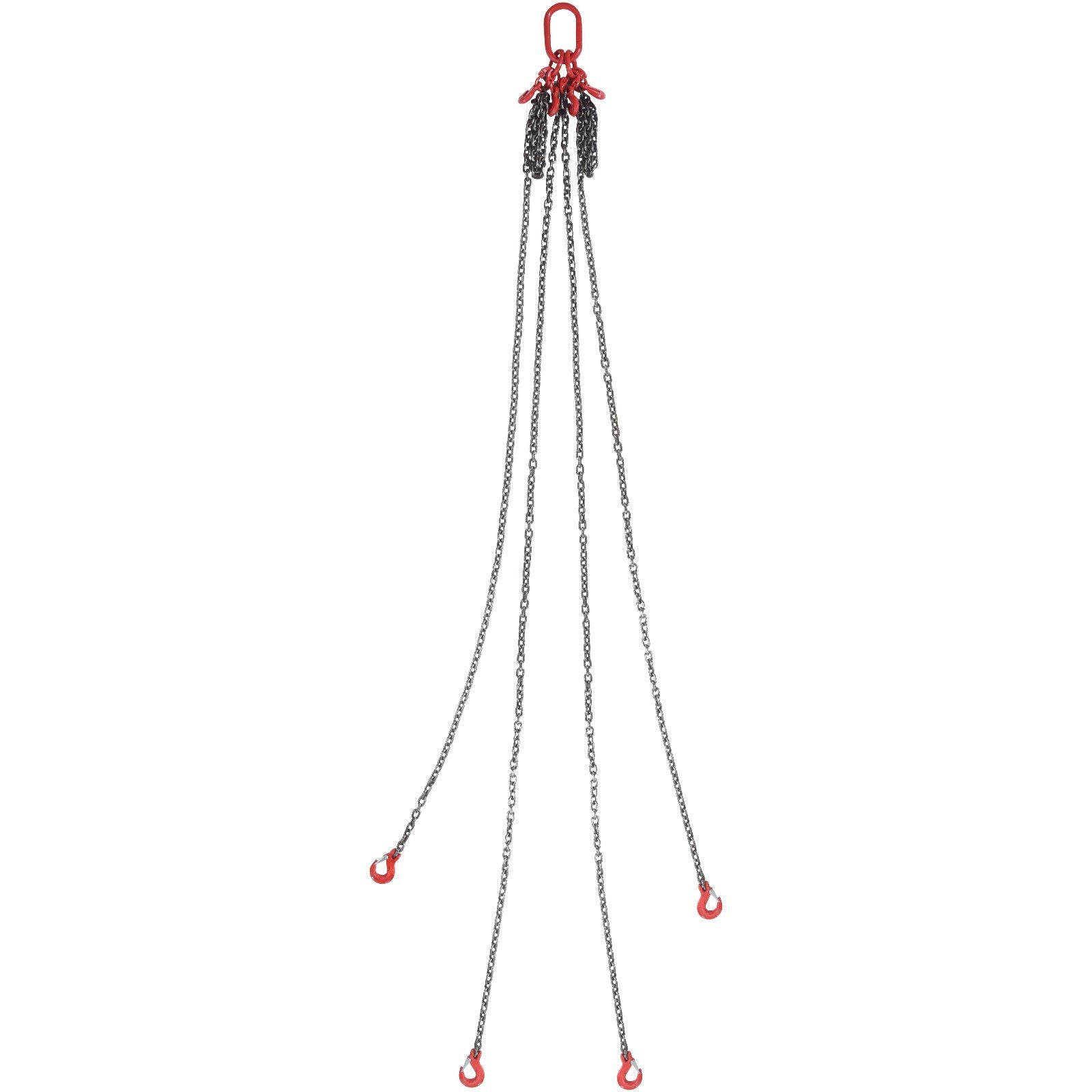

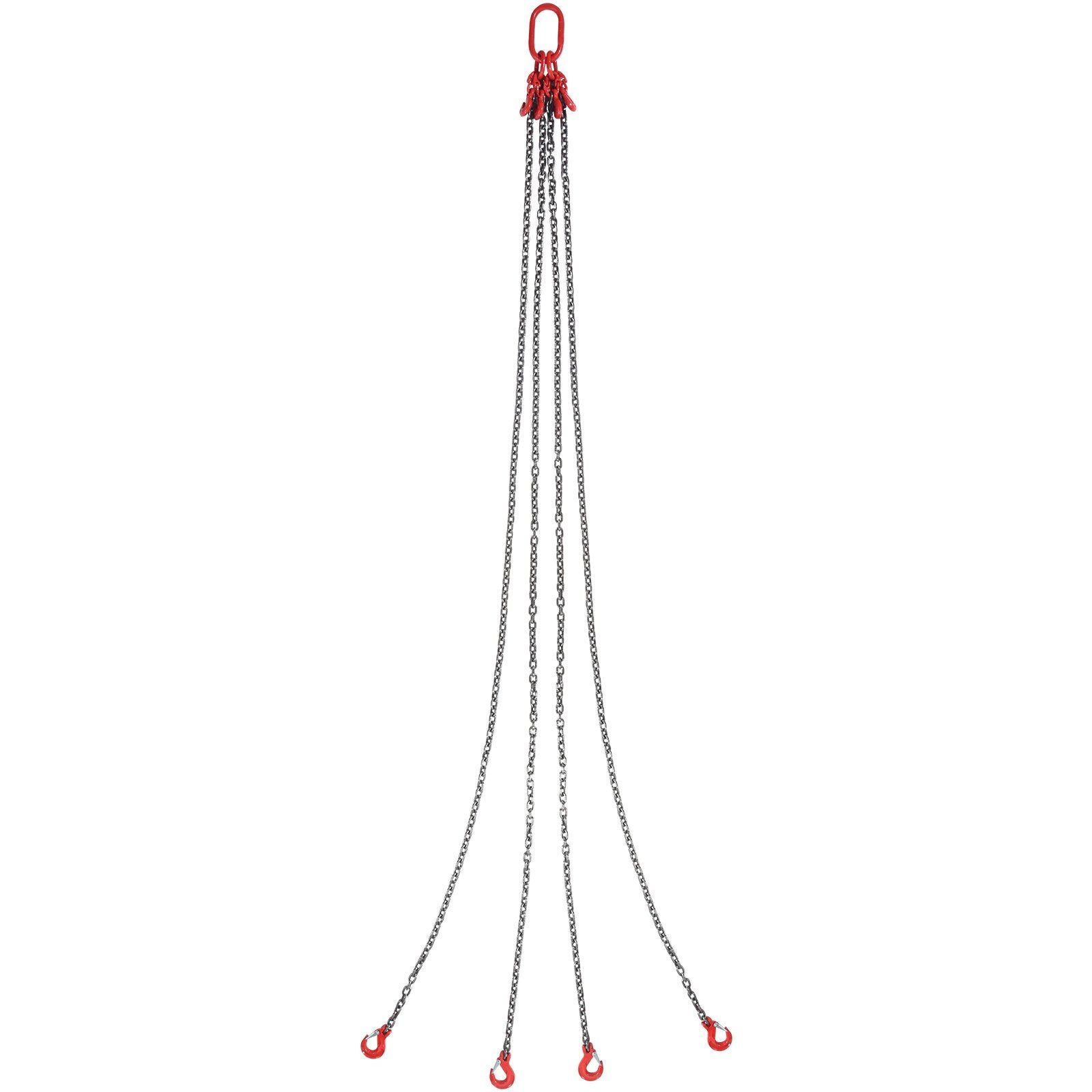

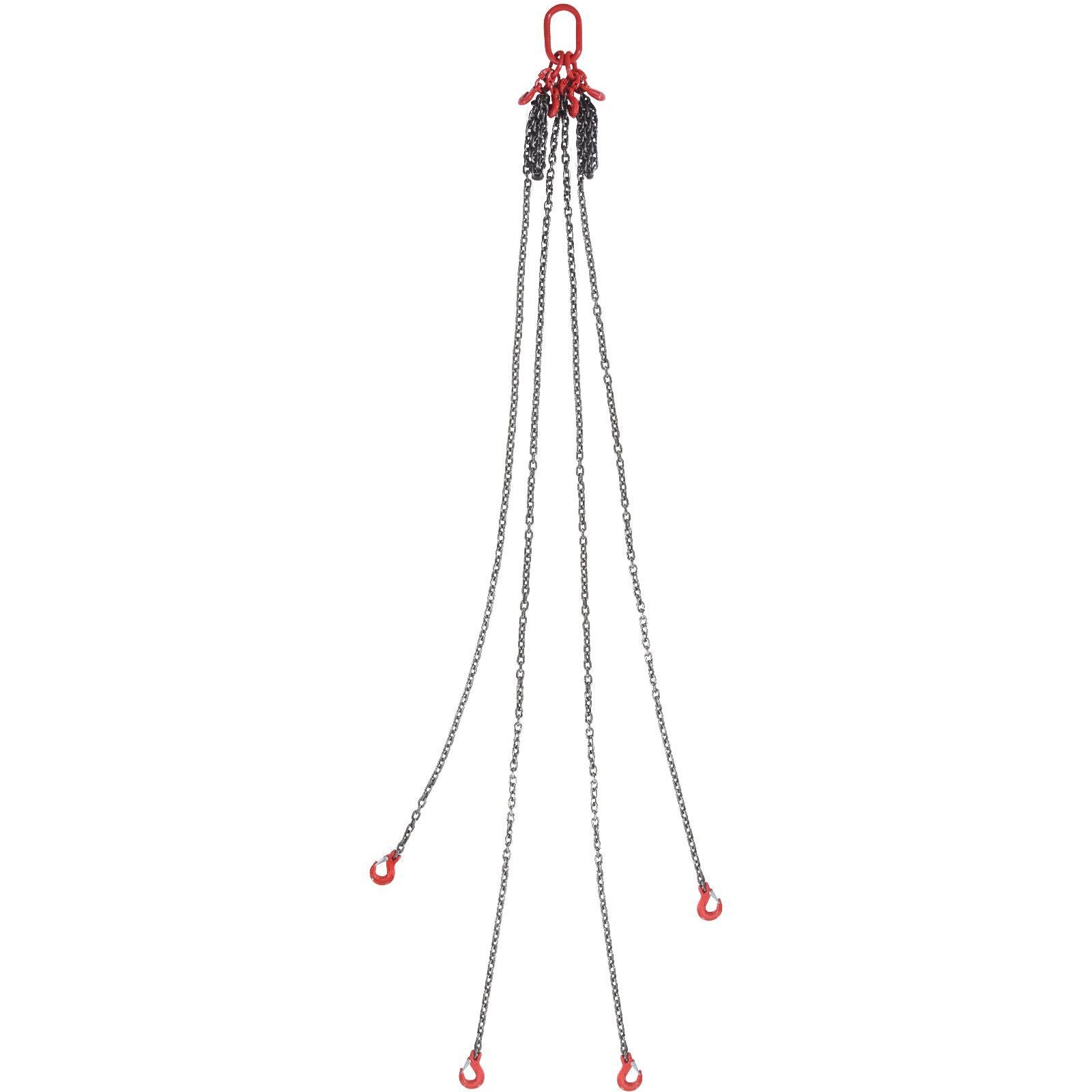

• Four legs: each with its own grab hook and adjuster.
• Independent leg adjustment: trim an uneven load square before it leaves the bench.

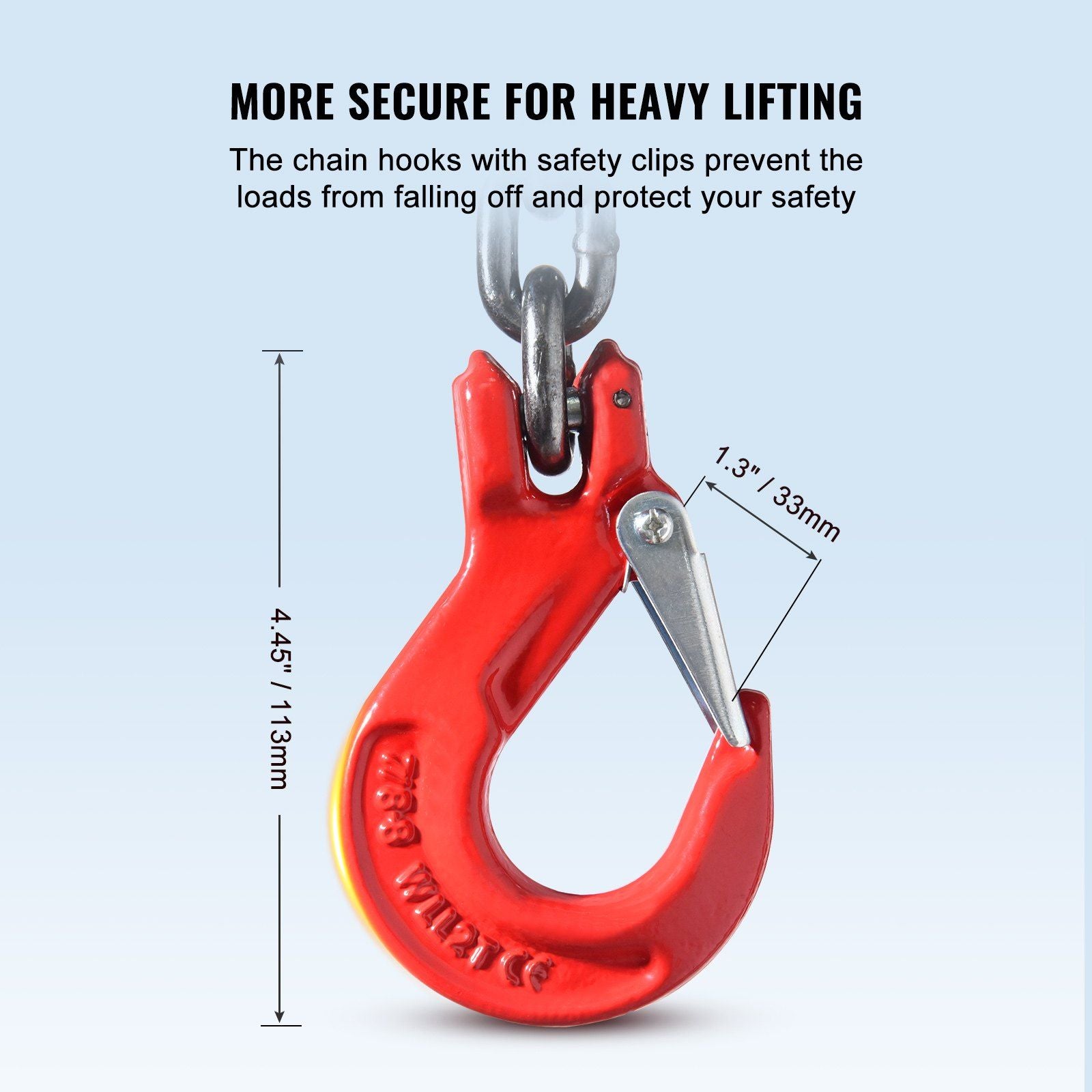

• Grab hooks: shorten a leg by taking a link directly, with no extra fittings to lose.
• Hook and chain materials: alloy steel hooks running on chain the supplier marks G80.
• Welded assembly: described by the supplier as full-automatic welding.

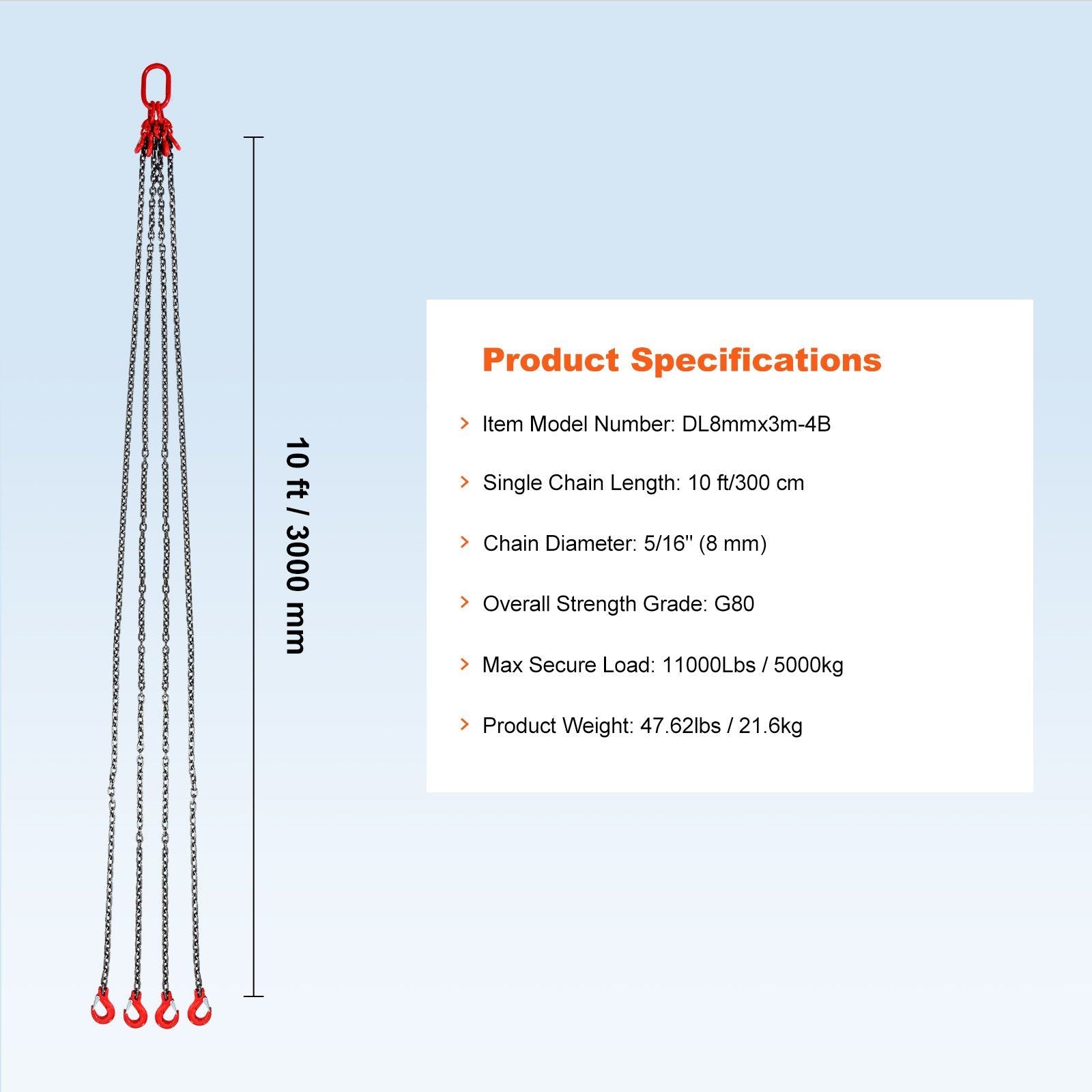

Specifications

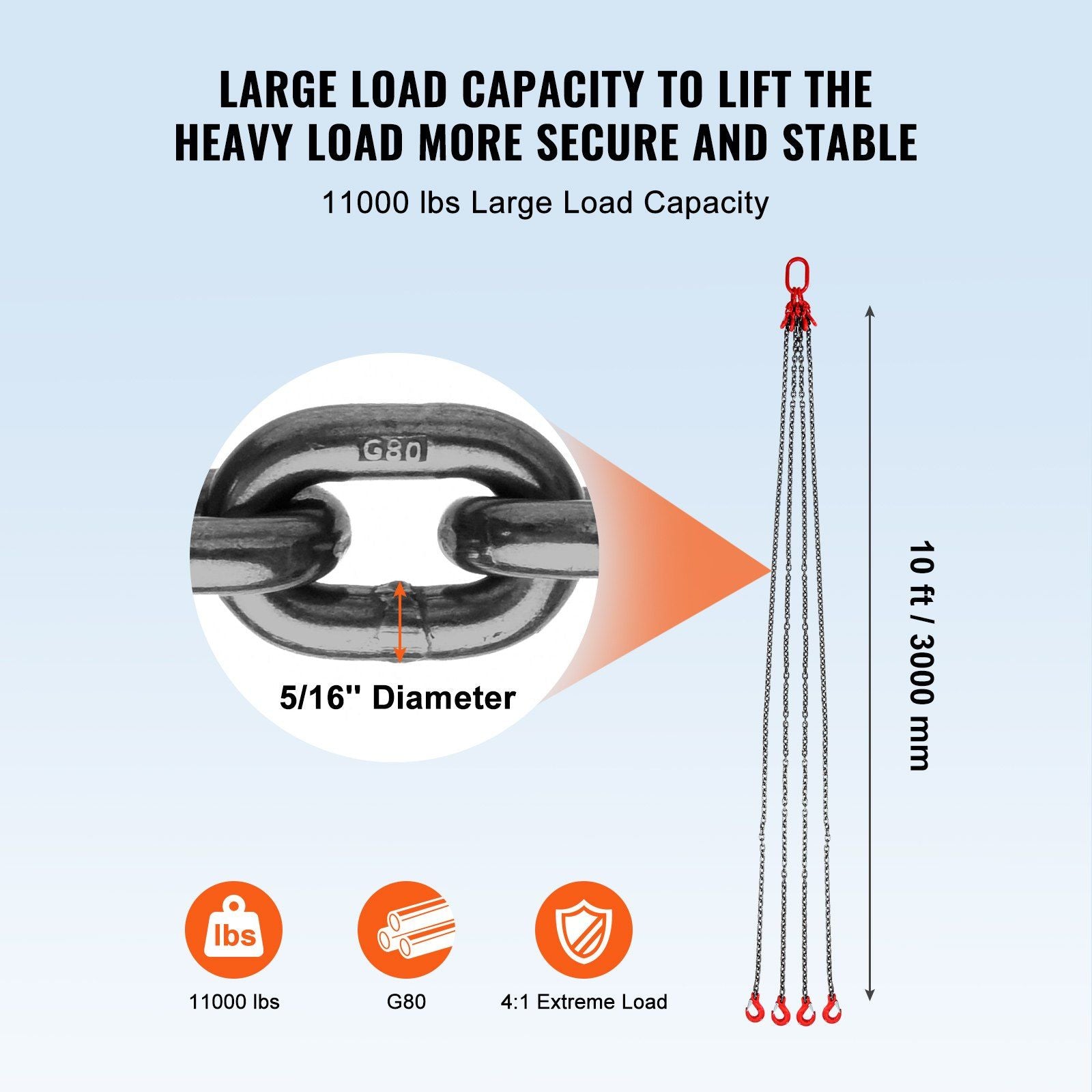

• Diameter: title gives 8 mm; supplier description gives 5/16 in
• Length: title gives 300 cm; supplier description gives 10 ft
• Whether the length is per leg or overall: not stated
• Capacity in the title: 5 Ton
• Capacity in the description: "Maximum Working Capacity: 11,000 lbs"
• Basis of either figure: not given — working versus breaking, single-leg versus four-leg, and working angle are all unstated
• Breaking strength: not published

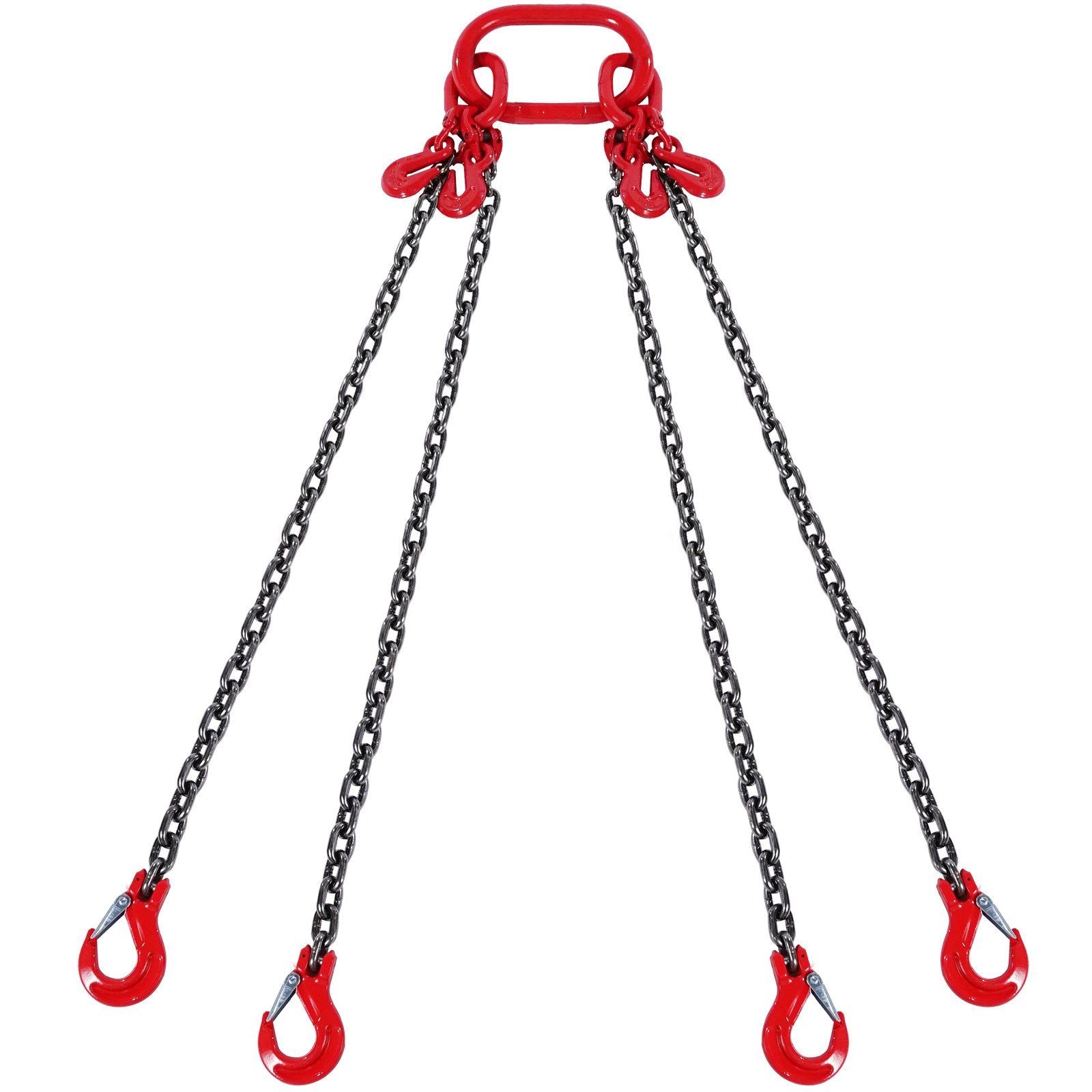

• Legs: four, every one carrying a grab hook plus its own adjuster
• Chain: manganese steel, supplier grade marking G80
• Hooks: alloy steel, as stated
• Named standard, certification or test: none stated

Rules for a chain that carries a load overhead

• Lifting equipment, not recovery gear. This must never be used to snatch, winch or tow a vehicle — a dynamic load will destroy a lifting chain.
• Check every link, hook and adjuster before each lift. Retire the sling if anything is cut, nicked, cracked, corroded, bent, worn or stretched.
• Bring the slack up slowly. Never shock-load it.
• Nothing passes over a person, and nobody stands under a suspended load.
• The load belongs in the throat of the hook, not on its tip; the supplier says so directly.
• No twisting, knotting or turning the chain back on itself.
• Have a competent person assess the sling against the relevant standard before first use, then re-inspect on whatever schedule that standard requires.

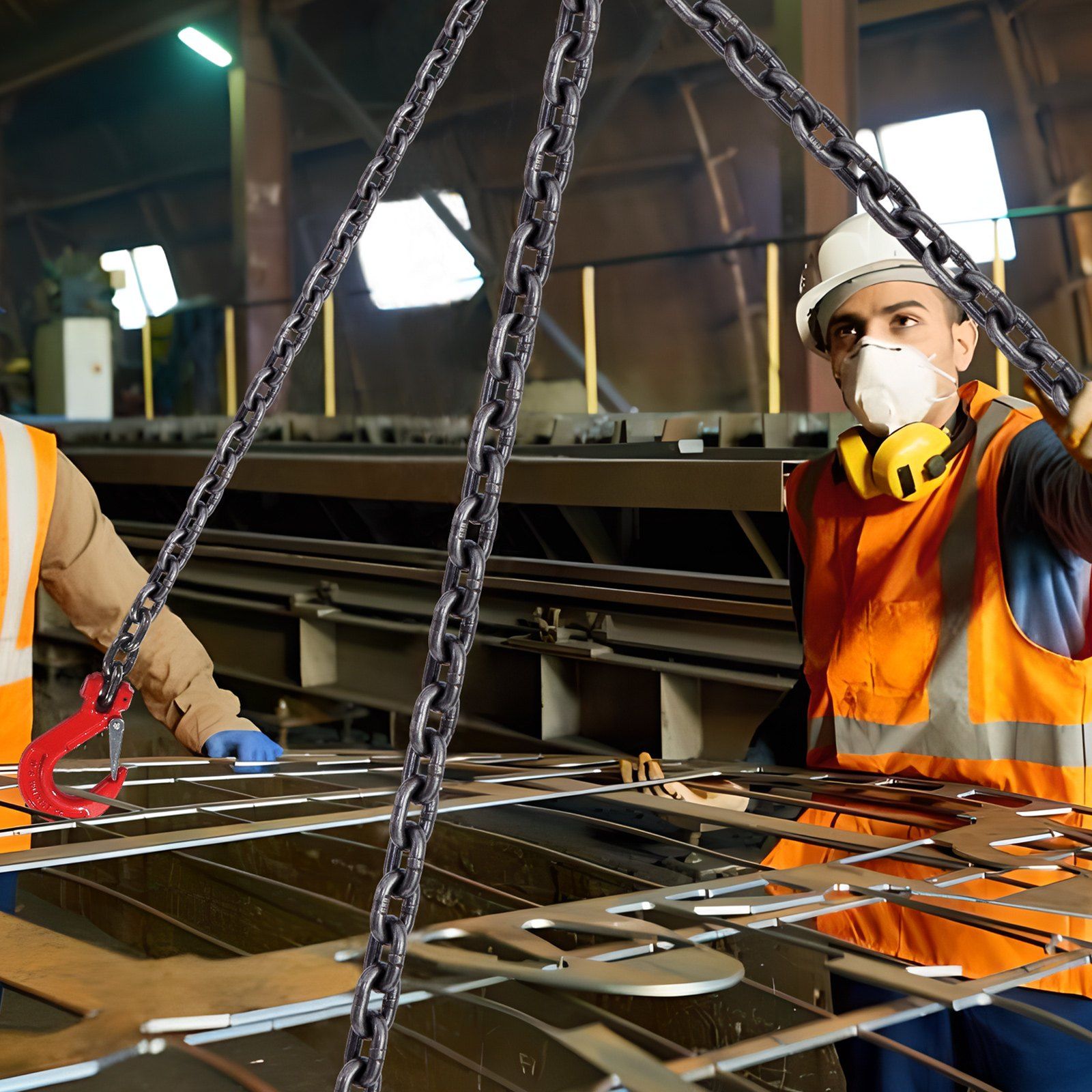

Built for engine hoist work and general lifting around a workshop. Take the figures above to a competent person and have the sling passed before it lifts anything at all.
