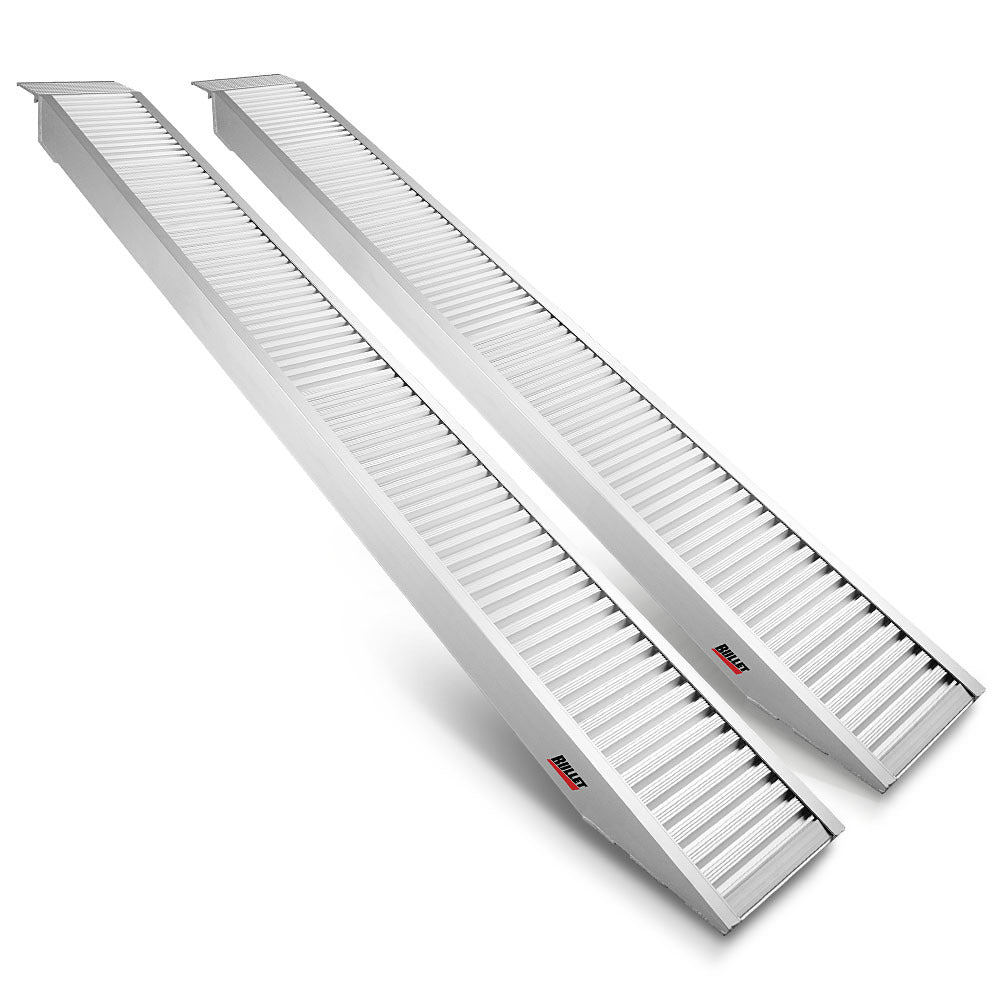

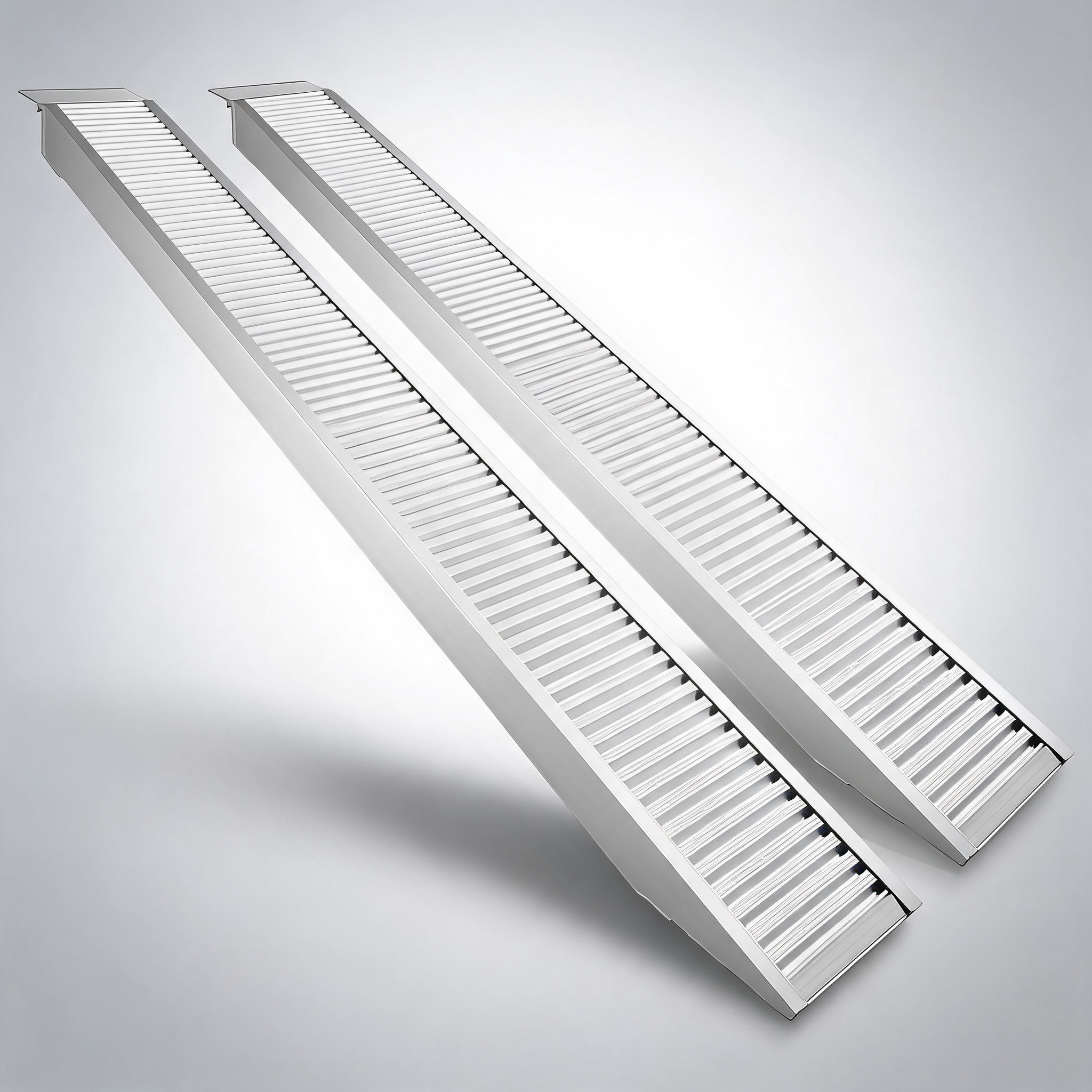

BULLET Pair of 3.2m Aluminium Loading Ramps, 1820kg Capacity

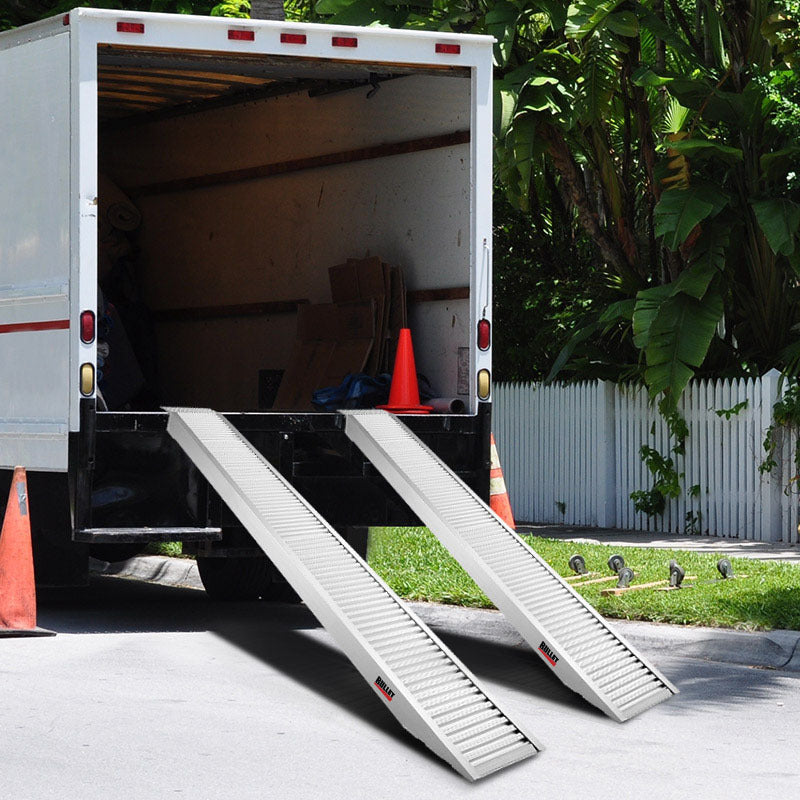

High truck decks are the problem these solve. A standard-length ramp against a 1.5 m deck makes an angle that nothing with low clearance will climb, so the fix is length: 3.2 m of alloy, run out to a shallower slope.

Length buys angle and costs capacity

Set against the shorter ramps in the same range, this pair carries less. The supplier quotes 910 kg per ramp and 1820 kg for the pair, across 3.2 m of span. That is not a defect, it is physics: a longer beam carries more bending moment for the same wheel load, so the rating comes down as the length goes up. What you get in return is a gentler approach. The supplier specifies a loading height range of 800 mm to 1600 mm, and it is that upper figure that makes the extra length worth having on a truck body or a high tilt trailer.

Built to sit outside on a truck

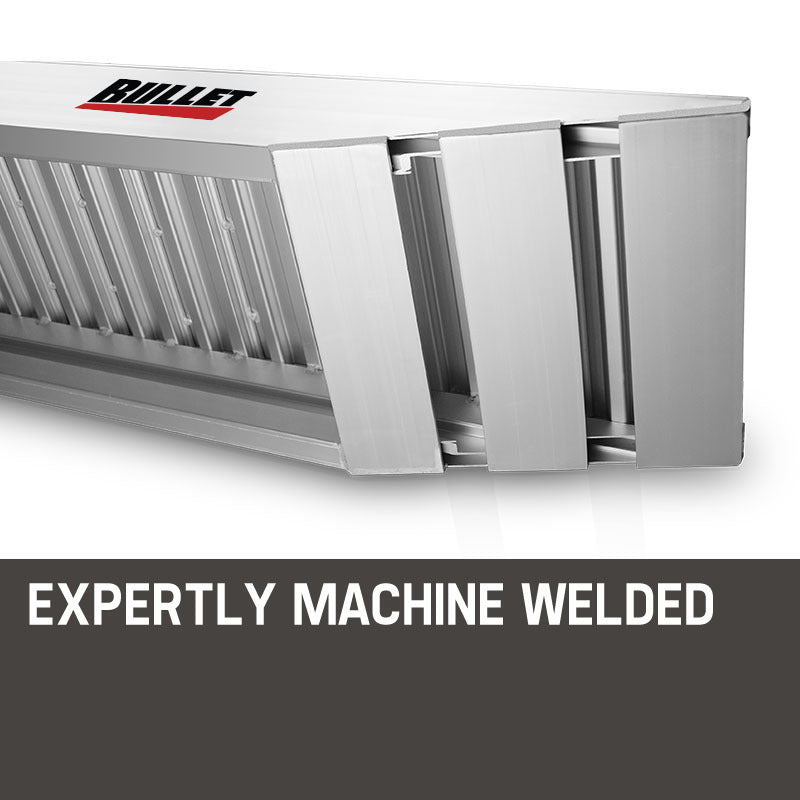

Each ramp is machine welded from marine grade alloy, so a scrape from a track pad or a chipped edge will not start rust the way it would on a painted steel ramp. Serrated slats give traction when the surface is wet, and lock-in tabs hold the ramps against the deck while a load transfers onto them. At 25 kg per ramp they remain a one-person carry, though 3.2 m of alloy is awkward on your own in a breeze, which is worth knowing before you plan a solo unload. The user manual is published online rather than packed in the carton.

Key features

• 910 kg per ramp, 1820 kg per pair: the supplier’s stated figures for this length.
• 800 mm to 1600 mm loading height range: built for truck bodies and high trailers.

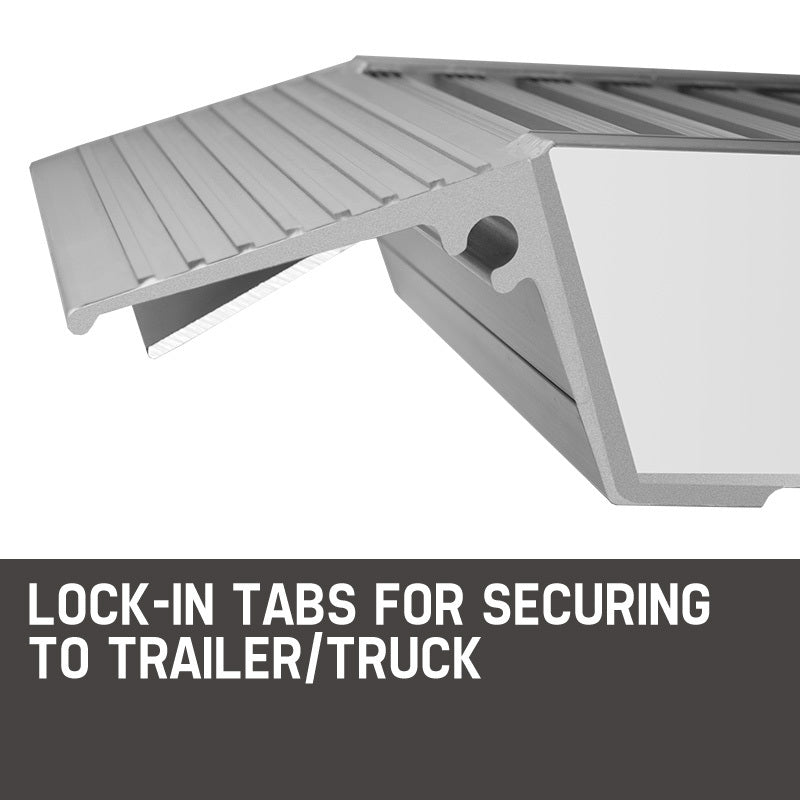

• Lock-in tabs: hold each ramp against the deck during loading.

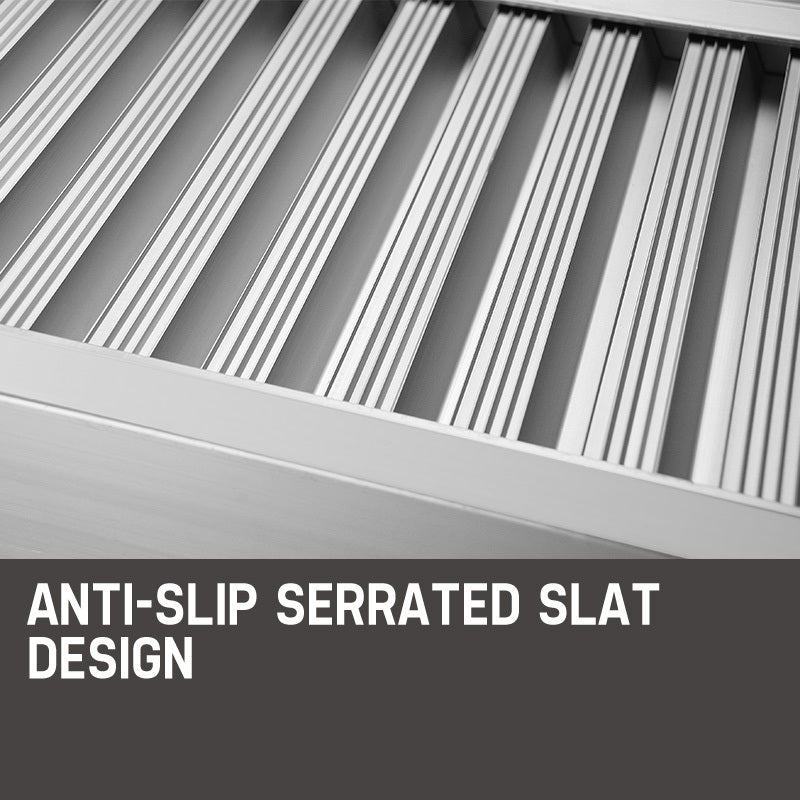

• Serrated slats: traction on the climb in wet conditions.

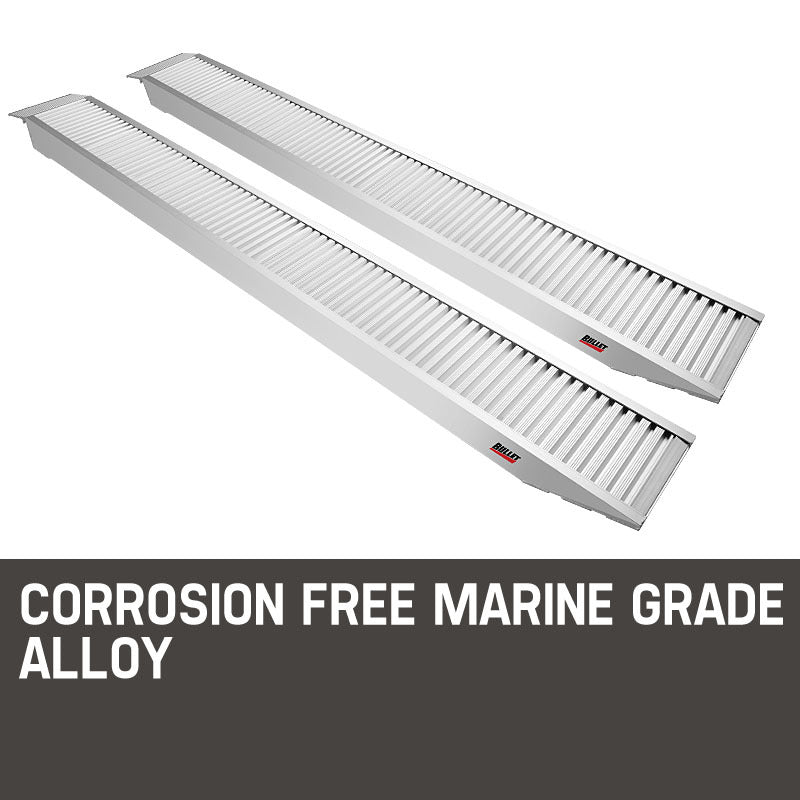

• Marine grade alloy: no rust where the surface gets chipped.

Specifications

• Brand: Bullet
• Maximum loading: 910 kg (each), 1820 kg (pair)
• Loading height range: 800 mm to 1600 mm
• Maximum loading height: 1600 mm

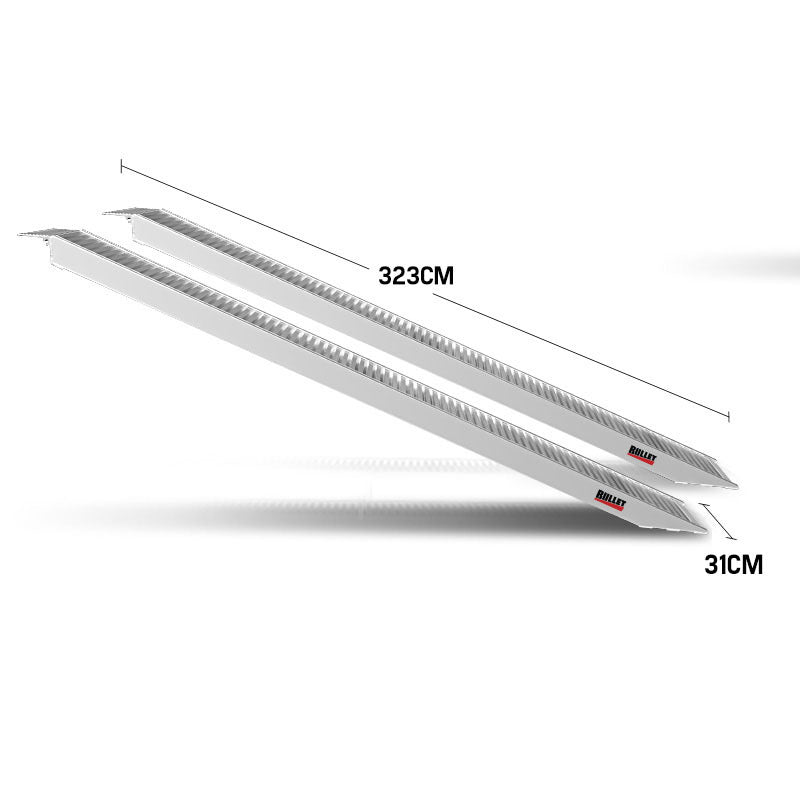

• Dimensions (W x L x H): 31 x 323 x 12 cm
• Product weight: 25 kg each, 50 kg per pair
• Material: marine grade alloy, machine welded
• Warranty: 12 months, as stated by the supplier

What’s in the box

• 2 x Bullet loading ramps
• User manual is accessible online

Handling and safe use

• Do not exceed the supplier’s maximum loading height of 1600 mm.
• Where a load sits unevenly across the ramps, work to the 910 kg per-ramp figure.
• Check both lock-in tabs are engaged before a load moves onto the ramps.
• This is bulky freight: each ramp ships in its own carton at 324 x 33 x 13 cm and 28 kg gross. A 3.2 m length needs clear access and somewhere to store it.

The one to choose when deck height, rather than raw capacity, is what is stopping you loading.
