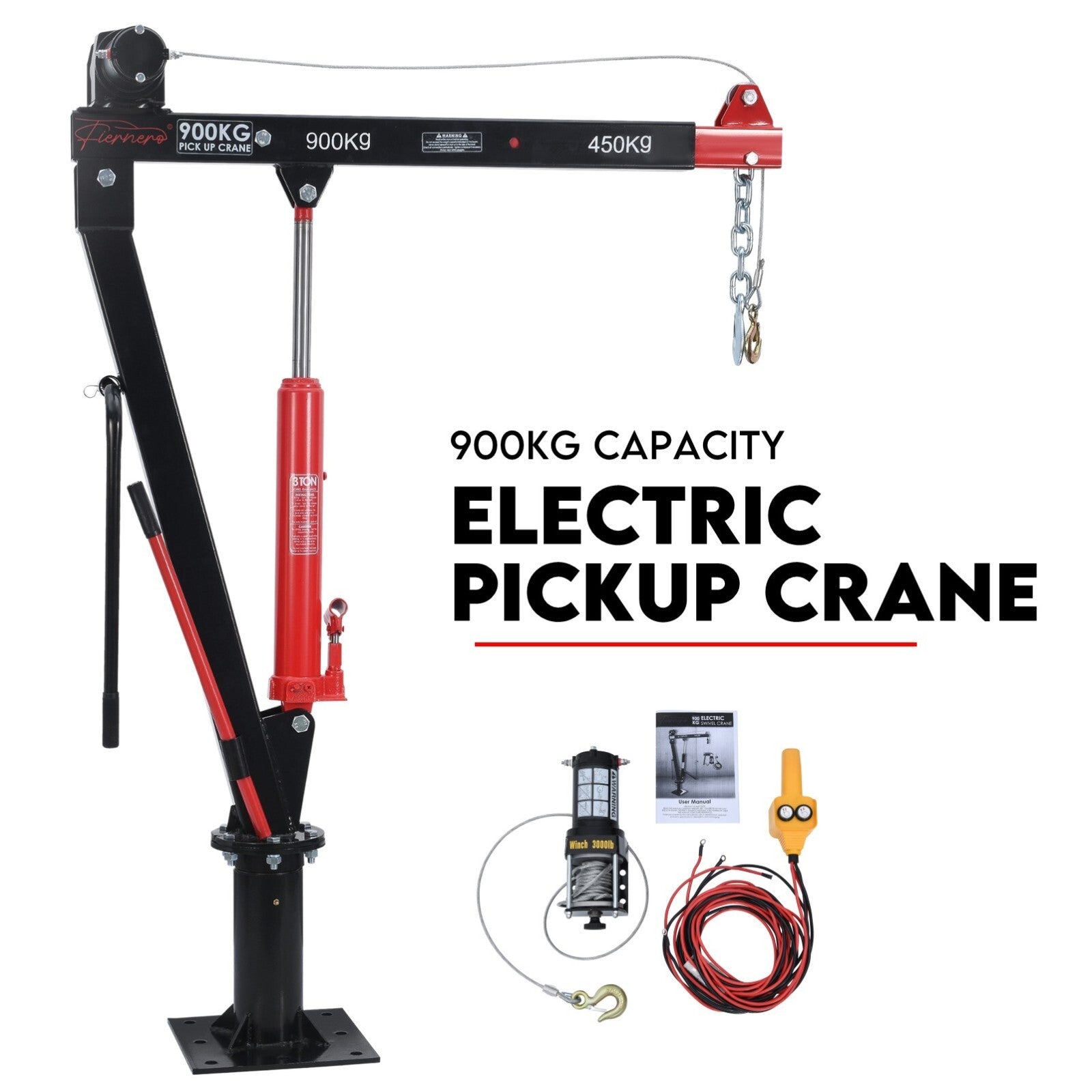

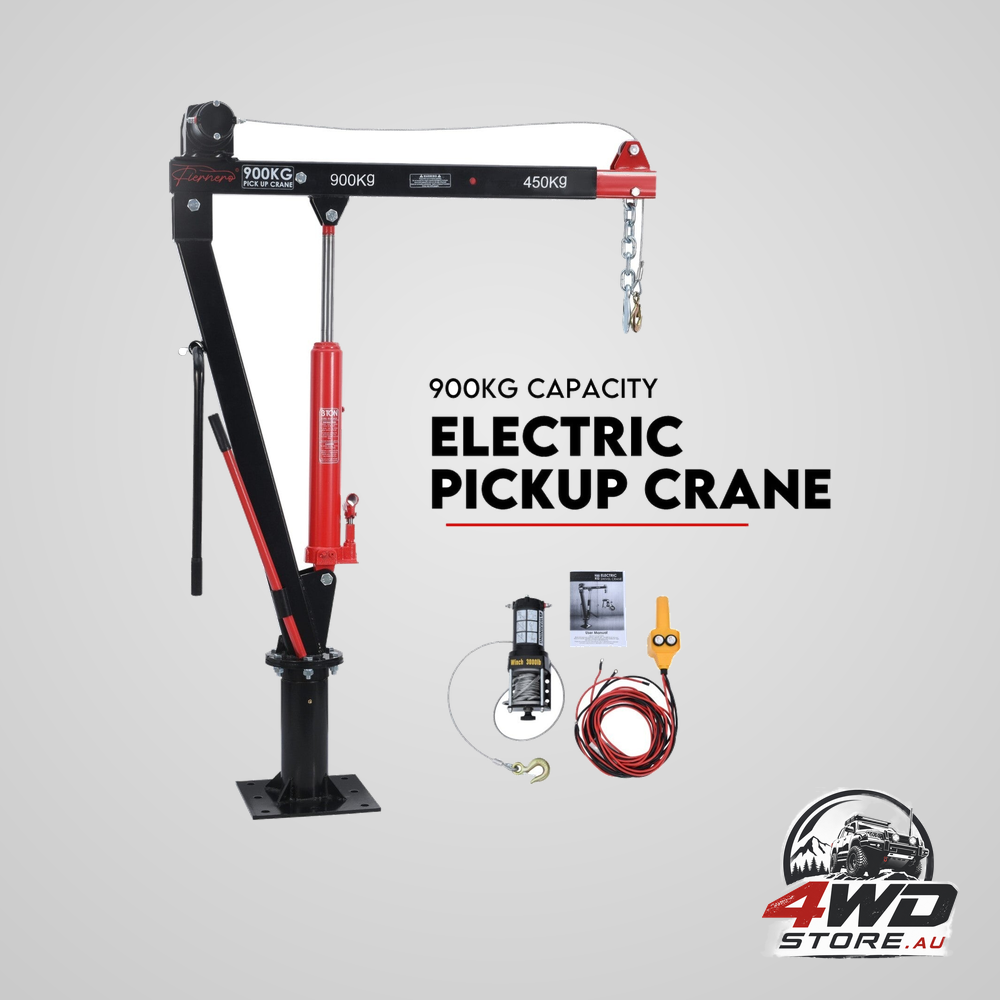

900kg Swivel Hydraulic Crane Hoist 12V Electric Jack Trailer UTE Pick up Lift

Pulling an engine in a home shed usually means borrowing a gantry you have nowhere to store. This crane bolts to a 270 mm square base on a tray, trailer or dock, folds down to 1350 mm when you are done, and swings a full 360 degrees so a load can be set down anywhere within its arc.

Where the 900 kg figure comes from

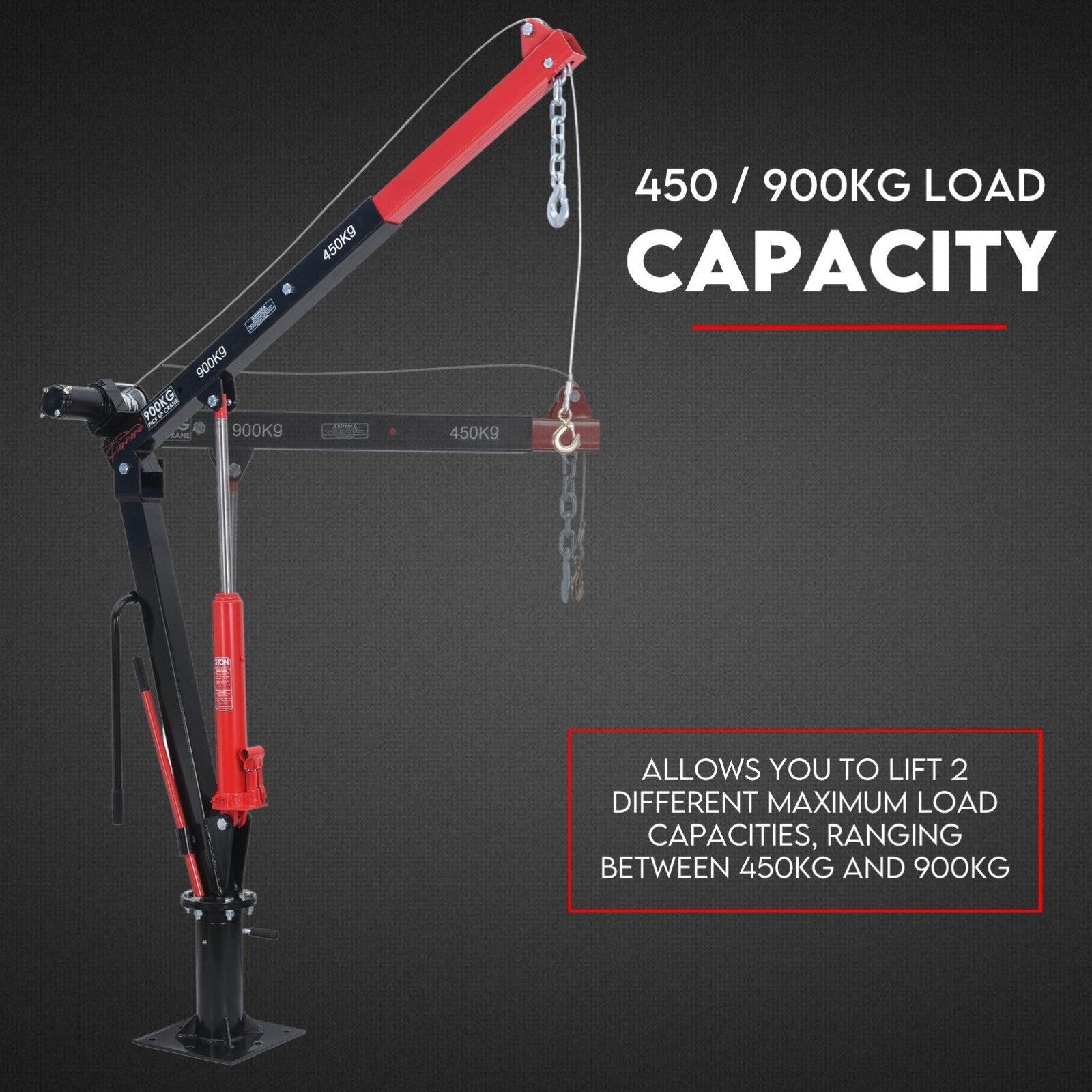

Read the ratings closely, because they are not one number. The supplier lists the hydraulic pump at a maximum of 900 kg, the electric winch at a maximum of 450 kg on a single line, and 800 kg double line. In other words the headline 900 kg belongs to the hydraulic ram, not to the winch — a load between 800 and 900 kg is a pump job. The boom lock positions are quoted only in imperial, at 1000 lbs and 2000 lbs, with no metric equivalent given and no stated relationship to the other three figures. Match the figure to the mechanism you are actually using.

Sized to leave the tray usable

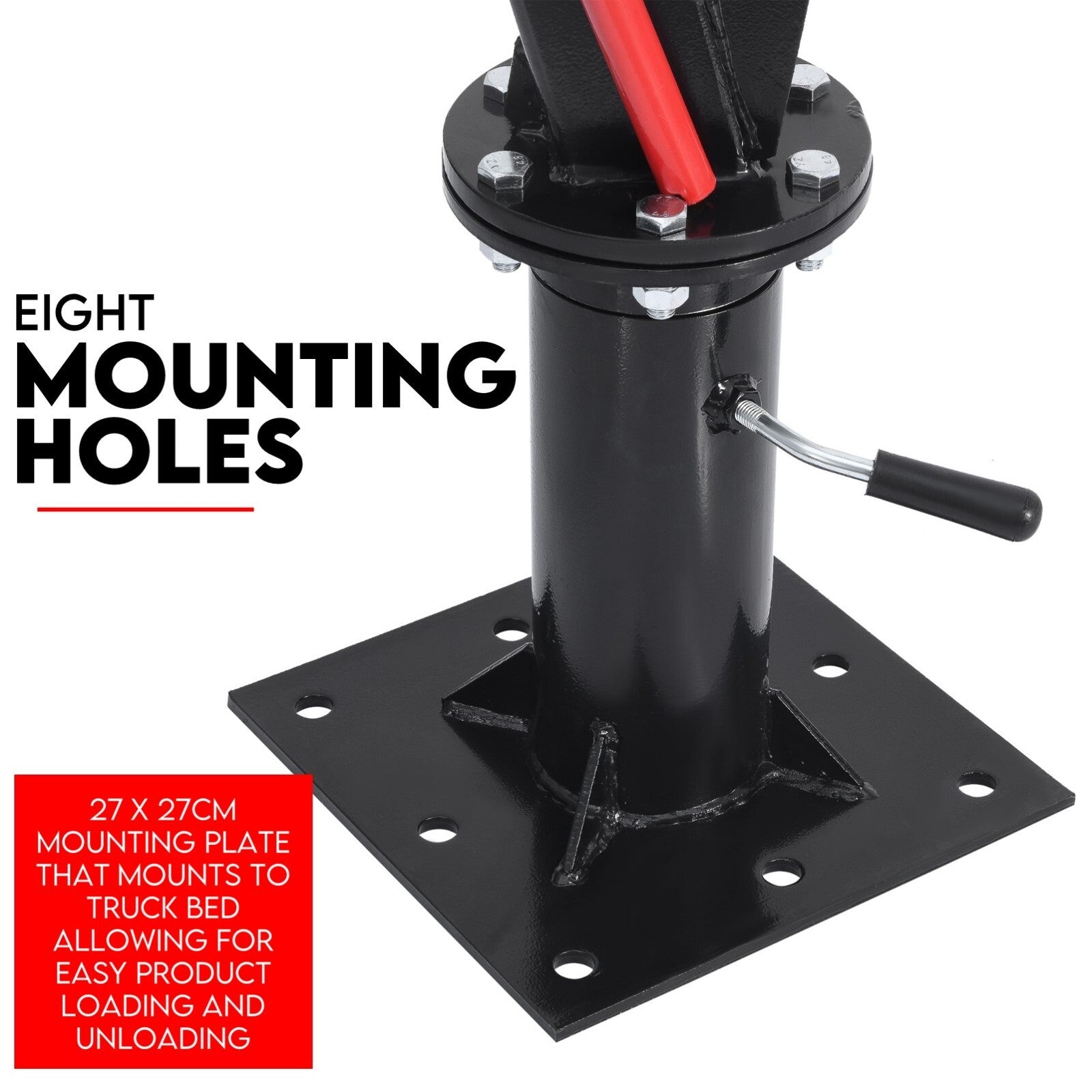

Footprint is what decides whether a tray crane earns its place. The mounting base measures 270 mm by 270 mm, so it takes up about the same room as a milk crate in the corner of a ute tray or trailer deck. Lift height runs to 1785 mm measured from the base to the hook, and the boom drops to a 1350 mm storage height between jobs. The drum carries 6 m of 5 mm cable. The column lifts off its base entirely, so the crane can move between mounts or come inside out of the weather. Net weight is 61 kg — a two-person carry.

Key features

• Three separate ratings: hydraulic pump to 900 kg, winch to 450 kg single line and 800 kg double line, as stated by the supplier.

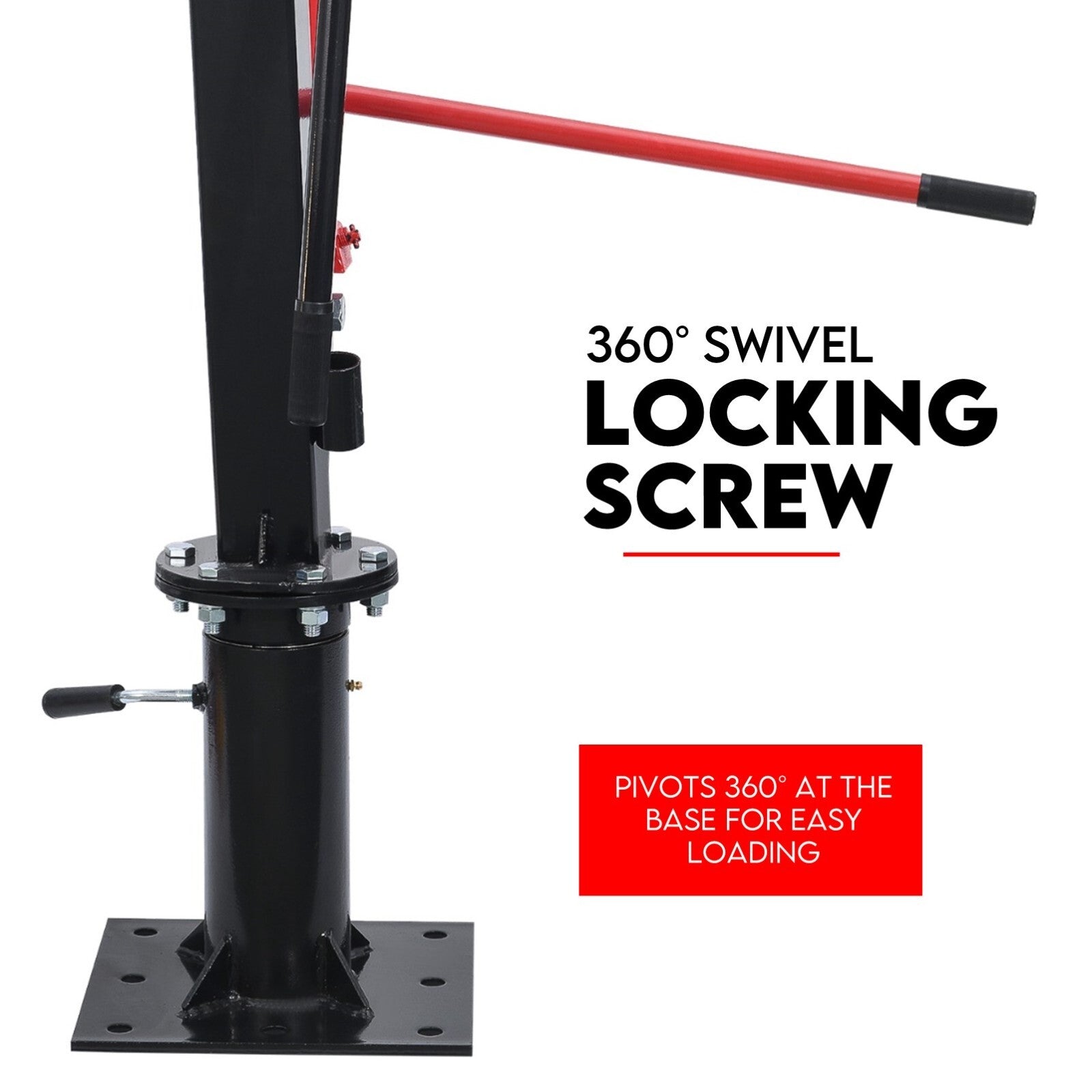

• 360-degree swivel: set a load down anywhere in the arc rather than repositioning the vehicle.
• Lifts off its base: the column detaches, so one crane can serve several mounts and be stored under cover.
• 270 mm square base: a small enough footprint to leave the rest of a ute tray working.
• Two boom lock positions: quoted by the supplier as 1000 lbs and 2000 lbs.

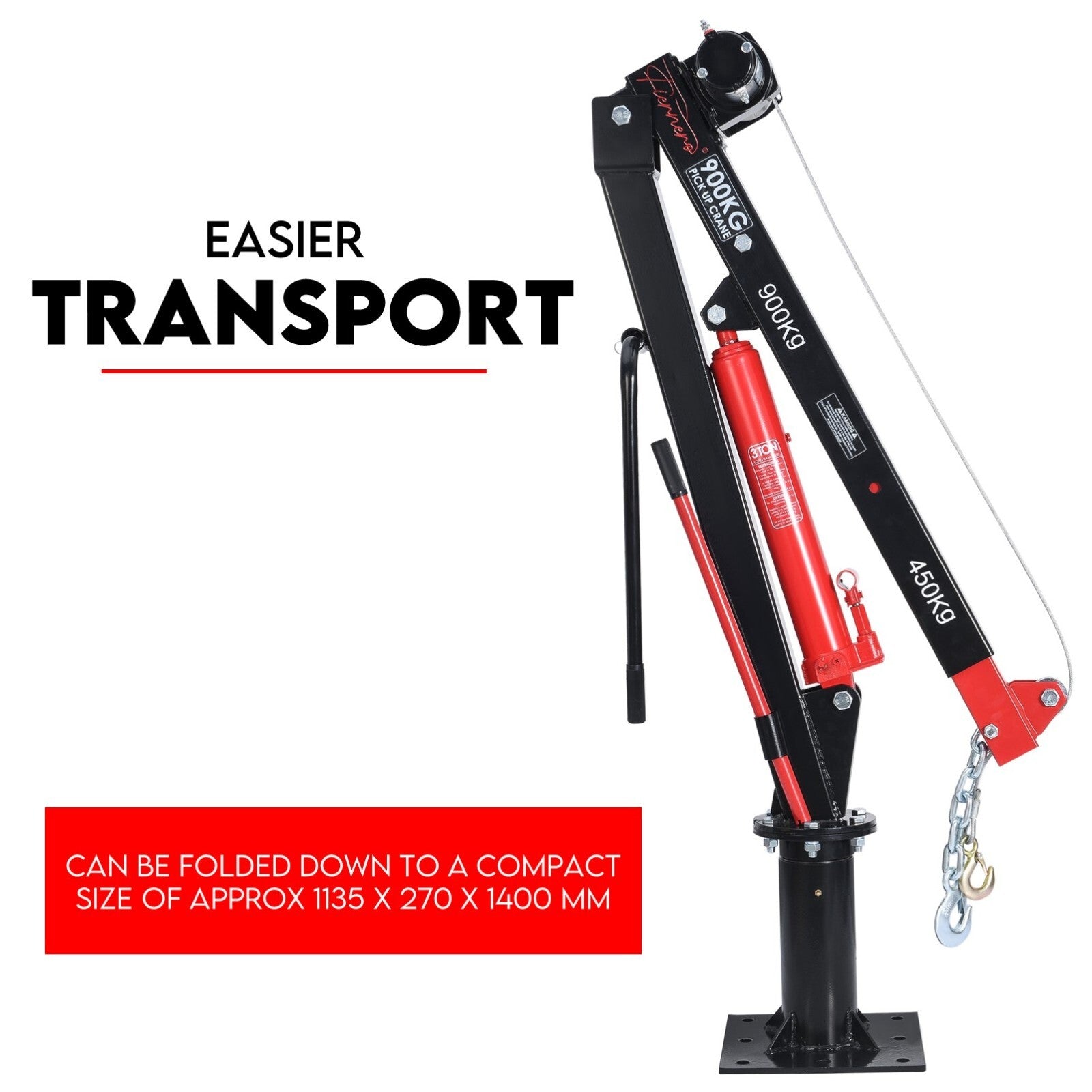

• 1785 mm to 1350 mm: full lift height when working, folded height when it is out of the way.

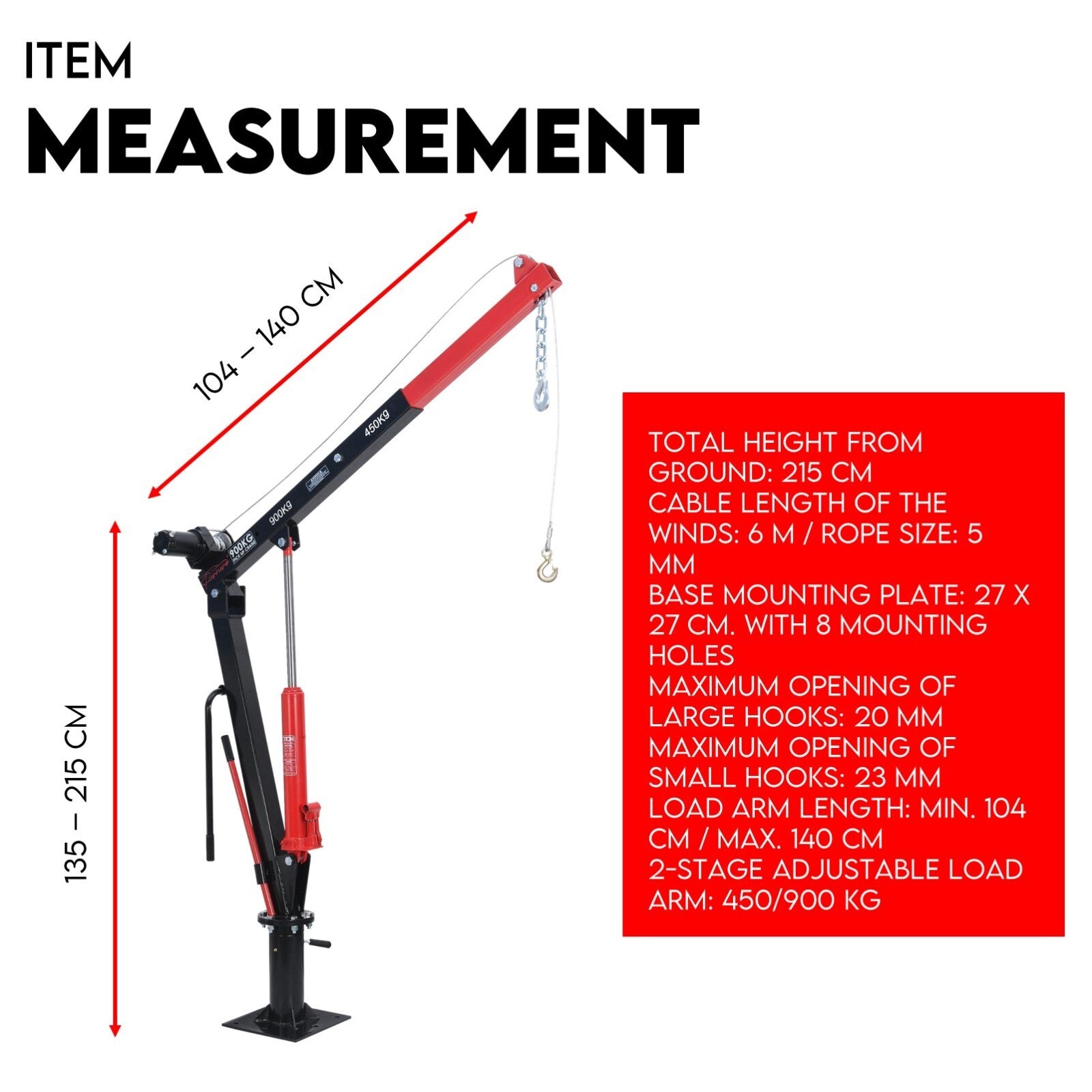

Specifications

• Type: electric swivel hydraulic crane
• Rated capacity (supplier headline): 900 kg
• Hydraulic pump rating: maximum 900 kg

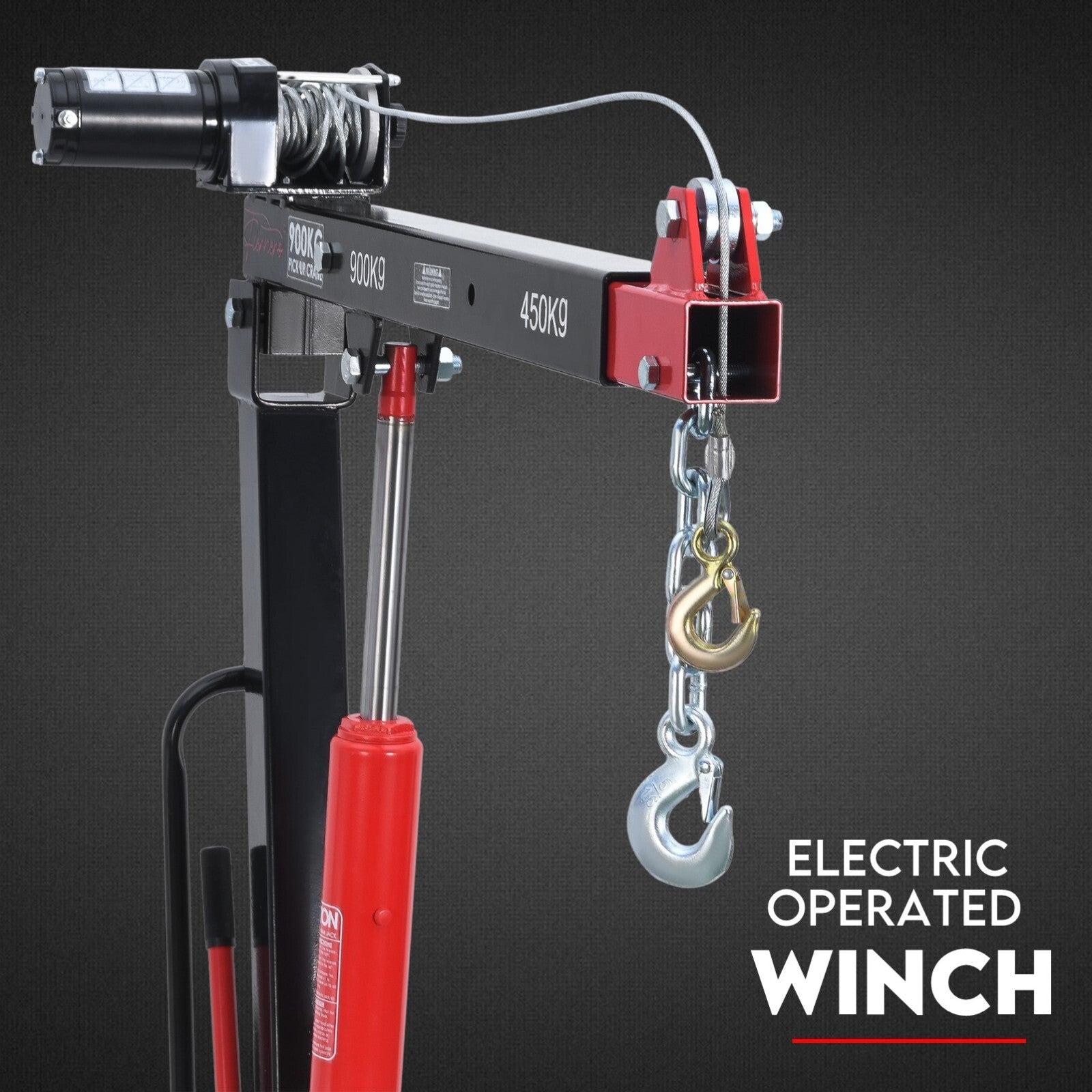

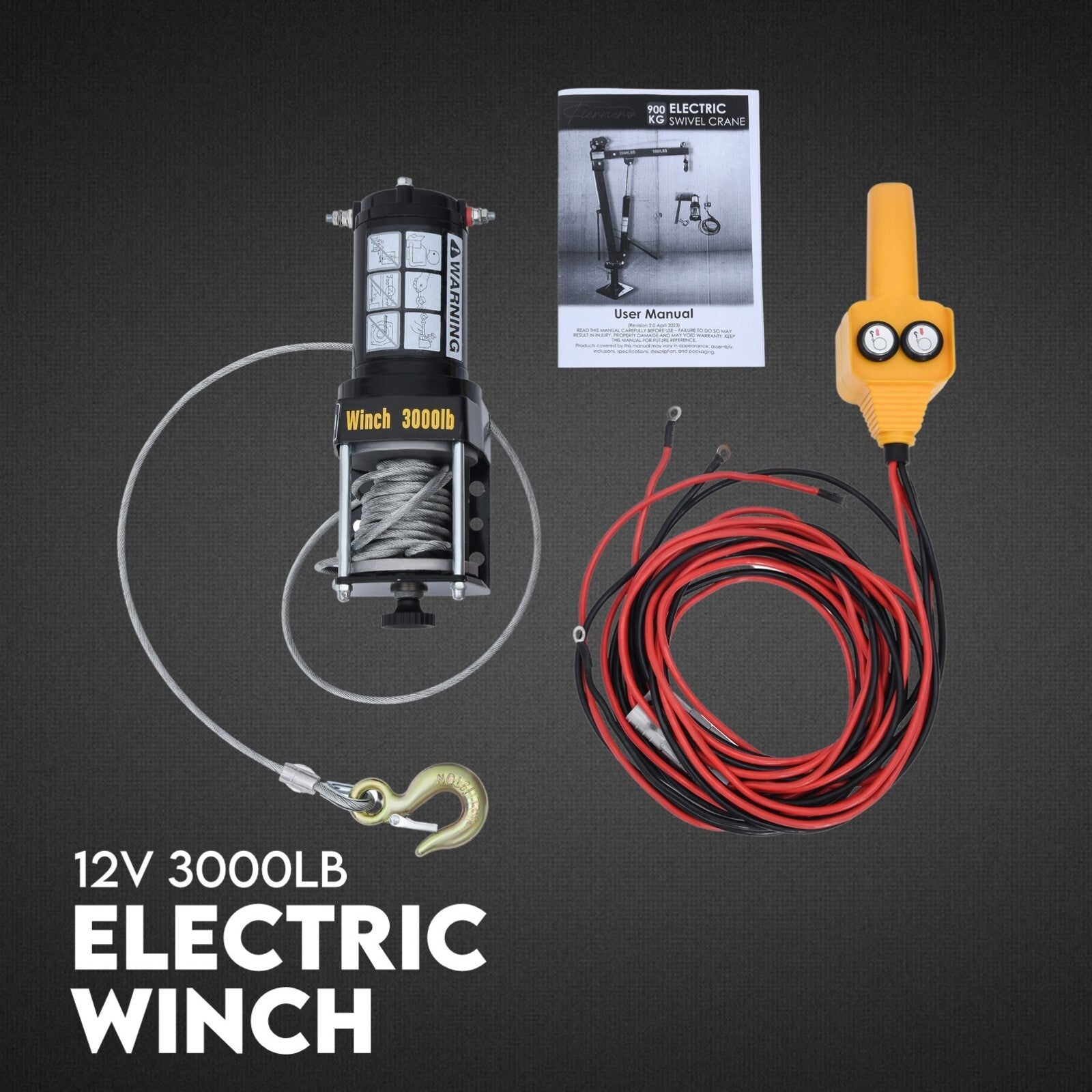

• Electric winch, single line: maximum 450 kg
• Electric winch, double line: maximum 800 kg
• Swivel range: 360 degrees
• Boom lock positions: 1000 lbs / 2000 lbs (supplier states imperial only)
• Power requirement: 12 V DC
• Lifting cable: 6 m length, 5 mm diameter
• Lifting height, base to hook: 1785 mm
• Storage height, folded: 1350 mm
• Mounting base: 270 mm x 270 mm
• Material and finish: heavy-duty steel, rugged coating
• Net weight: 61 kg

Read this before the first lift

• Do not treat 900 kg as the winch rating. The winch is rated to 450 kg single line and 800 kg double line; only the hydraulic pump is rated to 900 kg.
• Nobody under a suspended load, and nothing lifted over a person. Keep bystanders outside the swing of the boom.
• Where the crane is used to raise part of a vehicle, it lifts only. Support the vehicle on rated stands before anyone works underneath.
• At 61 kg plus its rated load, the mounting point matters more than the crane. Check the tray, deck or dock structure and its own load rating before bolting down.
• No standard, certification or test rating is named by the supplier for this crane or its cable.

A compact swivel crane for tray, trailer and dock work. Sort out which of the three ratings your load falls under, and rig to that one.
