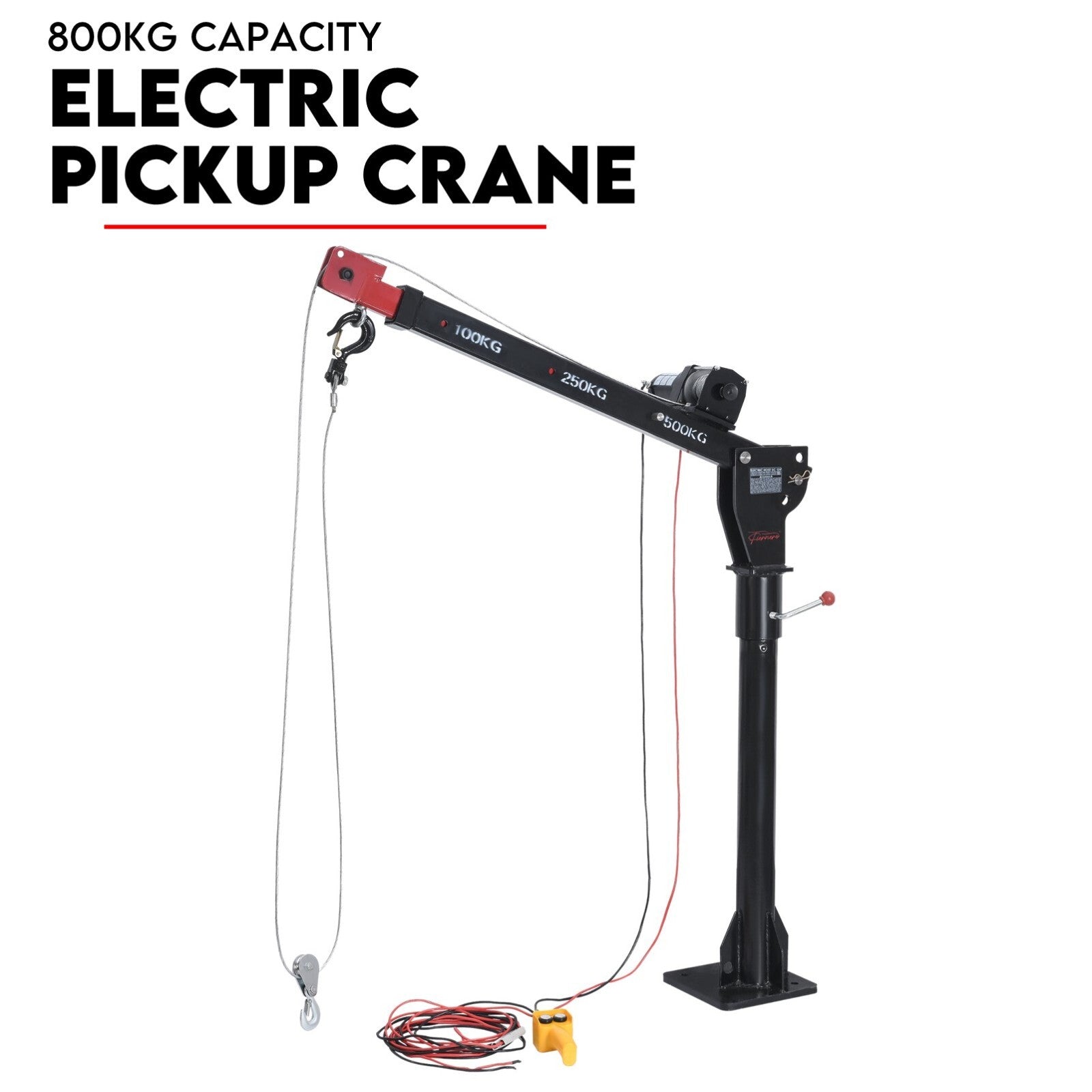

800kg Electric Hoist Winch Crane 12V Swivel Car Truck UTE Lift 360° Pick up

Loading a generator into a ute tray on your own is how backs get wrecked. This 12 V crane hoist bolts to the tray or a workshop bench, swings on a swivel arm and does the lifting for you, run off a wired remote so both hands stay clear of the load.

Two ratings, and the rigging decides which one applies

The supplier quotes two figures and they are not interchangeable: 500 kg (1102 lb) on a single line, 800 kg (1763 lb) double line. The difference is the reeving. Run the rope straight off the drum and the full weight sits on it; run it down through a block and back, and the load splits across two falls. The lift speeds bear that out — roughly 10 m/min single, roughly 5 m/min double. Doubling up also halves how far the hook travels, so plan your headroom against the 9.2 m of 4.8 mm cable on the drum before you start.

Twelve volts, so it works wherever the ute is

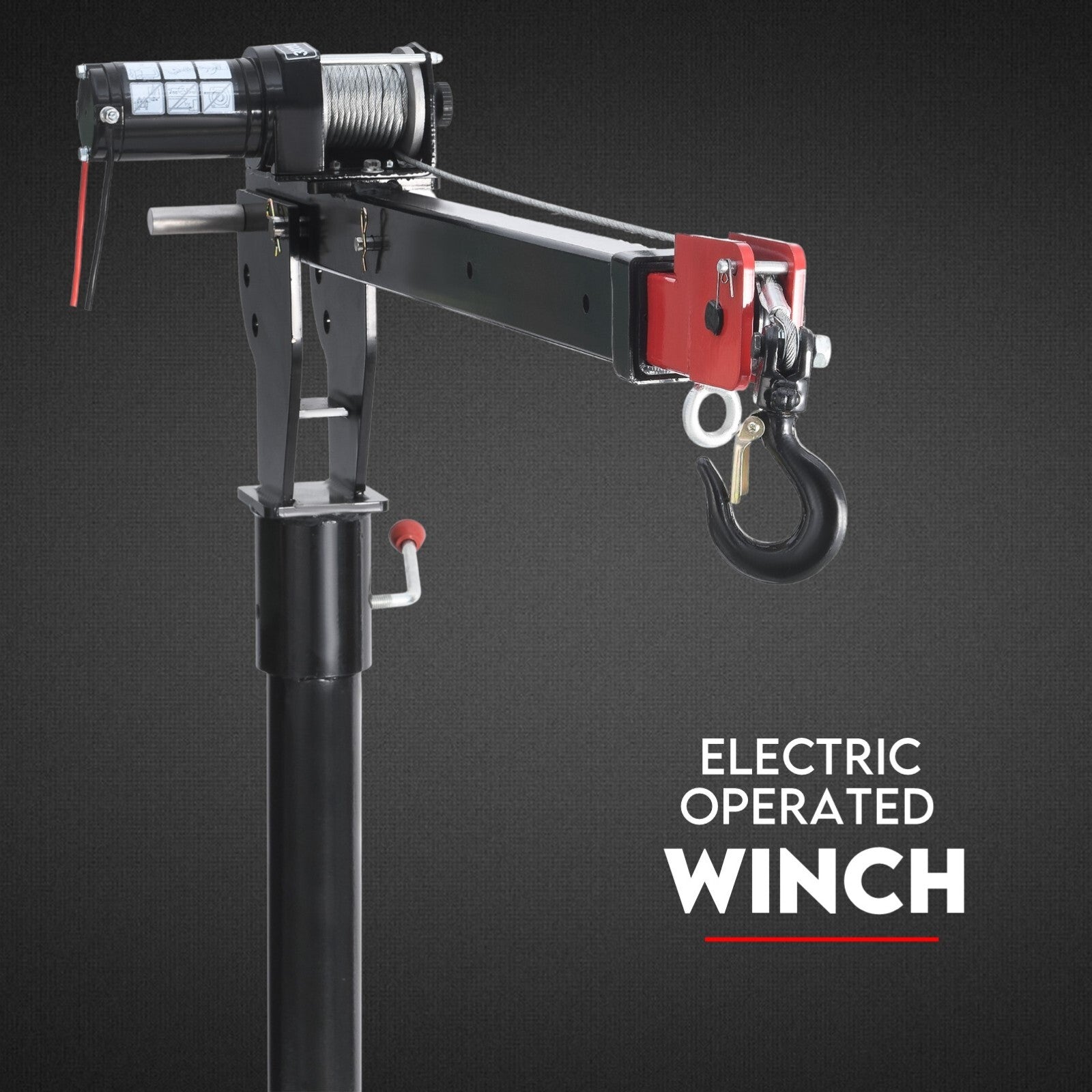

The motor is rated at about 1000 W and runs on 12 V DC, which means the hoist works off a vehicle or trailer battery instead of needing mains power or a generator on site. A draw that size will flatten a battery quickly on repeated lifts, so run the engine while you work and use cable heavy enough for the run. The body is powder-coated steel, the mount is a swivel arm on a supplied bracket, and an automatic brake holds the drum when you release the remote rather than letting the load creep back down.

Key features

• Two stated ratings: 500 kg single line and 800 kg double line, quoted exactly as the supplier states them — the two are not added together.
• Wired remote: lets you stand away from the load and the drum while it is under tension.
• Automatic brake: holds the drum the moment you let go of the control instead of letting the hook drift down.

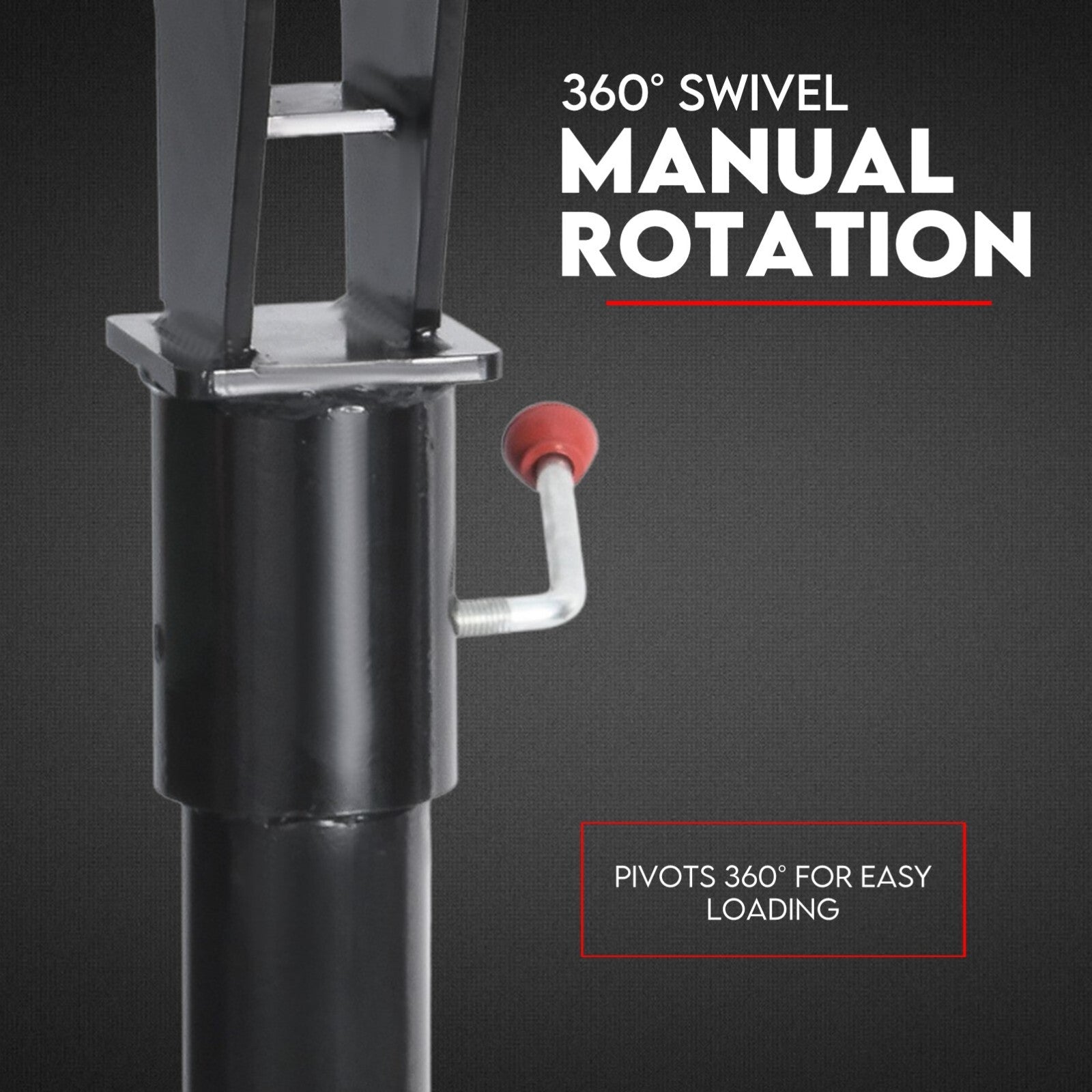

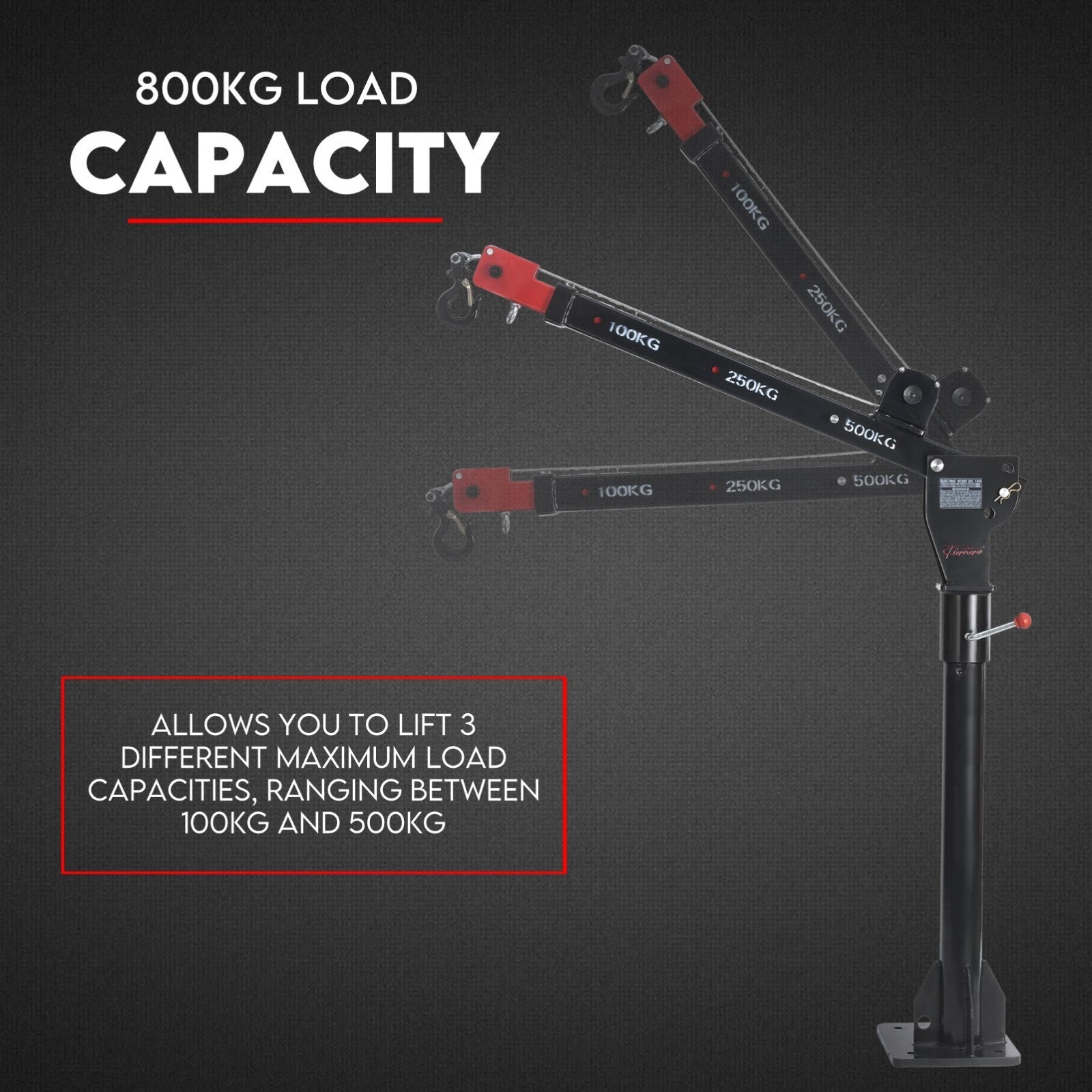

• Swivel arm and bracket: pick a load up off the ground, then swing it across into the tray without setting it down.
• 9.2 m of 4.8 mm steel cable: enough drum for tray-height work with some spare wraps left on.
• Powder-coated steel body: a coated finish handles tray grit and wet weather better than bare steel.

Specifications

• Lifting capacity, single line: 500 kg / 1102 lb (supplier's figure)
• Lifting capacity, double line: 800 kg / 1763 lb (supplier's figure)
• Voltage: 12 V DC
• Motor power: approximately 1000 W
• Cable length: 9.2 m steel cable
• Cable diameter: 4.8 mm
• Lifting speed, single line: approximately 10 m/min
• Lifting speed, double line: approximately 5 m/min

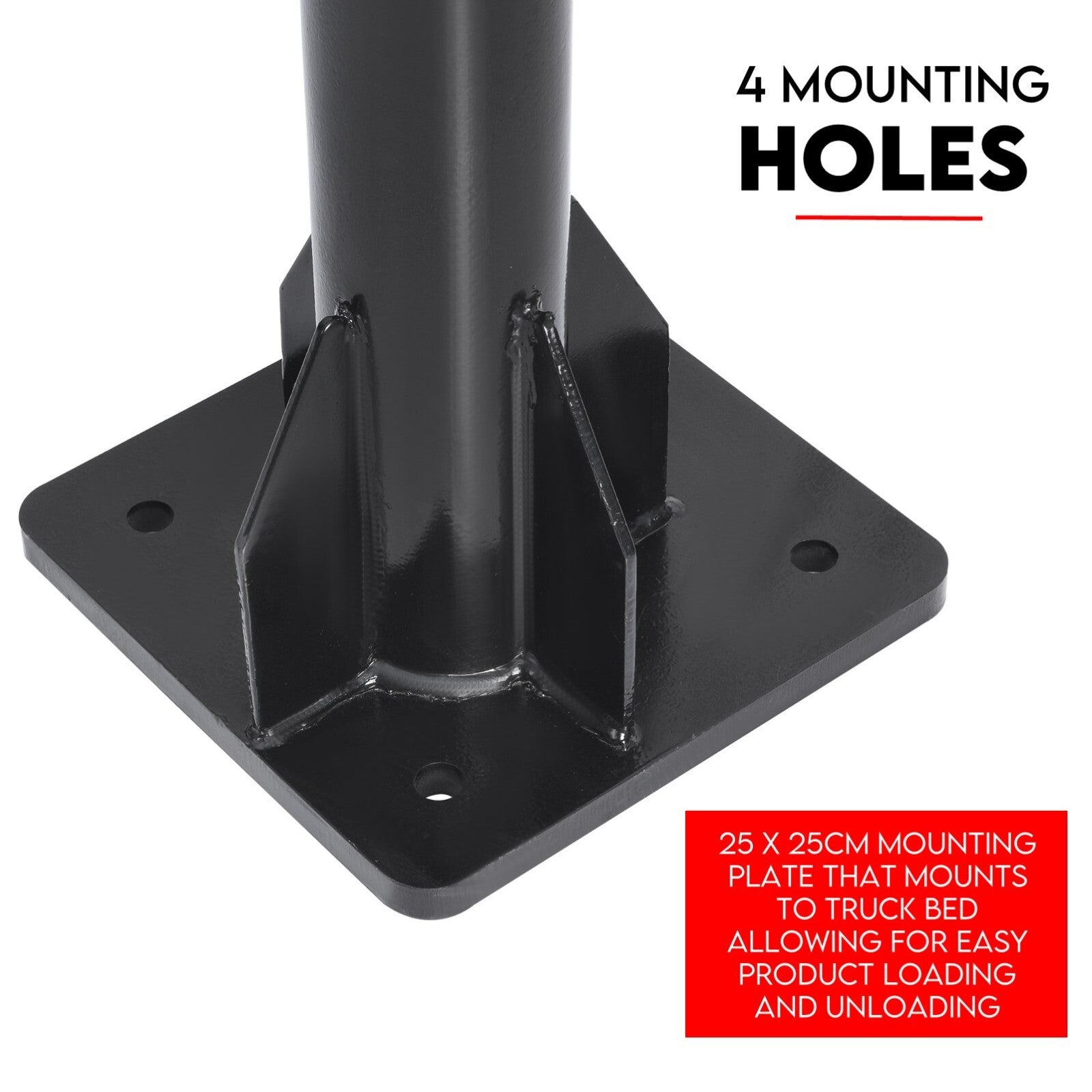

• Mount type: swivel lift with bracket

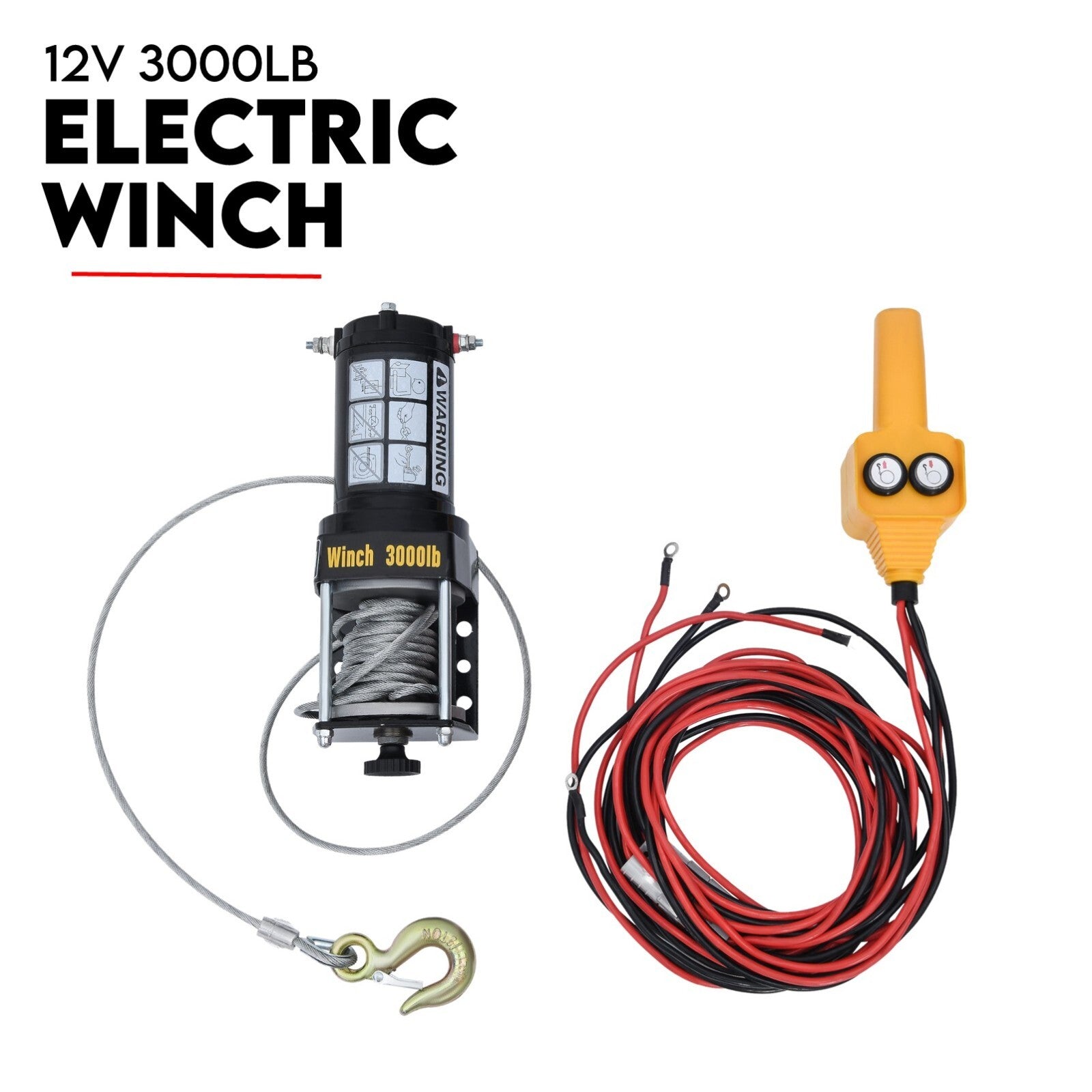

• Control: wired remote controller
• Brake: automatic brake
• Material: powder-coated steel body
• Options: Style A and Style B — the supplier's text does not state what differs between them

Before you lift with it

• Work to the rating that matches your rigging. Single line is 500 kg, double line is 800 kg; the figures are alternatives, not a total.
• Never lift or carry a person, and never stand or reach under a suspended load. A brake is a mechanical part and mechanical parts fail.
• If the hoist is used to raise any part of a vehicle, it lifts only. Lower the vehicle onto rated stands before anyone goes underneath it.
• The mounting point carries everything the hook does, plus shock loading. Bolt it to structure that can take it, not to sheet metal.
• The supplier does not name any standard, certification or test rating for this hoist. Confirm it suits your duty cycle and application before relying on it.

A straightforward 12 V hoist for tray, trailer and shed work. Check the two capacity figures against the job in front of you and rig accordingly.
