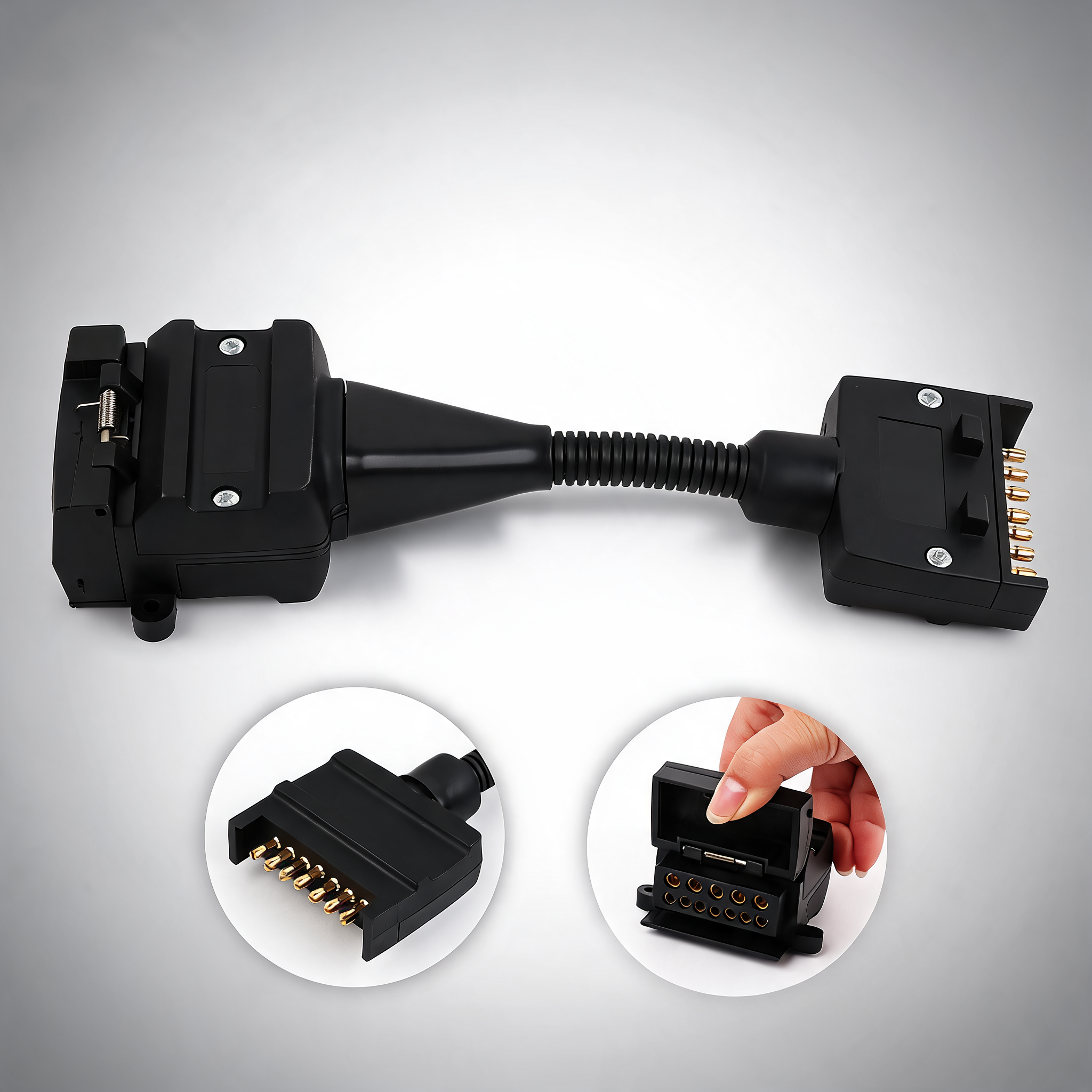

7 Pin Flat Plug to 12 Pin Flat Female Socket Adaptor Trailer Caravan Connector

Seven pins at one end and twelve at the other: that difference is the whole reason this adaptor exists, and the listing never accounts for the ways the smaller connector cannot take. What it does give you is a voltage, a material, a colour and one word about water, four facts that describe the moulding rather than the join it makes.

Which end is the plug, answered twice and differently

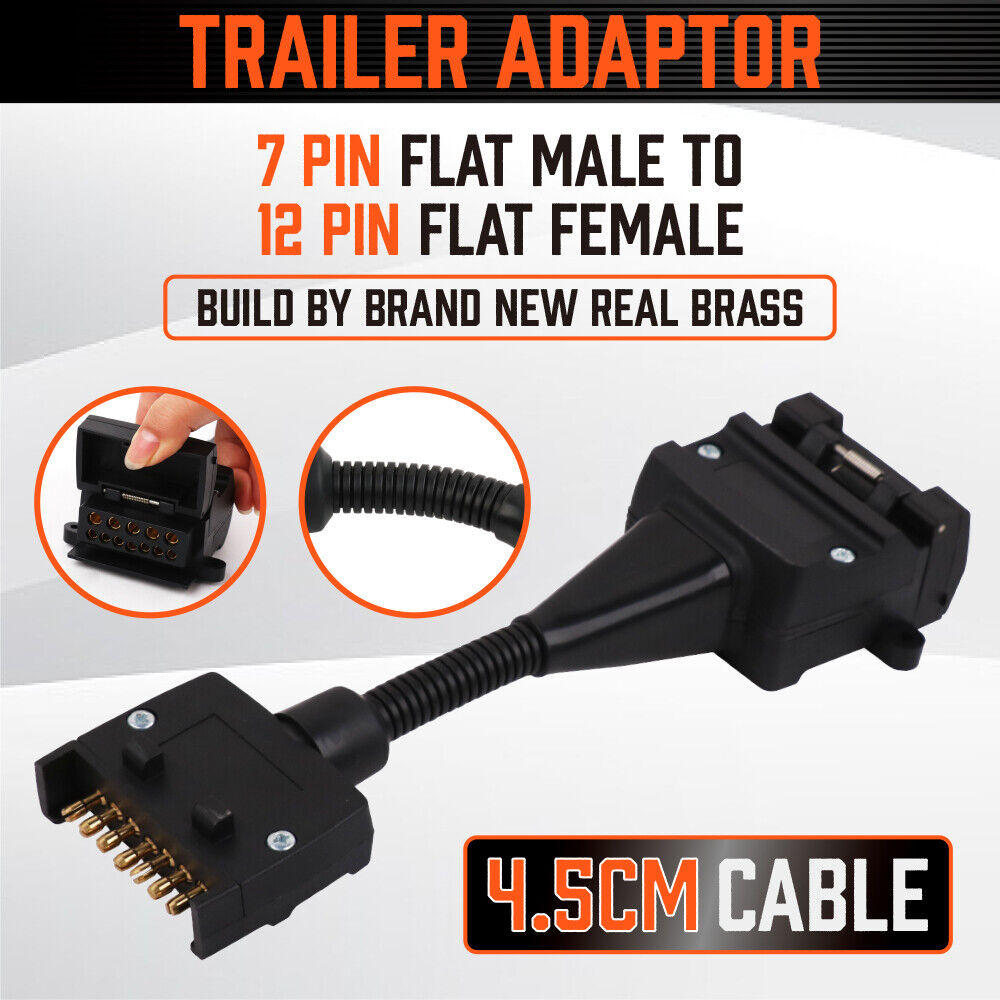

The connector bullet reads 7 Pin Flat Male Plug + 12 Pin Falt Female Socket, putting the male plug on the seven-pin side. The pack line reads 1 x 7 Pin Flat Socket to 12 Pin Flat Plug Trailer Adaptor, the same two connectors with their genders swapped over. On an adaptor that decides which end faces the tow vehicle and which faces the trailer. Both lines are reprinted below, we have preferred neither, and the useful thing you can do is look at the connector already on your vehicle and ask the seller which way this one runs.

Waterproof is one word and the whole of the sealing claim

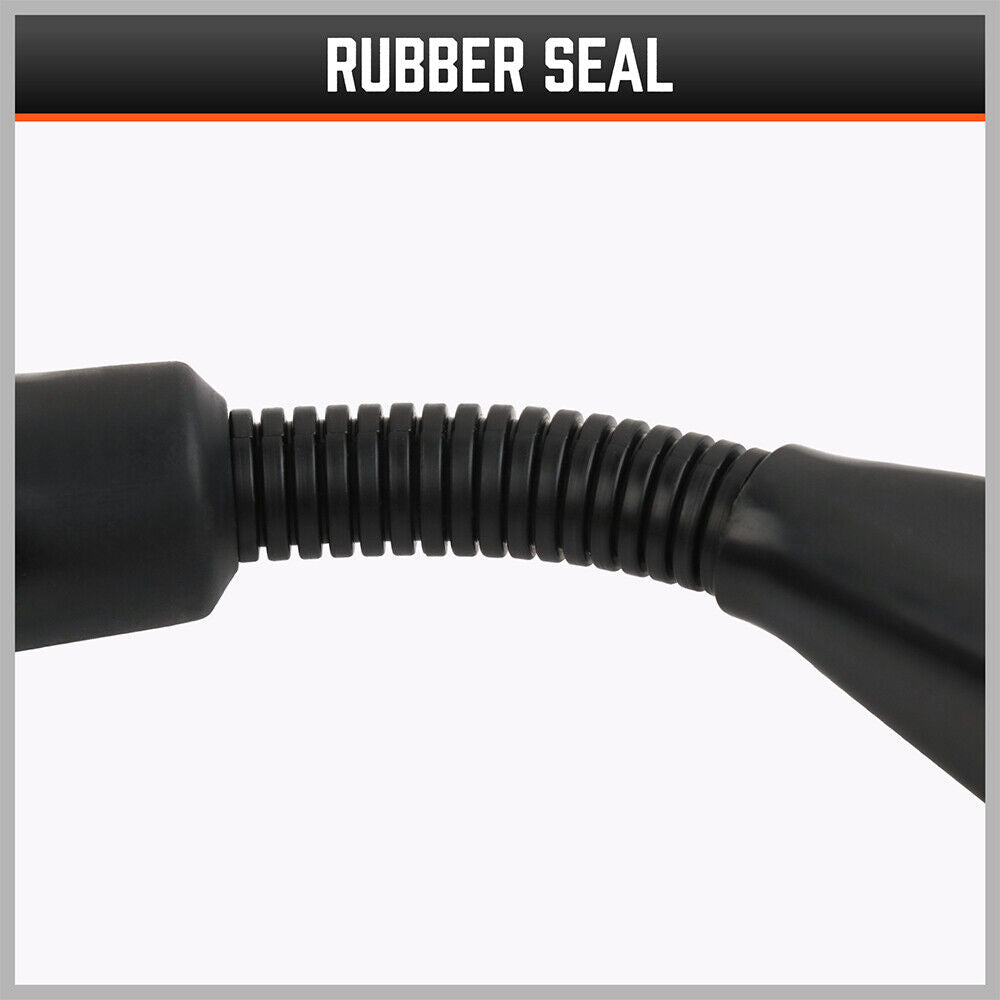

It stands alone as a bullet with nothing after it. No ingress rating is quoted, and neither a gasket, an O-ring nor a seal is named, so how much water it turns away and for how long are both open questions. Current is treated the same way: twelve volts is given, and an ampere figure occurs nowhere on the page.

Key features

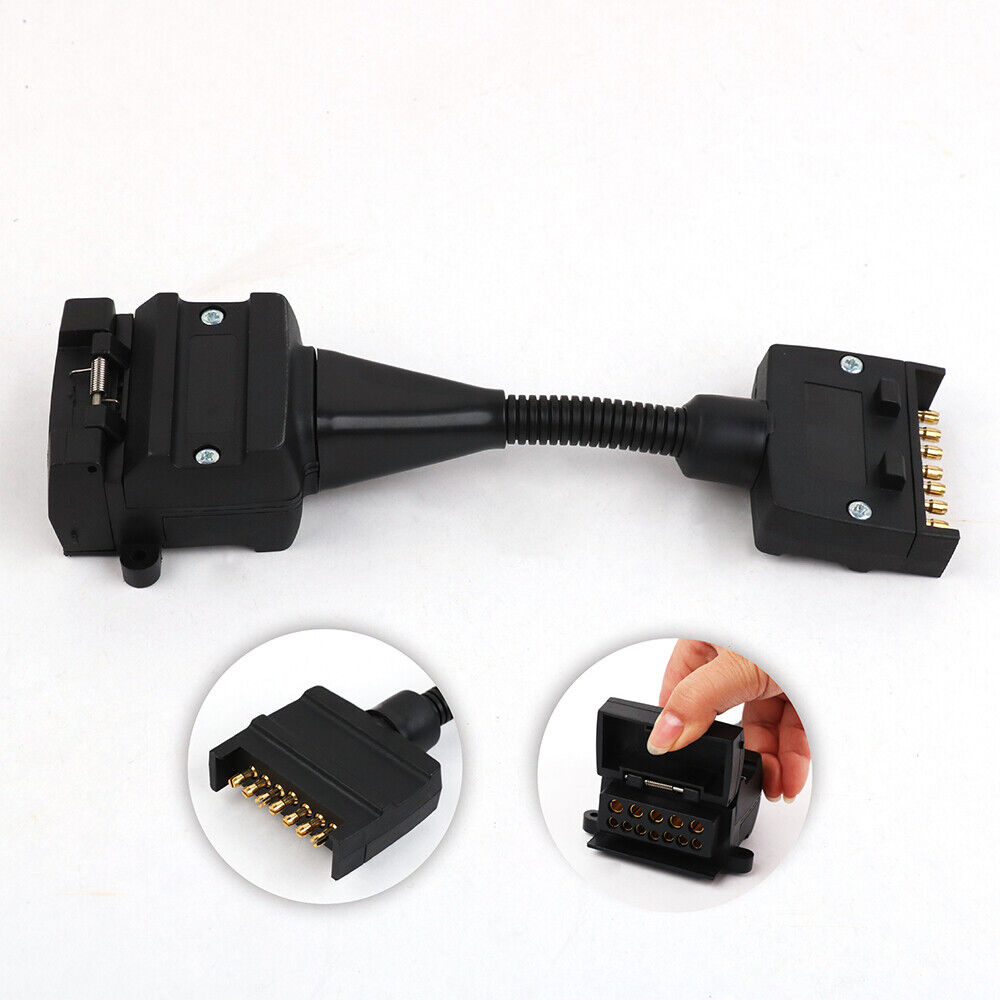

• Two flat patterns bridged: a seven-pin flat at one end and a twelve-pin flat at the other, which is the entirety of what this part does.
• Voltage without current: an operating voltage is given and no rating in amps occurs on the page.
• ABS and nothing further: the sole material given, with ultraviolet and heat left unmentioned.
• Black body: the colour as the specification bullet gives it, on a listing offering one option.
• Unqualified water claim: the single word Waterproof, with no rating of any kind attached.
• Plug and play, in the page's words: that phrase is the only fitting guidance offered and it is a bullet, not an instruction.

Specifications

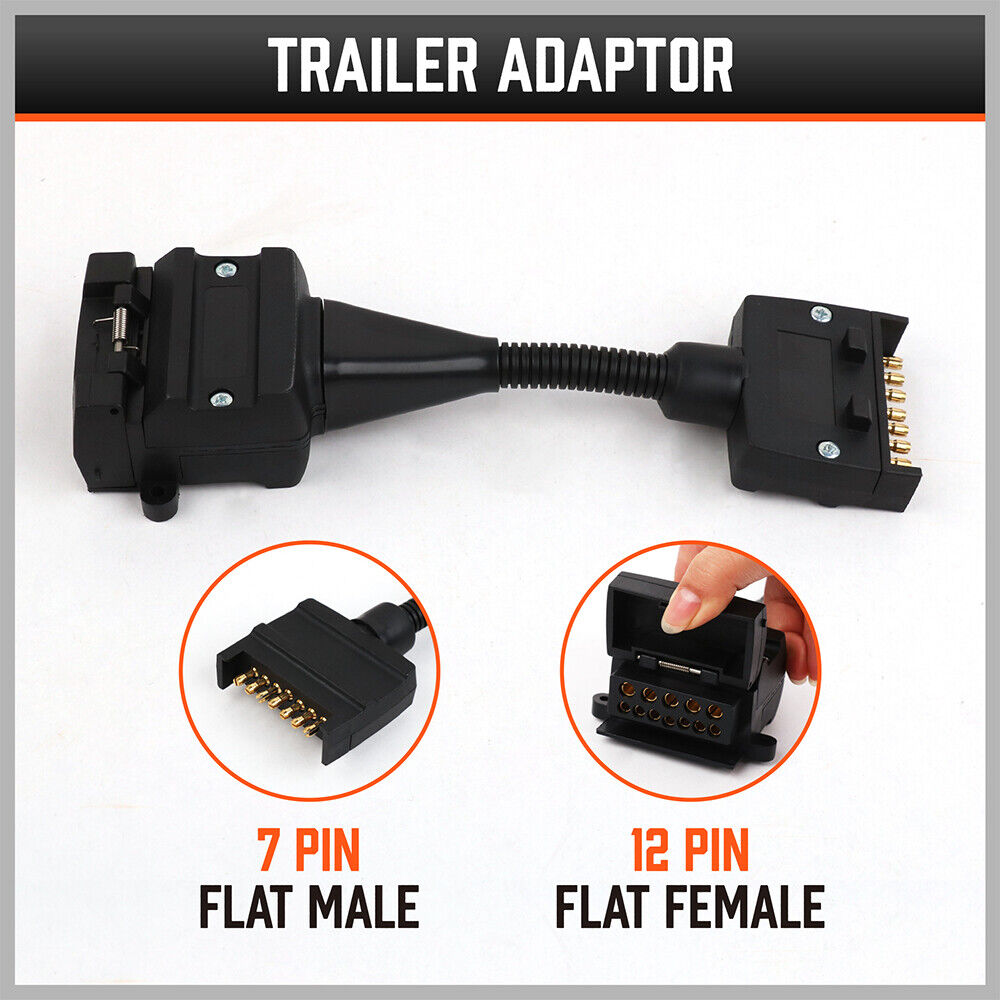

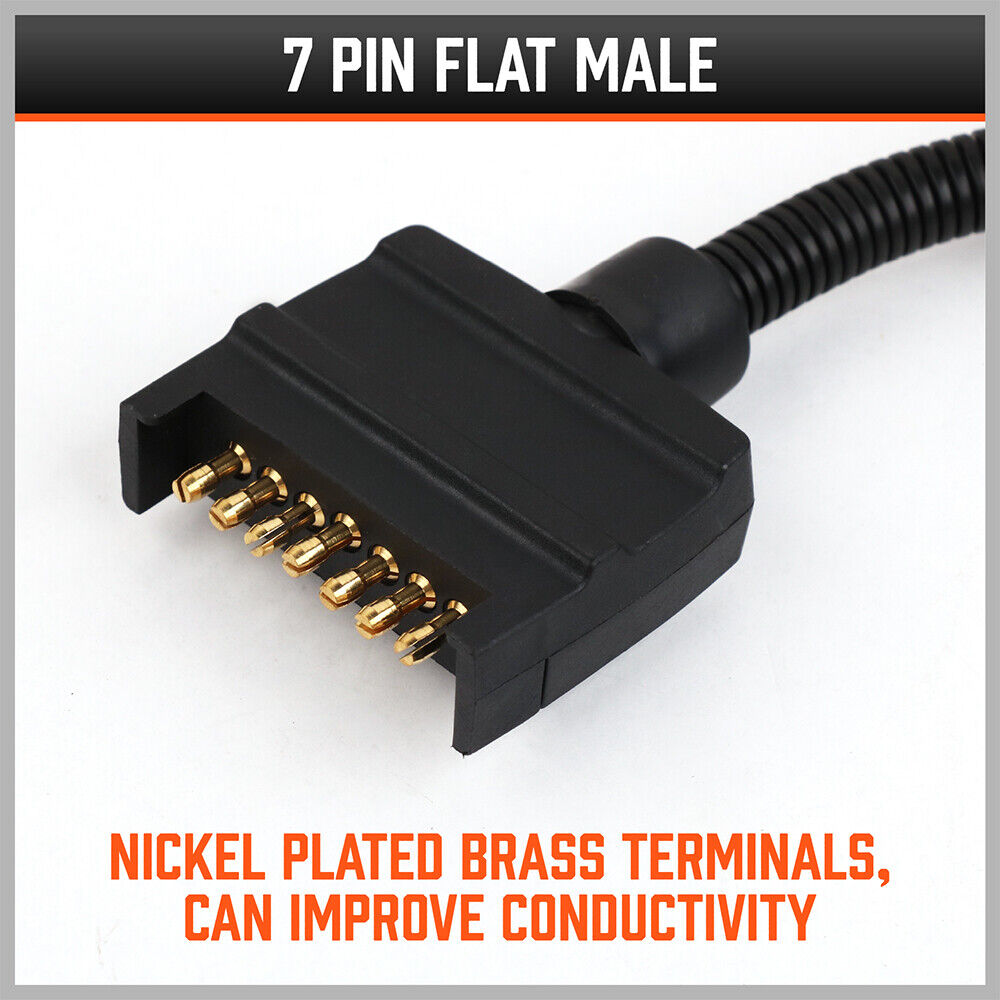

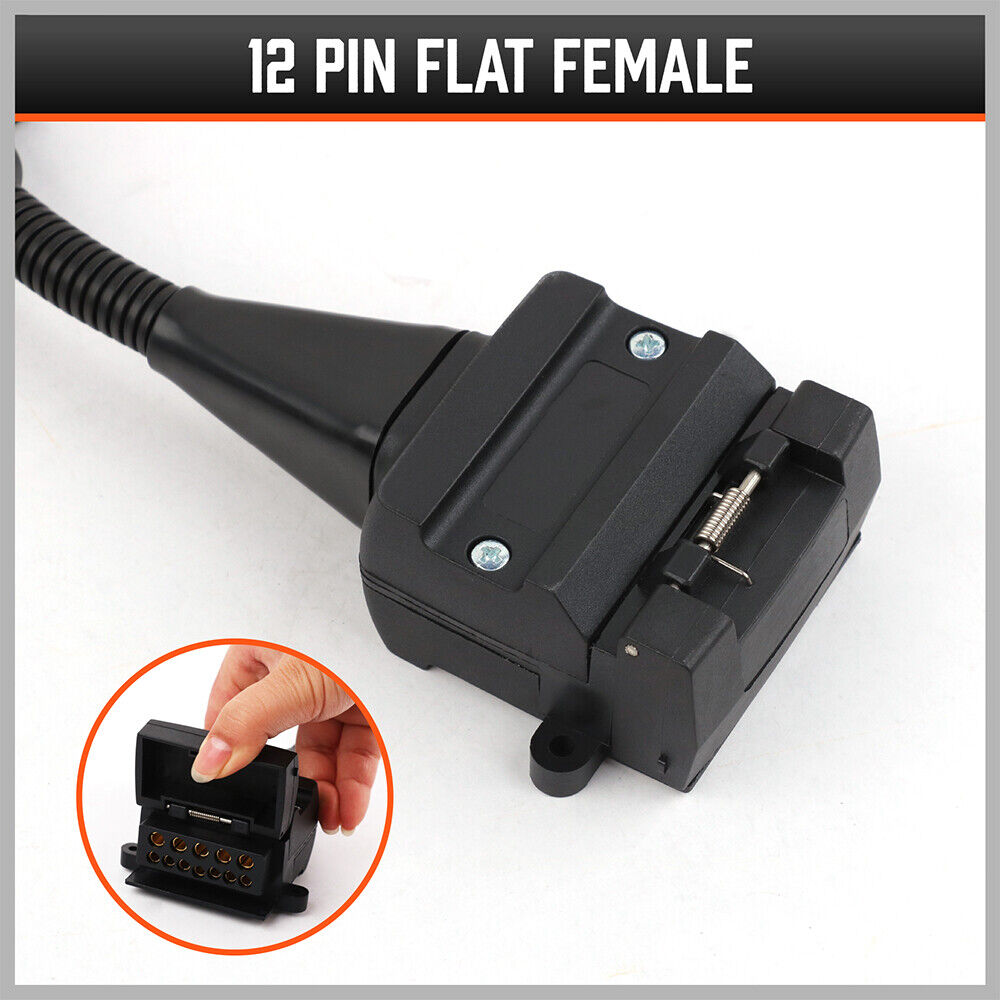

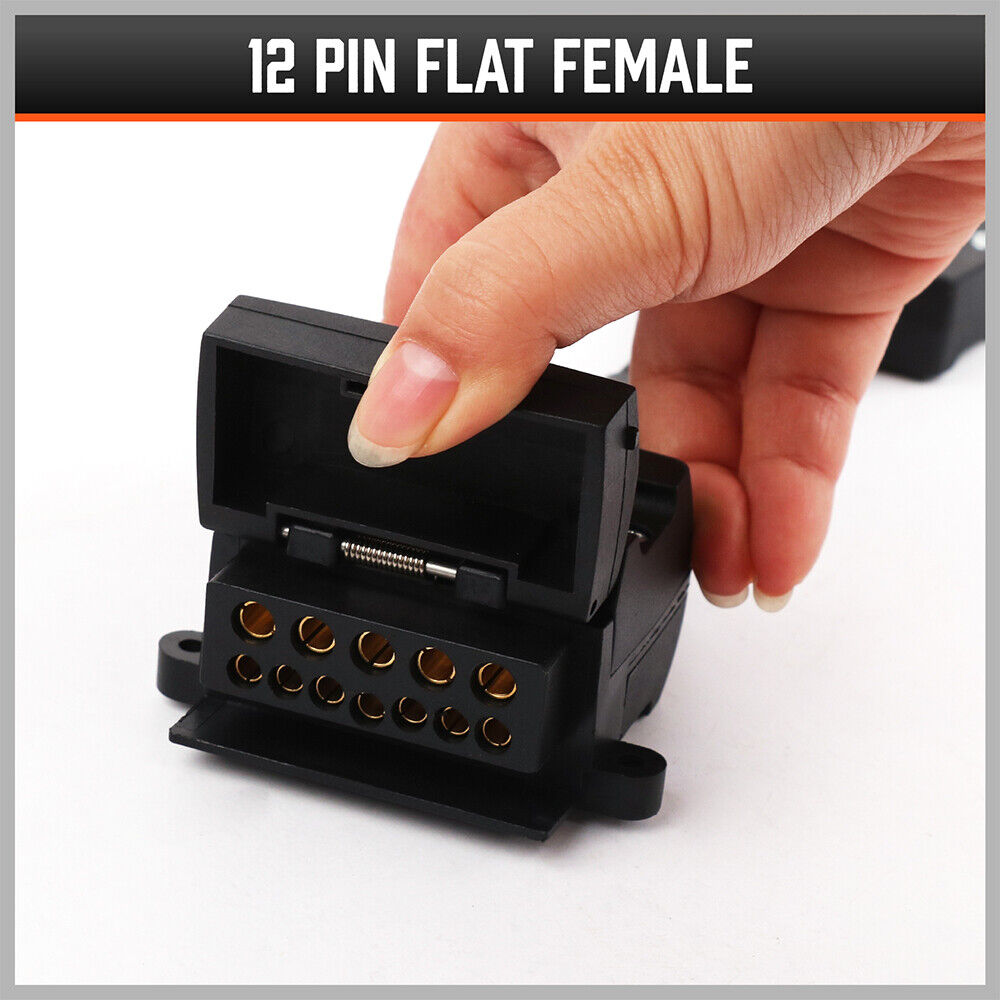

• Connectors, per the bullet: 7 Pin Flat Male Plug + 12 Pin Falt Female Socket
• Connectors, per the pack line: 7 Pin Flat Socket to 12 Pin Flat Plug
• Operating voltage as the bullet gives it: 12 Volt
• Housing material as listed: ABS
• Colour of the moulding as listed: Black
• How many the pack line gives: one adaptor

Settle these two things first

• The connector bullet and the pack line describe opposite orientations. Both are above as printed, neither has been chosen between and no third version has been invented.
• Which pin joins which is never stated. Wiring colours, a diagram and a pin-out do not appear anywhere on the page.
• The ways the twelve-pin end carries and the seven-pin end does not are left entirely unaddressed.
• No current or power rating exists, on a part that has to pass whatever the trailer draws.

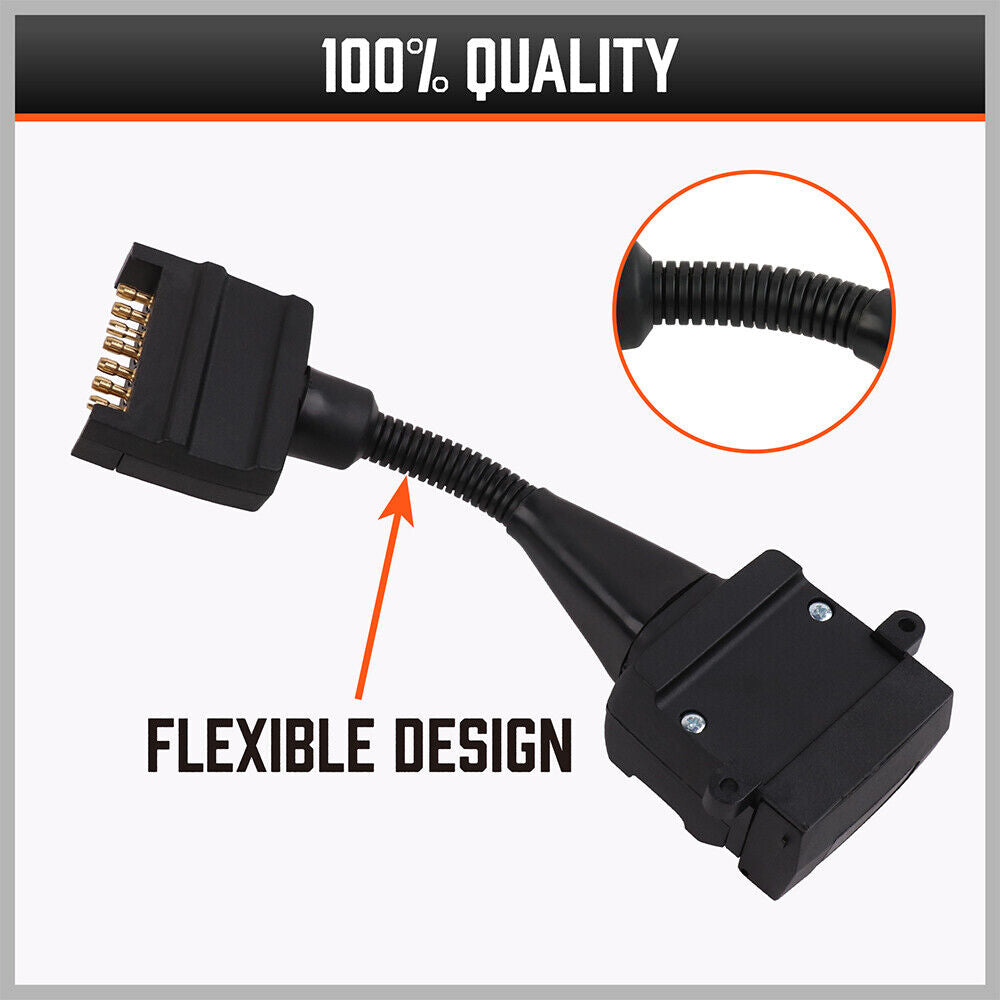

• Dimensions and weight are both absent, and whether the two ends meet through a short lead or sit moulded back to back goes unsaid.
• An approval mark, a compliance standard and a certification are all absent; so is a warranty, and the place of manufacture never appears.
• The connector bullet prints Falt where Flat belongs, four words after printing it correctly. That line is published as stored rather than repaired.
• The voltage bullet runs its figure straight onto the colon, as Operating Voltage:12 Volt, where the other bullets carrying a colon leave a space.
• Not one of the figures above comes with a margin. No tolerance note appears anywhere here, and we have written none into ours.

As a piece of moulded plastic it is set out in full; as the thing that makes two incompatible connectors talk to each other it is barely set out at all, so treat the two connector names as the specification and pin down the direction first.
