5 PCS Pin Relay Connectors, 12V Socket 30Amp/40Amp Connector with 6.3mm Terminals, Automotive Terminal Relays Case Holder for Cars Trucks SUVs, Car Accessories

Bare spade terminals pushed straight onto a relay's pins work loose over a corrugated track, and once one backs off you are chasing an intermittent fault with a torch and a test light. A moulded holder keeps all five connections in one block, insulated from each other and from the body of the car, and gives the loom something solid to hang from.

Five pins held in one block

Each holder accepts a standard five-pin automotive relay, and the kit ships with 25 crimp terminals, five per socket, so every pin can be populated instead of leaving positions empty. The terminals are 6.3 mm blade type, the size used on most relay bases, horns and accessory circuits, and the contacts are brass in a moulded plastic body. The supplier states the terminals suit 0.75-1.5 mm² wire, quoted as 18-16 AWG, and describes the moulded surfaces as smooth and burr-free. That counts for something when you are pushing terminals home by feel behind a dash.

What the amp figures actually cover

The listing title carries two current figures, 30 A and 40 A. The supplier does not say what either one refers to: whether one is continuous and the other peak, whether they describe the socket or the relay it houses, or whether they map to different pin positions. Both are published here exactly as given, unqualified, because the source does not qualify them. Size your wiring and fusing from the relay you are actually fitting and your own load calculation, not from a number in a product title, and never by reading a wire gauge off an amp rating.

Key features

• Set of five holders: enough to build out a small accessory panel, driving lights, compressor and fridge circuit, in one go.
• 6.3 mm blade terminals: the common automotive size, so terminals already in your crimp kit will usually match.
• 25 terminals supplied: five per holder, so no pin is left without a contact.
• Brass contacts in a plastic housing: the housing keeps adjacent pins apart and shields the crimps from casual contact.
• 54 g for the set: light enough to cable-tie to an existing loom rather than needing its own bracket.

Specifications

• Quantity: 5 relay connector holders
• Relay type: 5-pin
• Terminal size: 6.3 mm blade
• Terminals supplied: 25
• Current figures quoted: 30 A / 40 A, basis not stated by the supplier
• System voltage: 12 V
• Wire compatibility (supplier stated): 0.75-1.5 mm² (18-16 AWG)
• Material: plastic housing, brass contacts
• Colour: black
• Connector size: 1.10 × 1.06 inches as stated by the supplier (roughly 28 × 27 mm)
• Weight: 54 g

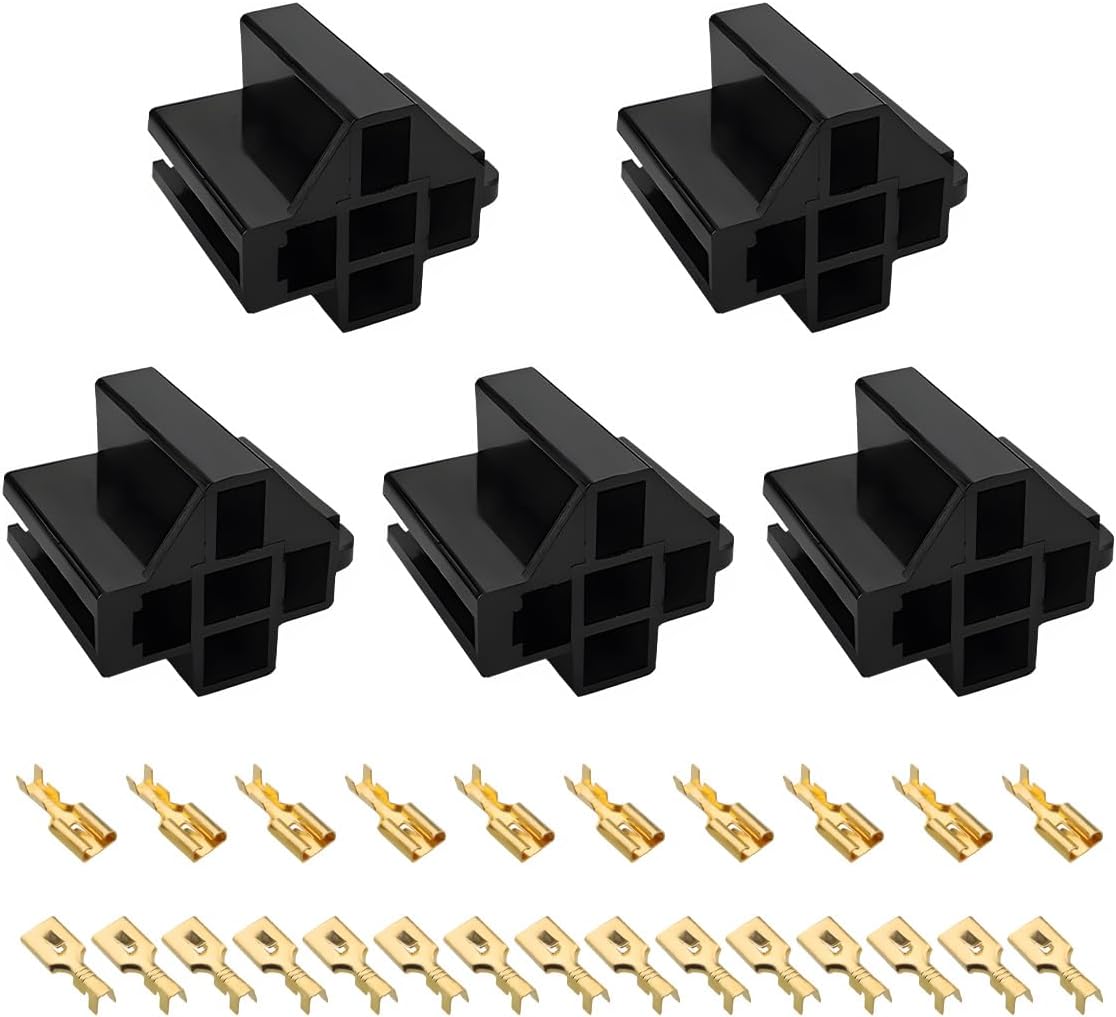

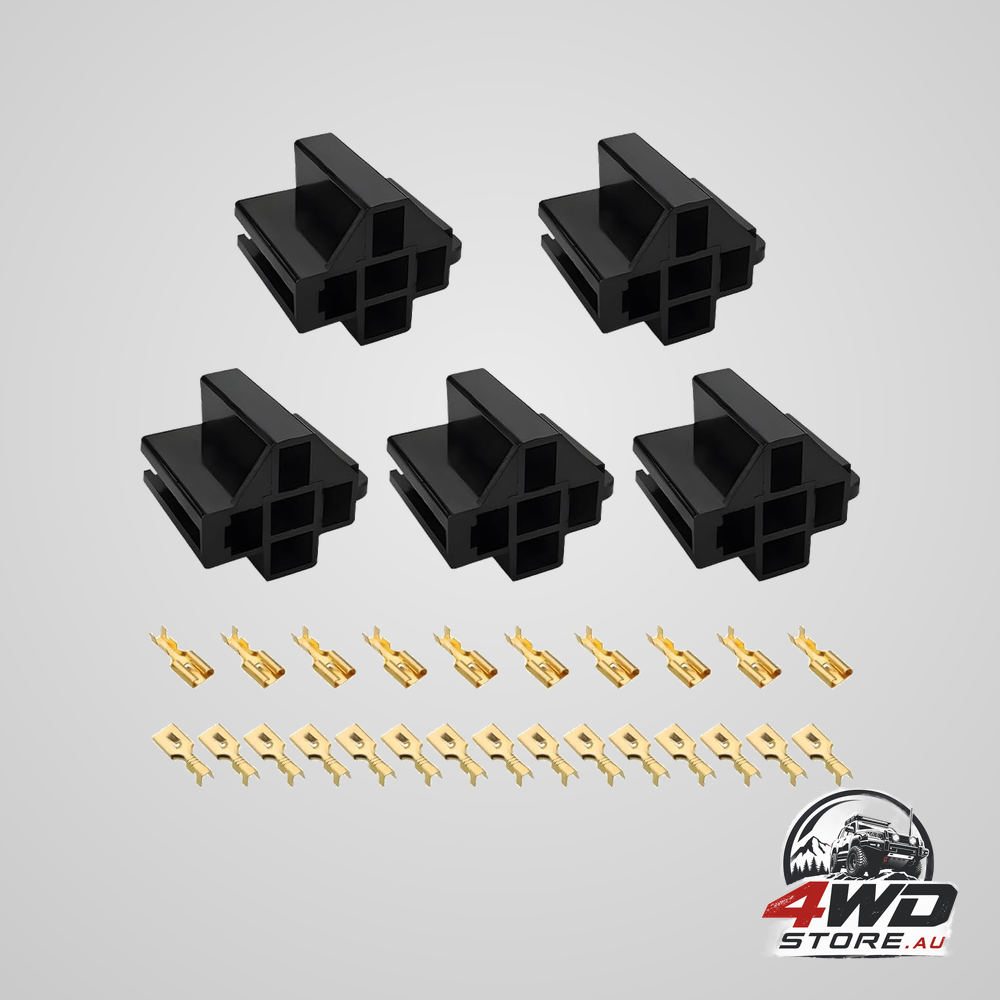

What's in the box

• 5 × relay connector holders
• 25 × crimp terminals

Before you wire these in

• Fuse the circuit to protect the wire, and confirm the relay's own rating covers the load. The holder does not set the capacity of the circuit.
• The supplier's terminal dimension line is incomplete in the source data, so measure against your existing terminals if exact blade width matters to your build.
• Disconnect the battery before working on any live feed, and have the work checked by an auto electrician where it taps into an existing vehicle circuit.

Sold as a set of five with terminals included, ready for a fresh accessory loom or to replace a corroded socket in an existing one.
