4 AWG Battery Cable,3FT Cables,With 5/16" Ring Terminals for Solar, RV, Auto, Marine Car, Boat -

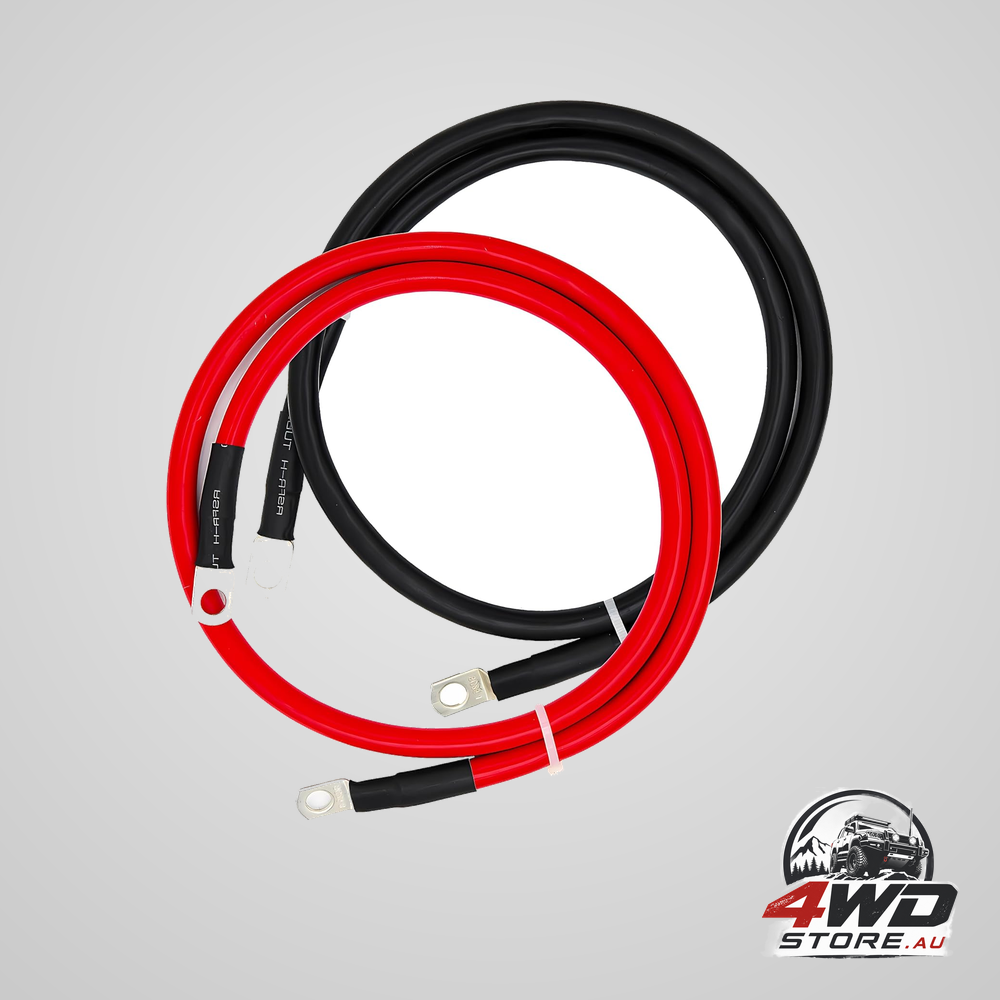

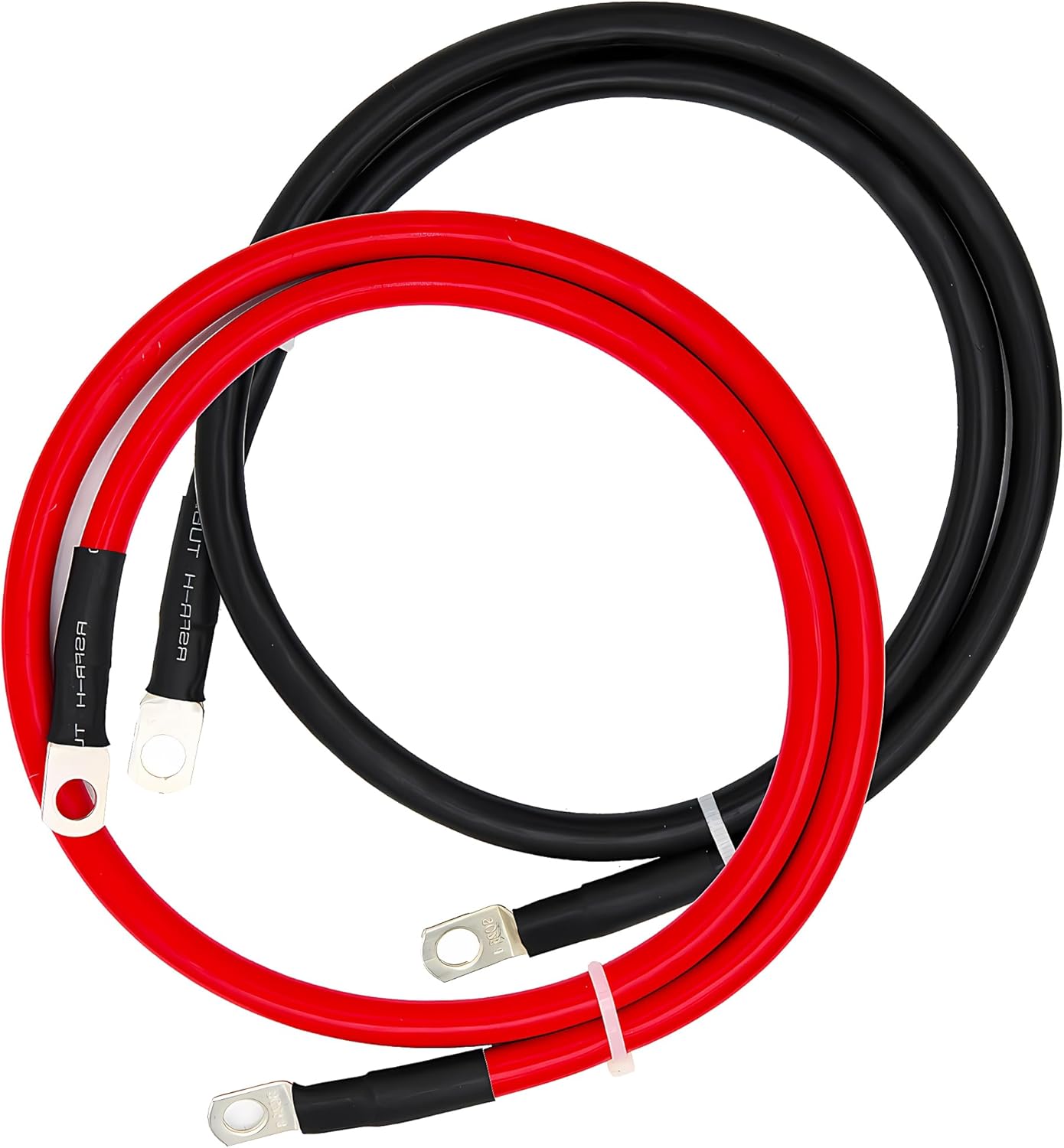

Battery, inverter, winch, distribution block: the heavy connections in a build are the ones where a bad joint turns into heat. This is a 3-foot 4 AWG lead with 5/16 inch ring terminals already crimped on both ends, so the two connections that usually get done badly are done in a factory instead.

Both terminals already on, which removes the usual weak point

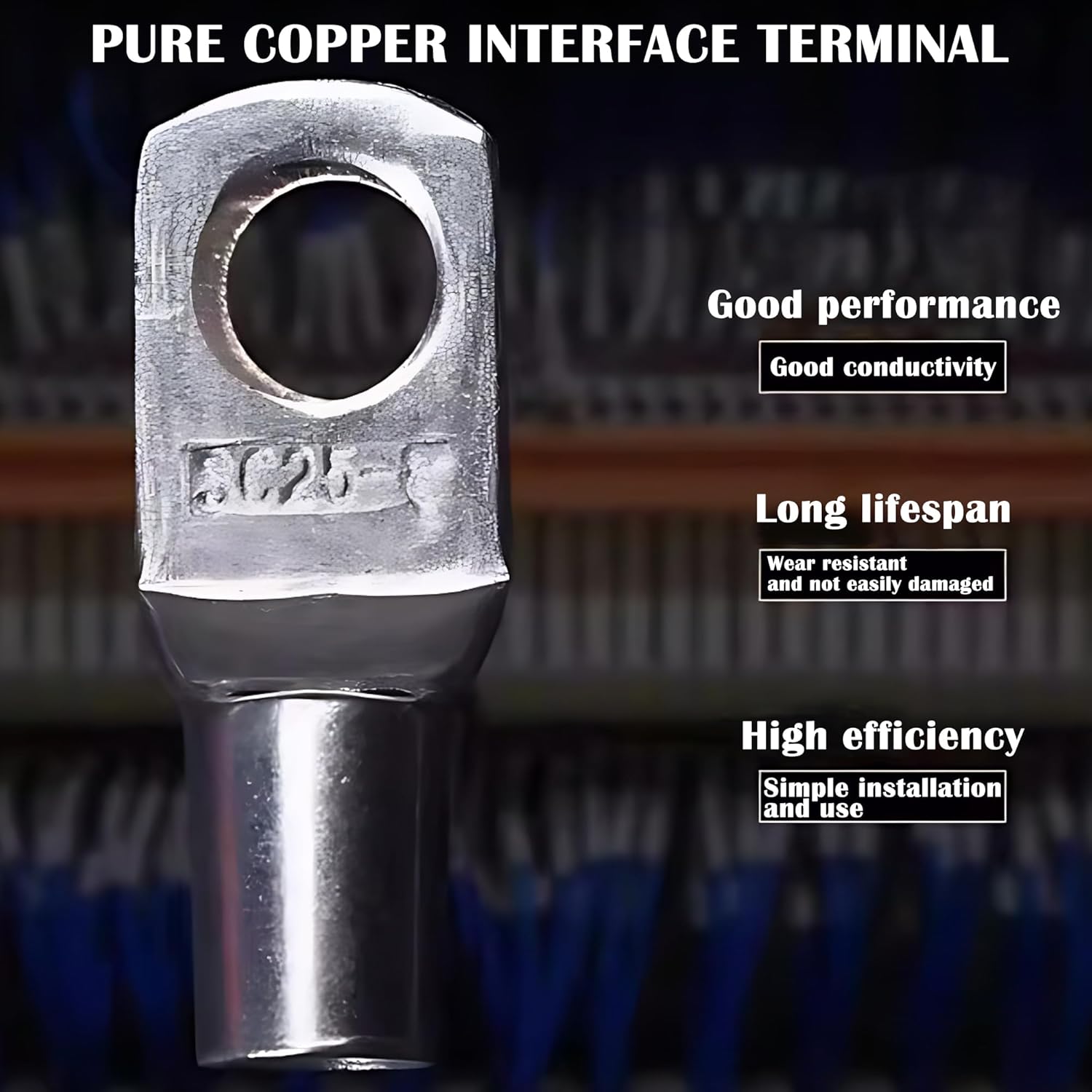

A crimp made with pliers, or with a cheap hex crimper on cable this size, is the joint that goes high-resistance and starts warming up under load. Both ends here arrive crimped, with 5/16 inch ring terminals at each end, so nothing has to be made up on the bench. The terminals are tin-plated copper against a pure copper conductor — plating is there to stop the copper oxidising at the exposed face, which is where a terminal's resistance normally creeps up over the years.

The published figures, quoted exactly

Three ratings are given. Maximum operating current is stated as 95 A. Maximum rated voltage is 750 V. The rated temperature range is -50 °C to +105 °C. All three are the supplier's own figures, reproduced here as published, with no standard, test method or certifying body named against any of them. The 95 A figure in particular is the supplier's statement about this cable — it is not derived here from the gauge, and no current rating should be inferred from 4 AWG on its own.

Short runs, and how the supplier positions it

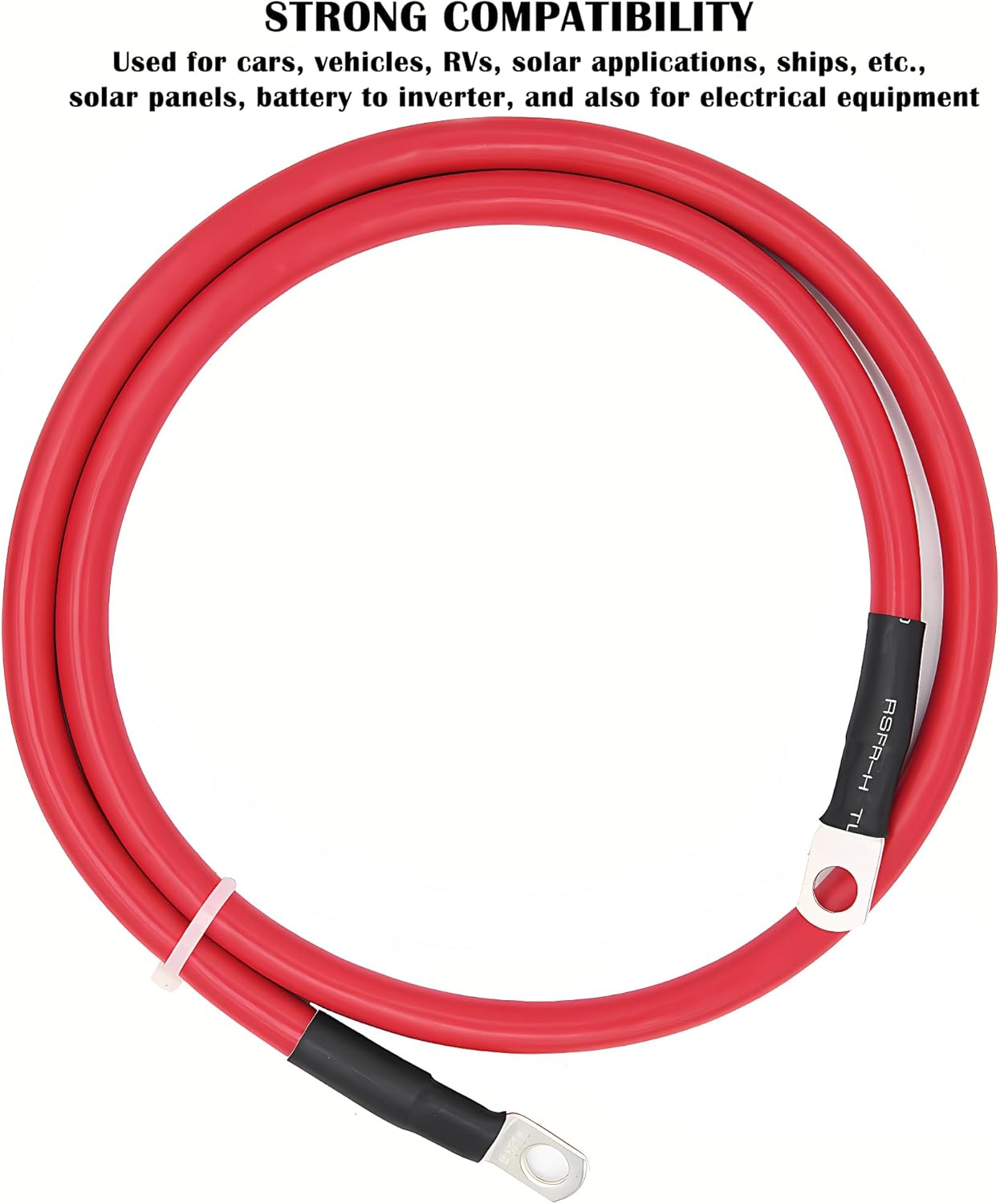

The listing describes this as suited to short-distance operation and connection to a separate distribution block, which is a sensible description of a 3-foot lead. Named applications are cars and other vehicles, caravans and RVs, solar installations, boats, solar panels, and battery-to-inverter connections. The insulation is flexible PVC, described as wear-resistant and intended for automotive and marine conditions.

Key features

• Terminals pre-crimped: 5/16 inch rings on both ends, ready to bolt down.
• Pure copper conductor: with tin-plated copper terminals to resist oxidation.
• 3 foot length: sized for battery-to-block and battery-to-inverter runs.
• Flexible PVC sheath: stated as wear-resistant for vehicle and marine use.
• Published ratings: 95 A, 750 V and -50 °C to +105 °C, all quoted as supplied.

Specifications

• Conductor size: 4 AWG

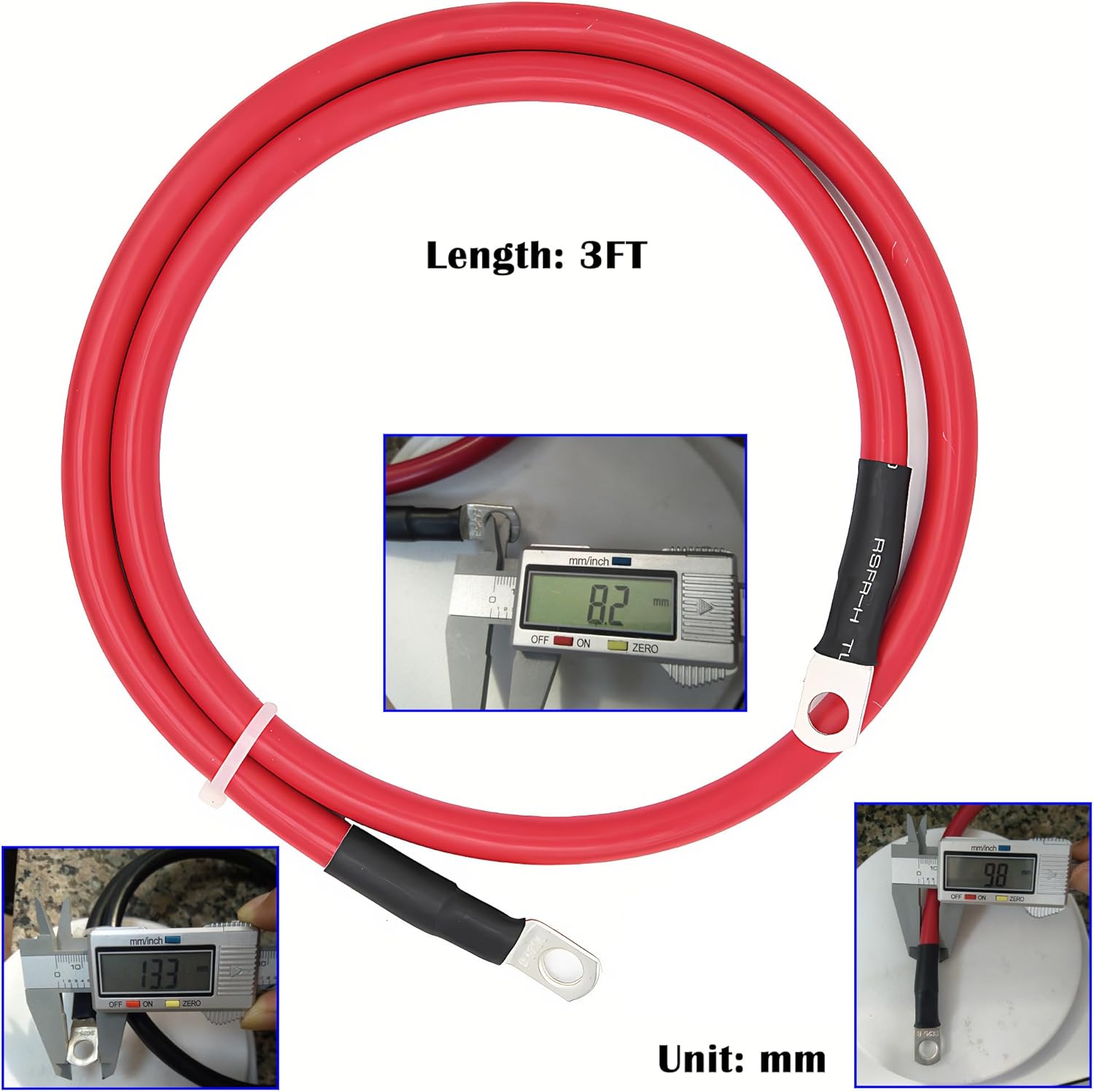

• Length: 3 feet (title states 3FT)
• Terminals: 5/16 inch ring, one at each end, factory crimped

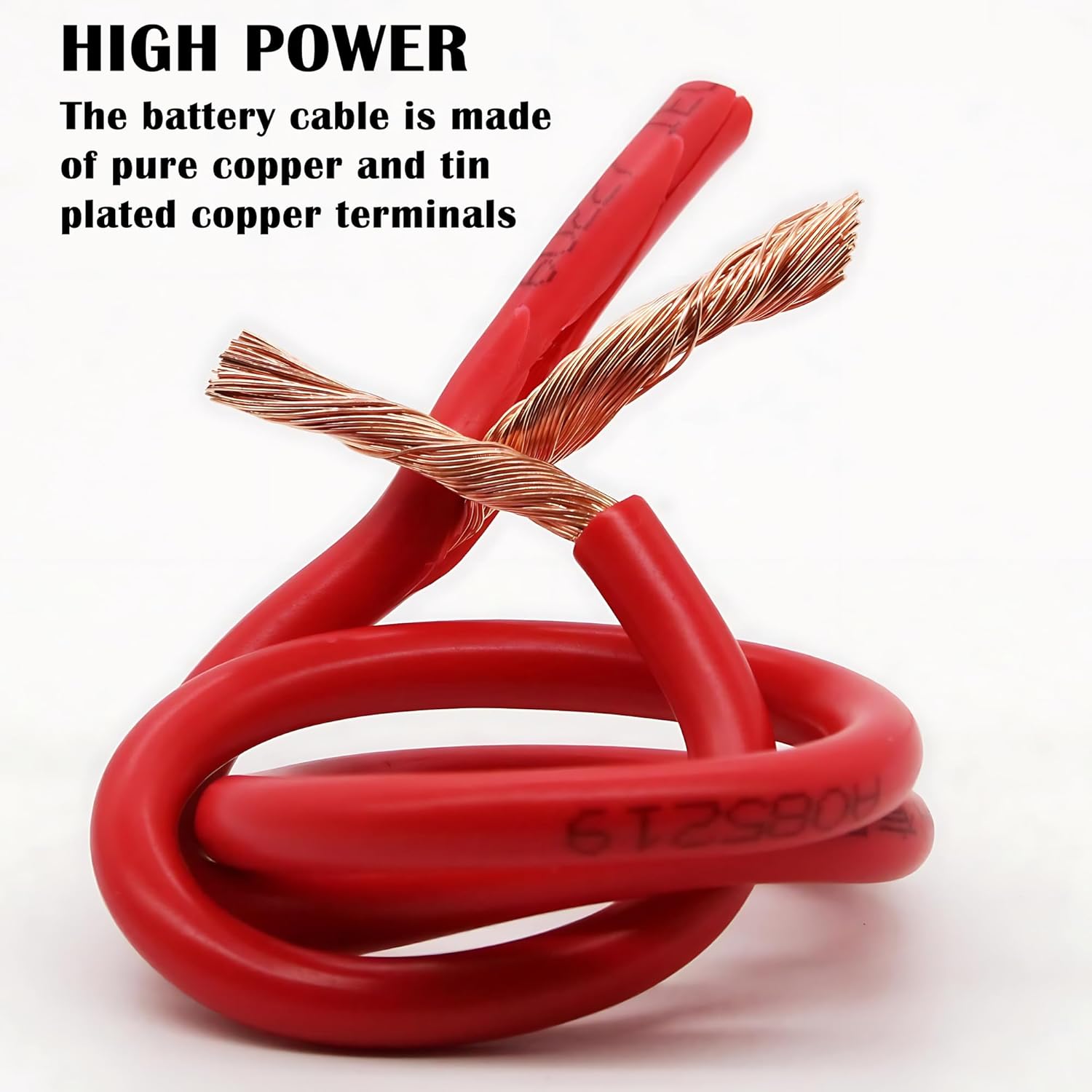

• Conductor: pure copper
• Terminal material: tin-plated copper
• Maximum operating current: 95 A — the supplier's figure, no standard named
• Maximum rated voltage: 750 V — the supplier's figure, no standard named
• Rated temperature range: -50 °C to +105 °C, as published
• Insulation: flexible PVC
• Pack quantity: not published — the title says "Cables" but no number is given
• Colour or polarity marking: not published

Before you fit this

• The 95 A figure is what the supplier states for this cable and nothing more. It carries no named standard, and no current rating has been calculated here from the gauge. Conductor sizing for your own circuit, including length, temperature and bundling, is the installer's responsibility.
• This cable contains no fuse and no circuit protection of any kind. Any connection to a battery needs its own appropriately rated protection, fitted as close to the battery as practical. Deciding on and installing that protection sits entirely with the installer.
• Pack quantity is not published. A battery connection normally needs two leads, positive and negative, and this listing does not establish how many are supplied. Check before ordering.
• No colour or polarity marking is stated, so mark the ends yourself before installing.
• Disconnect the battery before working on any heavy-current circuit, and keep spanners away from live terminals. A 4 AWG cable will deliver enough current to weld.

Three feet, both ends finished, and every published rating printed above exactly as the supplier gave it.
