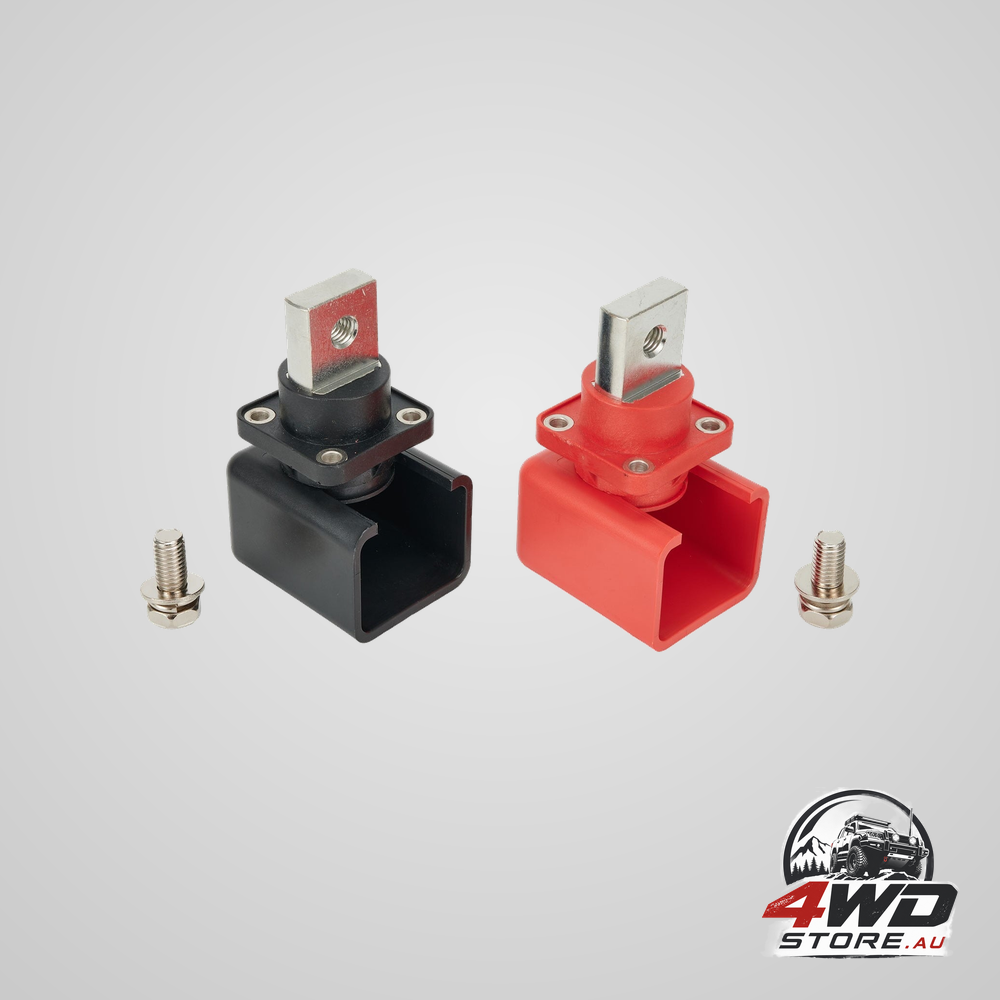

2X300/400A Brass Lithium Battery Terminal Connector Energy Storage Terminal 300A 400A

The outline of this post is filed as 43 by 43 millimetres with a 22 millimetre core, and each of those two lines carries 300A written in front of it. Above them the current line offers 300A and 400A, the second one marked optional. So the heading sells a choice of two ratings while the measured part is the smaller of them, and squaring that up comes first if a hole has already been cut for it.

Two ratings, and figures for one

Optional is doing heavy lifting in that current line. This listing runs one variant under a default title, so no selection exists and no second line item follows. Everything with a dimension against it, the square across the body and the bore through it, sits under the smaller heading. The 400 amp part is named once and measured never, and no drawing, mass or overall height stands anywhere behind either number.

Brass on the label, copper in the detail

The listing calls this a brass terminal from the title down, and the supplier says brass twice in its own text. The same supplier says copper four times: a full copper terminal, a high current copper terminal, a copper nose, and a joint material line reading Copper. Nickel plating is noted once over the top. Those are different metals to buy, to price and to join, and no line settles which one the current has to cross.

Filed for a cabinet, searched for as solar

The description gives one application, a new energy lithium battery cabinet, which is fixed plant rather than anything that moves. The listing summary adds solar, which appears in no line of the supplier's own text. Take the cabinet as the stated use and treat the rest as your own call about a screw-fixed, single-core post meant to be bolted through a face.

Key features

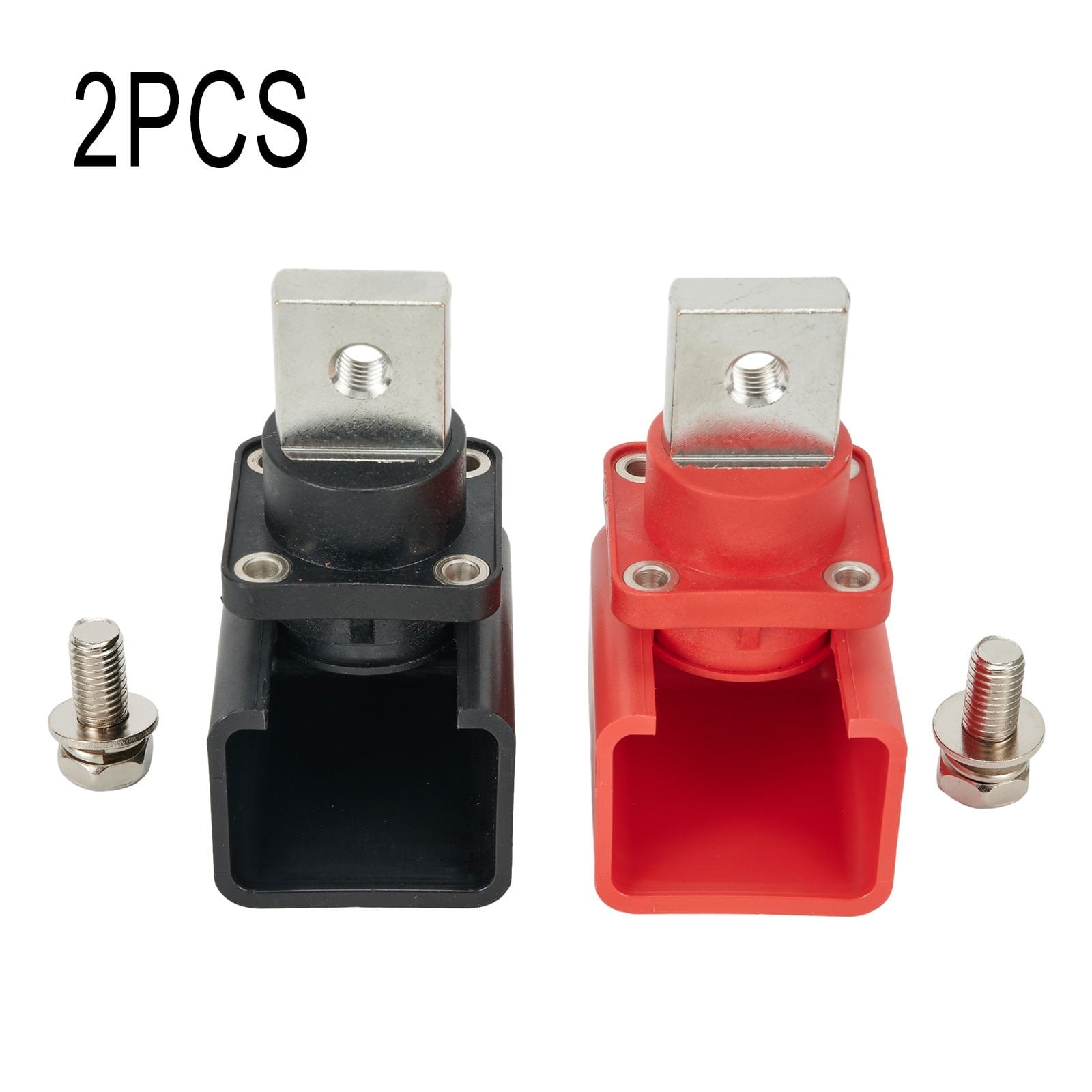

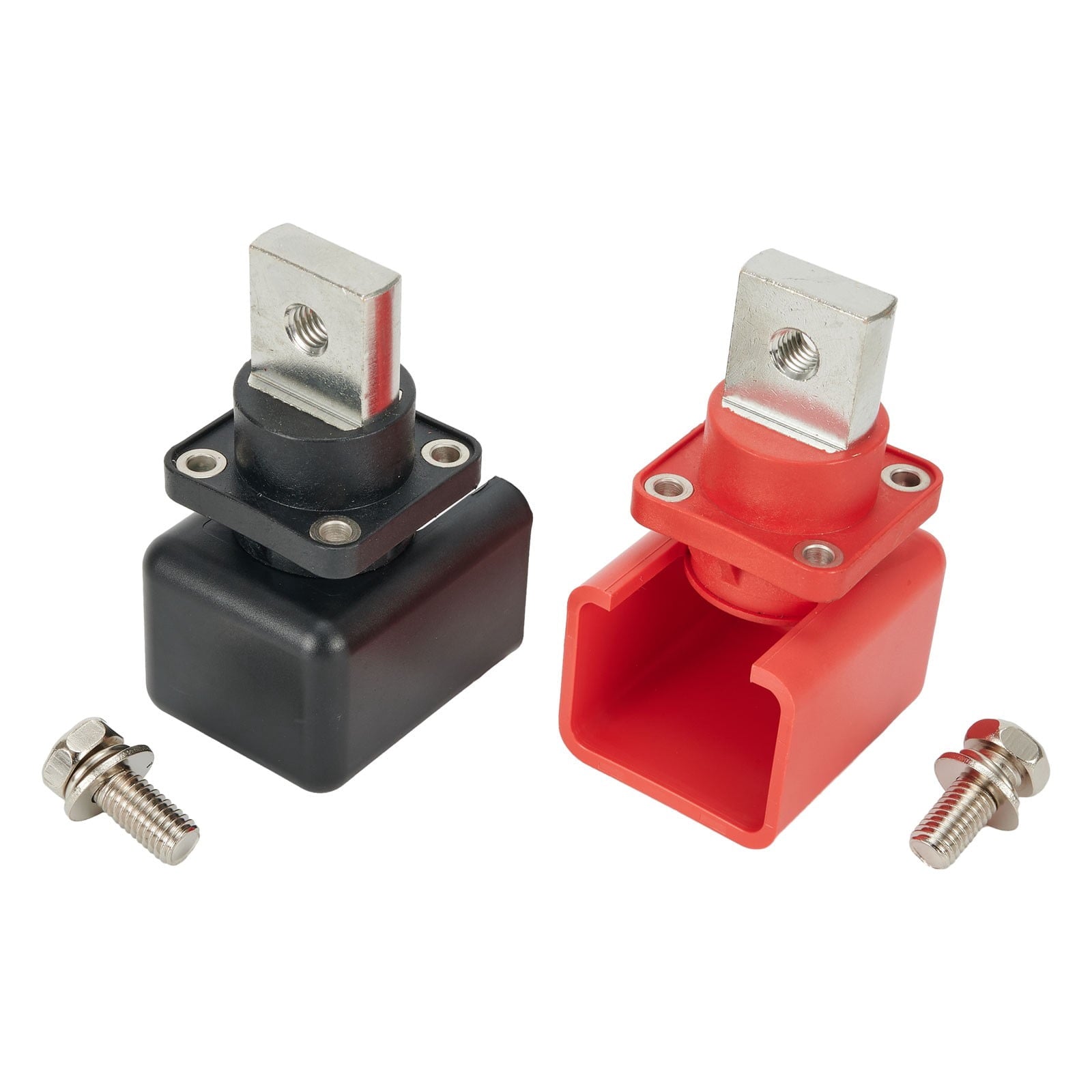

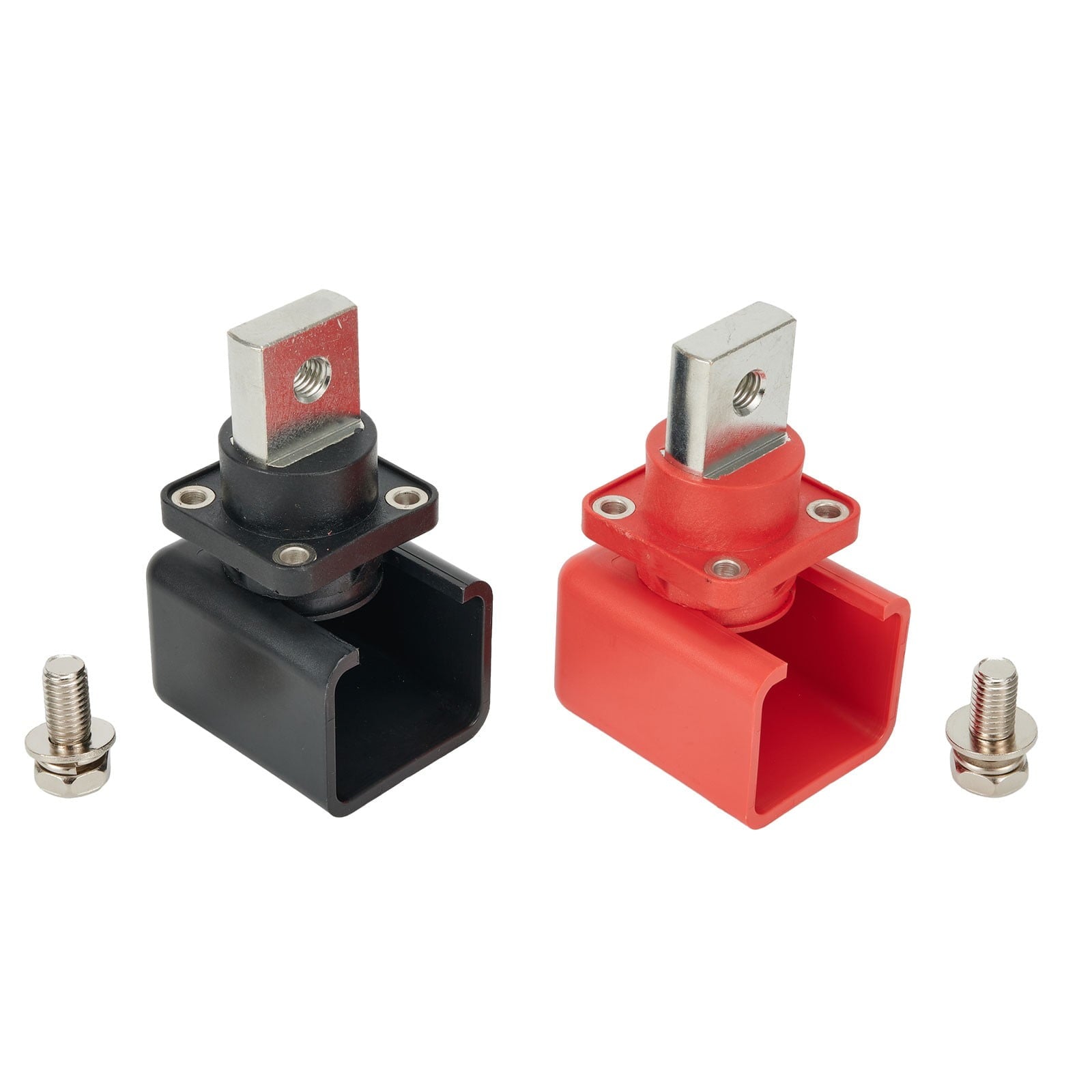

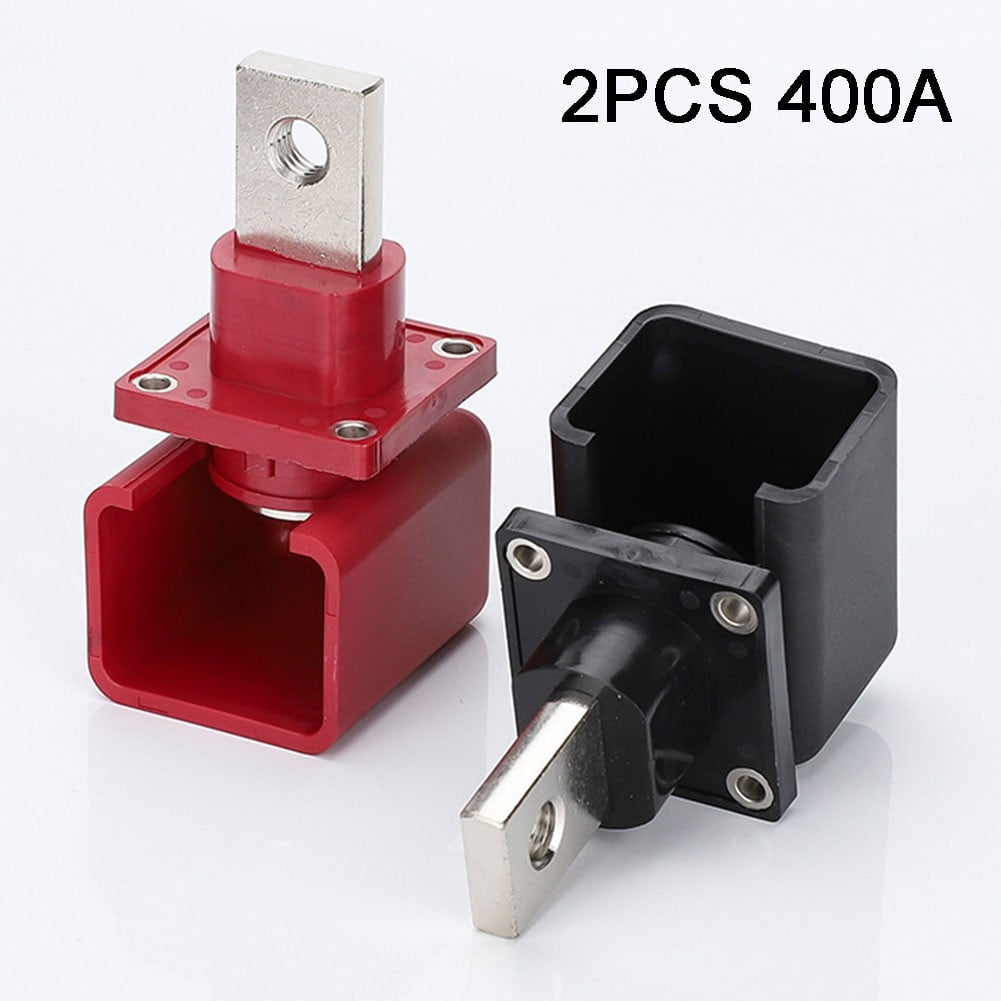

• Two posts to a carton: quantity and packing both come to two, one red and one black.
• Square across the body at 43 mm: the only outline figure printed, and it belongs to the lower rating.
• Bore of 22 mm through the core: also filed under the lower rating, with no counterpart given for the higher one.
• Screw-fixed on an M10 stud: wiring method is entered as screw fixed and the thread as M10, ten millimetres.

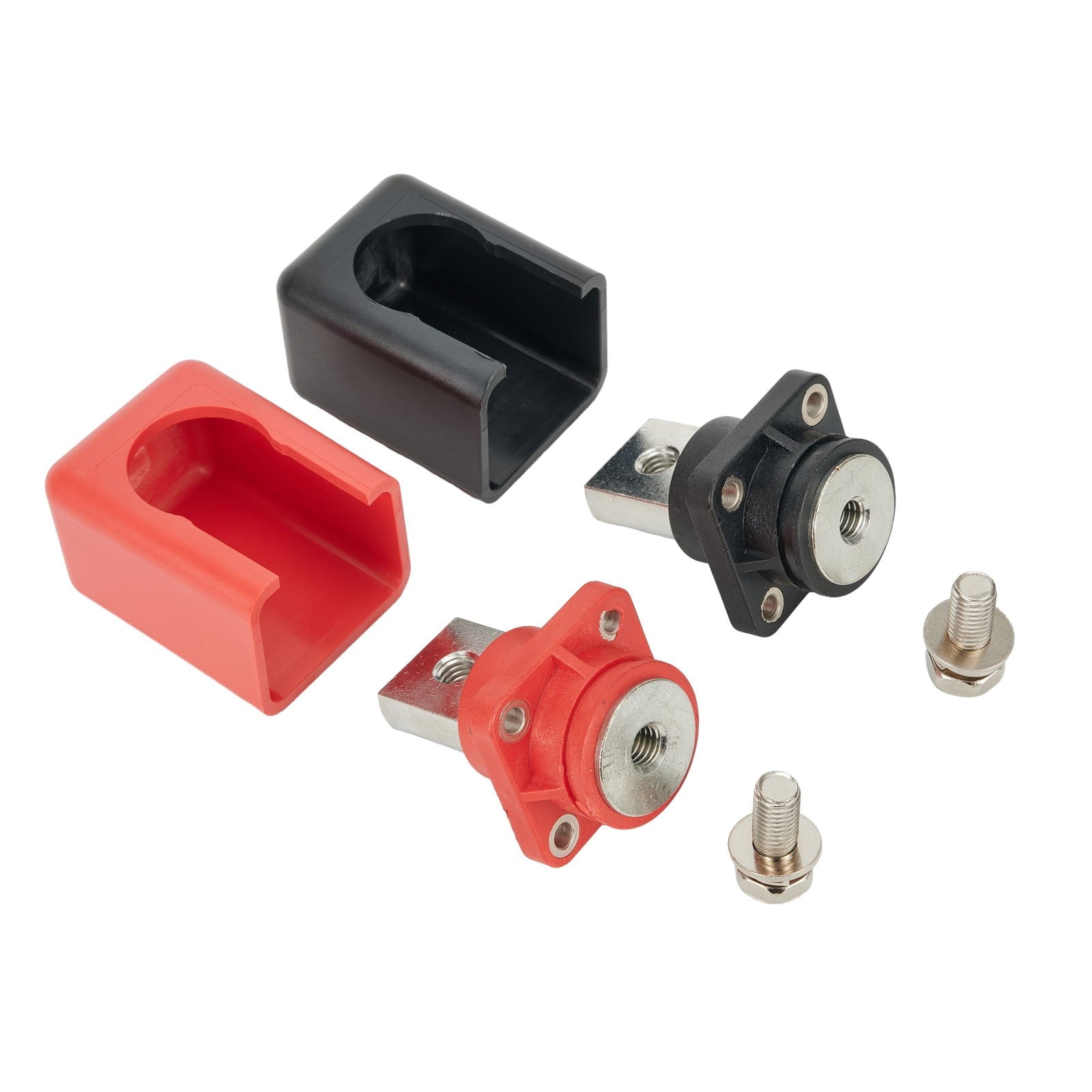

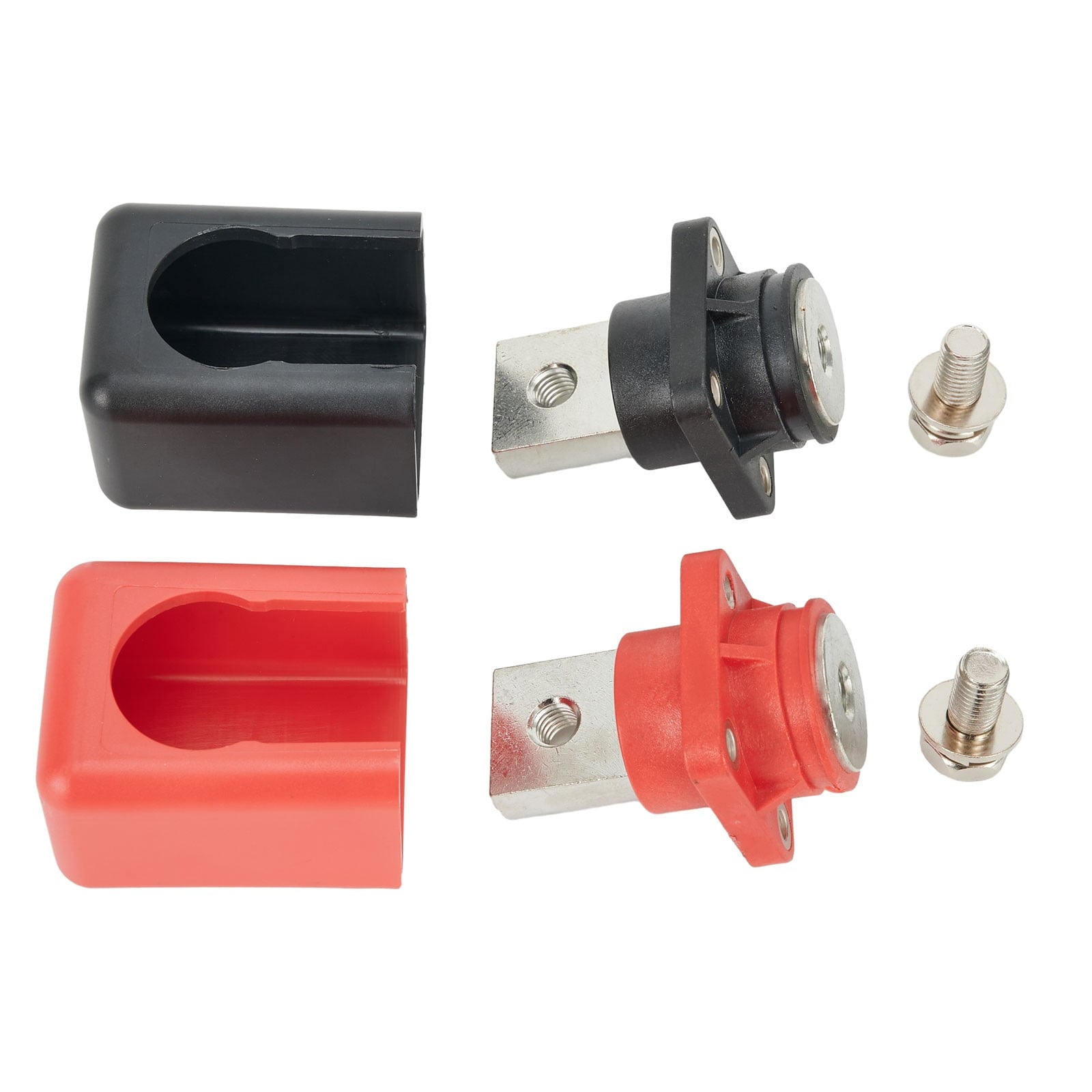

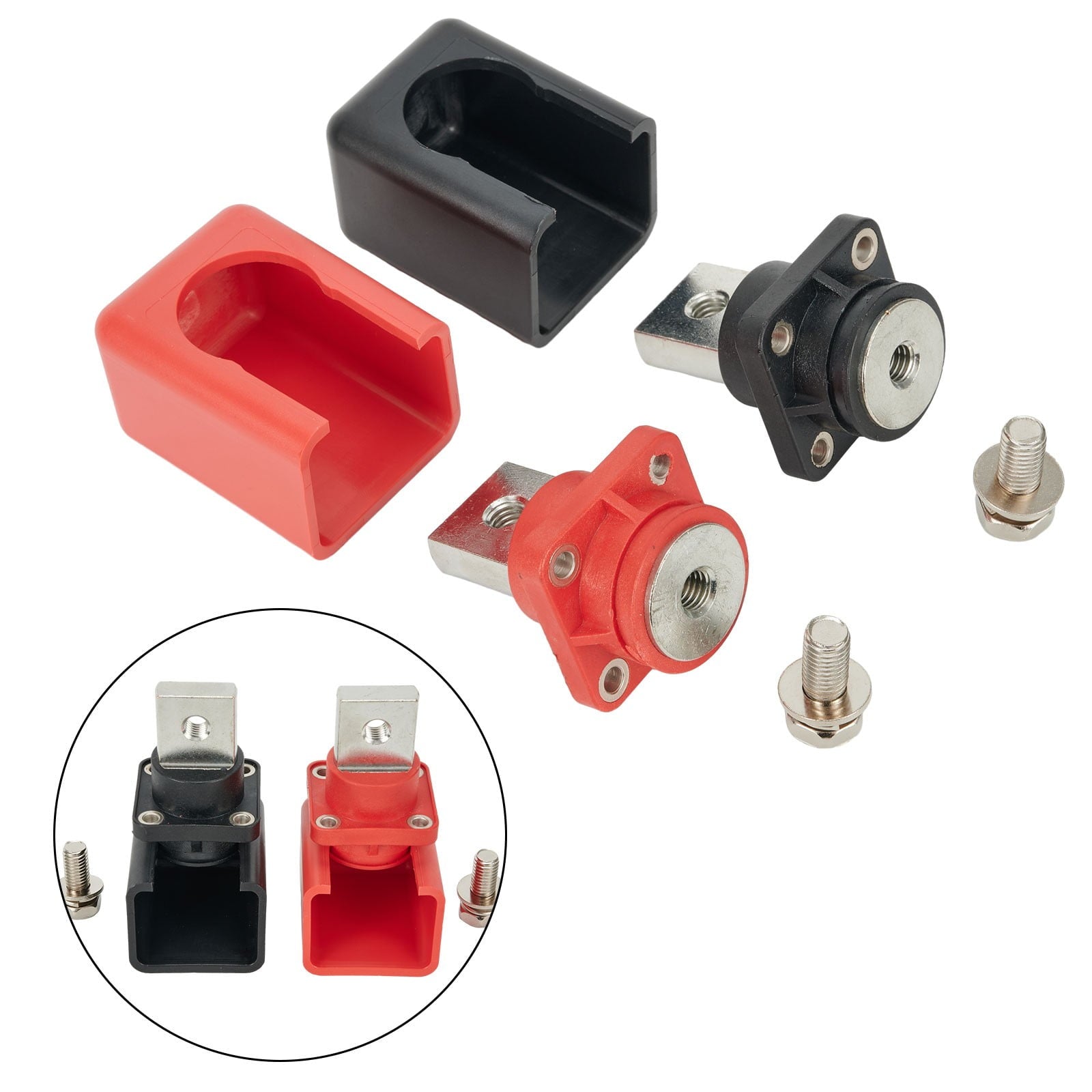

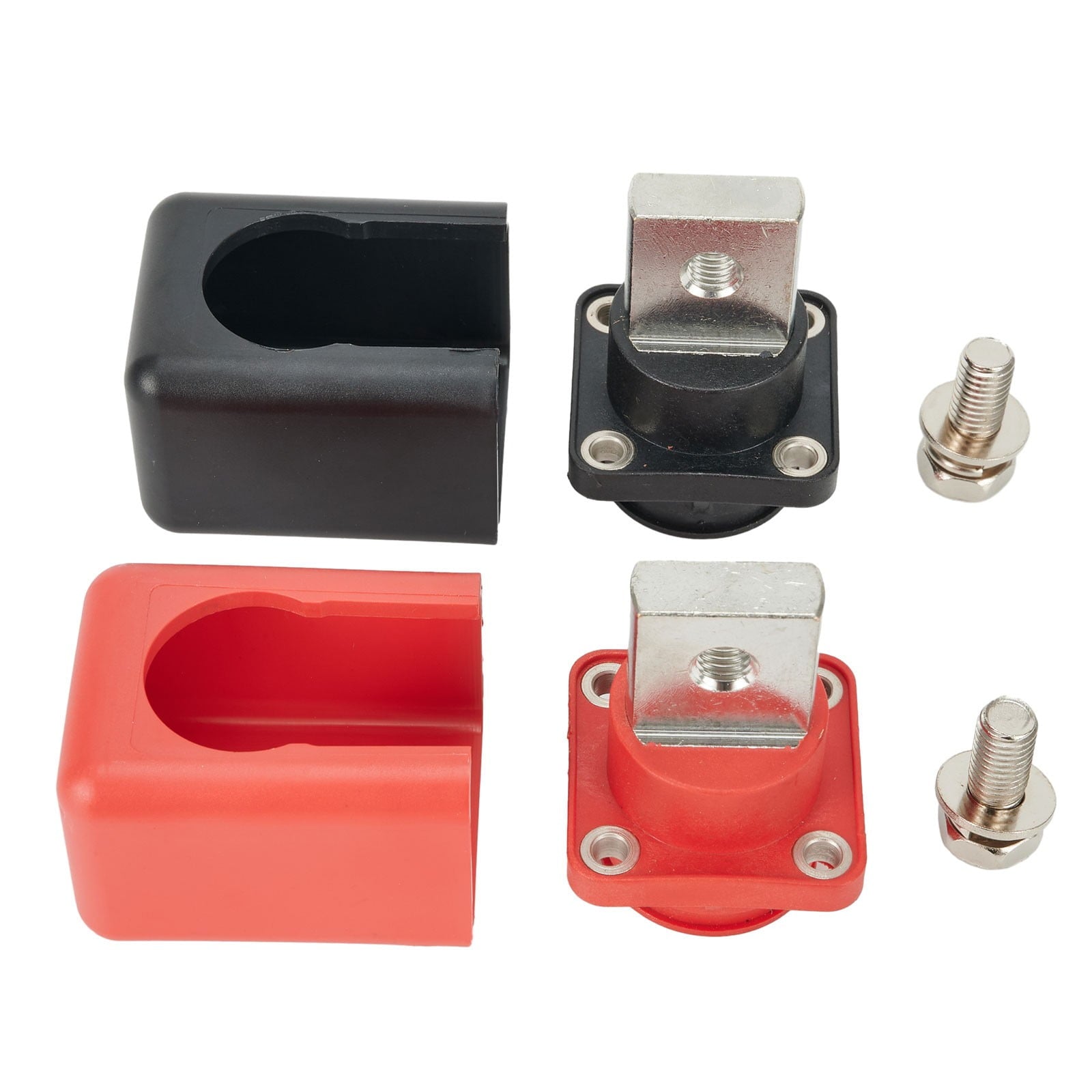

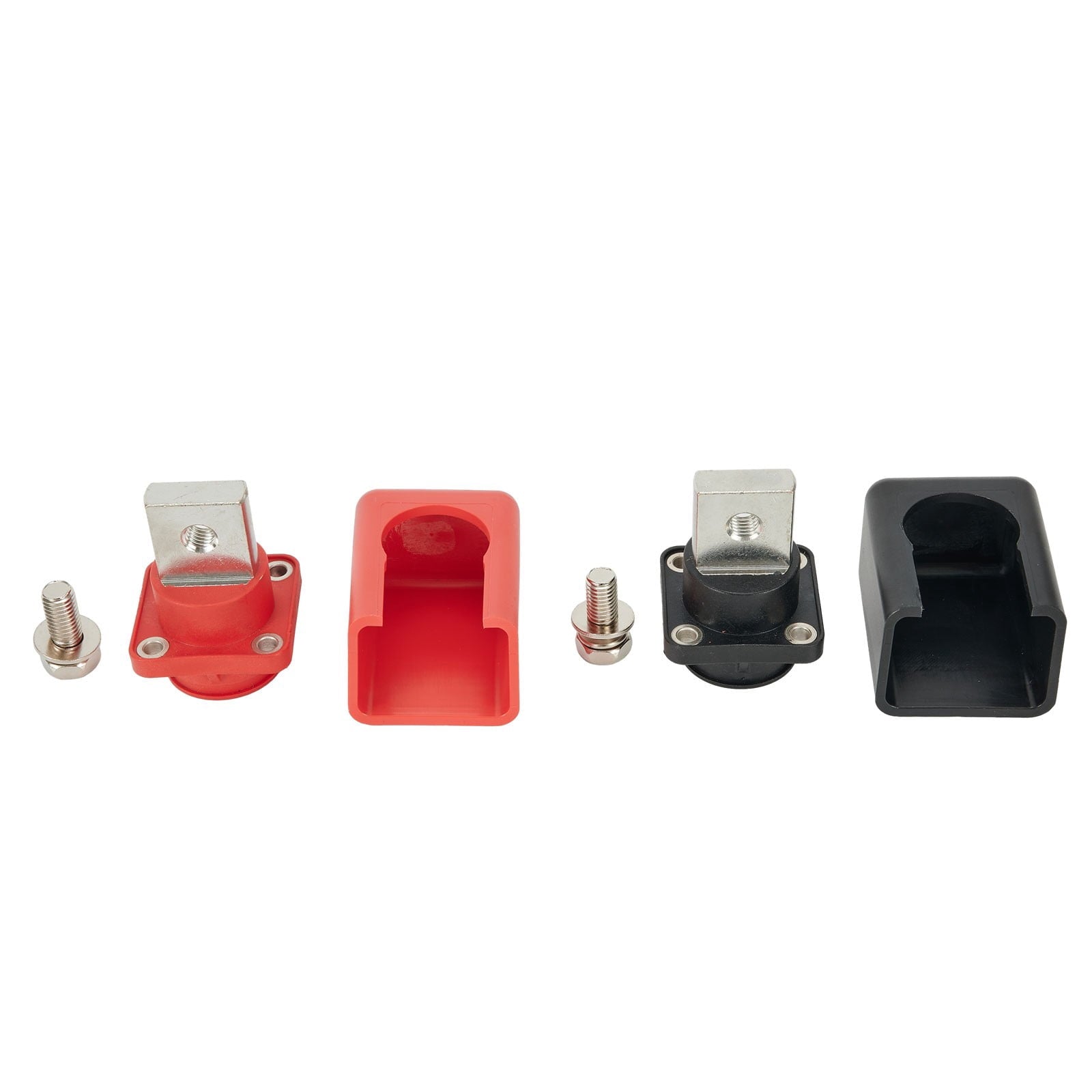

• Shield that snaps over the top: counted as standard along with a copper nose and a crimping screw.
• Single pole, single core: filed as 1P with one pin core, so one conductor lands on each post.

Specifications

• Name as filed: Brass lithium battery terminal
• Current figures printed: 300A, 400A (optional)
• Voltage line as written: AC500V
• Range given under 3C: 200-250 V
• Temperature figures: -20 to 105, with the unit missing from the line
• Ingress grade: IP67
• Flame class quoted for the shell: V0
• Housing moulded from: flame retardant PBT
• Metal named at the joint: Copper
• Stud thread as filed: M10 (10mm)
• How it is meant to be fixed: panel installation
• Colour pair supplied: red and black
• Series on the listing: Terminal Blocks

Read these before you order

• Nothing on this listing gives a tightening figure for the M10 stud, a cable or lug size, fusing guidance or a cited standard, nor has any been introduced here in their place.
• The voltage line reads AC500V while the stated application is a direct current battery cabinet. The page carries both and reconciles neither.
• Working temperature is entered as -20-105 with no unit against it. The figures are left exactly as filed rather than guessed at.
• Two feature lines break off mid-clause, one after strong and, one after wear-resistant and. That is character damage of the Loss kind and what followed cannot be recovered from the page.
• The 3C rated voltage range is entered twice at the same 200-250, once with a V after it and once without.
• A brand token, SUKIY, sits in the supplier's text alone. The five sentences around it are supplier boilerplate rather than anything written for this post, and the contact promise inside them belongs to the supplier rather than to this store.
• Both closing notes concern presentation only: screen colour against the photograph, and tolerance on a hand-taken measurement.

A pair of bolt-through posts for a fixed battery cabinet, dimensioned only for the lower of the two ratings its heading advertises.
