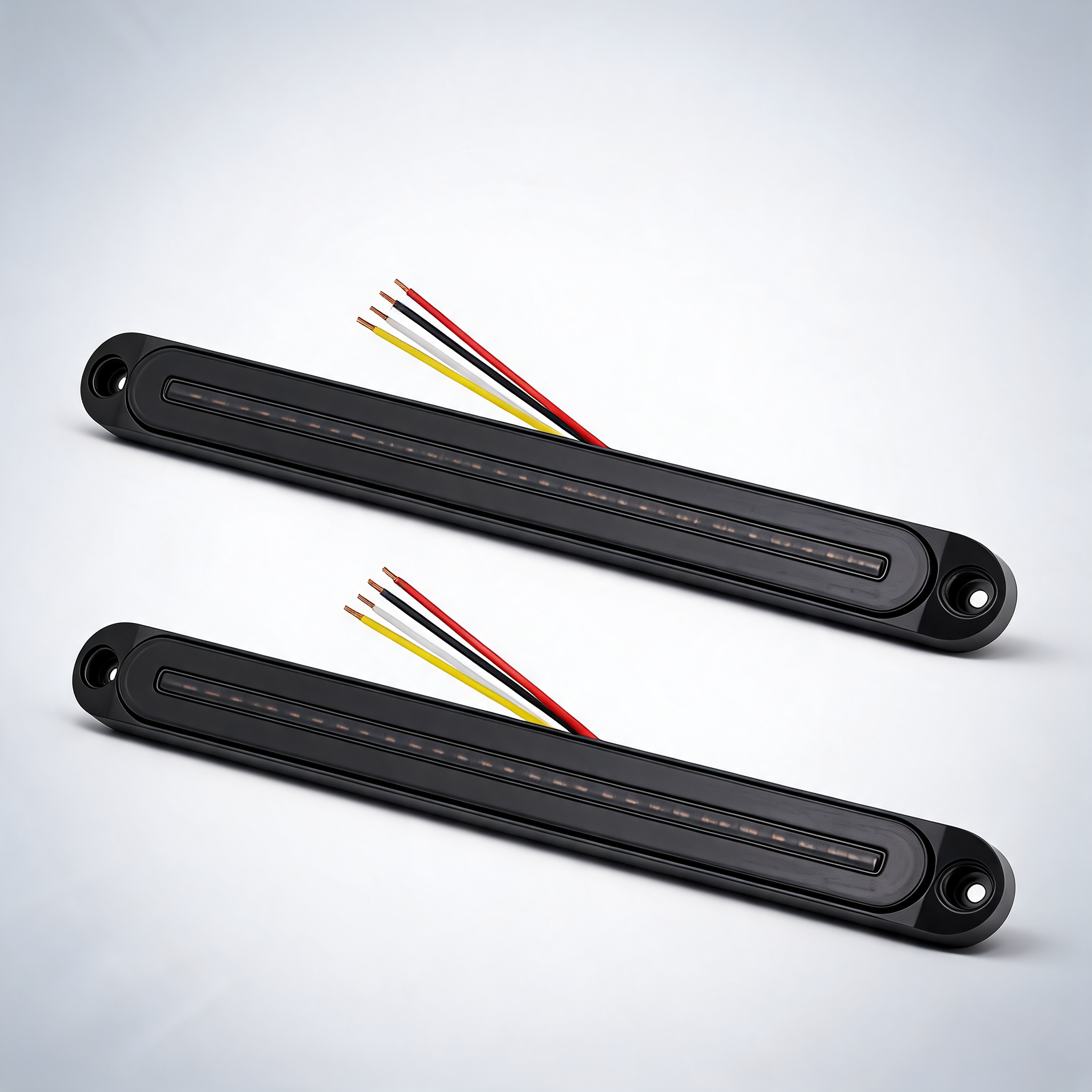

2Piece LED Tail Lights Flowing Turn Signal Stop brake Trailer Truck Caravan IP68

A wide trailer is hard to read at night when the indicator is one point of light two and a half metres off to the side. These lamps sweep the indicator across the width of the housing instead of blinking in place, so the driver behind gets a direction rather than a dot to interpret.

Sequential indicator, brake and running light in one housing

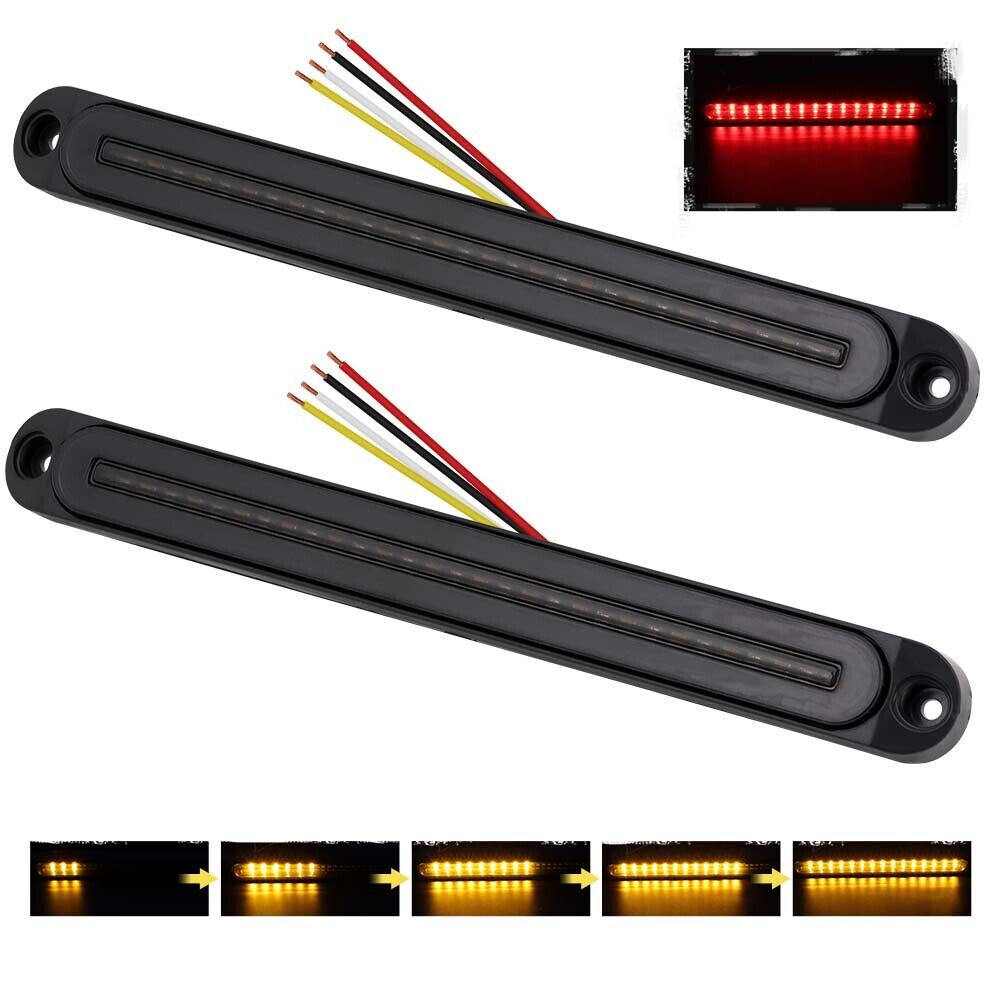

Three lit functions share the same lamp: a red brake and tail element, the amber indicator that flows outward rather than flashing, and a white daytime running element with a start-up animation when the ignition comes on. The lens is smoked, so none of it shows as coloured plastic when the lights are off.

Four wires, and what each one does

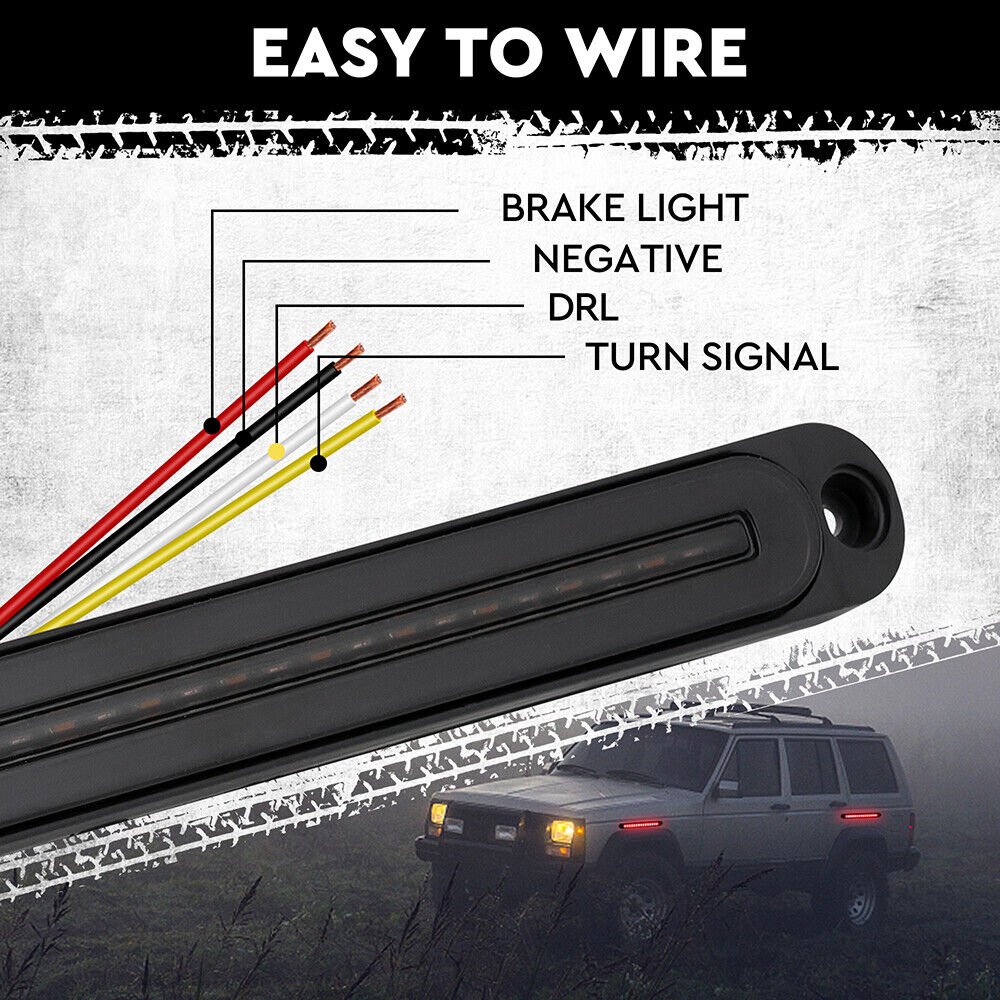

The supplier documents the loom plainly: black is negative, yellow drives the turn signal, red the brake, and white the daytime running element. No separate conductor is listed for a running tail light, so work out how your trailer's tail circuit is meant to connect before cutting anything. Each lamp measures 250 x 280 x 20 mm with 230 mm between the fixing holes.

Key features

• Sold as a pair: two lamps, left and right.

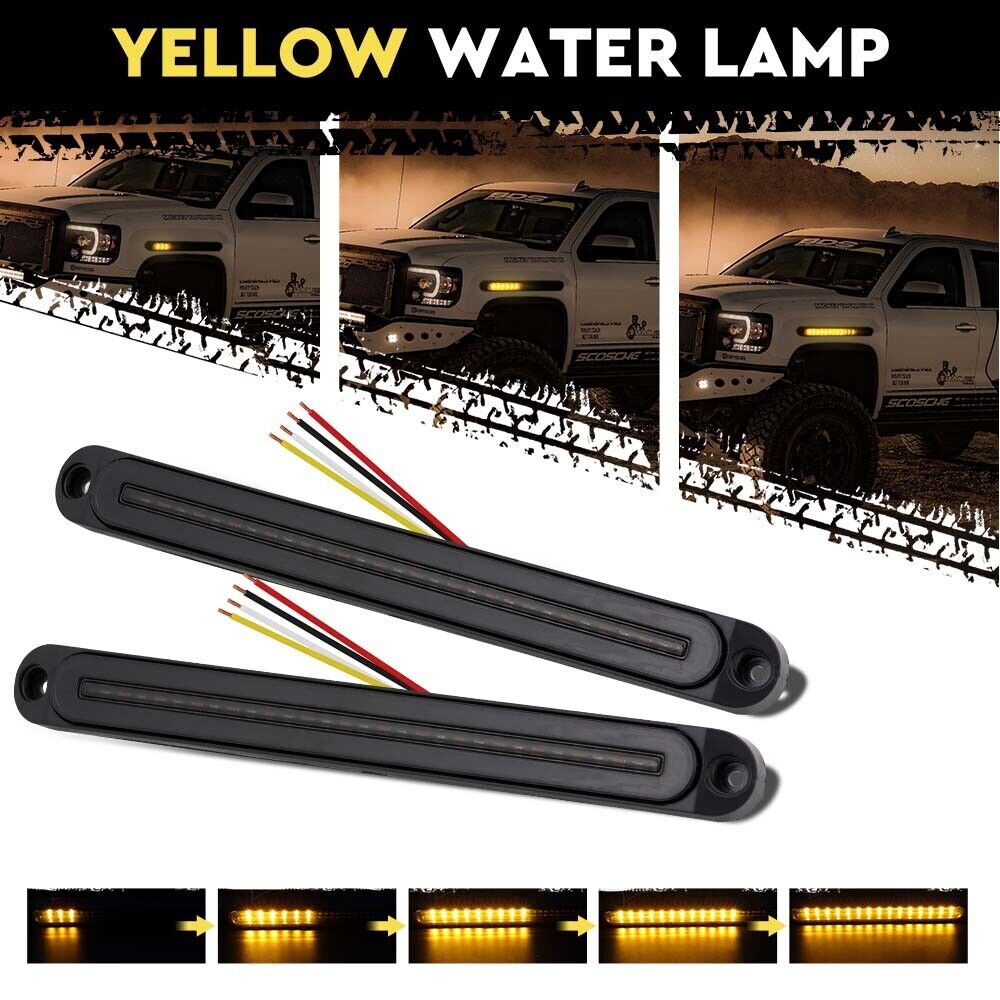

• Sequential turn signal: the amber element sweeps rather than flashing as a block.
• Smoked lens: the housing reads dark until a function is lit.
• 10-30 V DC: suits 12 V and 24 V trailer and truck circuits.
• 20 mm deep: sits flat on a rear panel.

Specifications

• Functions: brake and tail, sequential turn signal, daytime running light

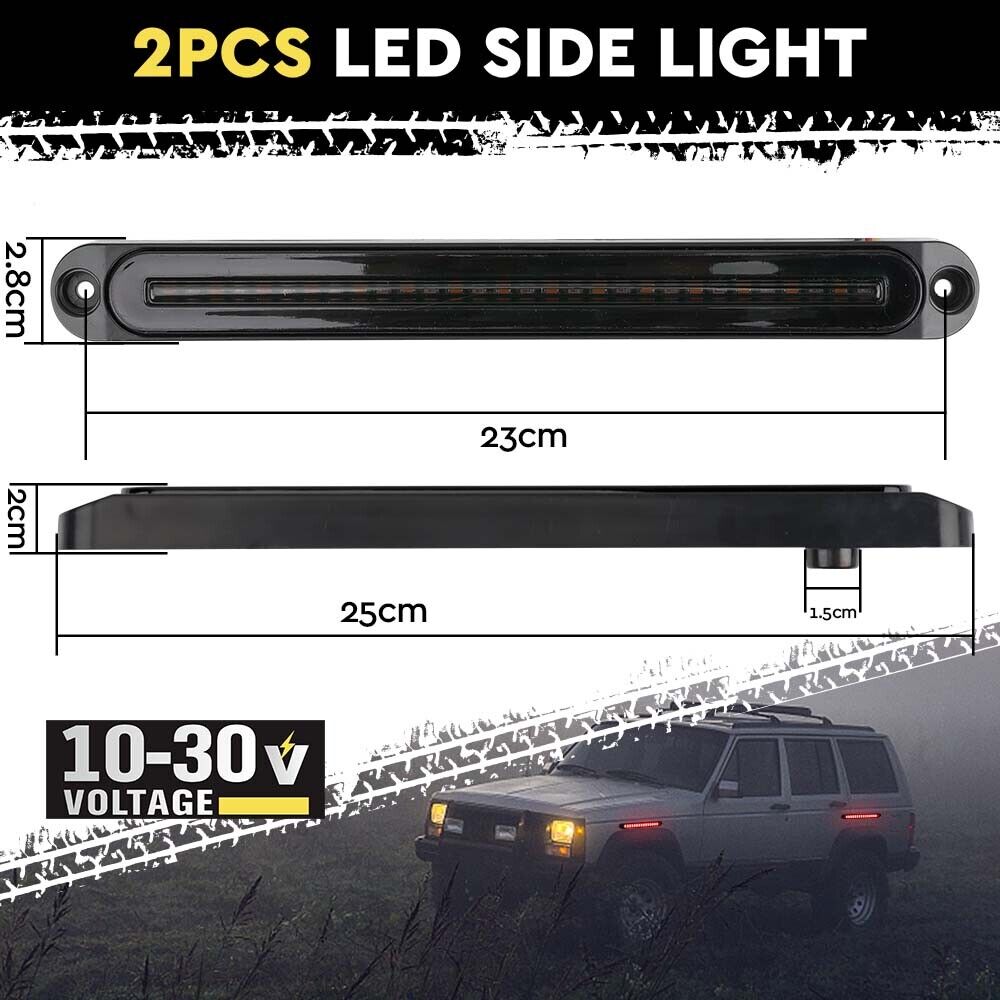

• Dimensions: 250 x 280 x 20 mm
• Fixing hole spacing: 230 mm

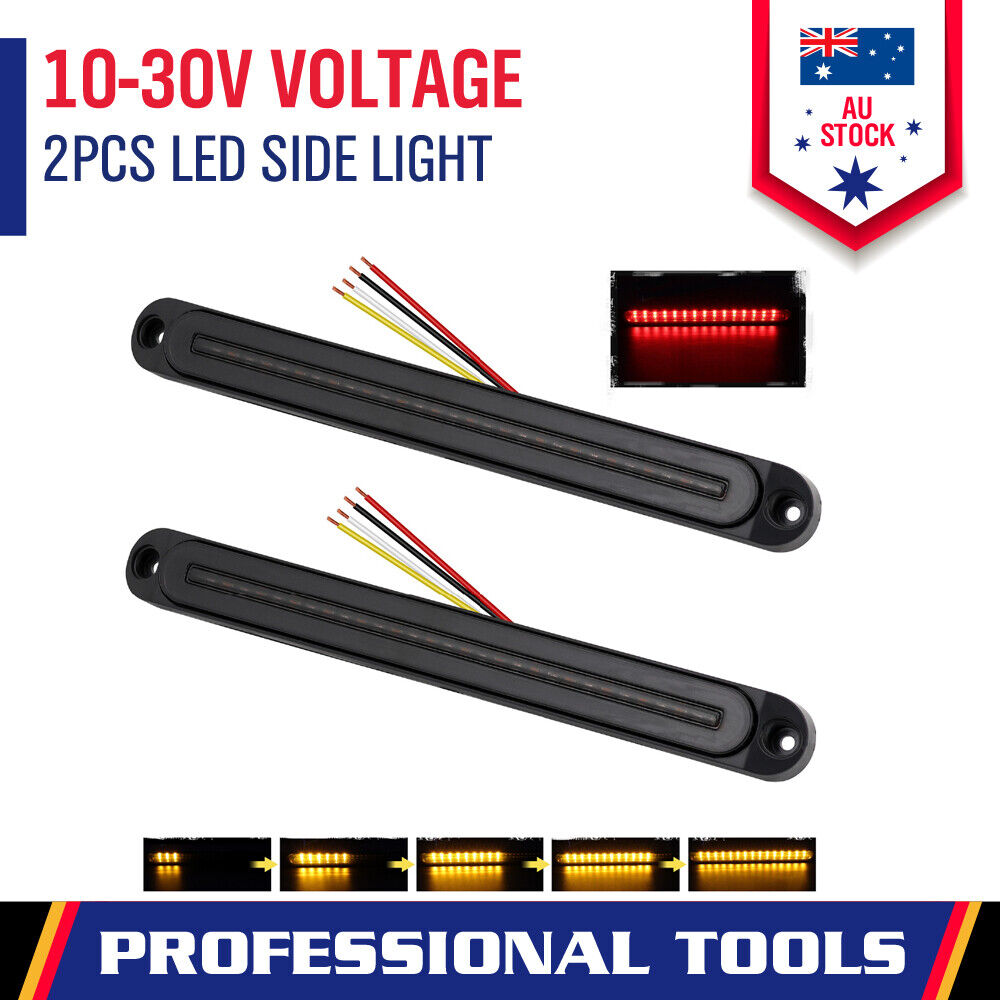

• Operating voltage: 10-30 V DC
• Lens: smoked
• Material: polycarbonate and ABS

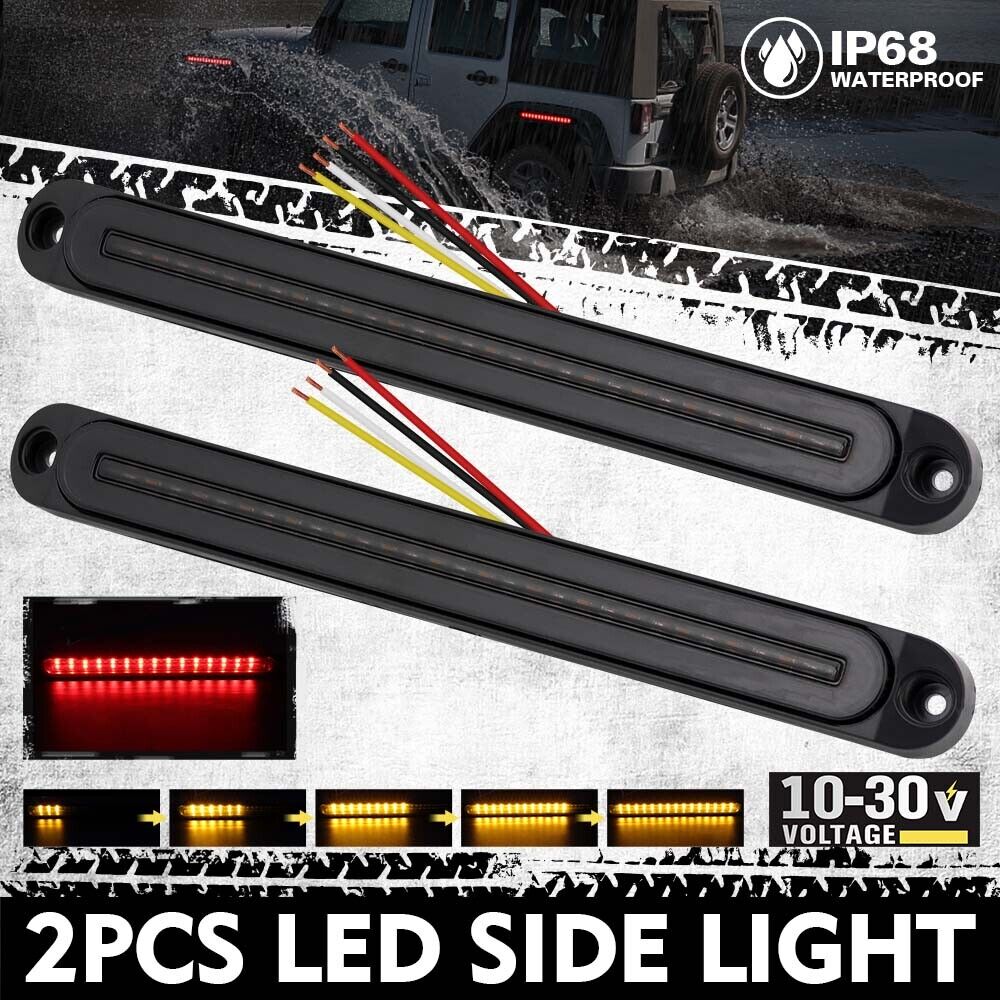

• Ingress rating: IP68 in the product title, IP67 in the supplier's specification — the two disagree
• Wiring: 4 conductors — black negative, yellow turn, red brake, white daytime running
• Mounting position: rear
• Lumen output and power draw: not published

What's in the box

• 2 x LED brake and tail lights with flowing turn signal

Before you fit these

• The ingress rating is quoted two ways — IP68 in the title, IP67 in the specification. Take the lower figure as the safe assumption until the supplier clarifies.
• Requirements for indicator behaviour, daytime running lights, and rear lamp colour and position vary by state. Confirm what applies to your vehicle and state before fitting for road use.
• No separate tail-light conductor appears among the four wires. Confirm how your tail circuit is meant to connect before wiring in.

Suits heavy trucks, semi and cargo trailers, work vehicles, motorhomes and overland builds running 10-30 V.
