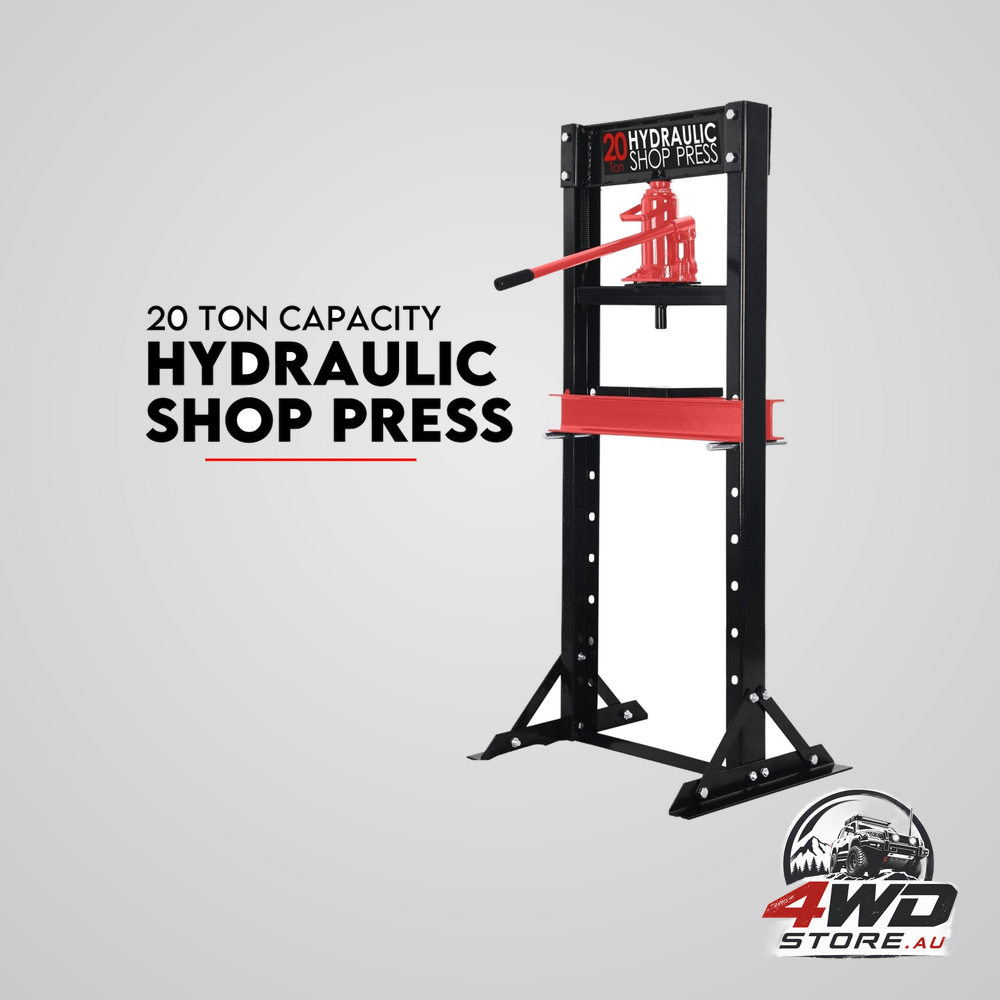

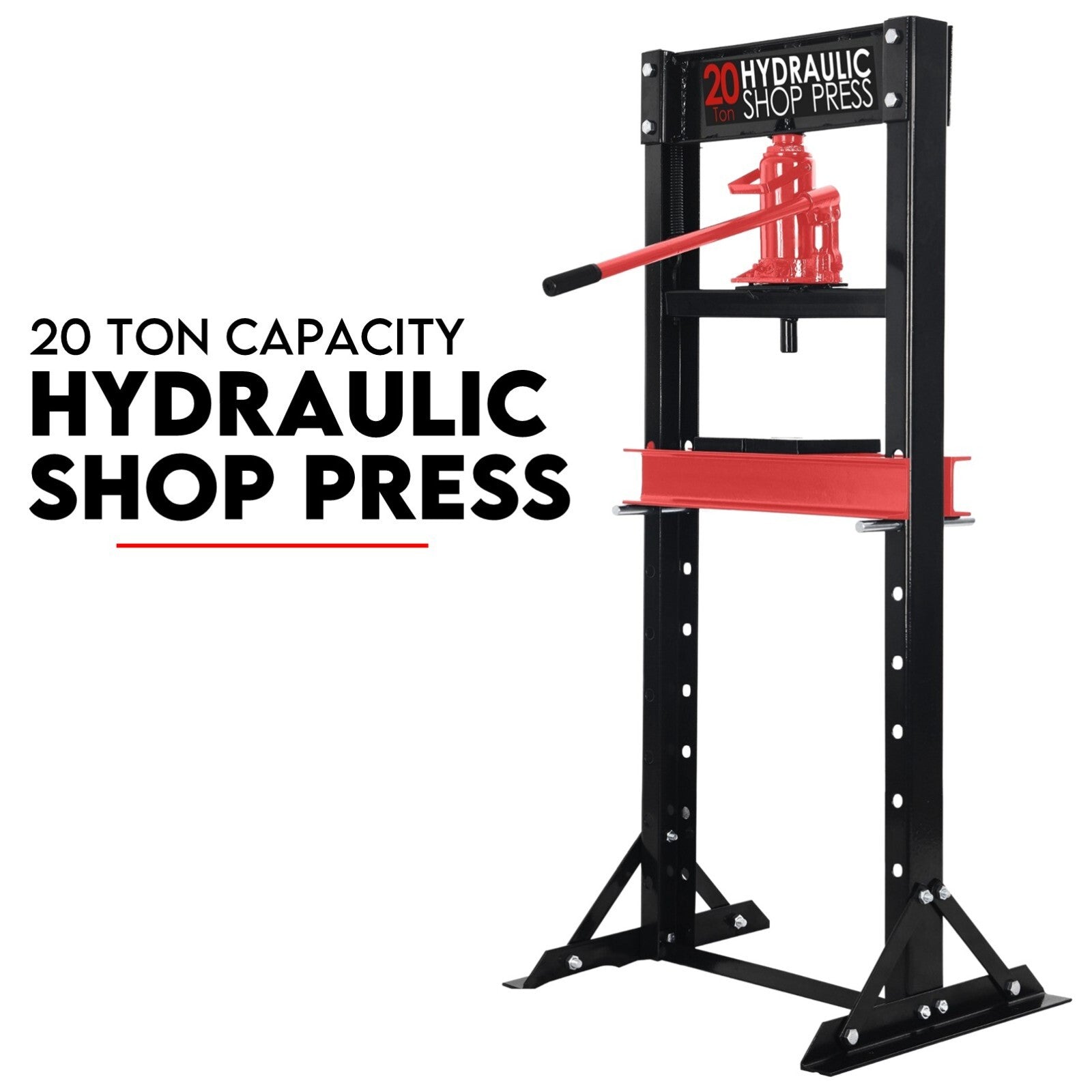

20 Ton Hydraulic Shop Press Workshop Jack Stand Bending Tool

Truck bushes, heavy trailer hubs and bent shafts stop responding to a light press fairly quickly. Doubling the tonnage is what gets them moving again. The supplier rates this H-frame at 20 Ton, quoting roughly 44,000 lbs alongside it on the same sheet, and lists the assembled weight at 52 kg. Everything on it is worked by hand.

Eight table heights instead of a handful

The worktable drops into eight positions, and that granularity is the practical difference on a big press. With 125 mm of ram travel to work with, bringing the table up close means the whole stroke goes into the actual pressing instead of being spent closing a gap. On a seized bush that matters. You want the ram loaded early and moving slowly, not running out of travel halfway through with the part still stuck fast.

Made for repeat work rather than one job

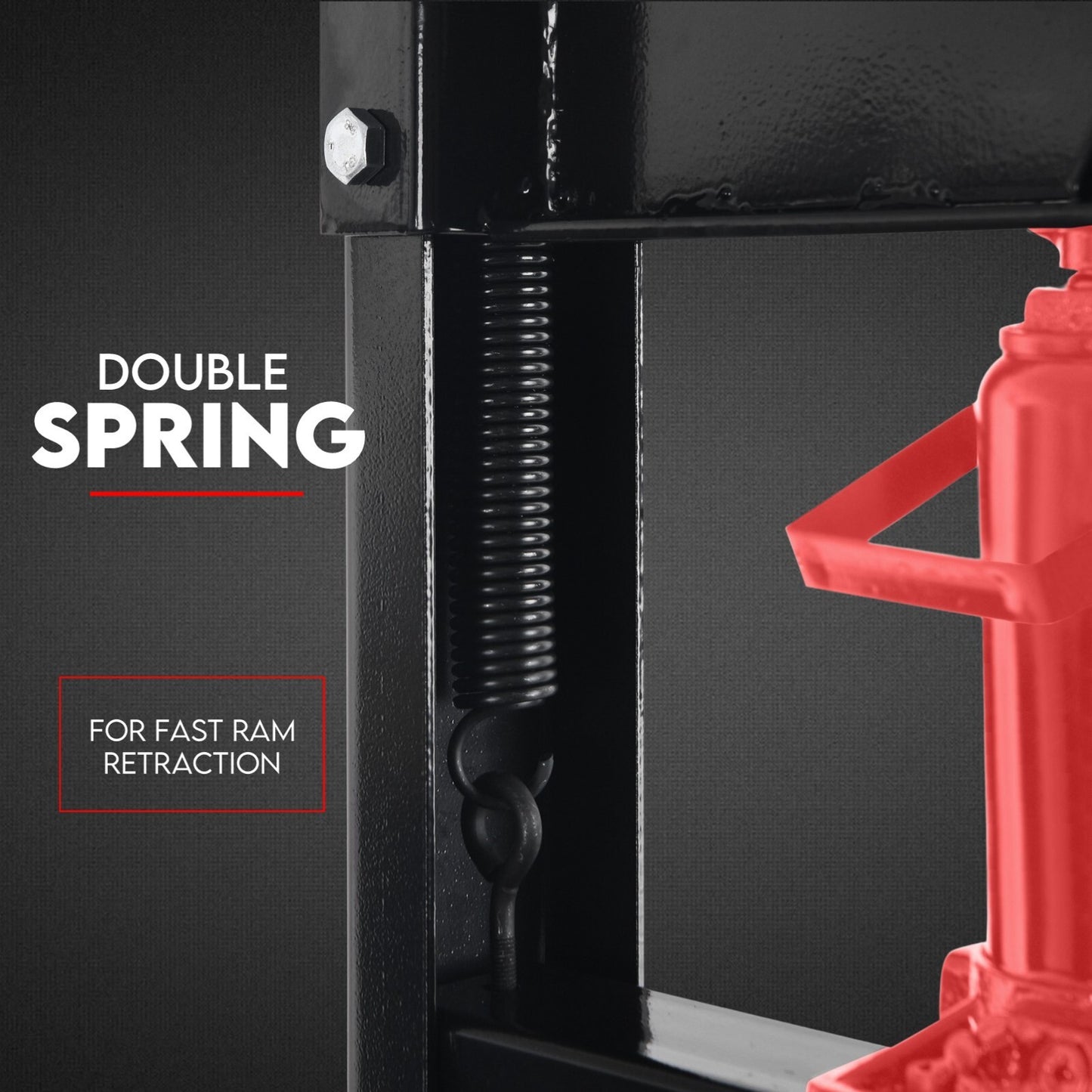

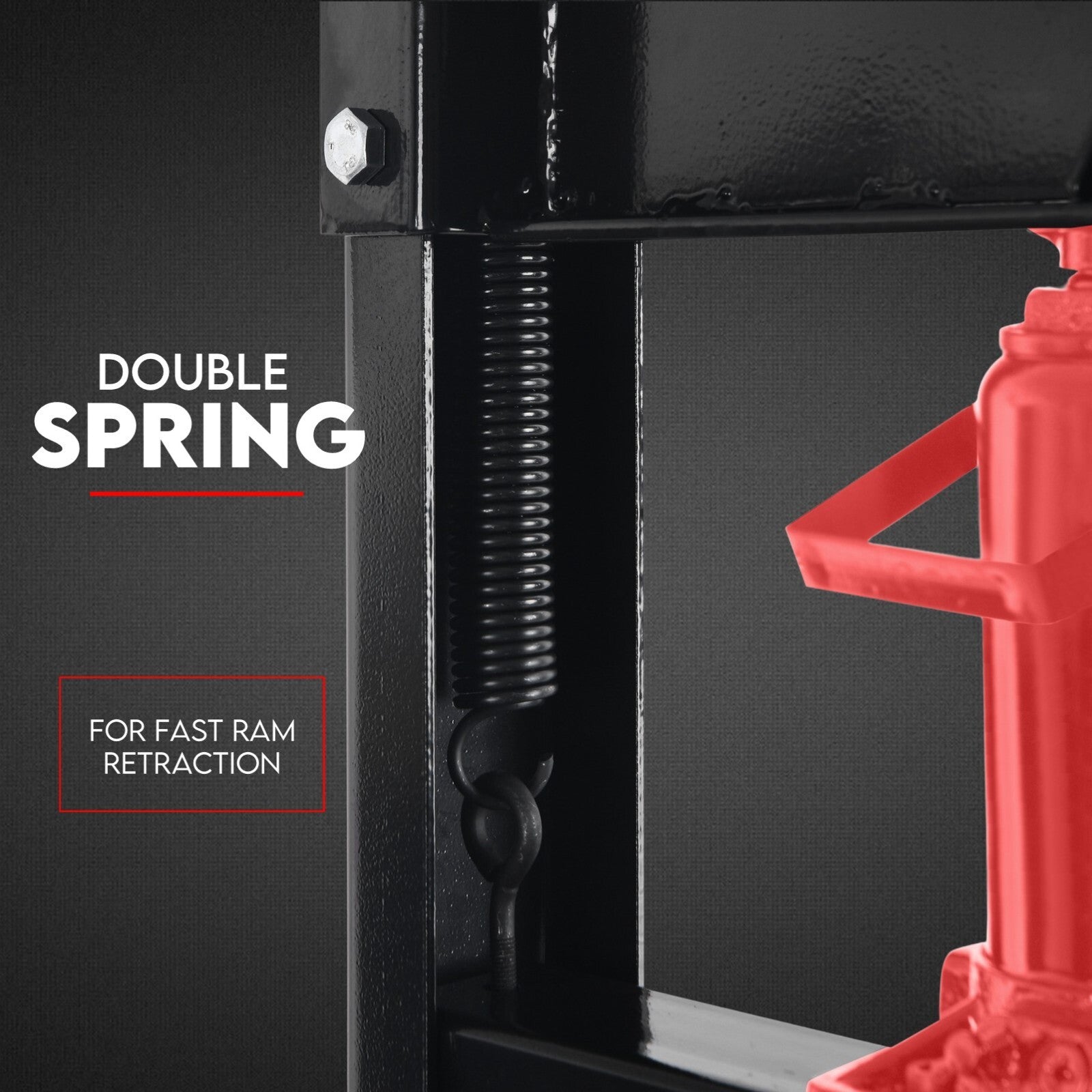

A dual-tension spring system pulls the ram back between presses, so the cycle runs pump, press, release, reset without anyone touching the ram. The cylinder is a bottle jack driven by a hand pump, which means no air line, no power point and nothing to fail but seals. Frame and press plates are both powder-coated steel, finished in black and red. The listed jobs are bearing installation, straightening, bending and part removal.

Key features

• 20 Ton stated capacity: the supplier's own rating, also quoted as approximately 44,000 lbs.
• Eight-position worktable: more height settings for matching the job to the stroke.
• Dual tension return springs: the ram resets itself between presses.
• Hand pump operation: no compressed air or electrical supply required.
• Powder-coated steel throughout: frame and press plates both coated.

Specifications

• Pressing force: 20 Ton (supplier also states approximately 44,000 lbs)
• Ram stroke: 125 mm
• Working table: 8 adjustable height positions

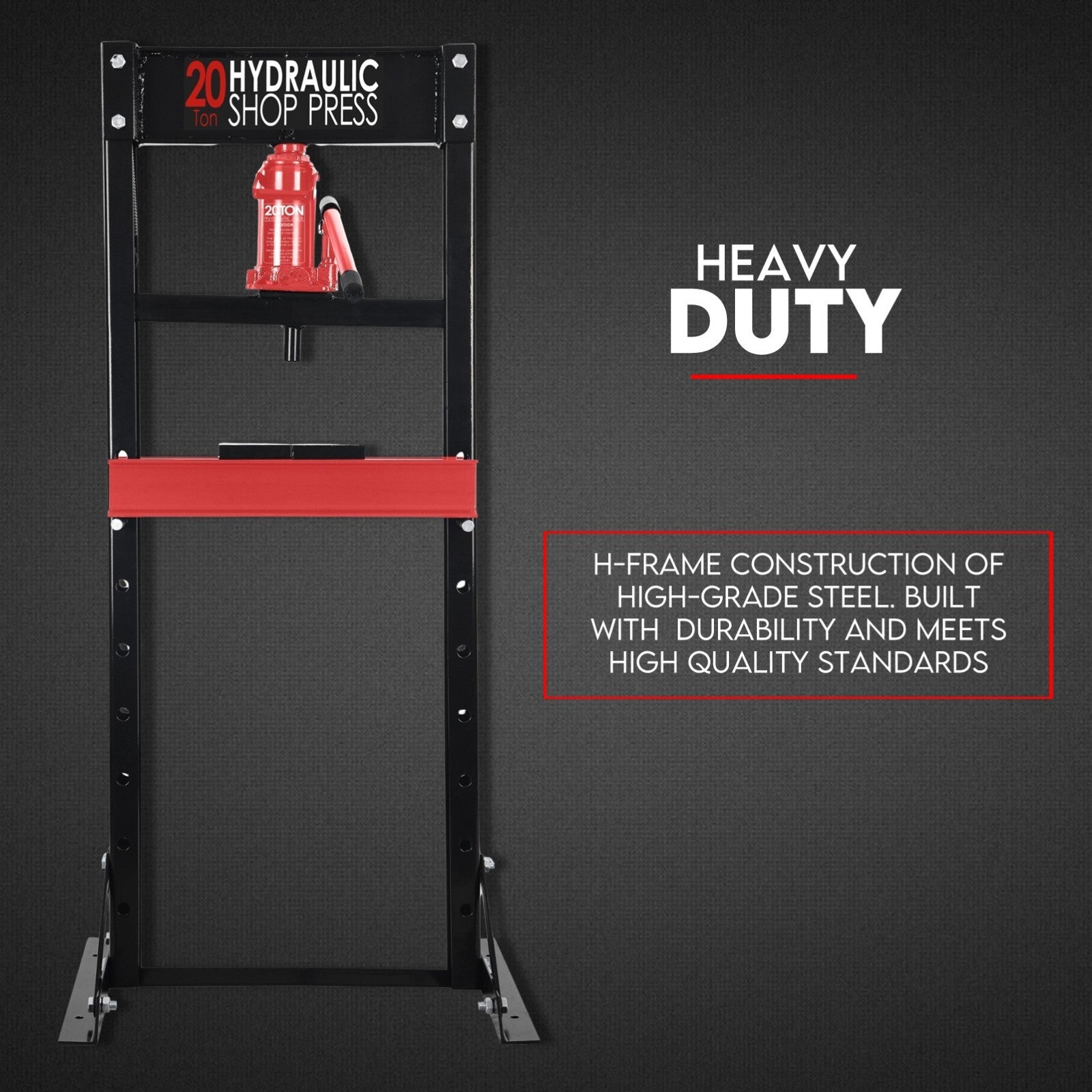

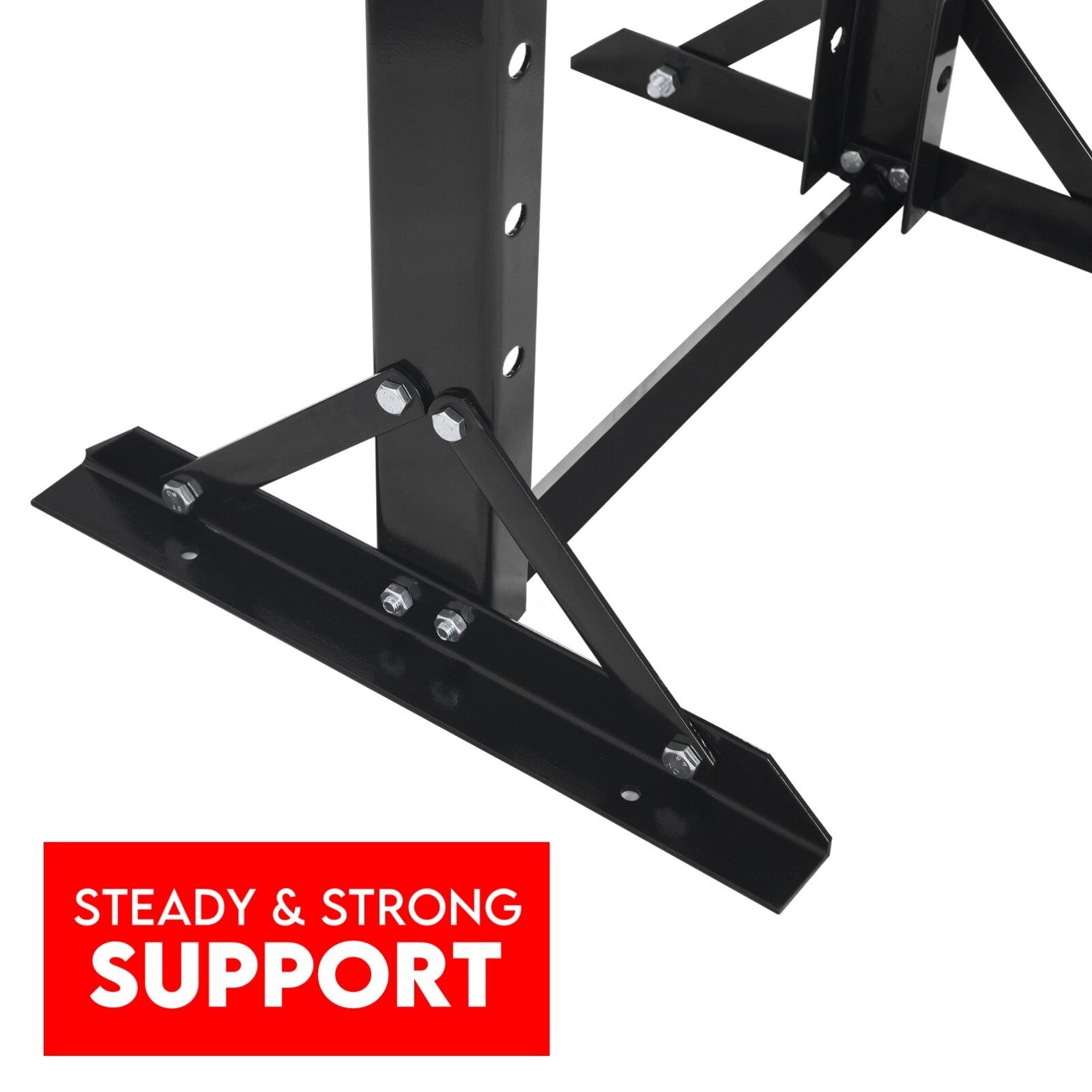

• Frame construction: powder-coated steel
• Press plates: powder-coated steel
• Return springs: dual tension system
• Operation: manual hand pump

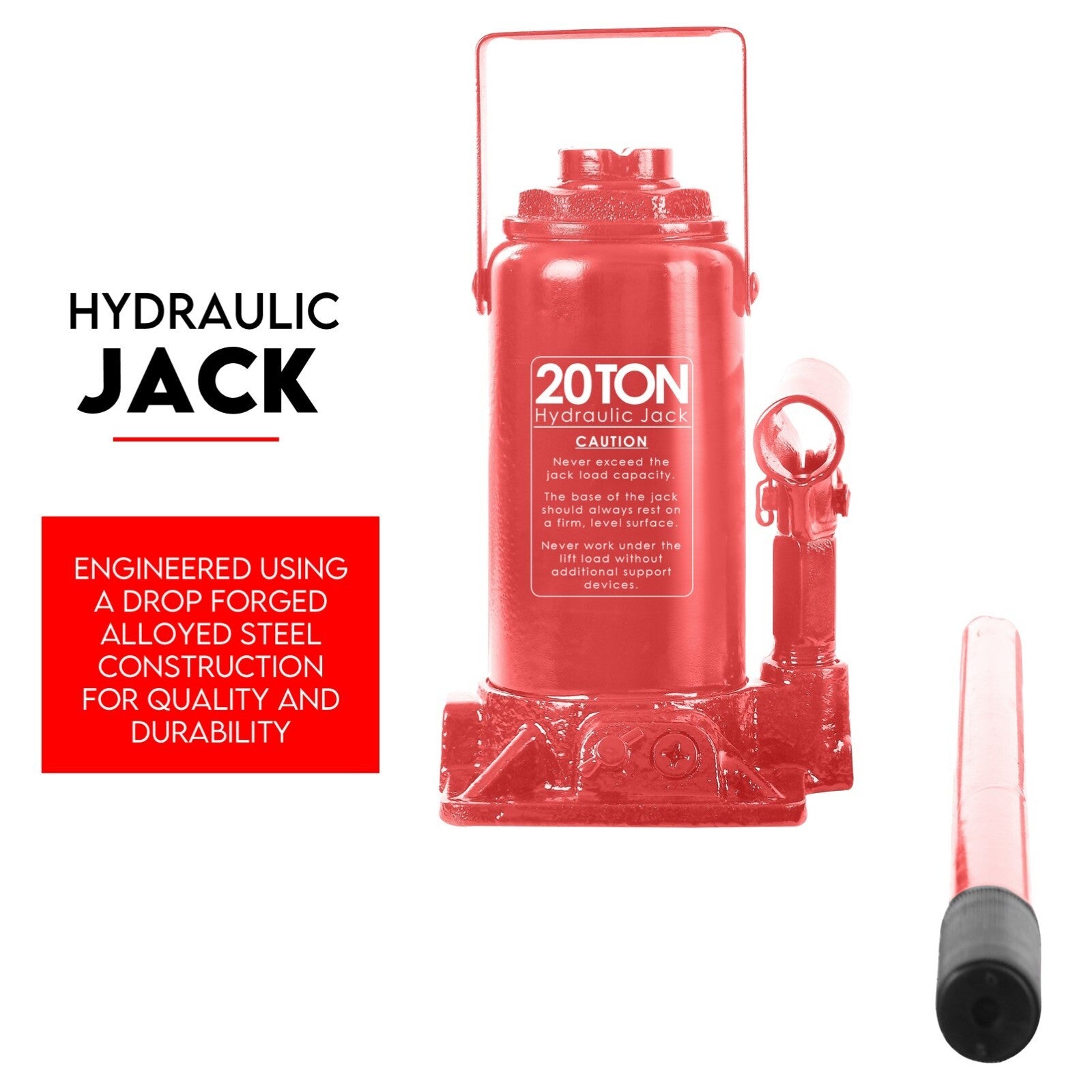

• Cylinder type: hydraulic bottle jack
• Colour: black / red
• Total weight: 52 kg
• Brand: Fiernero (Trade Hero Australia)
• Overall frame dimensions: not published by the supplier

What's in the box

• 1 x hydraulic shop press

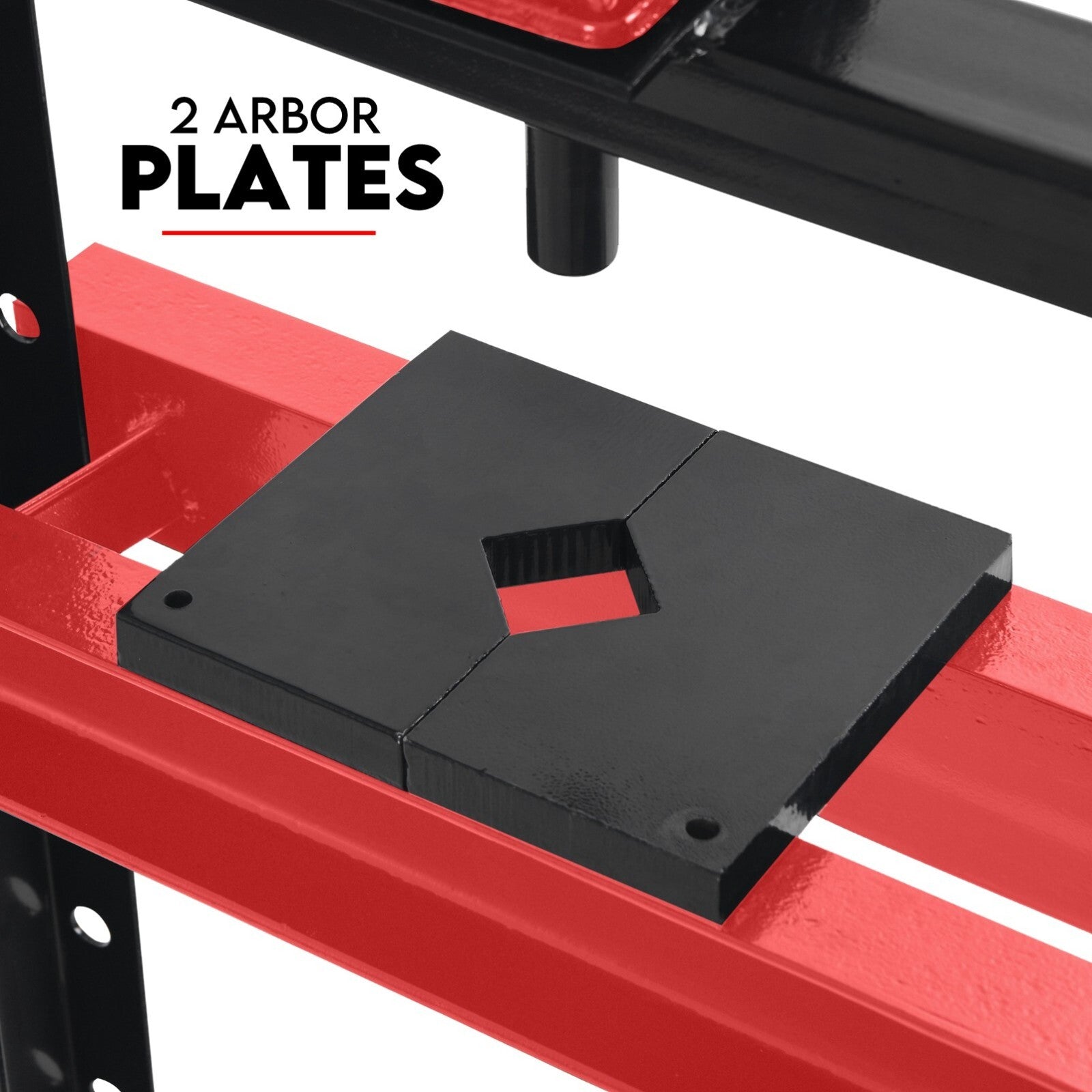

• 2 x press plates
• 1 x bottle jack

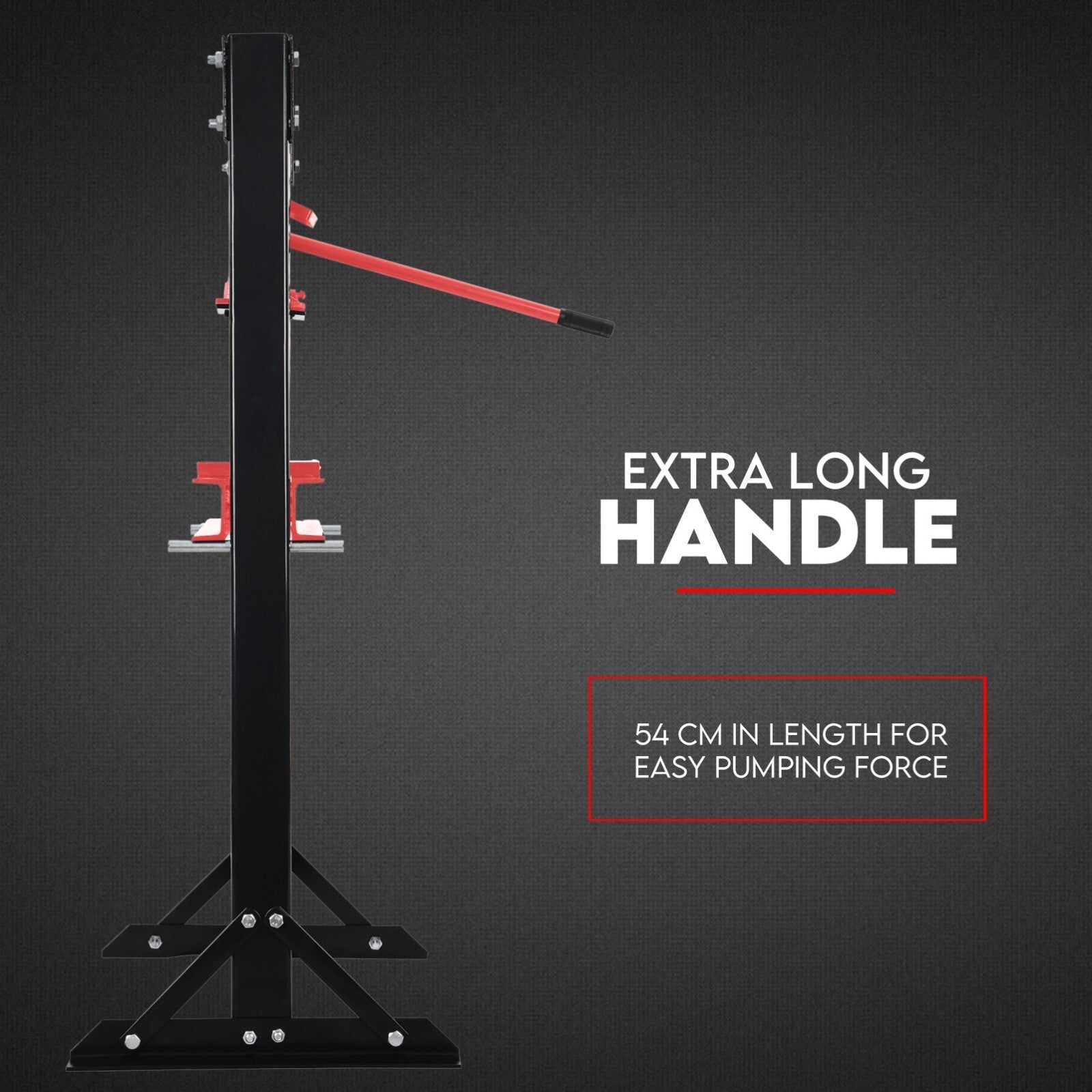

• 1 x handle
• 2 x return springs

Safety and setup checks

• No overall height, width or throat dimensions are published. At 52 kg this is not a frame you reposition on a whim, so measure the spot first.
• Both the 20 Ton rating and the 44,000 lbs figure are the supplier's; no test standard is named for either.
• Stand clear of the line of the ram and wear eye protection. Pressed parts let go without warning.
• Confirm the jack is seated square and all fasteners are tight before loading the frame.

The right size where a lighter frame stalls. Check floor space and overhead clearance before ordering.
