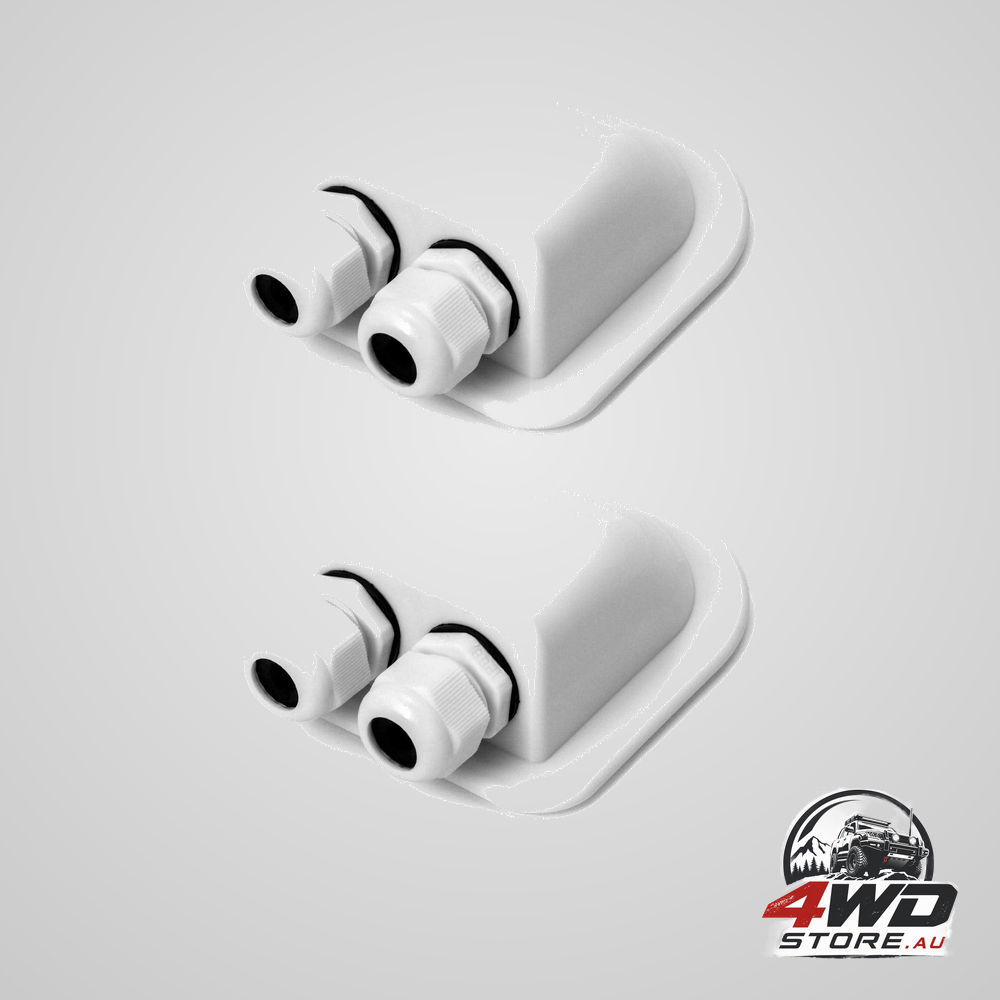

2 Pcs IP68 Waterproof ABS Solar Double Cable Entry Gland-Weather Resistant Dual Cable Entry Housing for Solar Panels of RV, Caravan and Marine, White

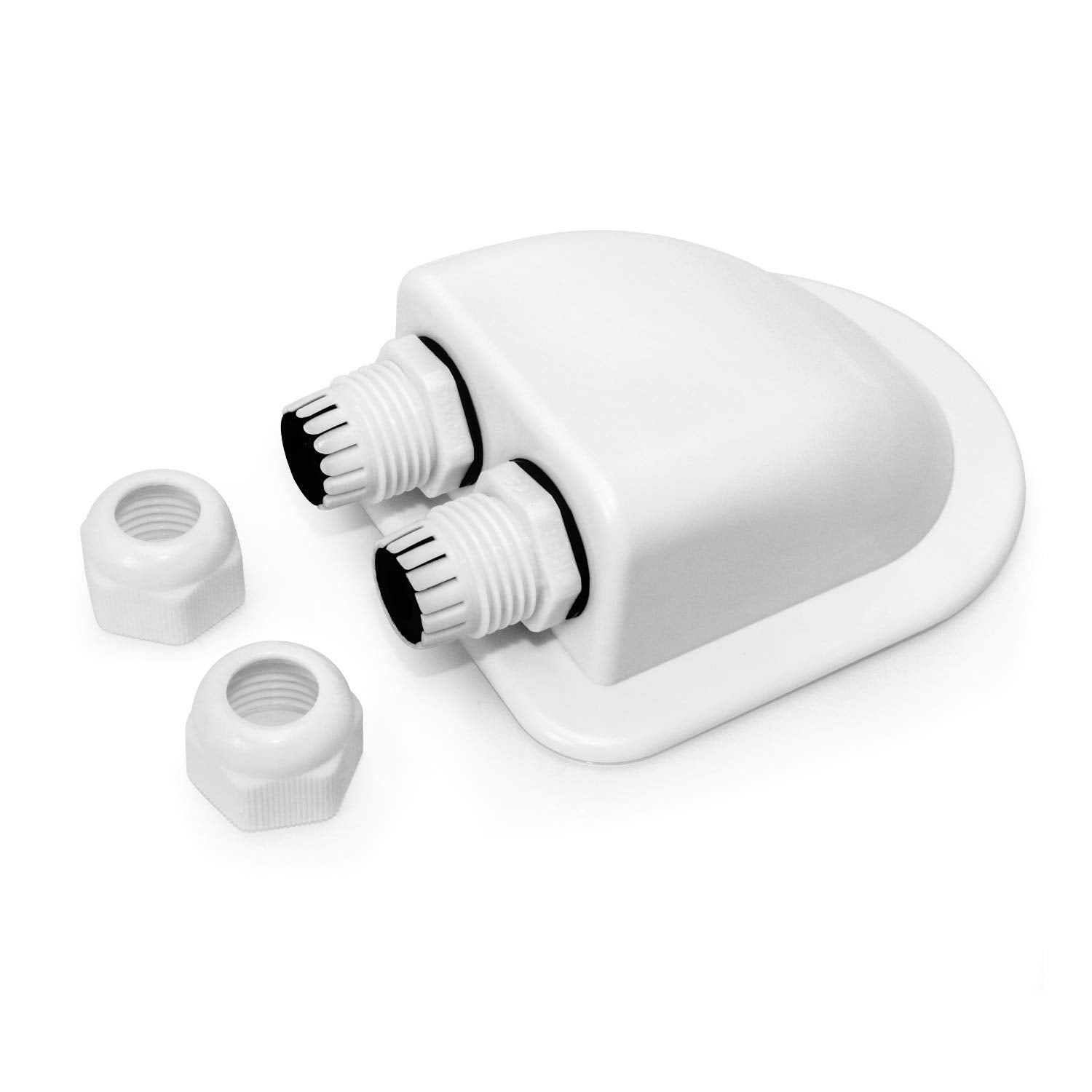

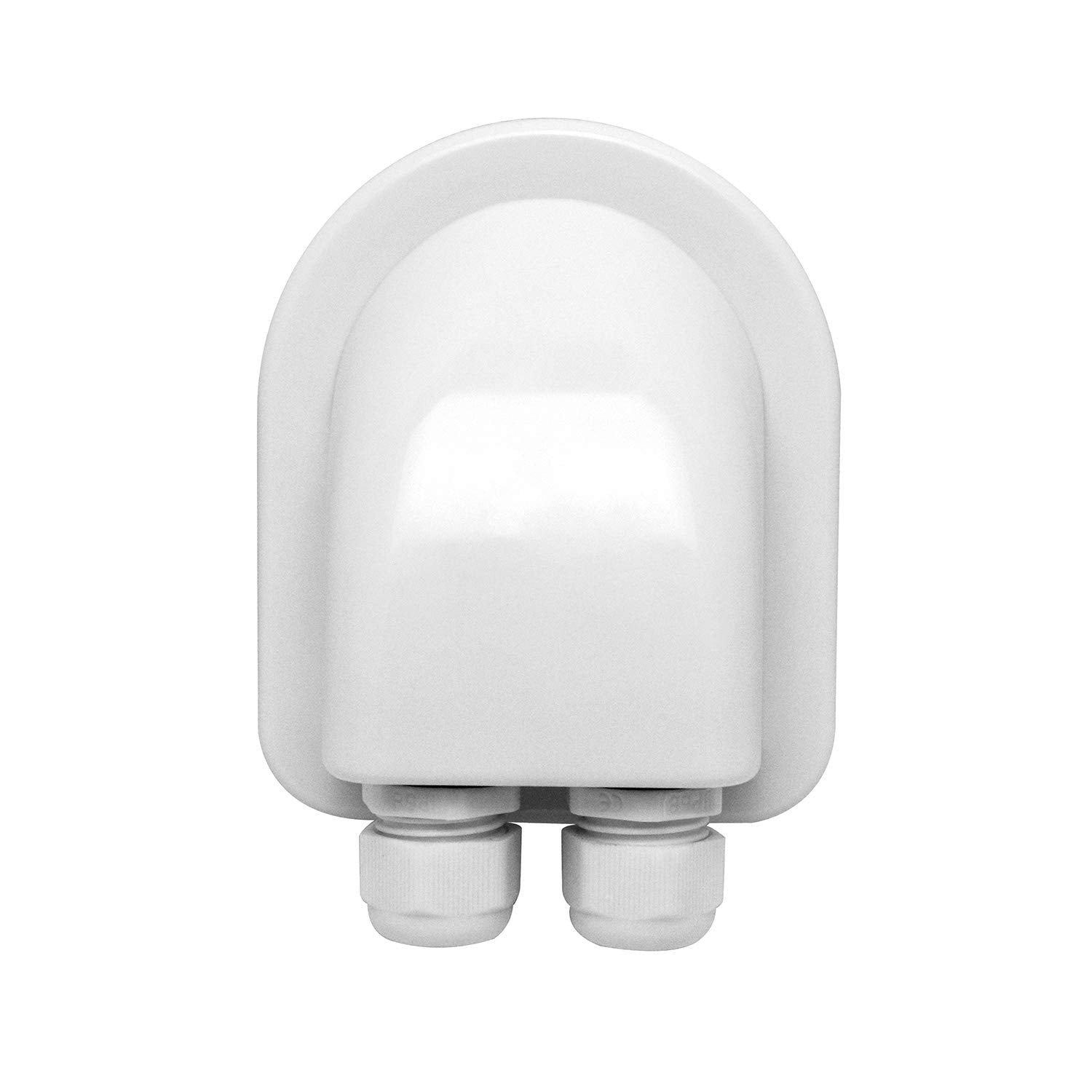

Every solar install on a caravan roof ends at the same problem: two cables have to get inside, and the hole they go through is the thing that will eventually leak. A double entry gland covers that hole with a moulded housing, routes both cables out through sealed exits, and turns a raw penetration into a finished fitting.

Two cables, one housing

The pair of exits is the point. Positive and negative come off a panel as separate leads, and running them through a single-hole gland means either doubling up in one seal or drilling twice. This housing takes both, each through its own gland, with the supplier giving a cable diameter range of 6 mm to 12 mm. That range is the figure to check before ordering: measure the outside diameter of your own solar cable, insulation included, and confirm it sits inside the band. Two housings are supplied.

What IP68 means here, and what it does not

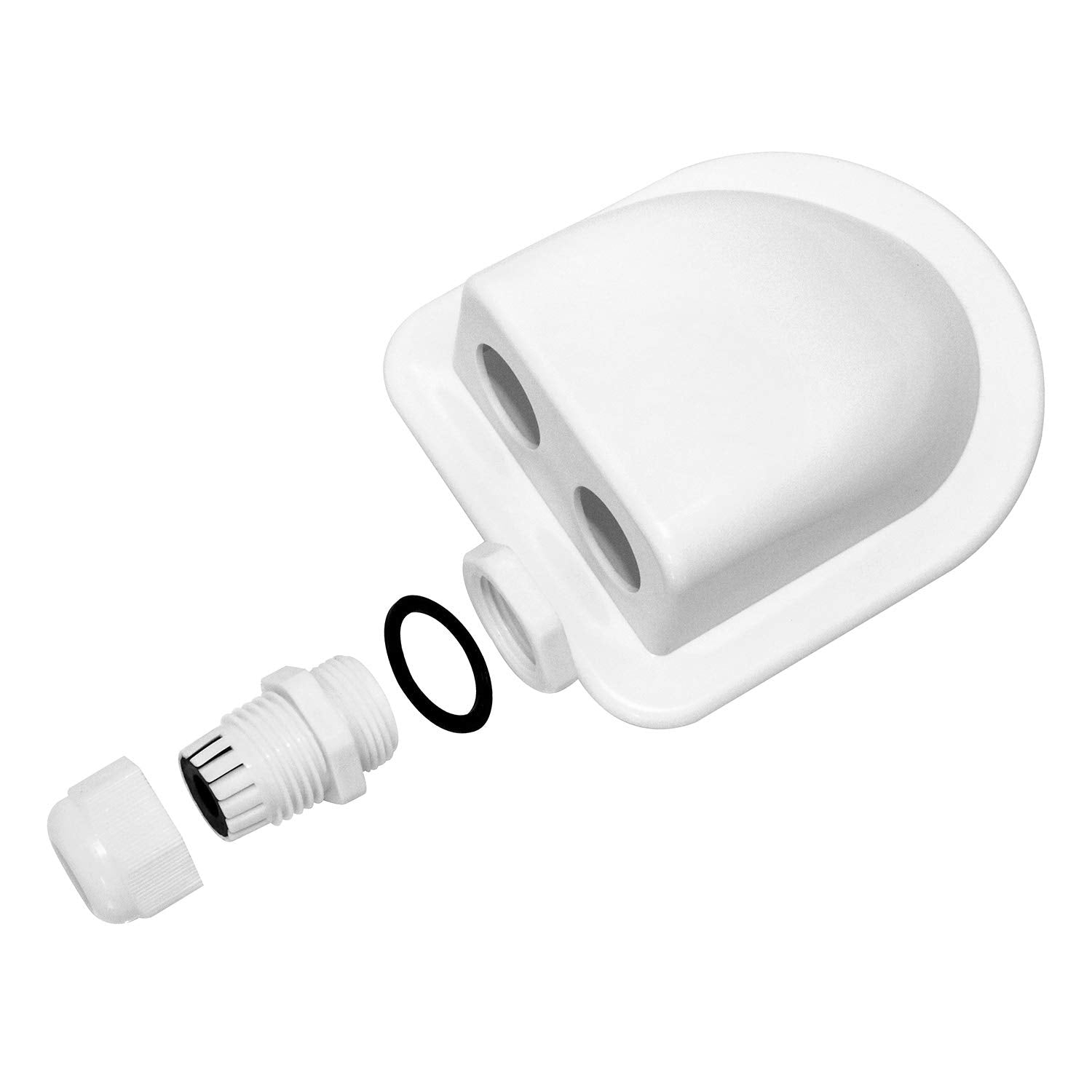

The supplier rates the housing IP68 and attributes that to a silicone sealing ring inside the body. IP68 is a dust and water ingress rating, nothing more. It says nothing about how the housing is bonded to your roof, and the seal between housing and roof is the joint that actually fails on a leaking install. The supplier states the fitting is installed with adhesive rather than screwed, so no roof penetration is needed for the housing itself, and does not specify which adhesive to use or supply one. Follow the sealant manufacturer's instructions for your roof material.

Key features

• Two entries per housing: positive and negative through one fitting.
• 6-12 mm cable range: the band the glands are cut to seal, as published.
• Silicone seal ring: the supplier's stated route to its IP68 rating.

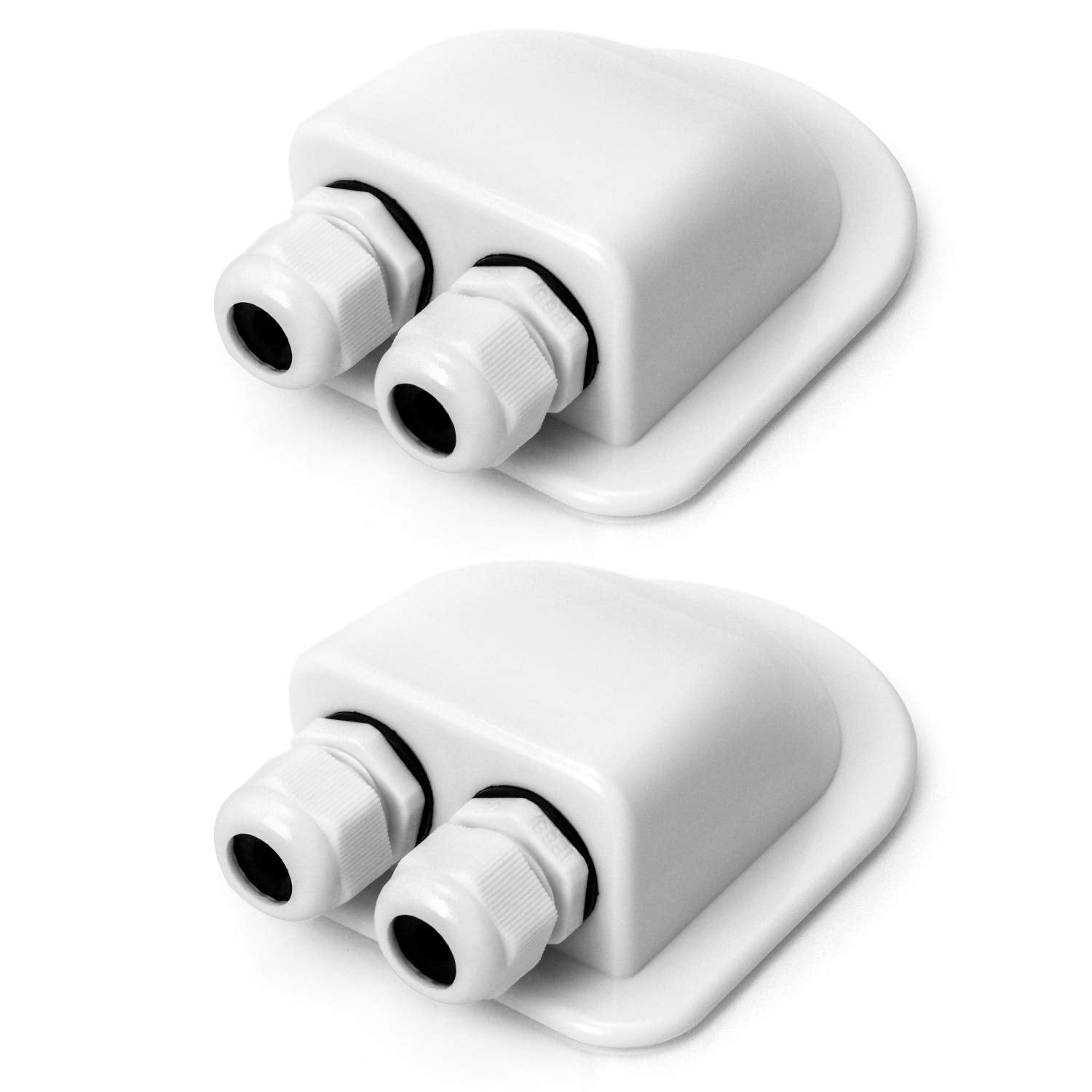

• Two per pack: enough for a second panel or a spare.
• White ABS housing: the supplier describes the plastic as industrial grade with UV resistance.

Specifications

• Quantity: 2 pieces
• Colour: white
• Housing material: ABS
• Cable gland diameter range: 6 mm to 12 mm
• Ingress rating: IP68, as stated by the supplier
• Fixing method: adhesive, per the supplier; no adhesive is listed as supplied
• Overall dimensions and hole size: not published

Before you order

• Measure your cable. Outside 6-12 mm the gland will not seal on it, and no other size is offered.
• The UV and weather claims above are the supplier's wording. No standard, test or exposure period is named against them.
• Nothing in the supplier data states suitability for a particular roof material or membrane. Confirm your adhesive suits both the ABS and the surface.
