1700PCS Deutsch DT Connector DEUTSCH DT CONNECTOR PLUG KIT AU STOCK Connector

The name on this Deutsch DT kit says 1700 pieces. The contents list underneath names eighteen lines, every one of them with a readable quantity, and those quantities add up to 713. Nothing is damaged and nothing is ambiguous: the list can simply be added, and it does not reach the number the kit is sold under.

What the eighteen lines actually come to

Most of the count is loose terminals. There are 210 stamped female contacts and 210 stamped male, and 200 white sealing blanks, which is 620 of the total before a single housing is counted. The housings come to 86, split evenly into receptacle and plug pairs across the 2, 3, 4, 6, 8 and 12-way sizes. Add five mounting brackets, one removal tool and one case and the eighteen lines close at 713. We publish the breakdown rather than the headline, because the breakdown is the part you can check yourself against what turns up.

What the connectors are and are not

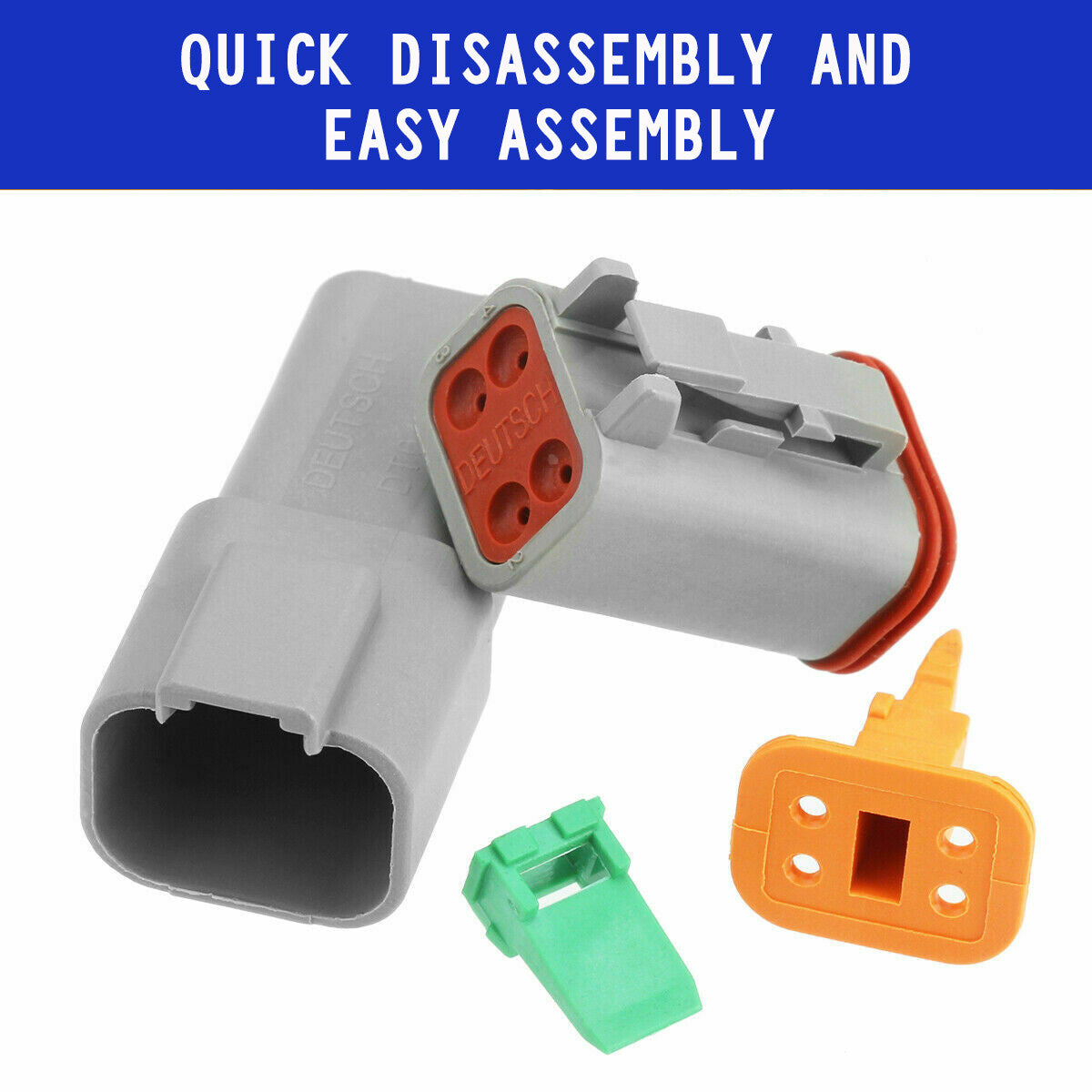

These are the sealed DT-series housings that go into engine bays and trailer looms, with individual stamped contacts rather than crimps that can slide off the wire. The page calls them IP68 Waterproof in the specification and water resistant eleven lines further down, said of the same connectors. The weaker of the two is what we will stand behind, so treat these as sealed against splash and weather in a loom rather than as rated for immersion. The wedgelock is the part that makes that sealing work: it drops in behind the contacts and holds them home, and there is one for every housing in the box.

Key features

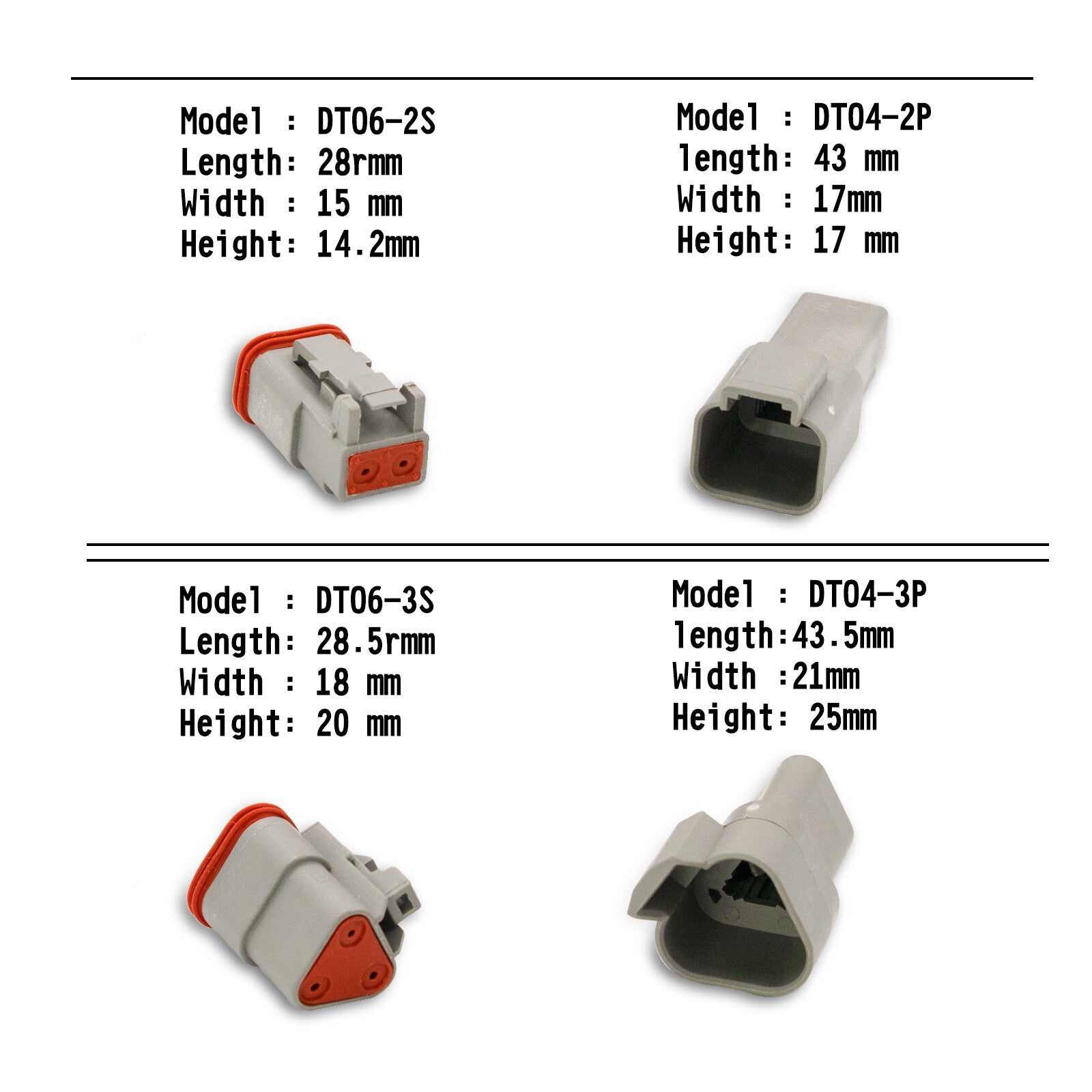

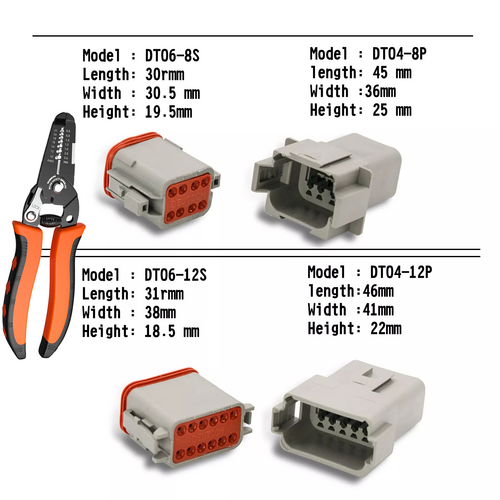

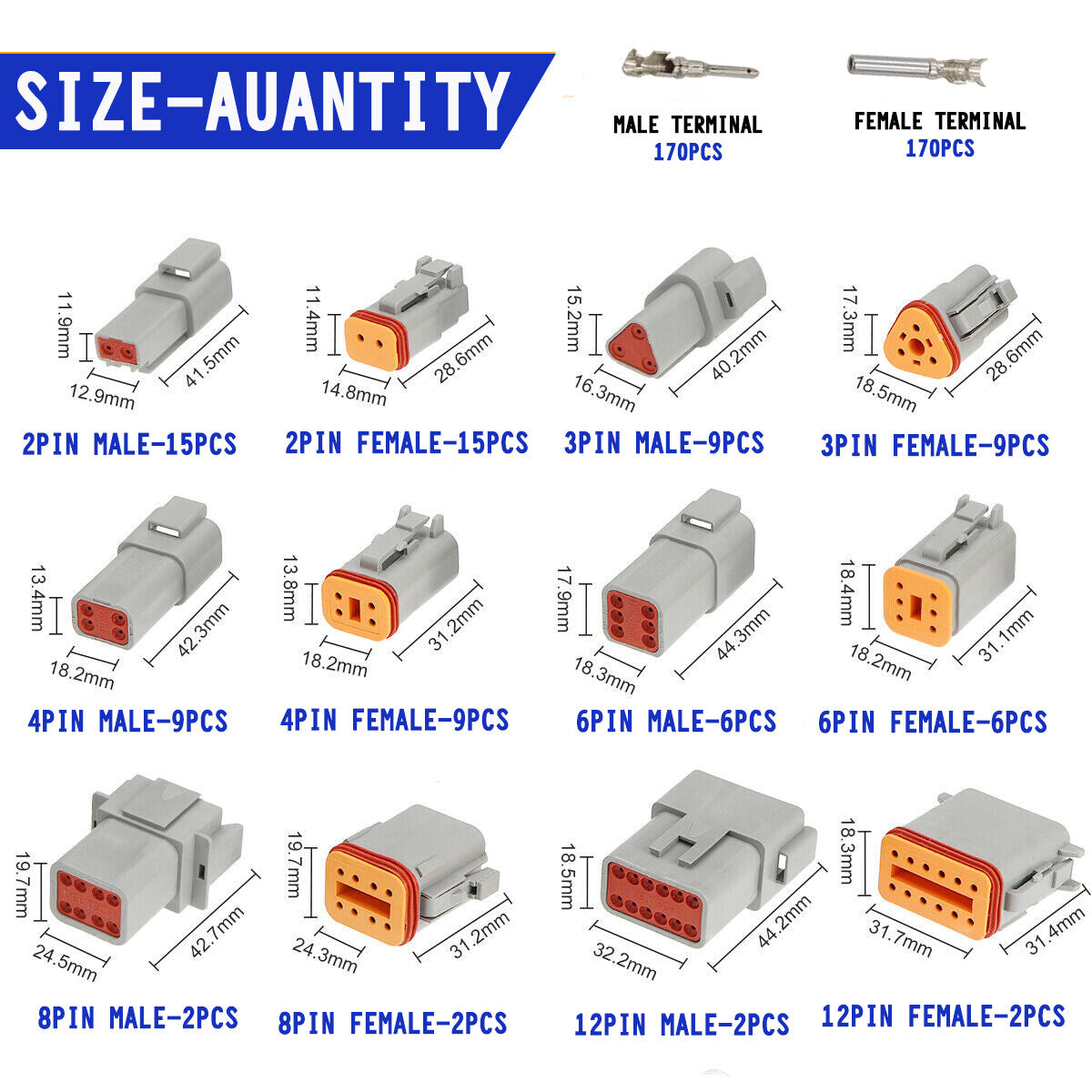

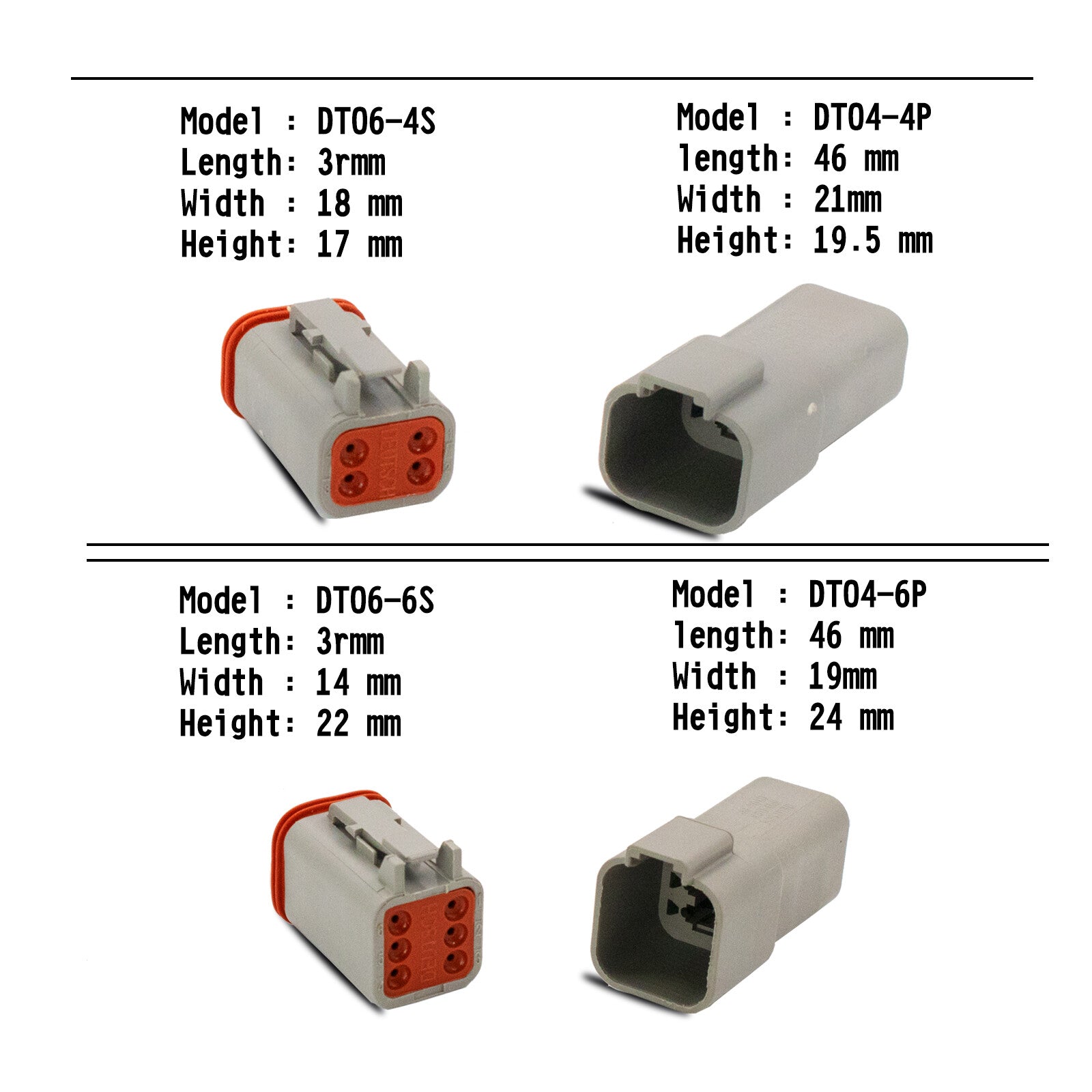

• Six housing sizes: 2, 3, 4, 6, 8 and 12-way, each supplied as a matched receptacle and plug with wedgelocks.

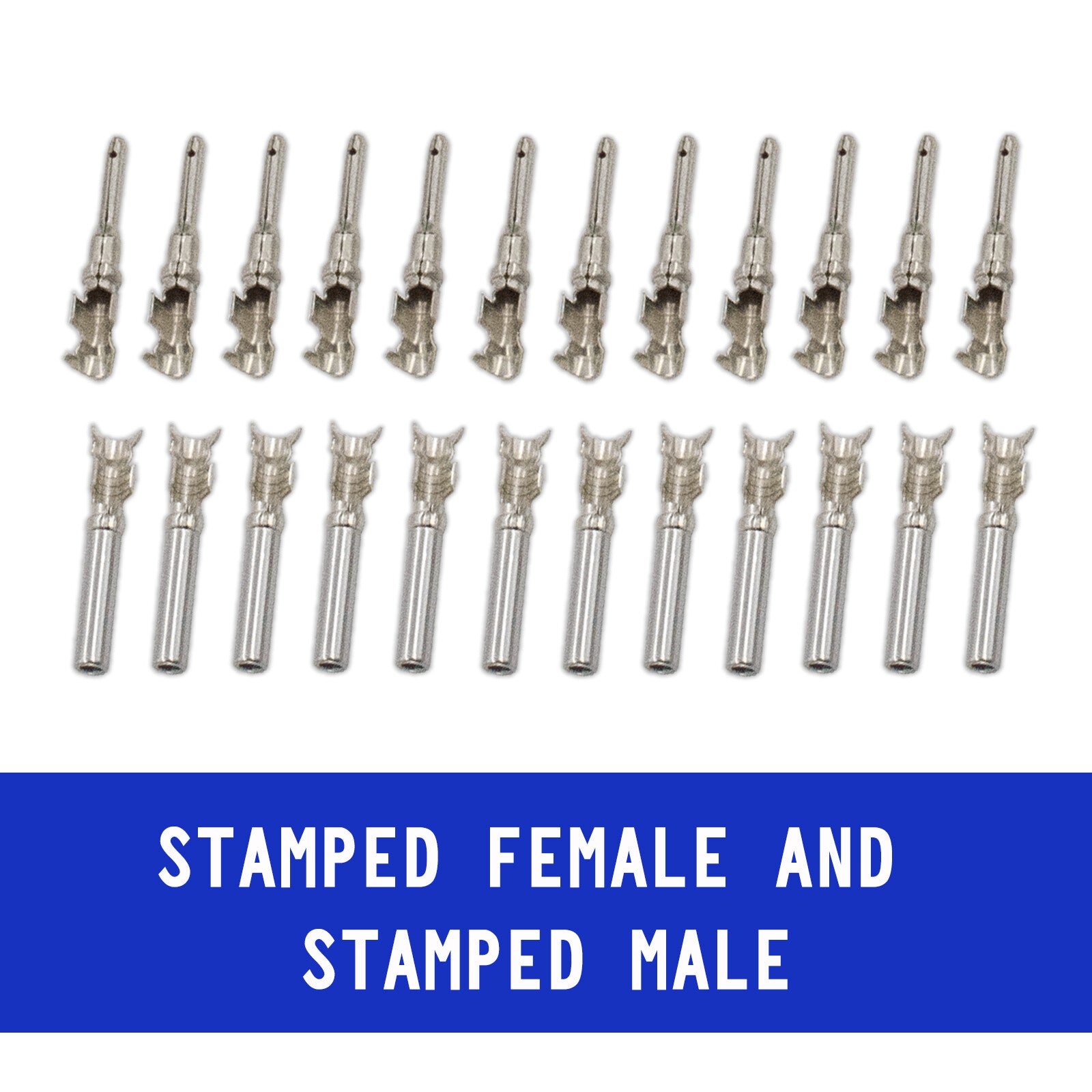

• 420 size-16 contacts: 210 stamped female and 210 stamped male, which is what most of the piece count is made of.
• 200 sealing blanks: white plugs for filling the cavities you do not wire, so a part-populated connector still seals.

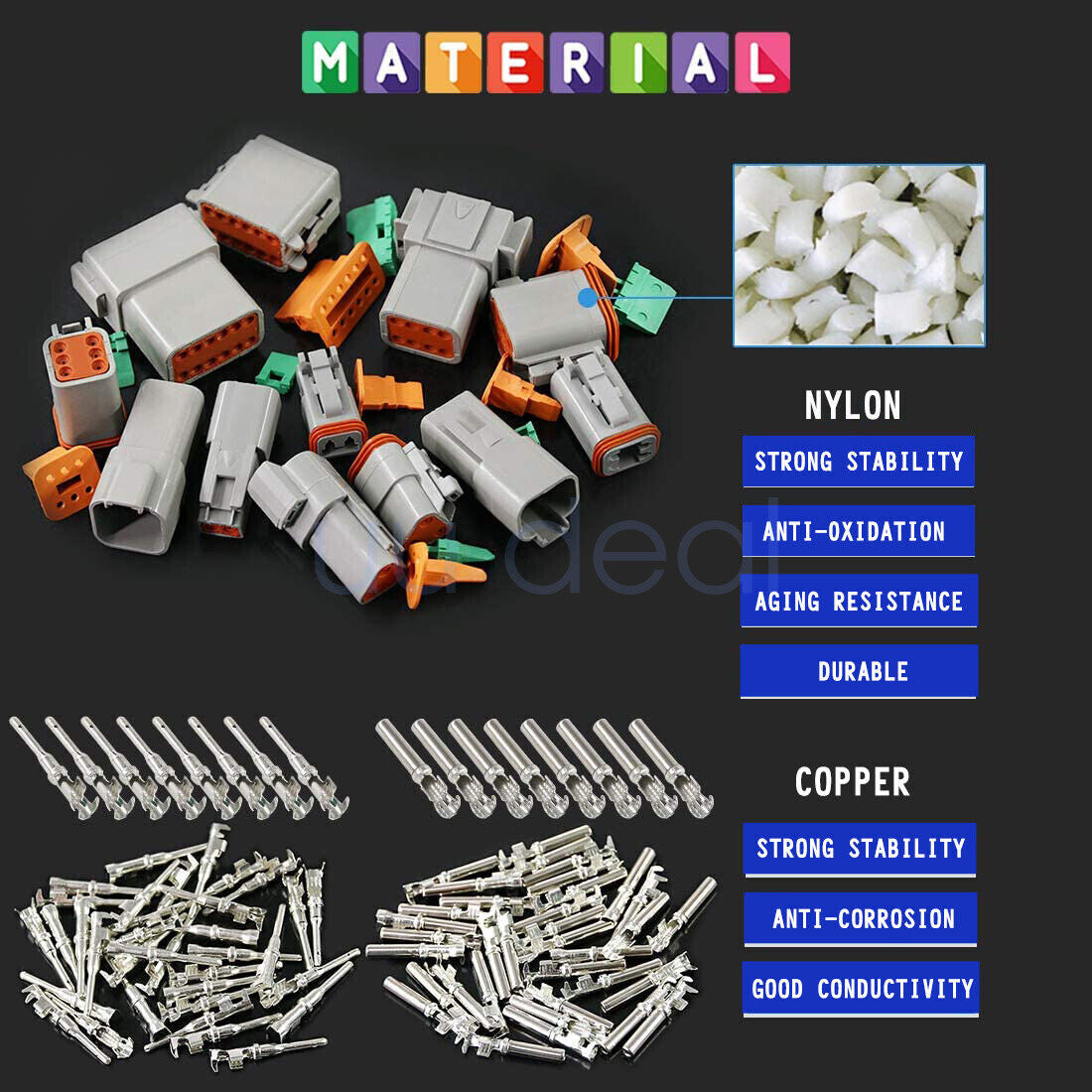

• Nylon housings: the only housing material named, described as corrosion and wear resistant.
• Nickel-plated contacts: nickel plating in the specification, with a phos-copper plating process mentioned in the feature text.

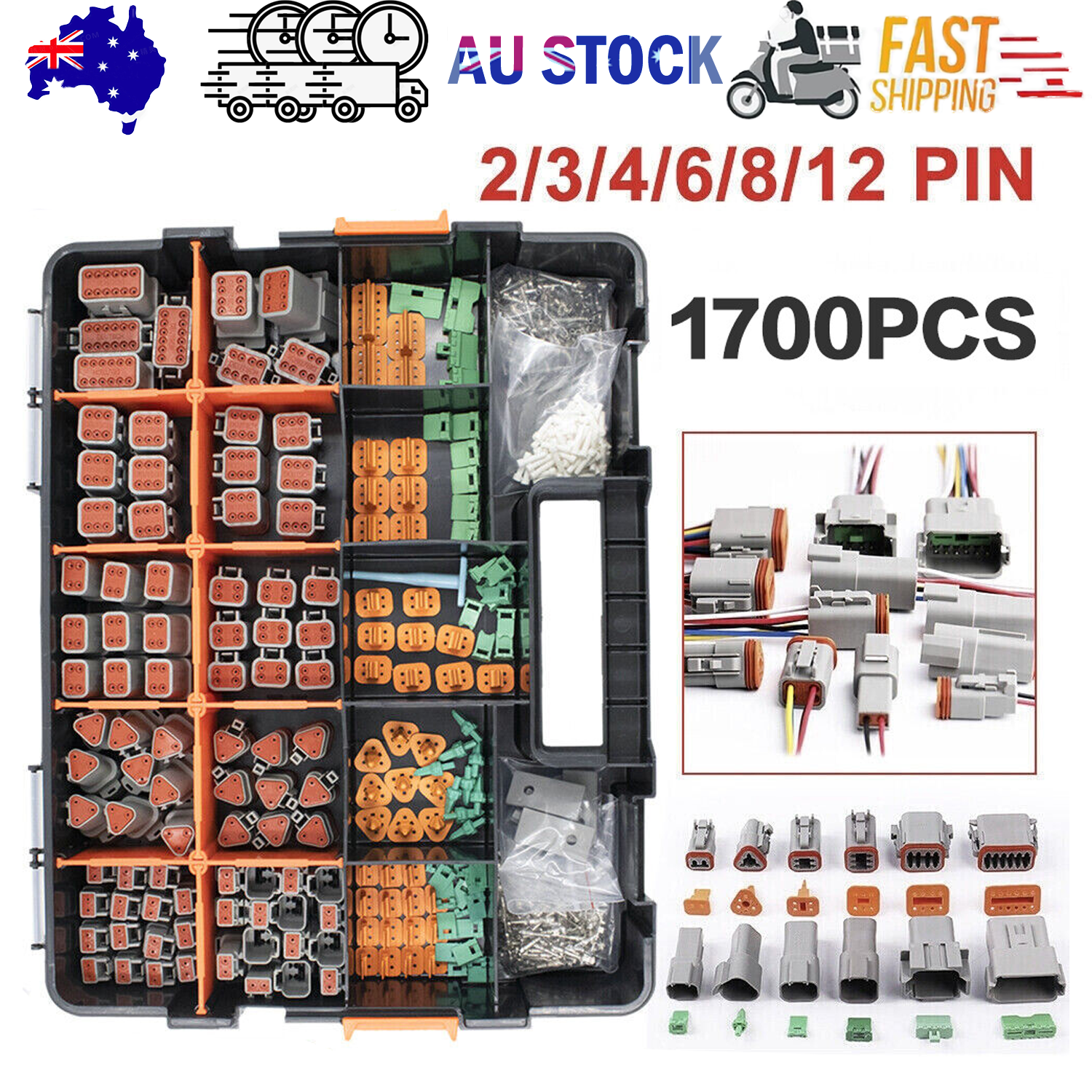

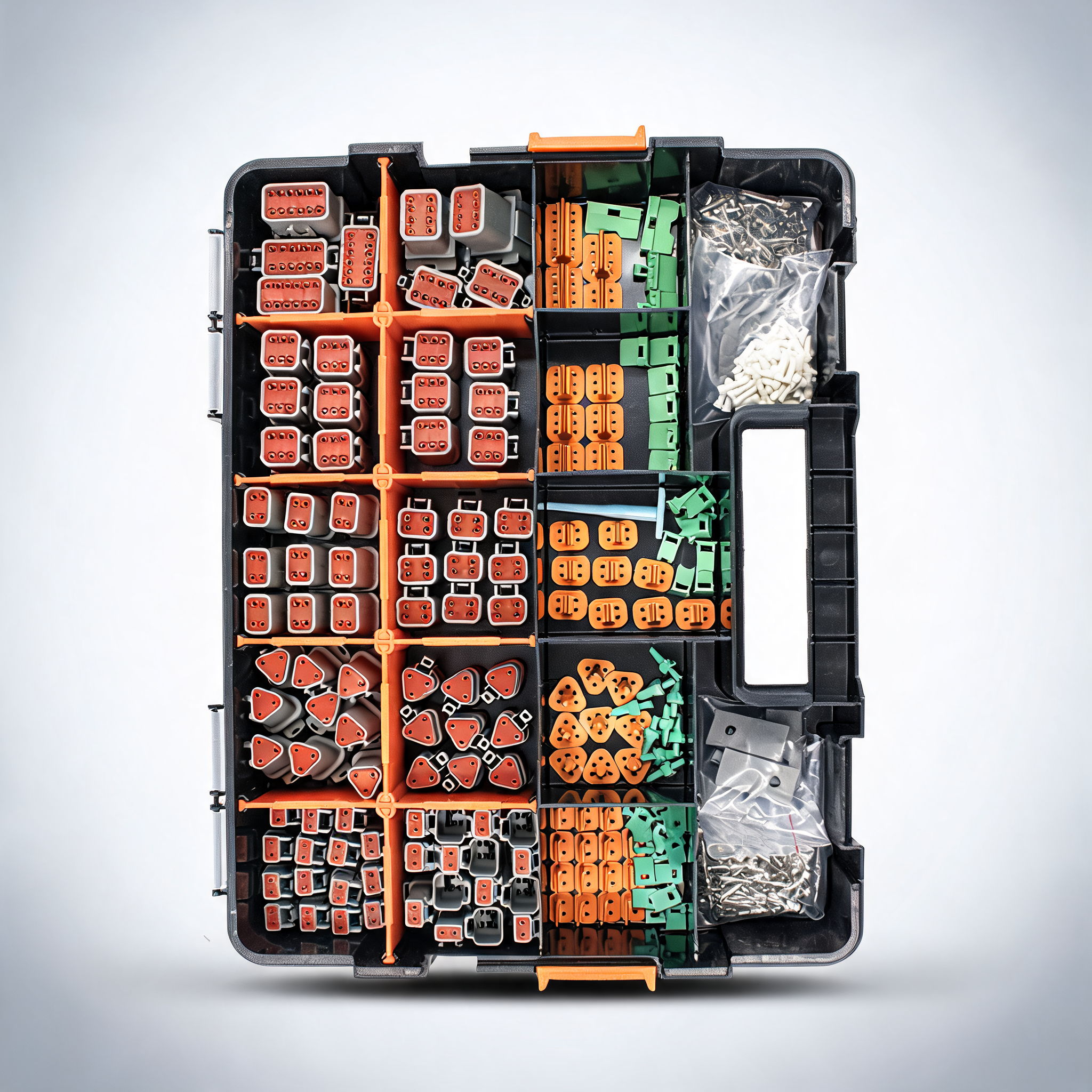

• 17-compartment case: a hard case with seventeen compartments, plus five mounting brackets and one removal tool.

Specifications

• Contact size: 16
• Wire range: 14-20, with no unit stated
• Insulation range: .075-.140 inches, given as [1.90-3.55] in millimetres
• Contact plating: Nickel
• Contact style: the two words Stamped and Formed, with the character between them lost
• Gender: Pin/Male
• Continuous current given: 13 Amps Continuous
• Sealing claimed as: IP68 in the specification, water resistant in the description

Before you order this kit

• The piece count and the contents list do not agree. Eighteen readable lines total 713 against a name that says 1700, and we have not invented the difference or published the larger number as fact.
• The specification opens with a run of connector series, stored as "DT,HD30,HDP20,DRC,HD10,DRB,DTV.AEC,STRIKE,Jiffy Splice". Every line in the contents list is DT. What the remaining names refer to on a kit like this is never stated, and the entry is reproduced above exactly as it stands rather than tidied.
• A 13 Amp continuous rating is given and no voltage accompanies it anywhere on this page. Whether the figure is per contact or per whole connector is also unstated.
• The wire range 14-20 is printed without a unit. There is no operating temperature, no crimp specification and no crimp tool named, on a kit whose only tool removes contacts.
• Damage carried in the stored text, named and left alone. Three places have lost a joining character with a space still standing at each side of the hole: between two of the insertion-tool gauges, between the two halves of the contact-style entry, and between two vehicle abbreviations in the prose. The Gender and Current Rating entries are welded into a single line with nothing at all between them. Beyond that, one wedgelock spelling ends in the wrong letter, one housing code carries a lower-case o where a zero belongs, the same substitution recurs inside a contact part number, and one word has shed a letter. We reprint no broken token as if it were correct, and we guess at none of the missing characters.
• The case is described by its compartment count and by nothing else: no external size, no weight. Nor does any number in this listing arrive with an allowance attached to it.

Take it as a large DT terminal and housing assortment in a compartment case, and count the housings you need against the eighteen lines rather than against the name.
