117PCS Deutsch Kit DT 2 Way Series Connector Plug Waterproof Auto Marine DT 2Pin

The contents block on this listing runs to eight lines and one of them has lost its item. Between 3XDust Plug and 1X 6 Compartment Organizer stands a line whose entire content is the number 33, with nothing beside it to say what thirty-three of anything are. Every other line in the block is a quantity followed by a name. The seven readable lines add to 99 against a name that says 117PCS, and the eighteen-piece difference is exactly the size of the hole that missing item leaves.

What the readable lines do give you

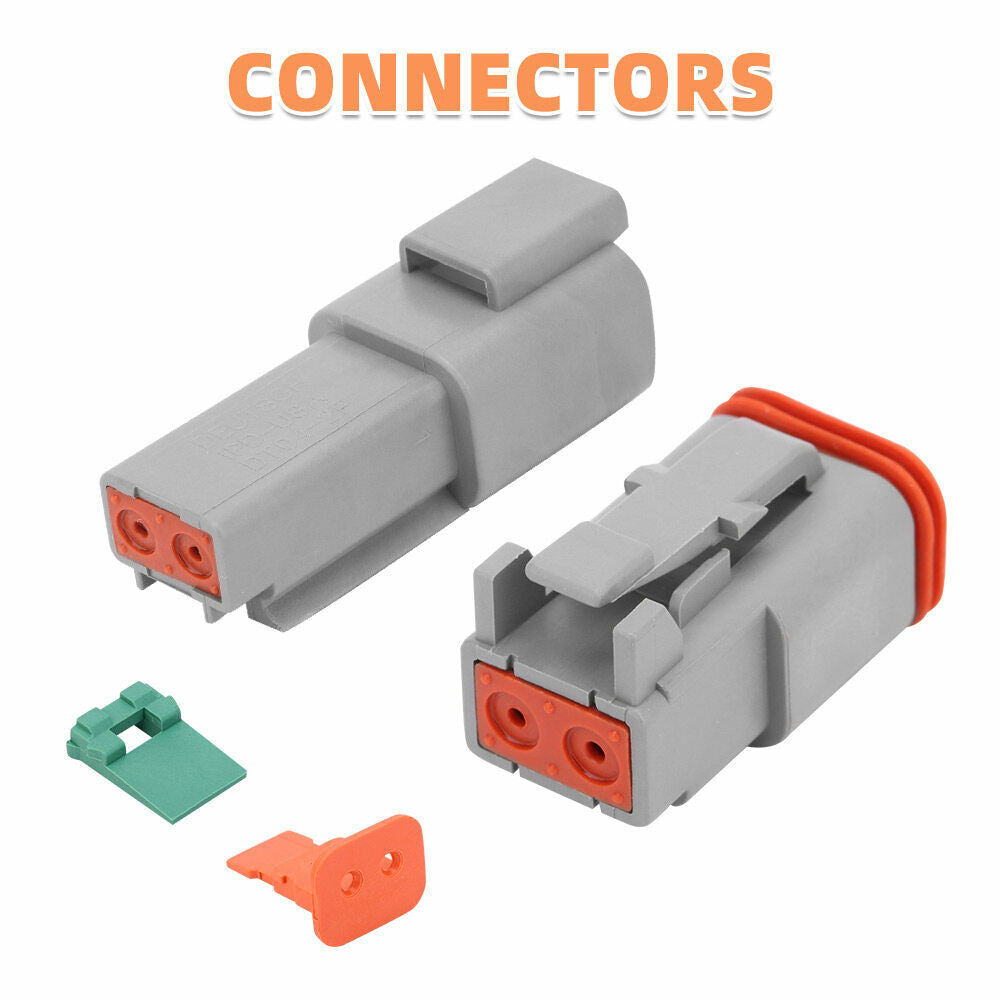

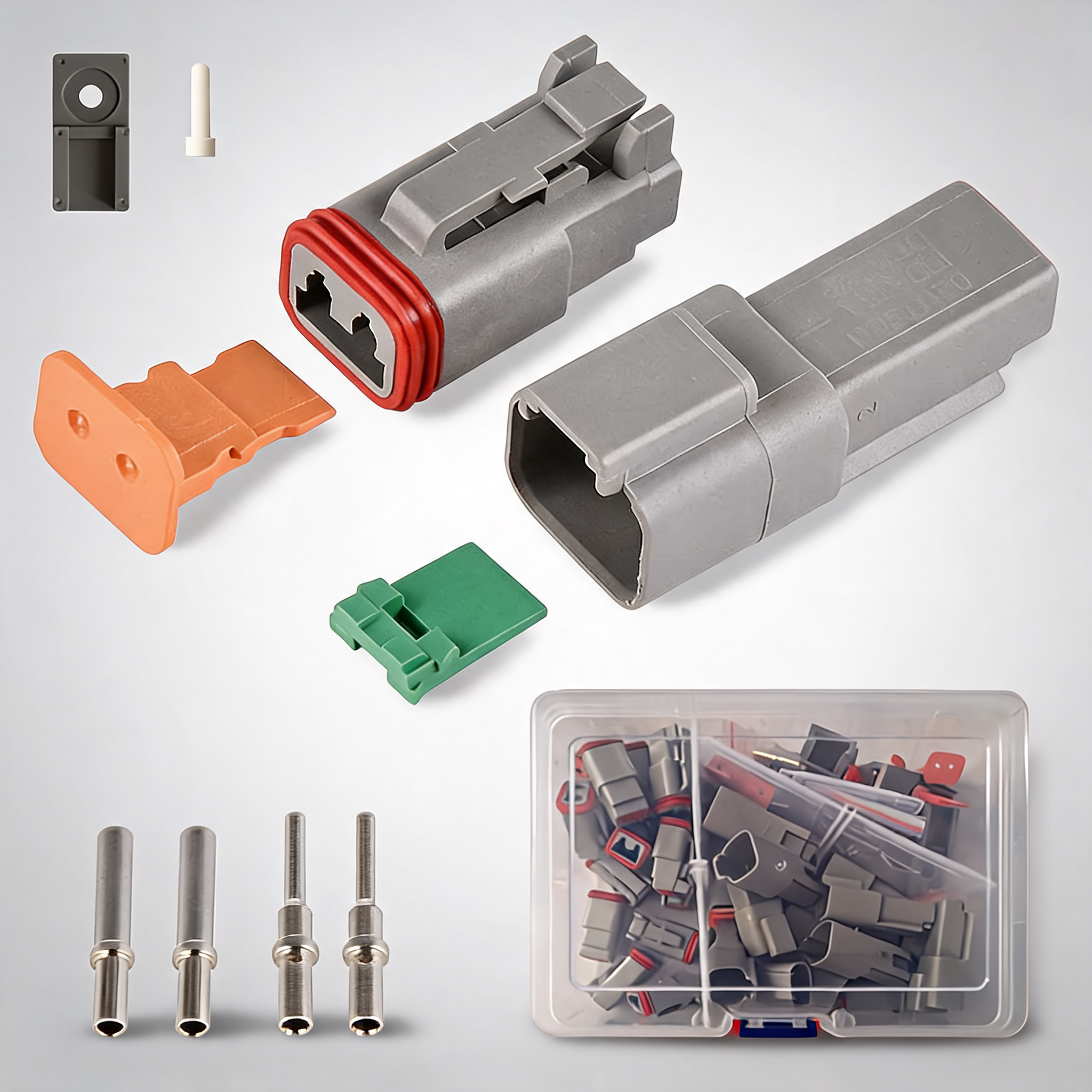

Fifteen two-way male receptacles and fifteen female, thirty size 16 male contacts and thirty female, five mounting clips, three dust plugs and one six-compartment organiser. That is a two-way kit and nothing else: no three, four, six, eight or twelve-way housing appears anywhere in the block, and the contacts are supplied in equal numbers of pins and sockets. The organiser counts as one of the seven readable items.

The environmental figures are the most useful thing here

Operating temperature is given as -55C to +125C, the housing and insert retainer as thermoplastic, the grommet and receptacle seal as silicone rubber, and the contacts as accepting 14-20 AWG cable. The current figure is stated as a property of a contact rather than of a connector: size 16 contacts each with a 13-amp continuous capacity. What a two-way housing carries with both contacts loaded is not stated, and the page offers no way to derive it.

Key features

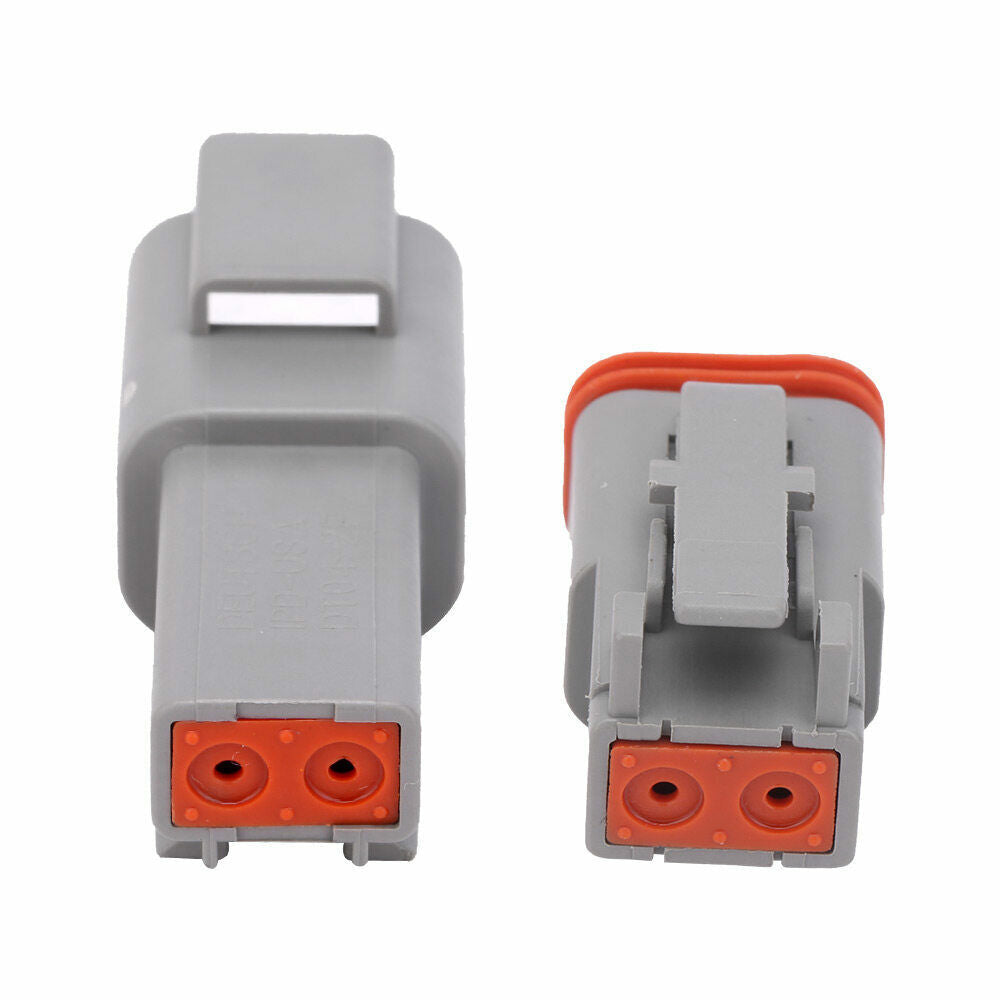

• Two-way only: every housing listed is a DT two-way, fifteen male receptacles and fifteen female.

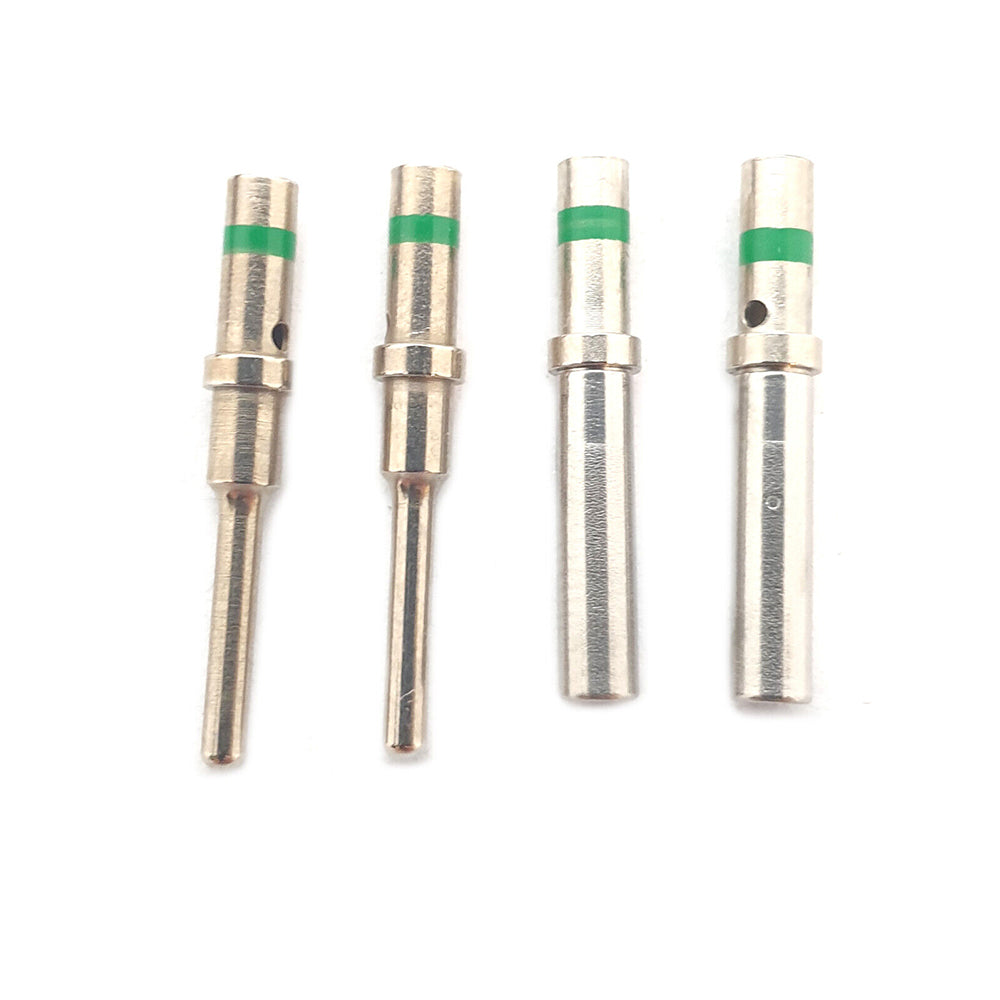

• Contacts one for one: thirty male and thirty female size 16 pins for thirty connector positions.
• Temperature envelope: -55C to +125C, printed as a bare range.

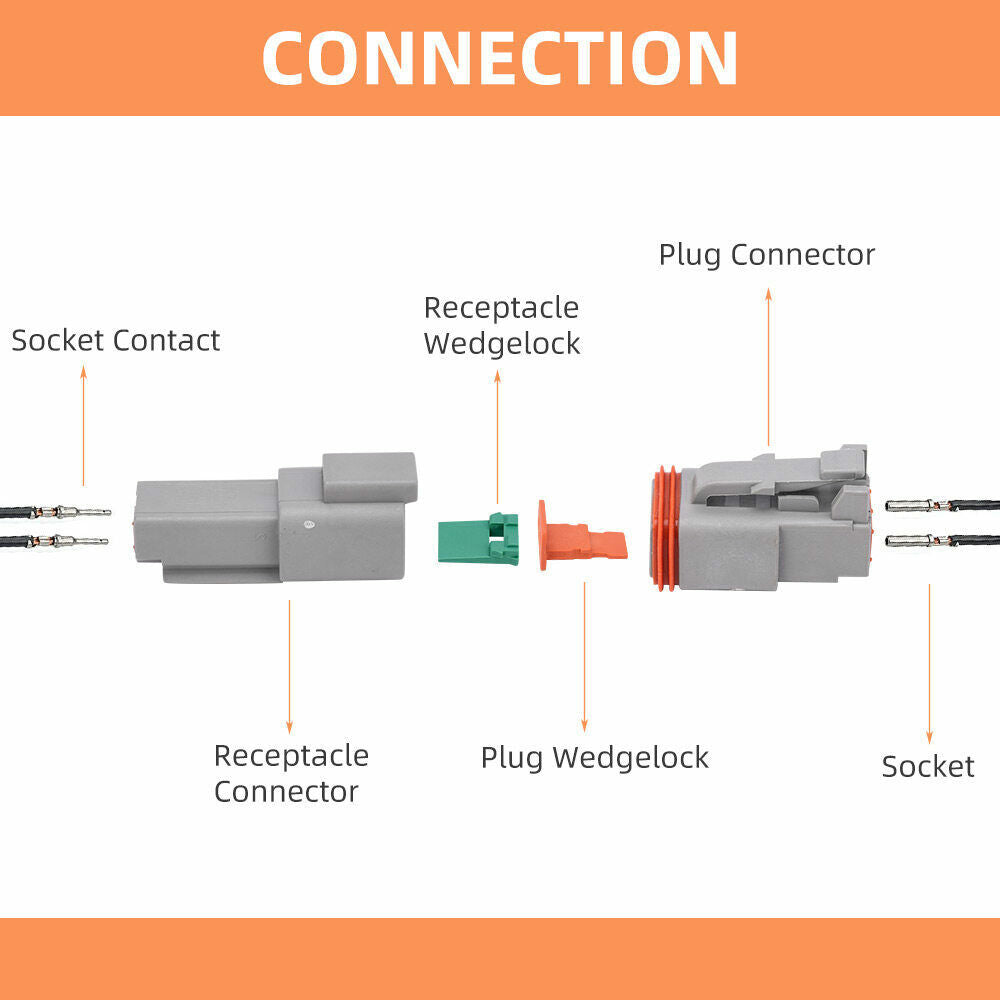

• Wedge locks: described as assuring the contacts stay aligned and retained, and supplied fitted to the receptacles.
• Integrated latch: the mating catch is part of the housing rather than a separate clip.

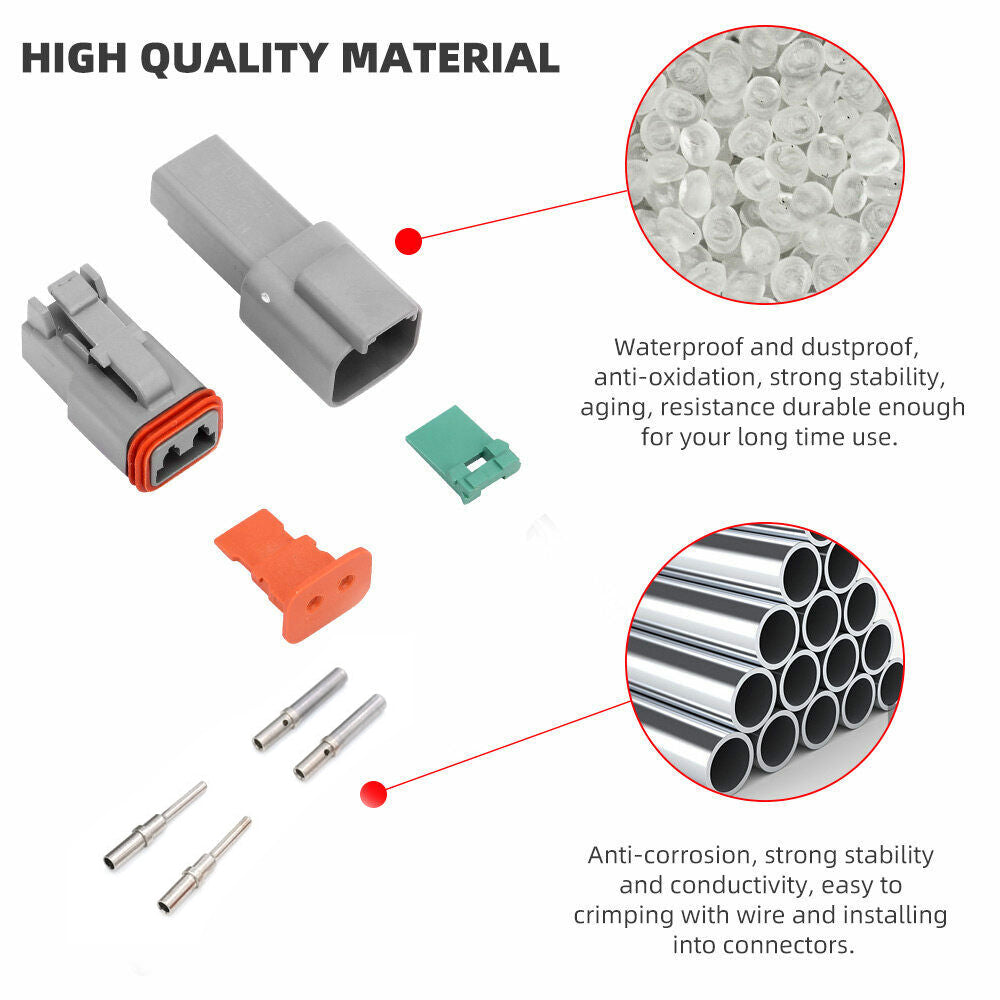

• Silicone sealing: silicone rubber for both the grommet and the receptacle seal.

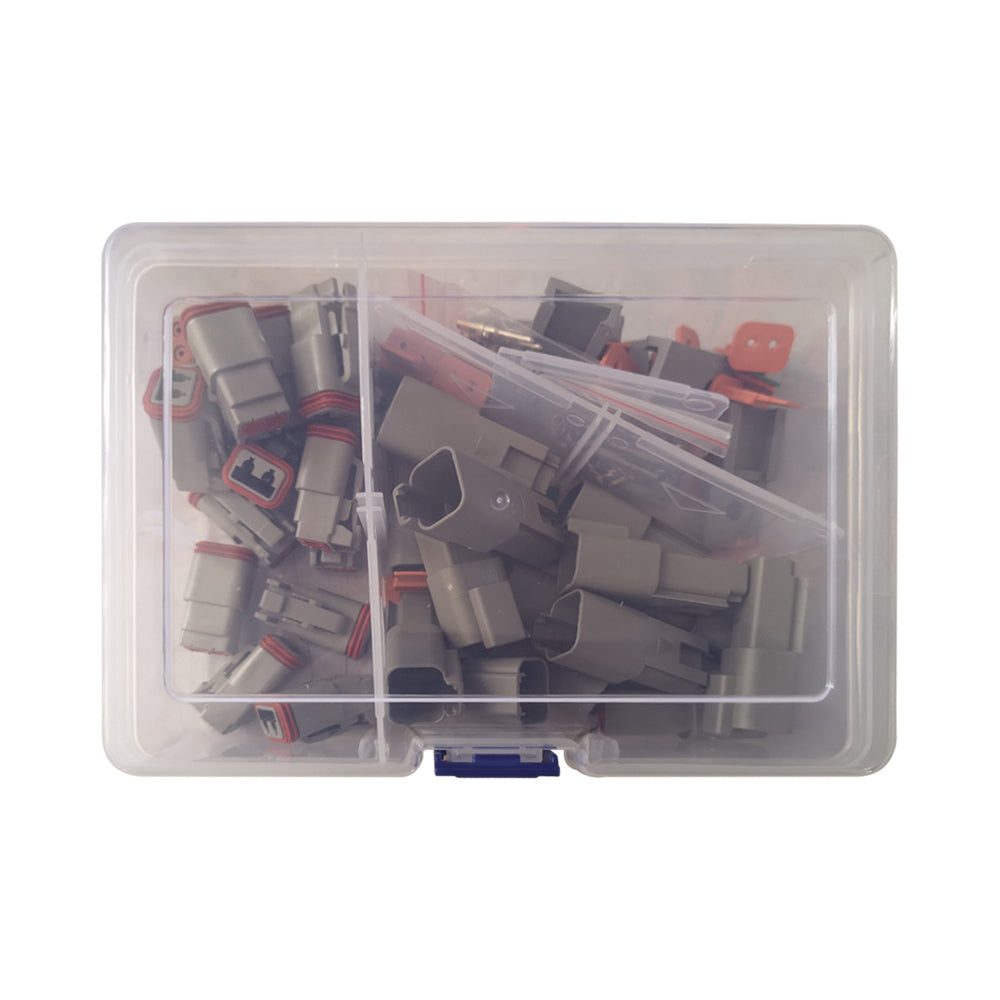

• Clips and plugs: five DT mounting clips and three dust plugs, with an organiser to hold the lot.

Specifications

• Size of the contacts supplied: 16
• Cable range as printed: 14-20 AWG
• Current capacity per contact: 13-amp continuous
• Operating temperature as printed: -55C to +125C
• Grommet and receptacle seal: silicone rubber
• Housing and insert retainer: thermoplastic
• Wedge lock material: thermoplastic
• Readable contents total: 99 across seven lines
• Organiser compartments: 6

What cannot be settled from this page

• A contents line consists of the bare number 33 and no item name. Nothing elsewhere on the listing recovers what it counted, so the distance between 99 and 117 stays open, and no name has been guessed at for it.
• 3XDust Plug is stored without the character that separates quantity from item, where six neighbouring lines have one. It stands exactly as it is.
• Waterproof comes from the product title. Inside the description that word never appears at all: the claims made there are silicone seals and standing up to harsh environments. This page carries the lesser of those claims.
• Behind those sealing claims sits no IP rating of any kind.
• Against the 13-amp continuous figure there is no voltage rating.
• That 13 amps belongs to a contact. No figure exists for what a fully loaded two-way connector will carry.
• Terminating the contacts requires a crimp of some sort, and neither a tool nor a crimping statement appears in the listing.
• Seating a contact, fitting a wedge lock, using the dust plugs: none of these operations is described.
• Nothing identifies a maker, a warranty period or a place of manufacture.
• No value listed above is bracketed by a permitted deviation; the brackets stay empty here too.

Read the seven legible lines as what turns up and hold the missing item as unknown, since on the evidence printed here there is no honest way to name the other eighteen pieces.
