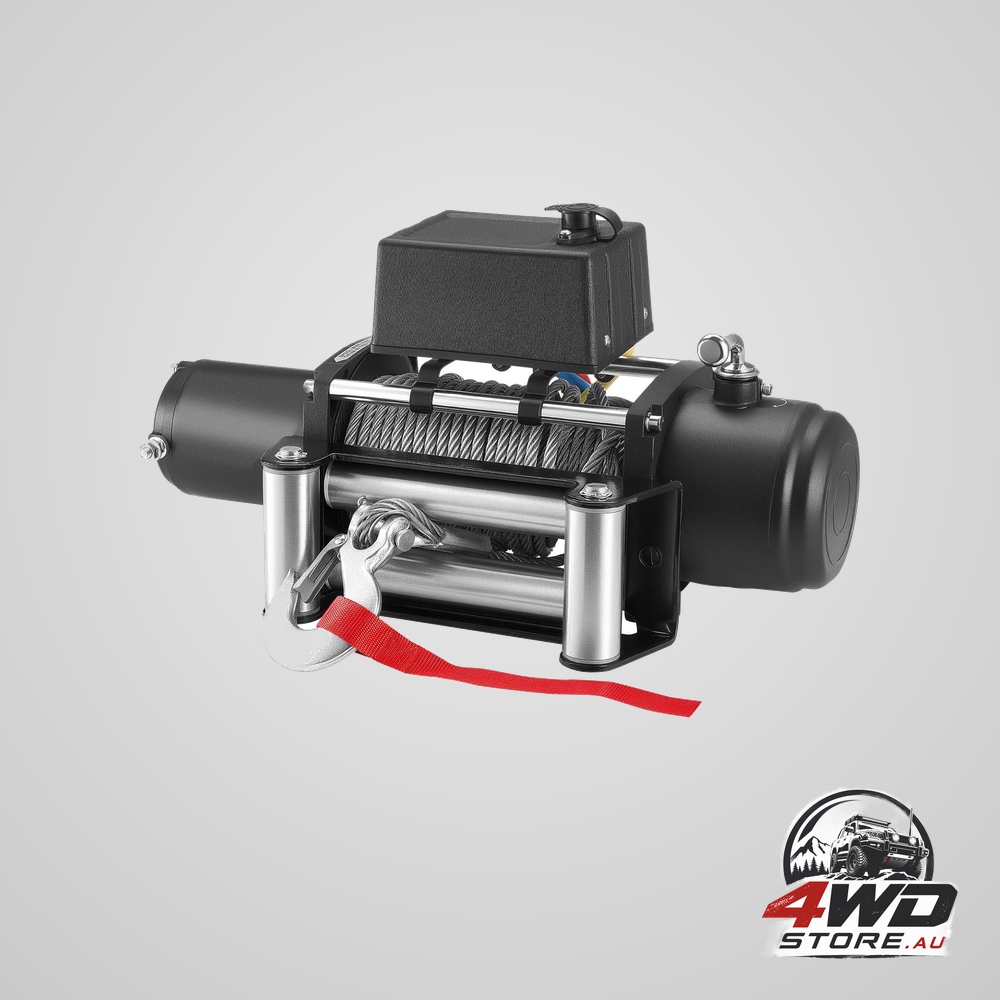

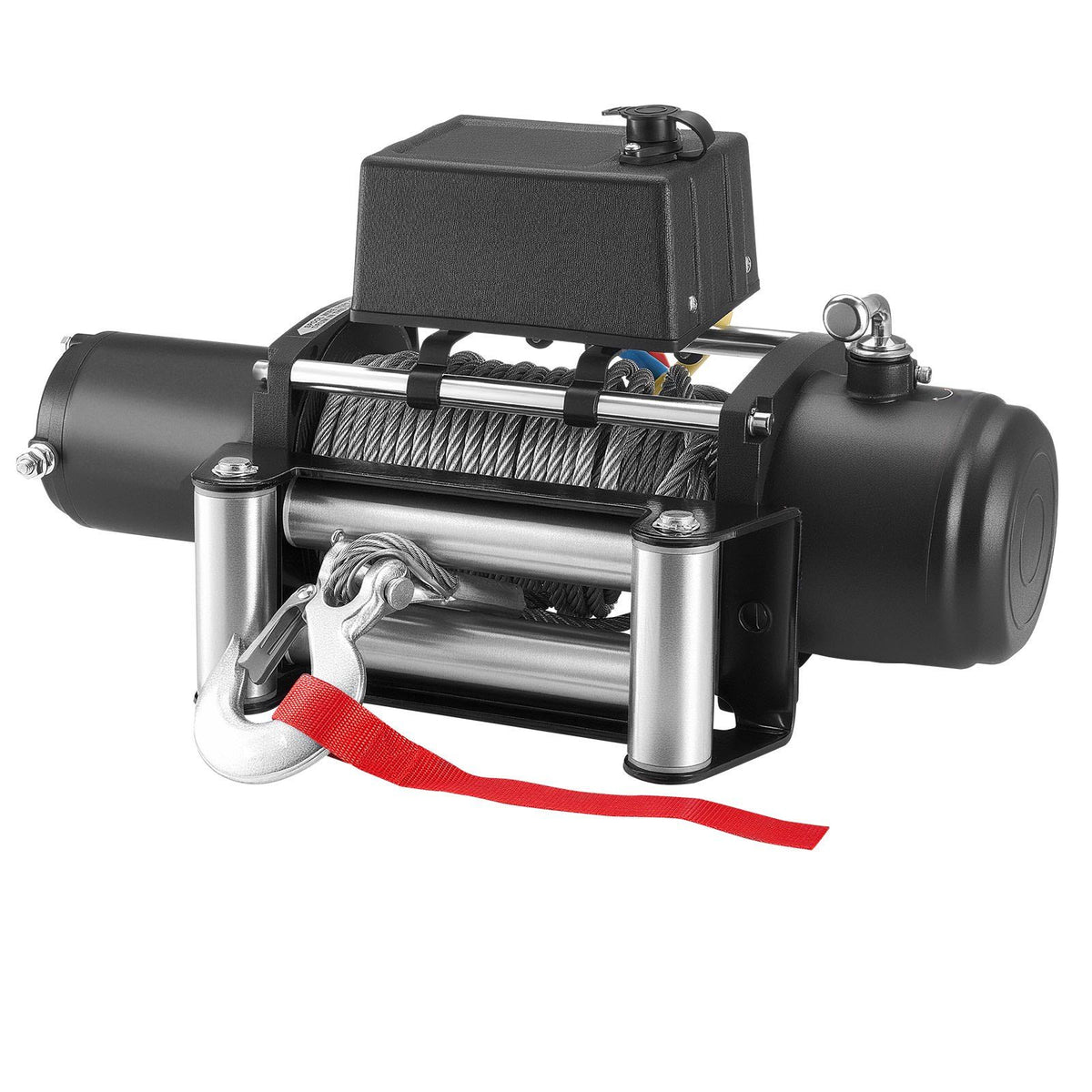

Electric Winch, 4500 kg Load Capacity, 12V DC Truck Winch with Φ8.3 mm x 19.8 m Steel Rope, Wireless & Wired Remote Control, IP55 Waterproof for Towing SUV Jeep Trailer Boat Off-Road Vehicle

Sand at half tide, a rear diff sitting on a hidden rut, and no second vehicle within twenty kilometres. That is the moment a winch stops being an accessory. Bolted to a cradle up front, it turns a recovery into a slow, controlled pull you can run on your own.

Gearing built for the long slow pull

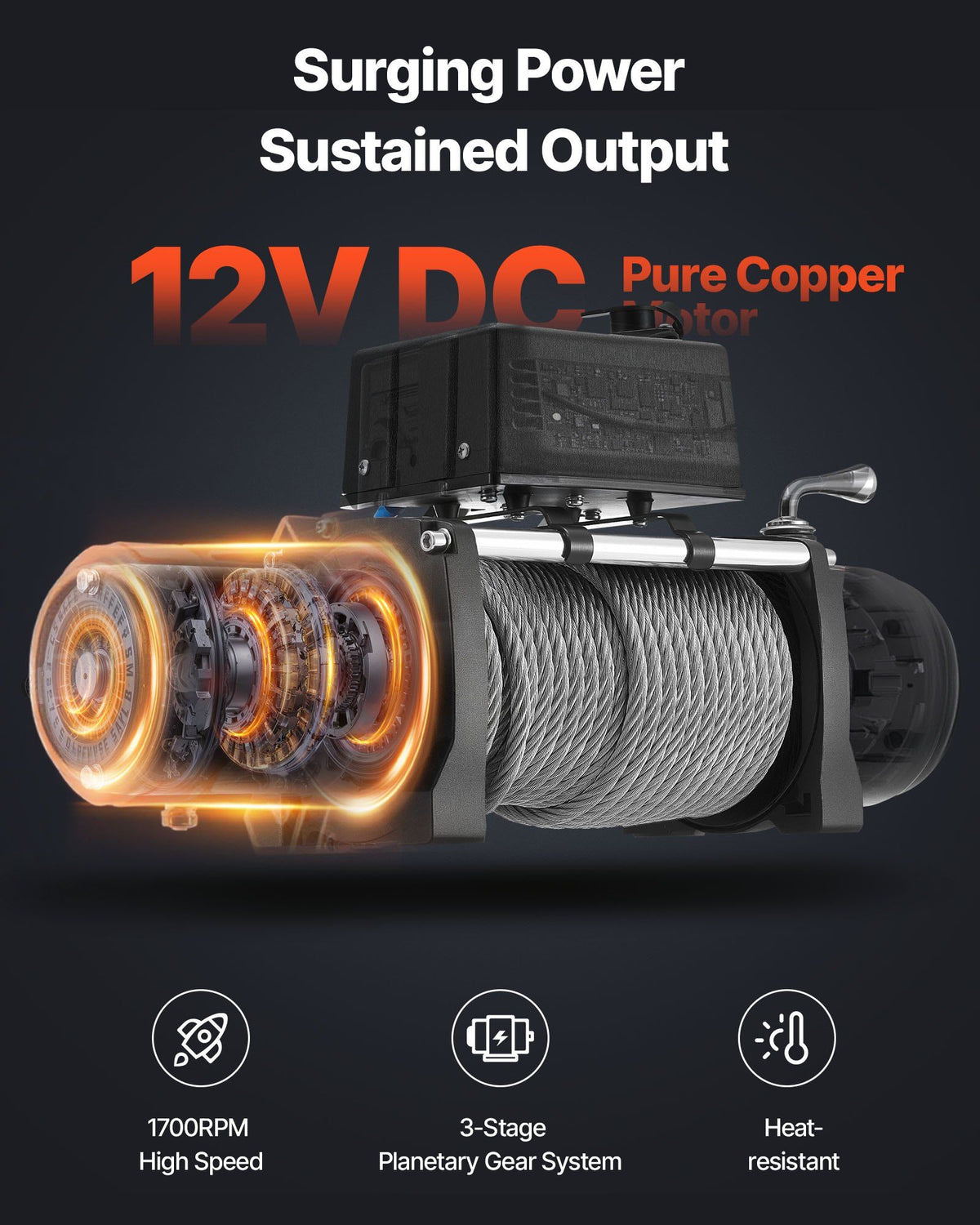

A 265:1 reduction is deep, and it is spread across three planetary stages rather than one. That matters because each stage only has to multiply torque a little, so no single set of gears carries the whole load and the heat generated has more metal to sink into. The practical result is a winch that tolerates a long, slow pull — the kind of drag that gets a bogged ute out of soft sand a hundred millimetres at a time — instead of only short bursts. The 3 HP motor supplies the input, and the deep reduction converts it into line pull rather than speed.

Steel rope, and where to stand

The rope is 8.3 mm steel, 19 strands laid up rather than a solid cable, running 19.8 m from the drum. Steel takes abrasion — dragging over rock shelves, through gravel, against a bar — better than synthetic line does, and it does not soak up water. The trade-off is that steel stores energy under tension, which is why the wireless remote's roughly 18 m (59 ft) range earns its keep: you can stand well clear of the rope while the drum turns. A 3 m (9.8 ft) wired remote comes along too, for the days the wireless has no signal or a flat battery.

Built to work wet and dusty

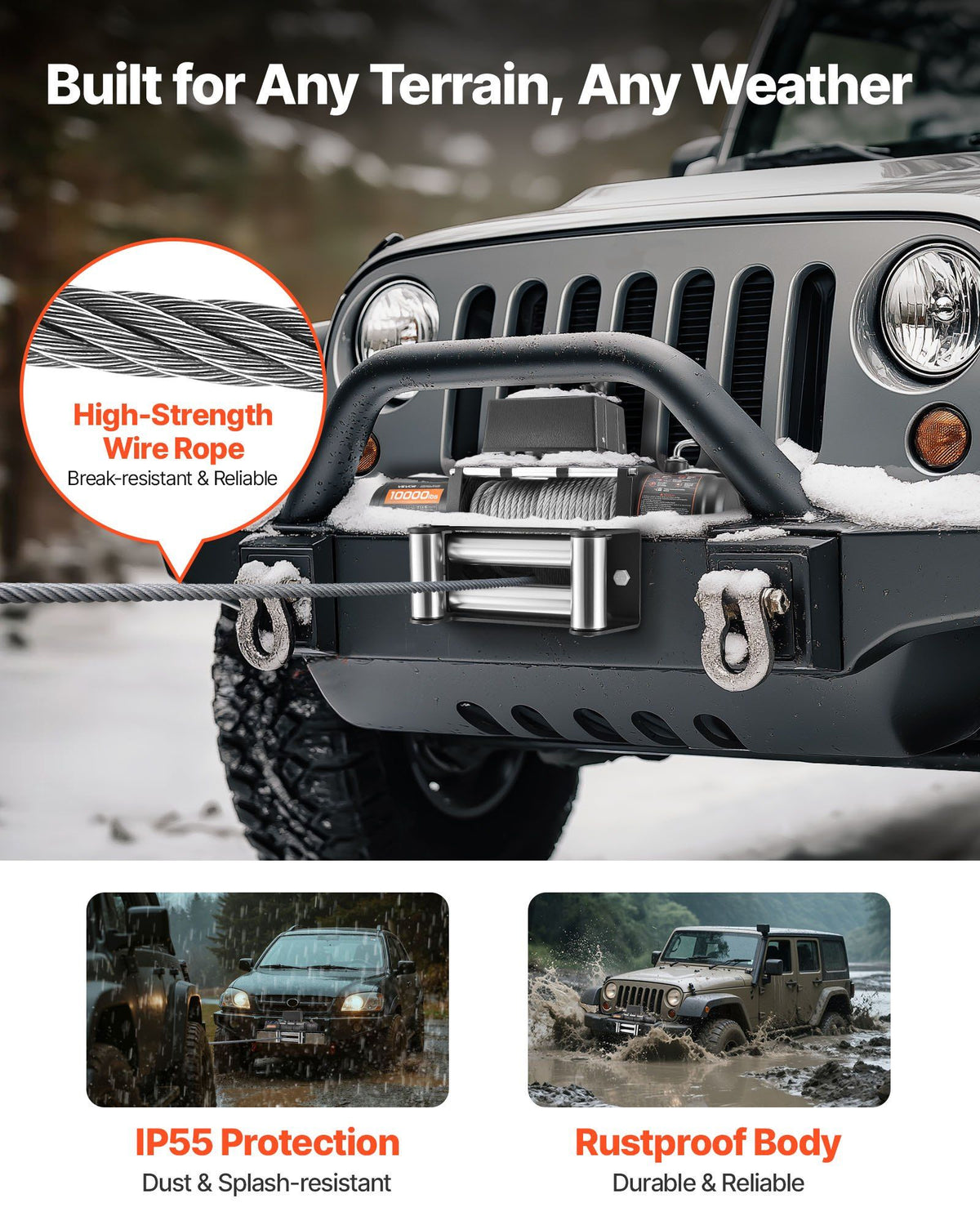

Recoveries happen in the weather you would rather be inside from. The housing is coated alloy with IP55 sealing, which covers dust ingress and water sprayed from any direction — rain, road spray, a hose at the end of the day. It is not an immersion rating, so a crossing deep enough to put the winch under is still asking too much of it. Alloy also sheds heat faster than a steel case, which is useful on a pull long enough to warm the motor.

Key features

• Three-stage planetary drive: 265:1 reduction spread over three gear sets, so no one set carries the whole multiplication.
• 19-strand steel rope: 8.3 mm by 19.8 m, chosen for abrasion resistance over rock and gravel.
• Two remotes: wireless for working at a distance, wired as the backup that never needs a battery.
• IP55 sealing: rated against dust and sprayed water, in a coated alloy housing.
• 12 V DC: runs off the vehicle's own electrical system.

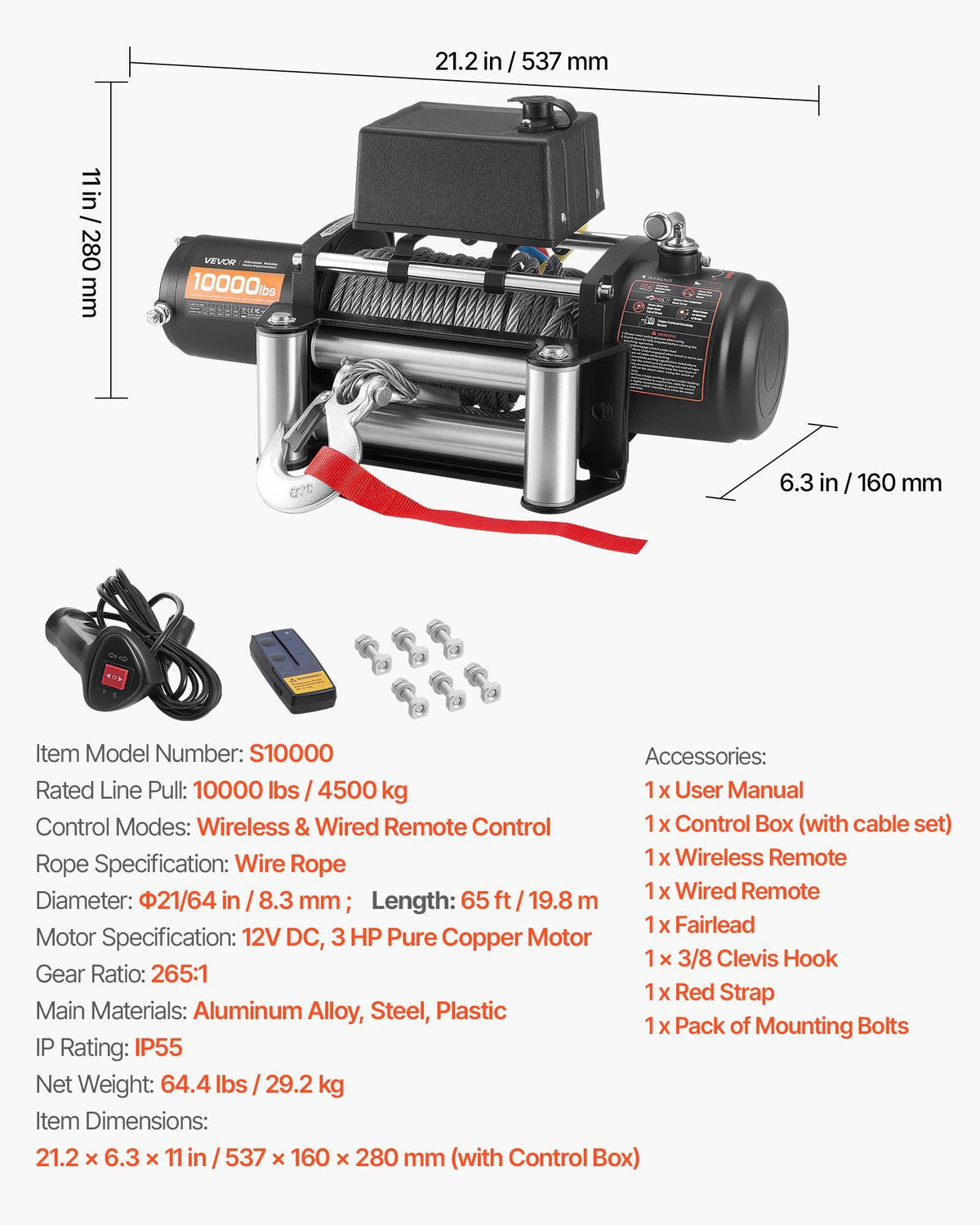

Specifications

• Rated capacity (product title): 4500 kg

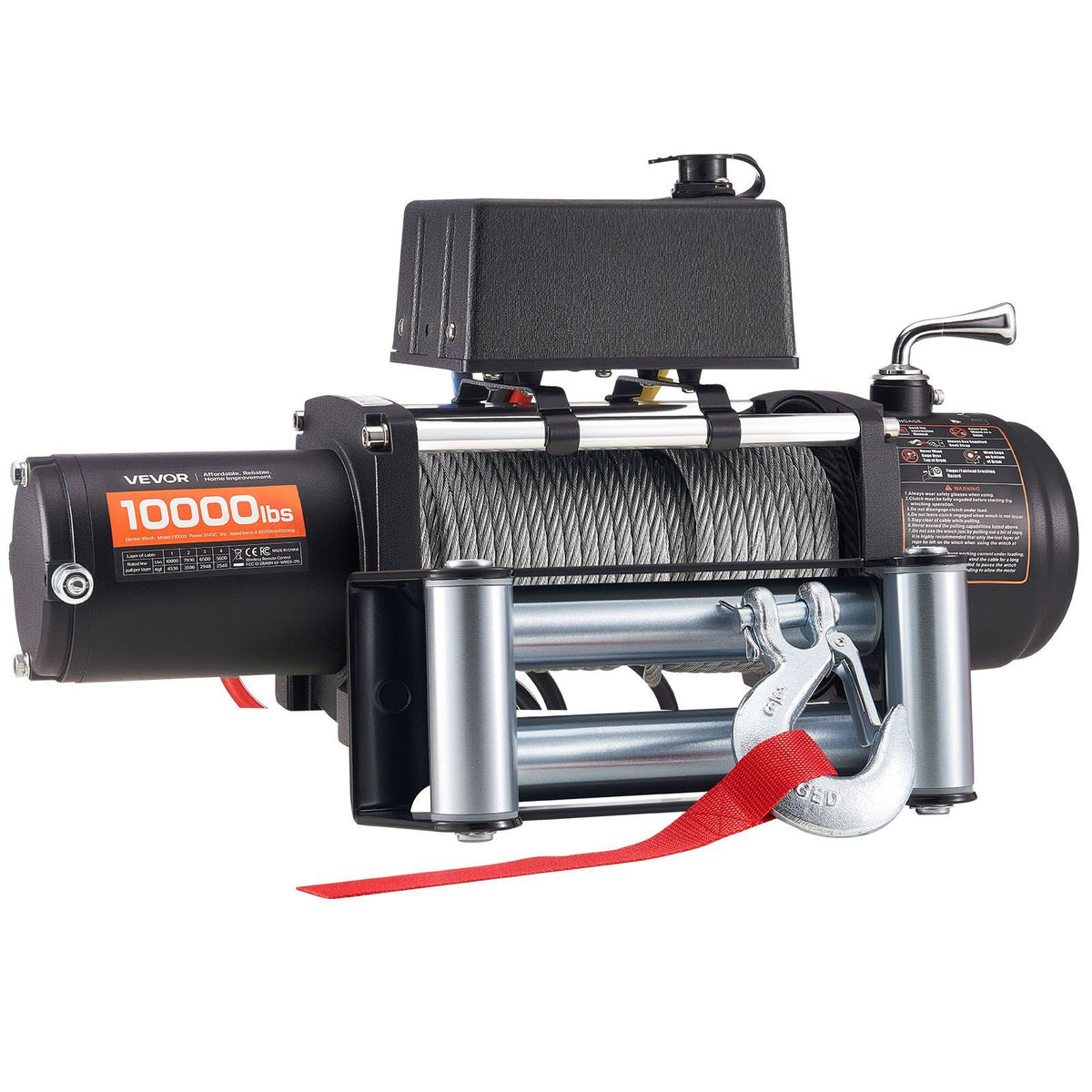

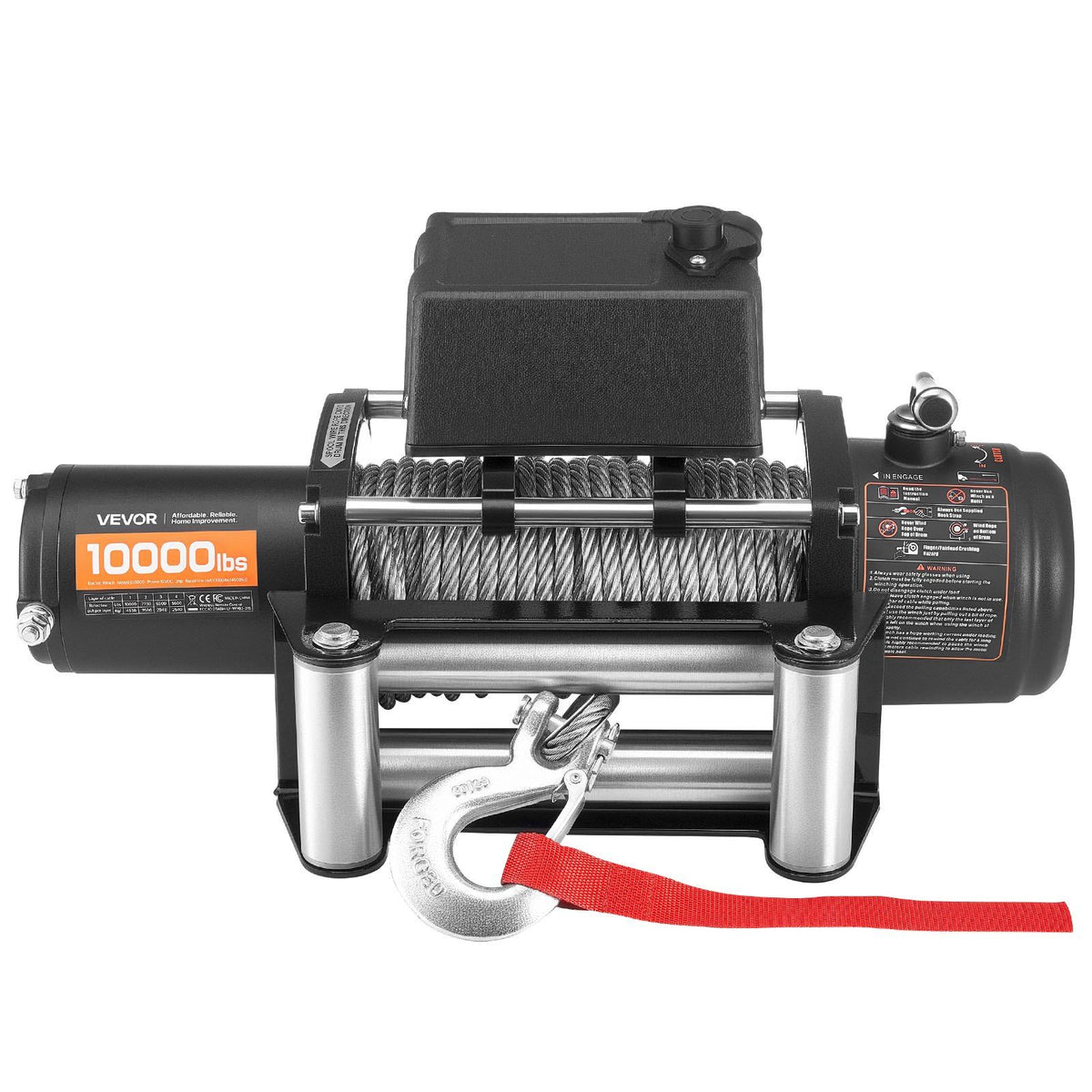

• Rated pull (supplier feature text): 10,000 lbs
• Basis of rating: not stated — the supplier does not say whether this is a first-layer, single-line figure
• Motor: 3 HP, 12 V DC
• Gearing: three-stage planetary, 265:1
• Rope: 8.3 mm (21/64 in) 19-strand steel, 19.8 m (65 ft)
• Sealing: IP55
• Housing: coated alloy
• Wireless remote range: 59 ft as quoted by the supplier (about 18 m)
• Wired remote lead: 9.8 ft as quoted by the supplier (about 3 m)

What's in the box

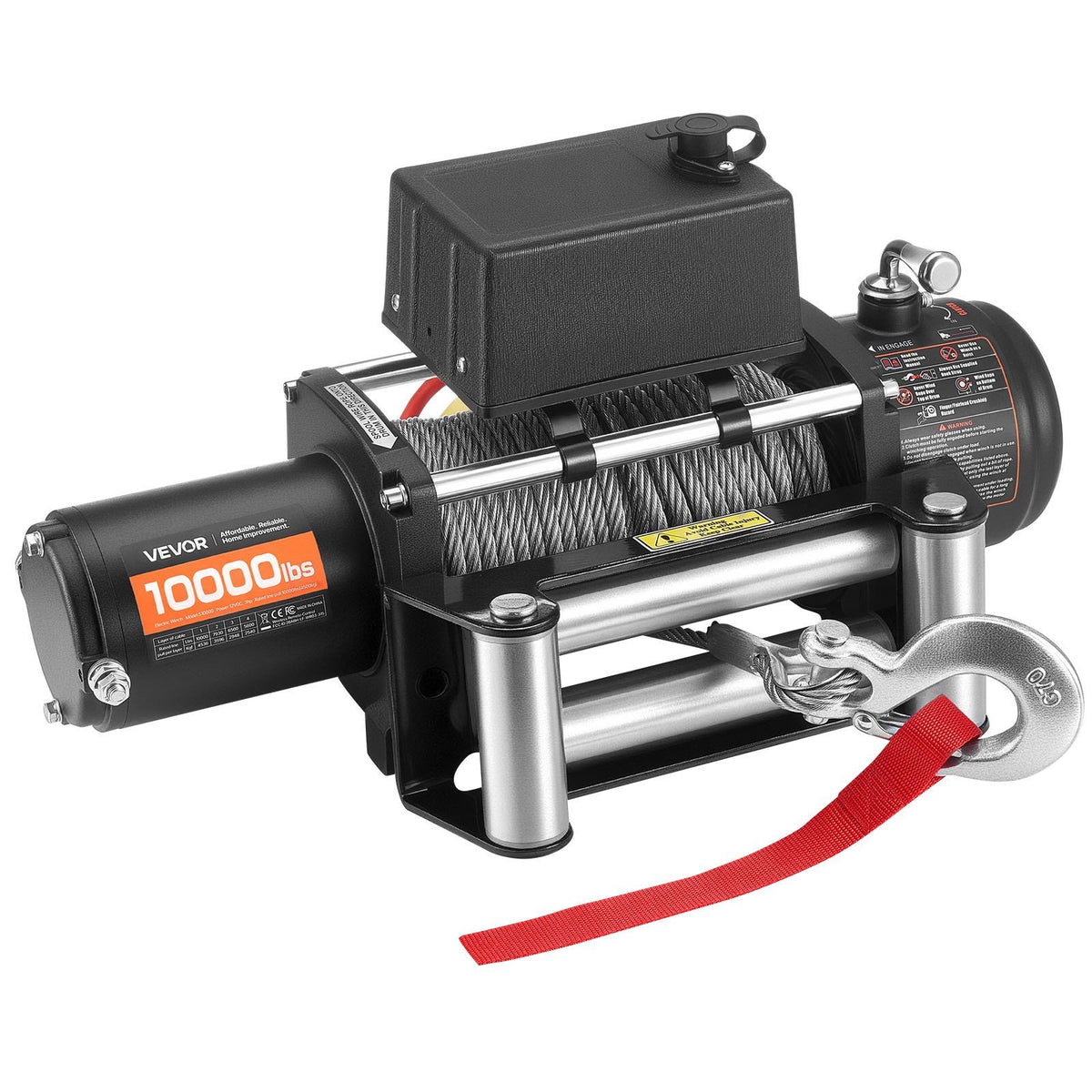

• Winch: with the steel rope already spooled on the drum.
• Fairlead: guides the rope onto the drum through the bumper or cradle.
• Hook: for the working end of the rope.
• Power cables: for the connection back to the battery.
• Remotes: wireless handset and wired controller.

Before you mount it

• The two capacity figures above are both the supplier's own and are listed separately rather than reconciled. Neither has been converted or rounded here, and the supplier does not state the basis for either.
• No standard, certification or test rating is claimed for this winch. The supplier names none.
• This is a recovery winch, rated for pulling. No lifting or load-suspension rating is given, so do not use it as a hoist or to hold a load overhead.
• The supplier describes the mounting pattern as suiting most SUVs, utes and Jeeps. Measure the bolt spacing on your own bull bar or winch cradle against the winch before you order, and check that the mount and the vehicle are rated for the loads a winch puts through them.
• Steel rope under tension holds energy. Lay a damper or heavy blanket over the line, keep bystanders out of the arc, and never step over a loaded rope.

A sensible fit for a touring 4WD, a work ute or a trailer and boat setup where the recovery gear needs to earn its keep occasionally rather than every weekend.
